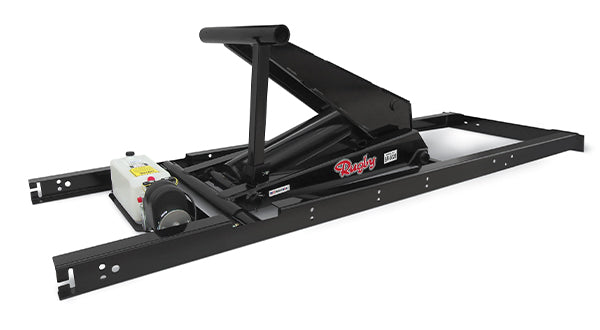

Rugby LR-516 Low-Mount Scissor Hoist
The Rugby LR-516 is part of the LR Series of low-mount scissor hoists, built with a low profile so it adds minimal height to the body, for dump and conversion applications. Rugby hoists are black powder coated for a durable, rust-resistant finish and carry Rugby's 3-year warranty.
| Model | LR-516 |
|---|---|
| Series | LR Series low-mount scissor hoist |
| Body lengths | 8' - 12' |
| NTEA class | C / 20 |
| Cylinders | 1 |
| Bore | 5" |
| Stroke | 16" |
| Rod diameter | 2" |
| Mounting height | 5.75" |
| Recommended CA/CT | 60 - 84" CA |
| Capacity range | 6.3 - 15.3 T |
| Approx. weight | 500 lbs |
| Available hydraulics | SA, DA, DM |
Capacity range includes both payload and body weight, based on 3,200 PSI with a water-level load; see Rugby's capacity reference charts for your body length. Hydraulics: SA = single acting, DA = double acting, DM = direct mount.
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
