Rugby TR Series Dump Trailer Hoists

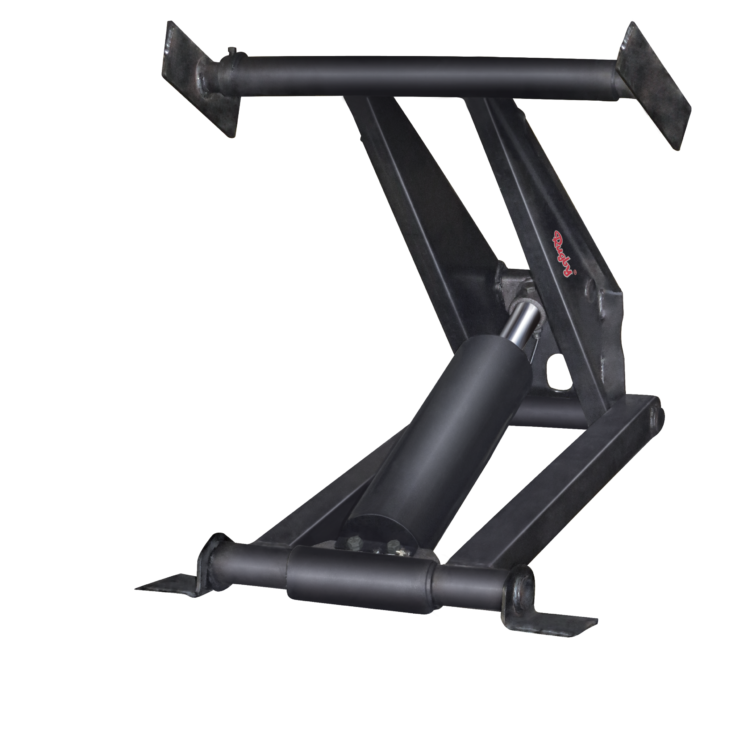

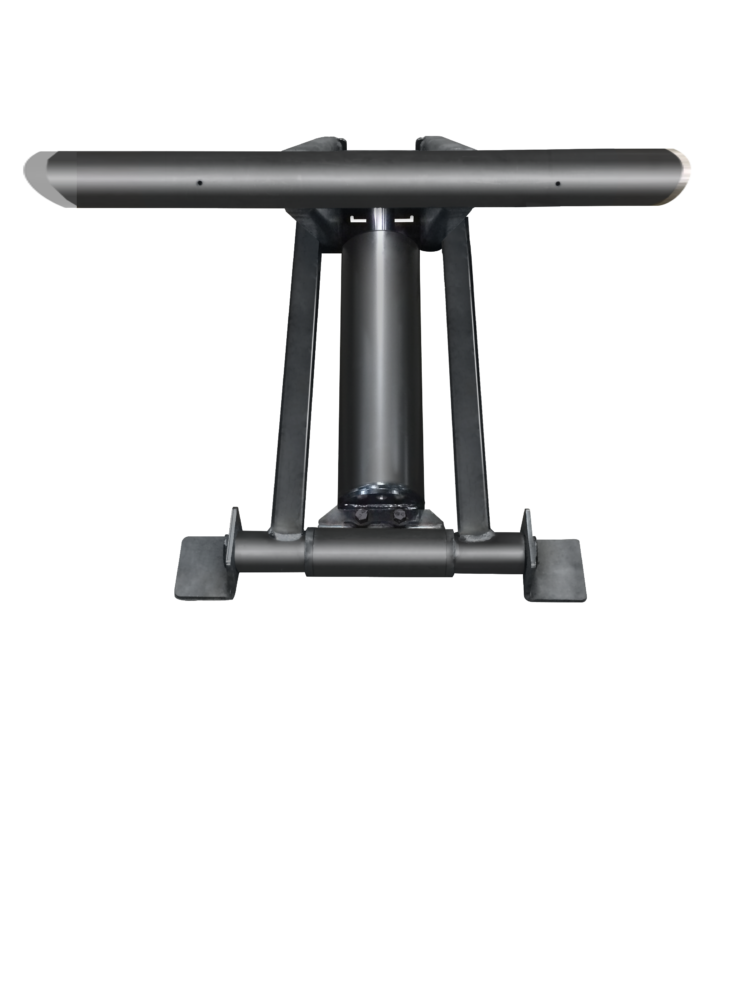

Rugby's redesigned TR Series is an 8-model line of hoists made specifically for dump trailers, with direct-push and scissor designs. Lifting capacities run from 3.2 to 16.8 tons for trailers 8' to 24' long. Each model is tested for an extended life cycle at full rated capacity and carries Rugby's 3-year warranty.
| Models | TR10DP, TR-8, TR-10, TR-12, TR-14, TR-16, TR-18, TR-20 |
|---|---|
| Capacity range | 3.2 - 16.8 tons (water-level load at 45 degree dump angle) |
| Trailer lengths | 8' - 24' |
| Max. "up" pressure | 3,200 PSI |
| Max. "down" pressure | 1,000 PSI |
Models
| Model | Hoist type | Body lengths | Mounting height | "M" dimension | Max. flow (GPM) |
|---|---|---|---|---|---|
| TR10DP | Direct push | 8' - 12' | 5" | n/a | 3 |
| TR-8 | Scissor | 8' - 10' | 5.25" | 46" | 3 |
| TR-10 | Scissor | 9' - 14' | 6.5" | 78.5" | 4 |
| TR-12 | Scissor | 10' - 14' | 7" | 78.5" | 6 |
| TR-14 | Scissor | 10' - 16' | 9" | 78.75" | 6 |
| TR-16 | Scissor | 14' - 18' | 7.75" | 97.75" | 9 |
| TR-18 | Scissor | 16' - 18' | 8" | 100" | 9 |
| TR-20 | Scissor | 18' - 24' | 8" | 129" | 9 |
Features
- Powder-coated hoist frame and cylinder
- Fully greaseable pivot points
- Double-acting cylinders with hardened chrome shafts
- Factory tested for performance and durability
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
