VANPRO PACKAGE FT2

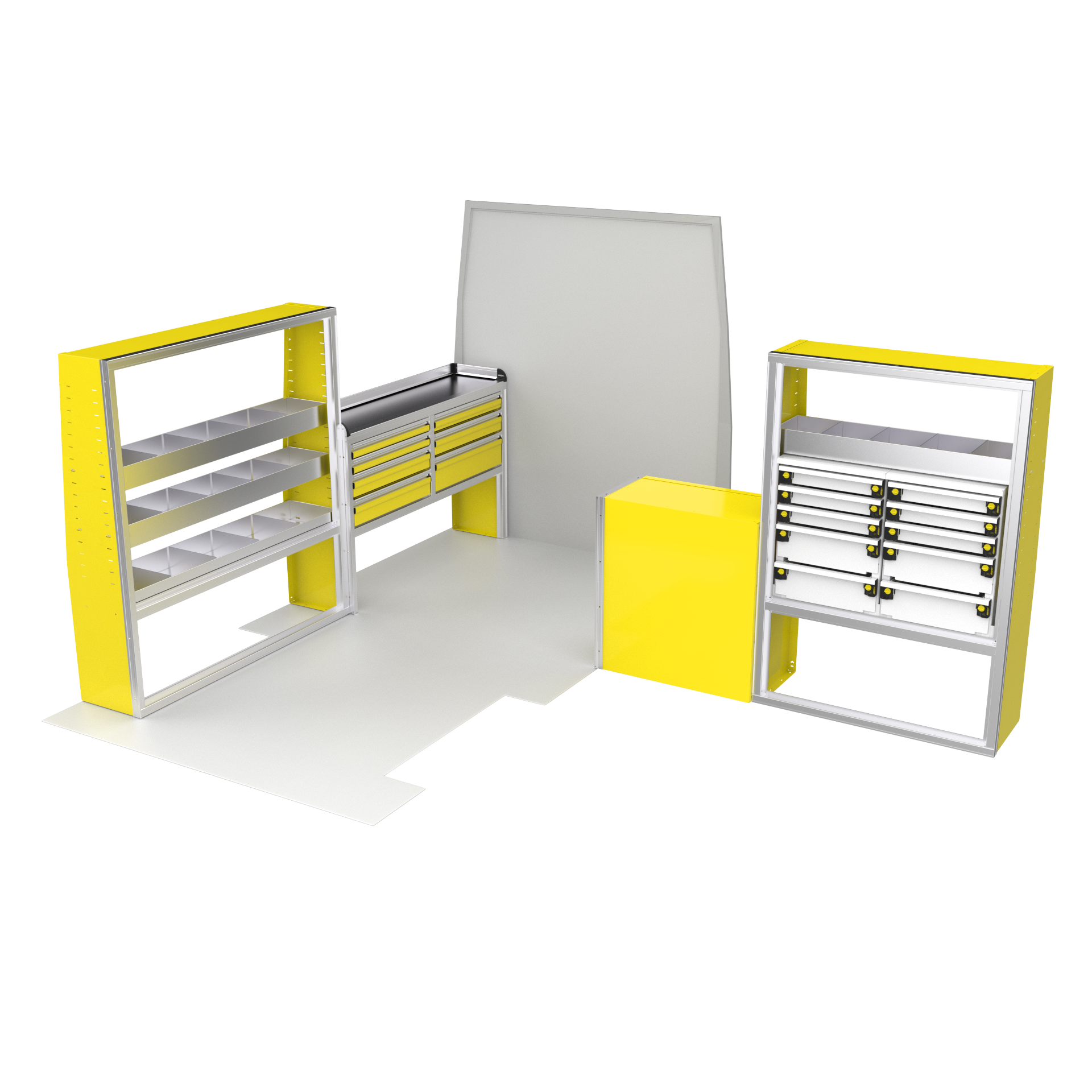

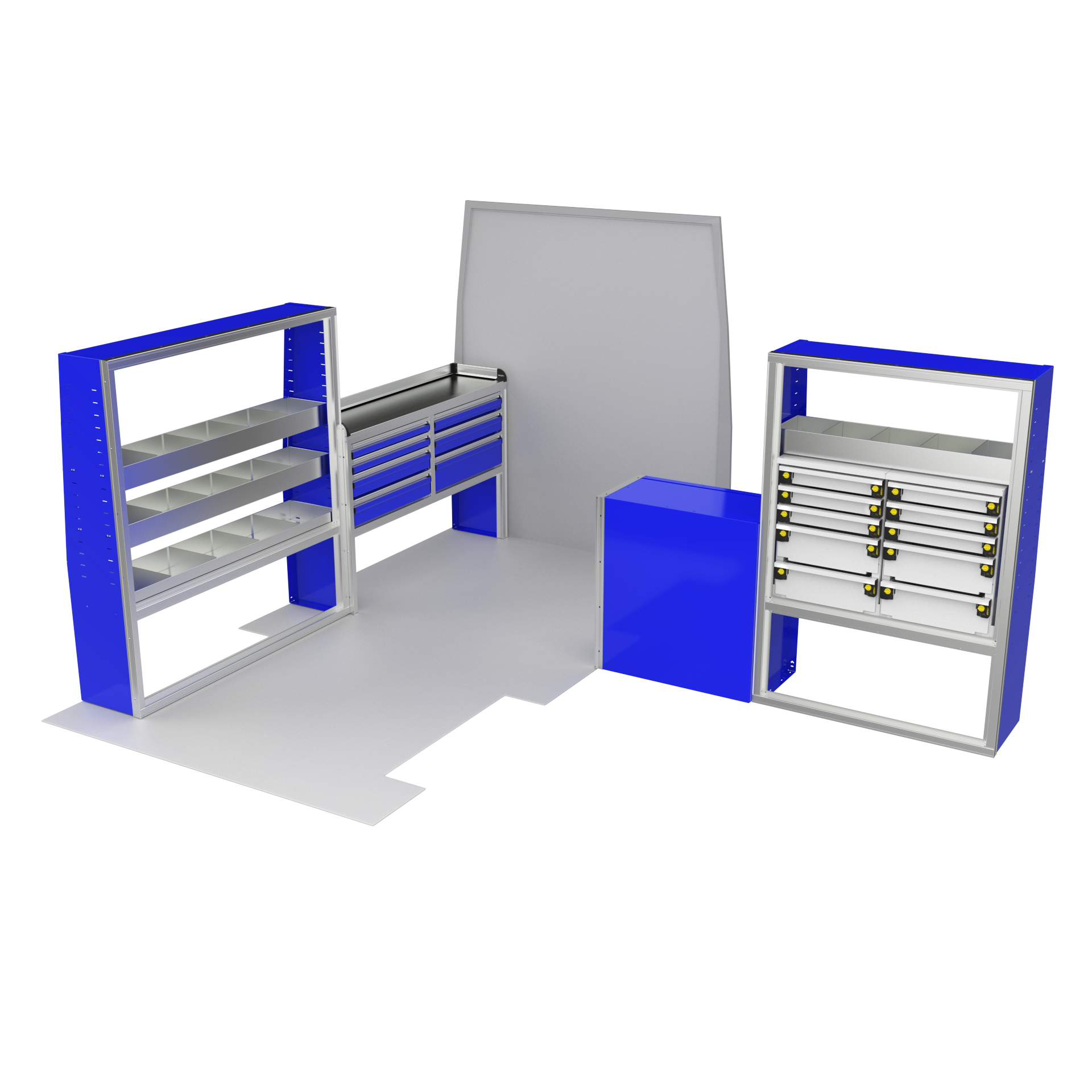

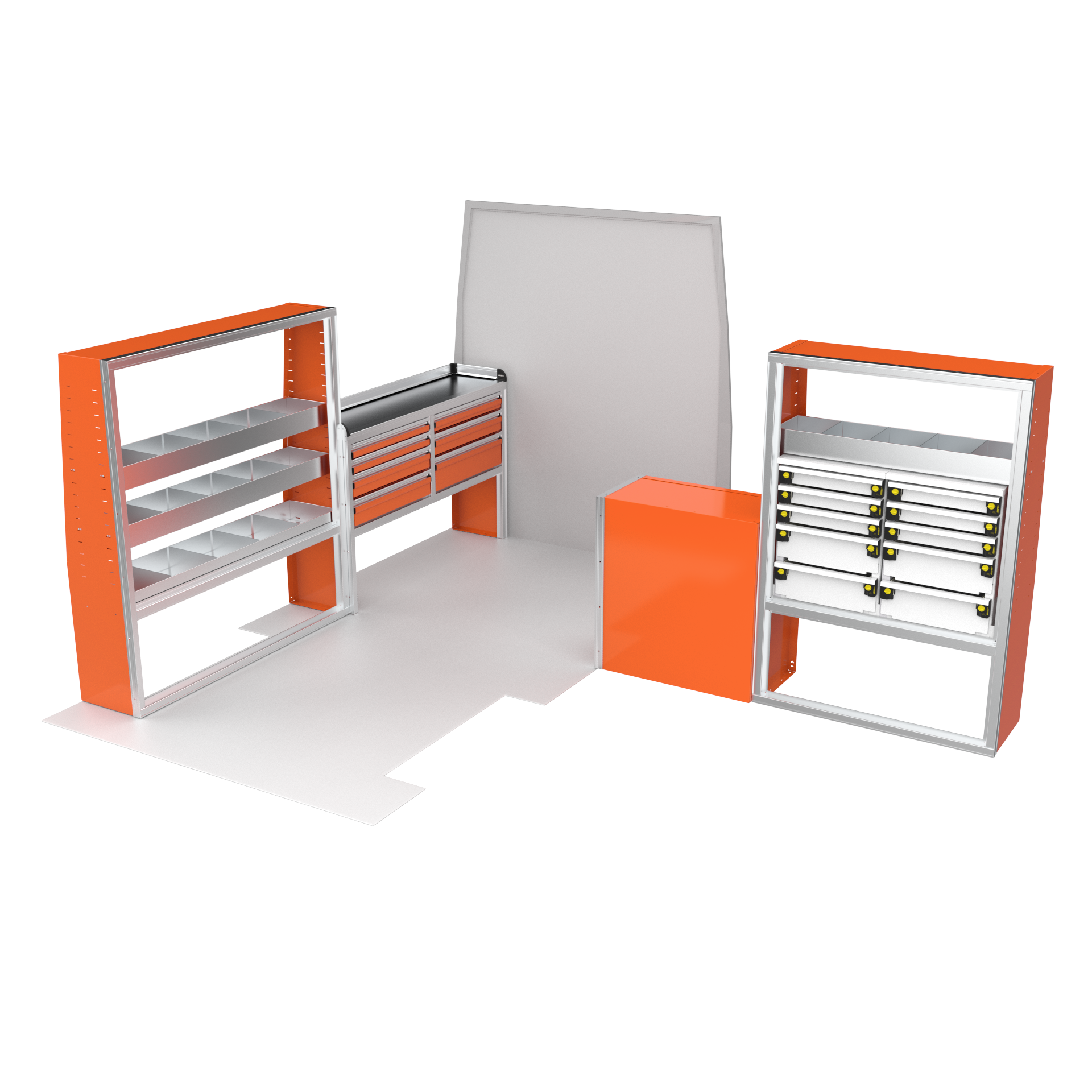

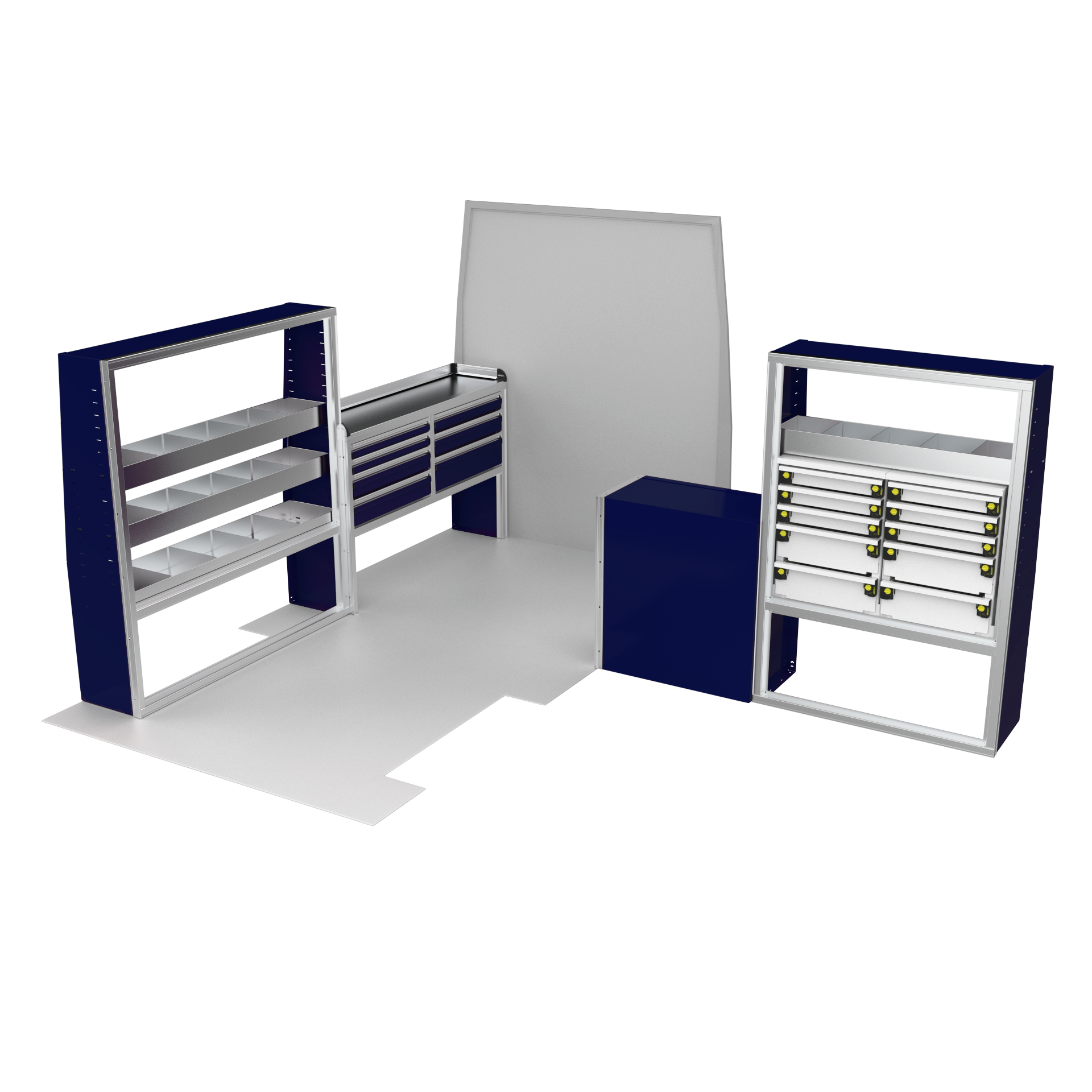

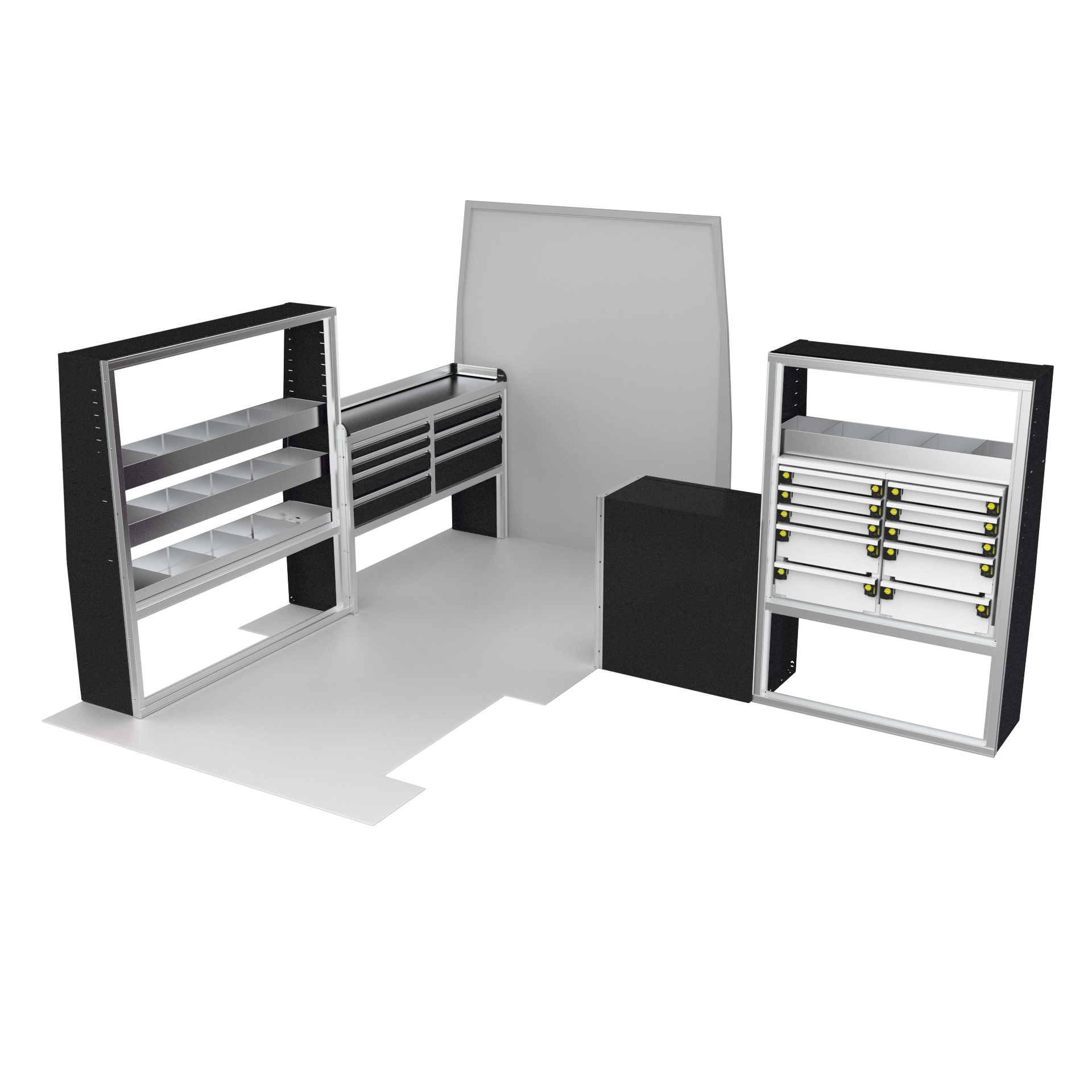

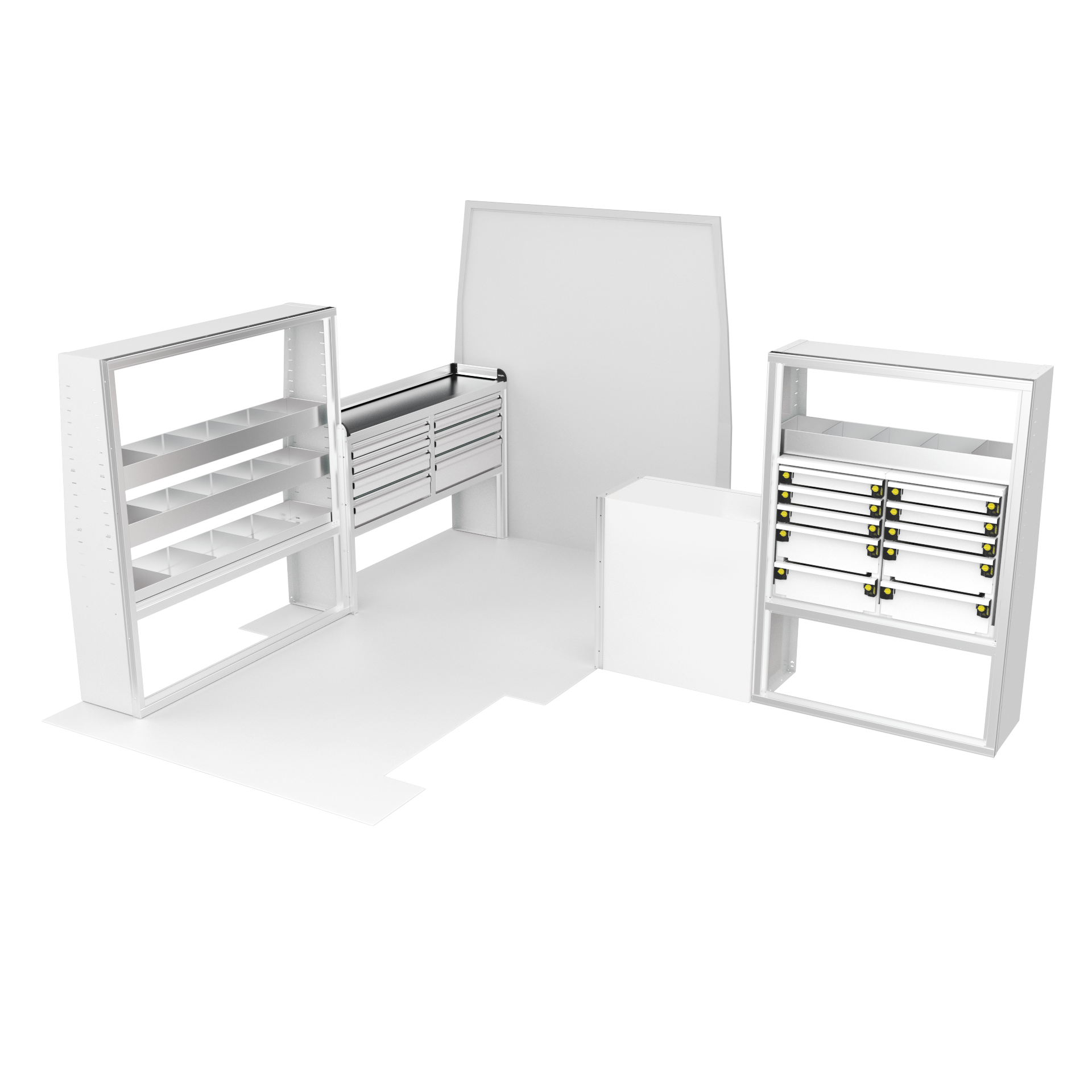

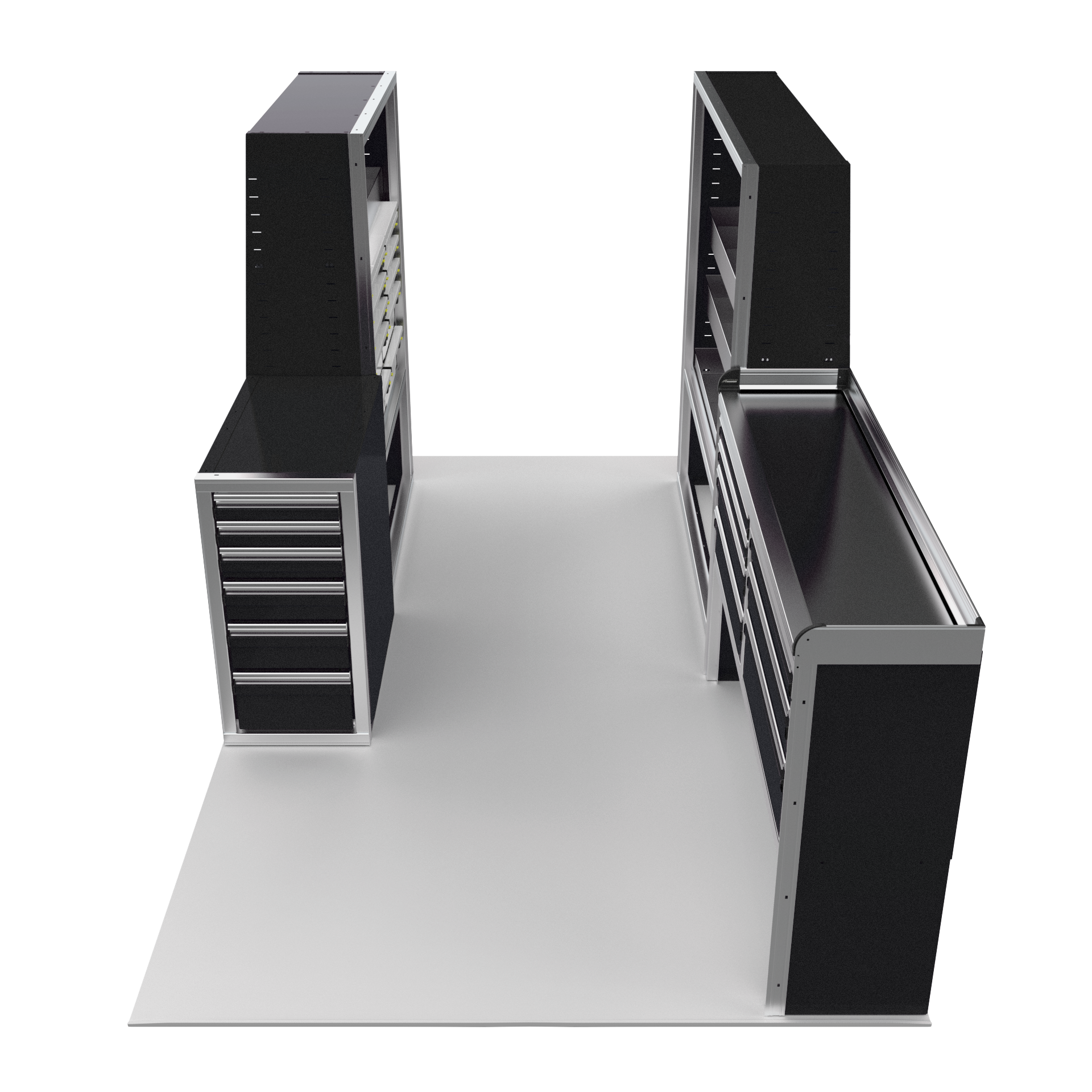

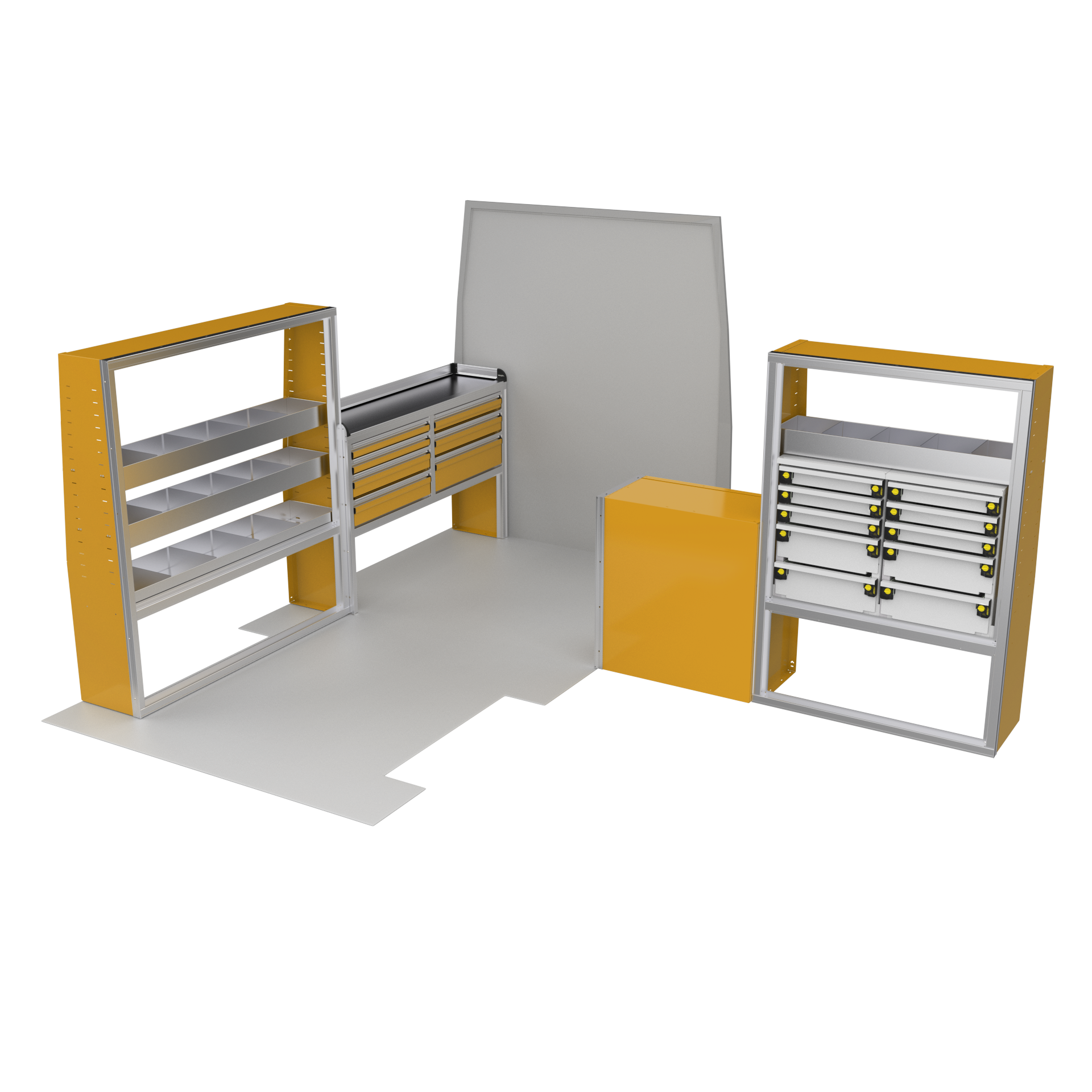

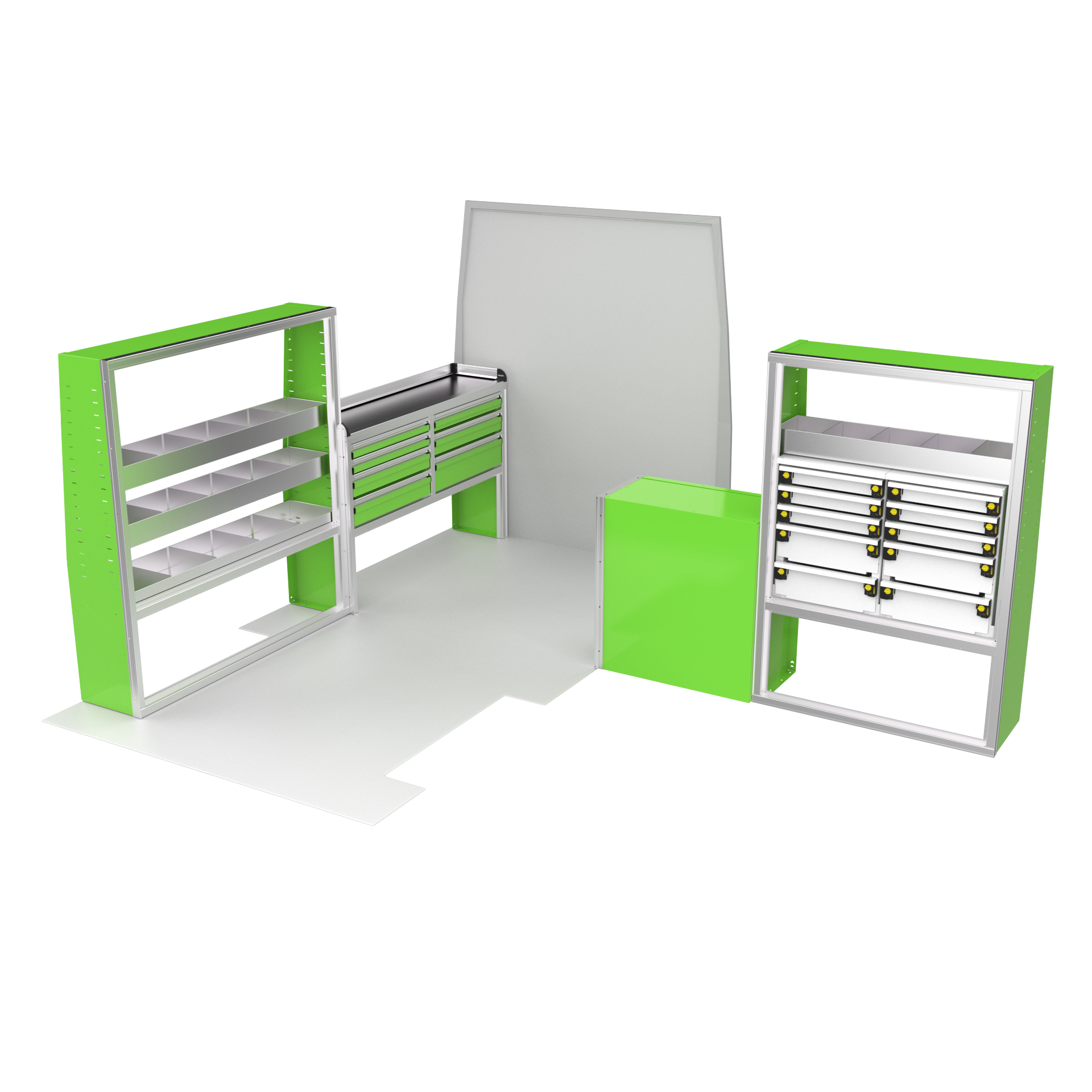

Maximize your Ford Transit’s potential with the VanPro Package FT2—designed for Ford Transit 150/250/350 medium or high roof models. This complete storage solution includes everything you need for optimal organization and functionality on the go. Built from durable aluminum, the package includes a VanPro Workbench FT304, MotionGlide Shelving Units, and additional drawer housing to ensure that you’re fully equipped to work and stay organized wherever you are.
FT-304 Workbench
Location: Front Streetside
Overall Cabinet Size: 56W x 36H x 14D
Cabinet Frame Size: 56W x 36H x 14D
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Plastic Laminate
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
OPENING LIST
---------------------------------------
-Opening 1: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
5in [Lnr]
5in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x4)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
4in [Lnr]
5in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x3)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 2: 53W x 15.5H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Delete back panel in opening 2
FT-300 Shelving Unit
Location: Rear Streetside
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Transit profile
FT-301 Shelving Unit
Location: Rear Curbside
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- Transit Profile
MG-9 MotionGlide Drawer Unit (x2)
Weight: 36 lbs.
Powder Coat Finish: Tool Cabinet White
Extrusion Finish: Tool Cabinet White
MOTIONGLIDE UNIT
-----------------------------------------
Unit Dim: (18w x 25h x 14d)
Drawers:
3in
3in
3in
6in
6in
FT-305 Drawer Housing
Overall Cabinet Size: 16W x 32H x 30D
Cabinet Frame Size: 16W x 32H x 30D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 13W x 29H
Tabbed Drawer Covers
Drawers:
3in [Lnr] [Sep:4] [STS]
3in [Lnr] [Sep:4] [STS]
4in [Lnr] [Sep:4] [STS]
5in [Lnr] [Sep:4] [STS]
6in [Lnr] [Sep:4] [STS]
7in [Lnr] [Sep:4] [STS]
Divider Clip Kit - QTY: 4
Bottom Space = .952
Slide Type:
Medium Duty 28 inch Slide (x6)
Inside Dwr Dim: 8.53 W x 27.671 D
