VANPRO PACKAGE FTEXT3

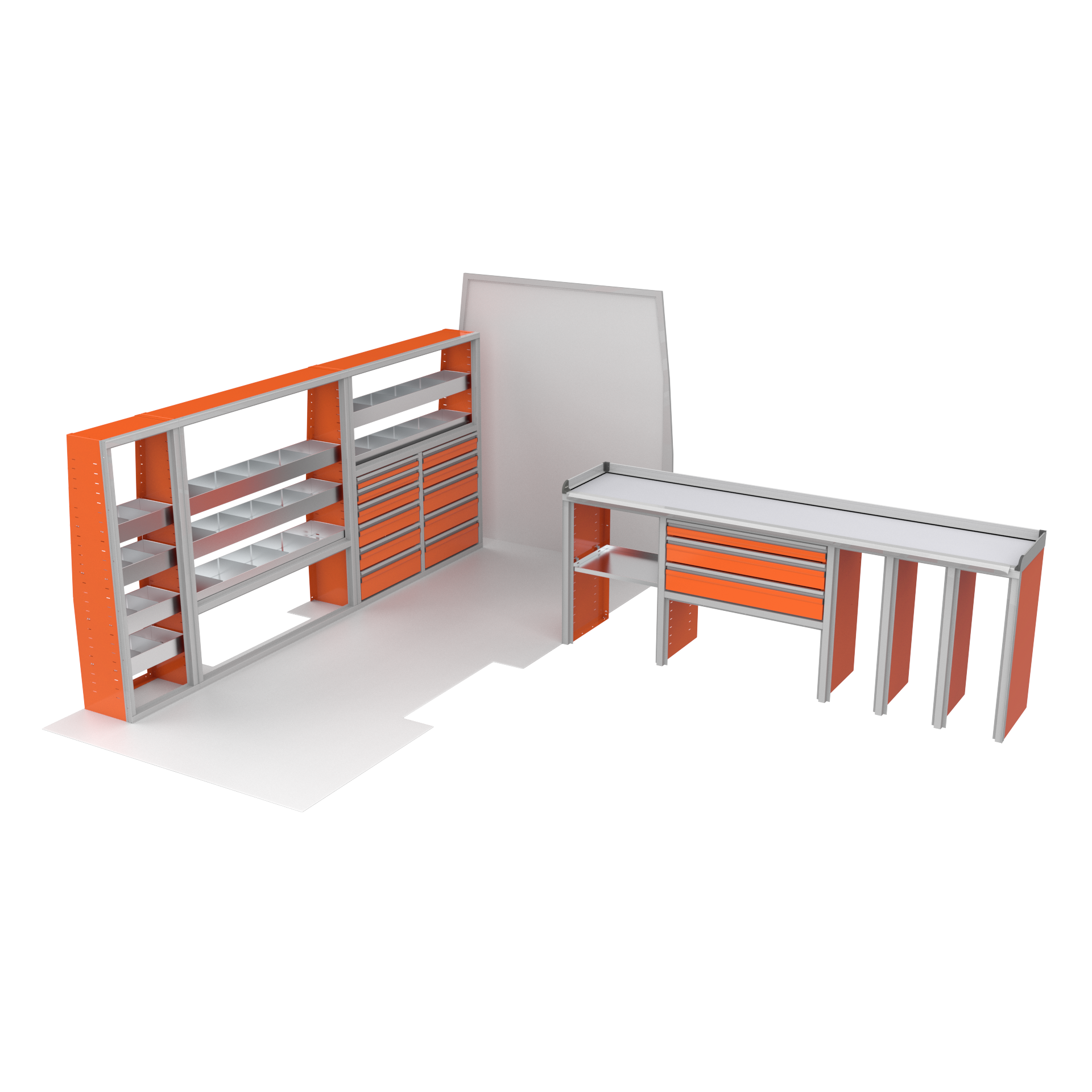

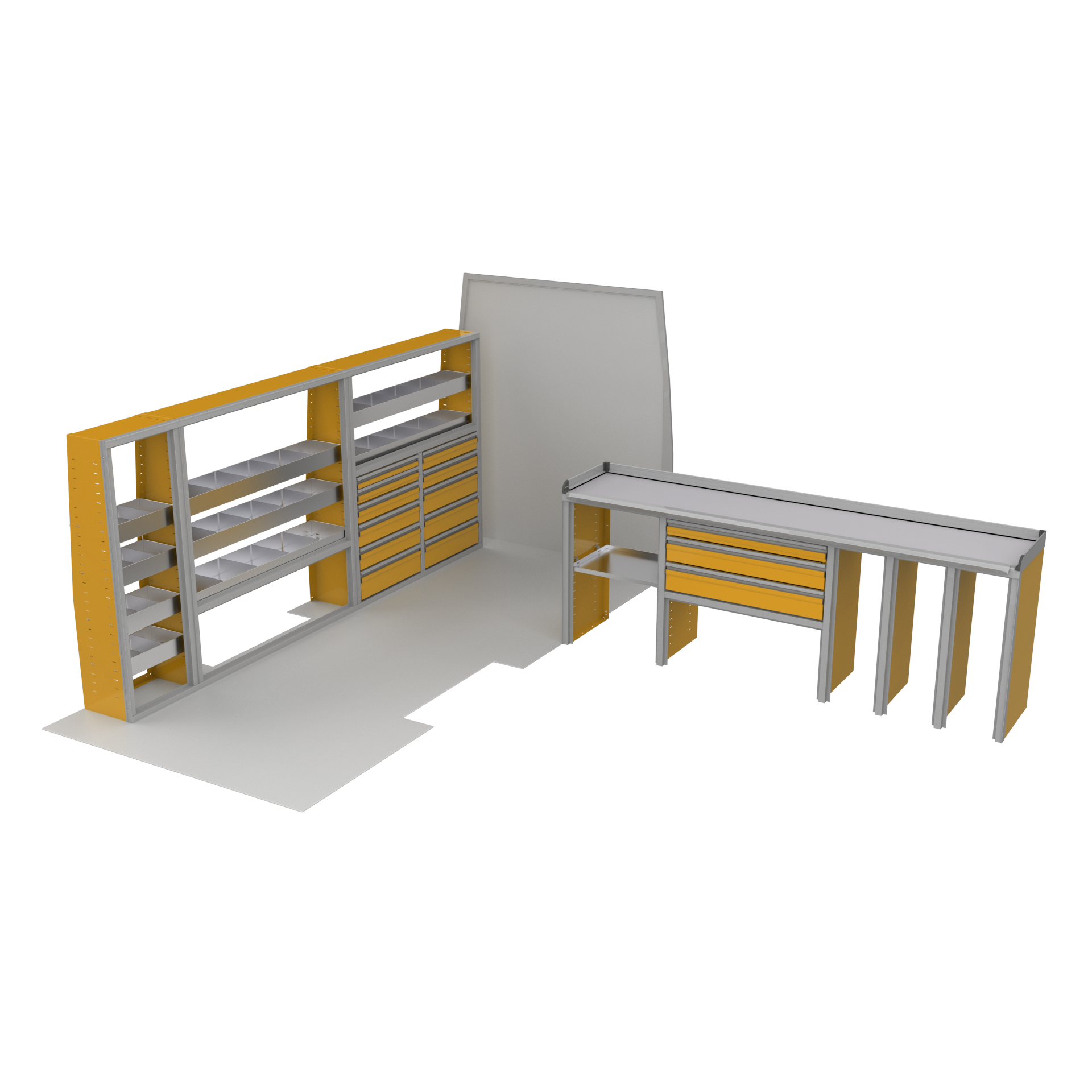

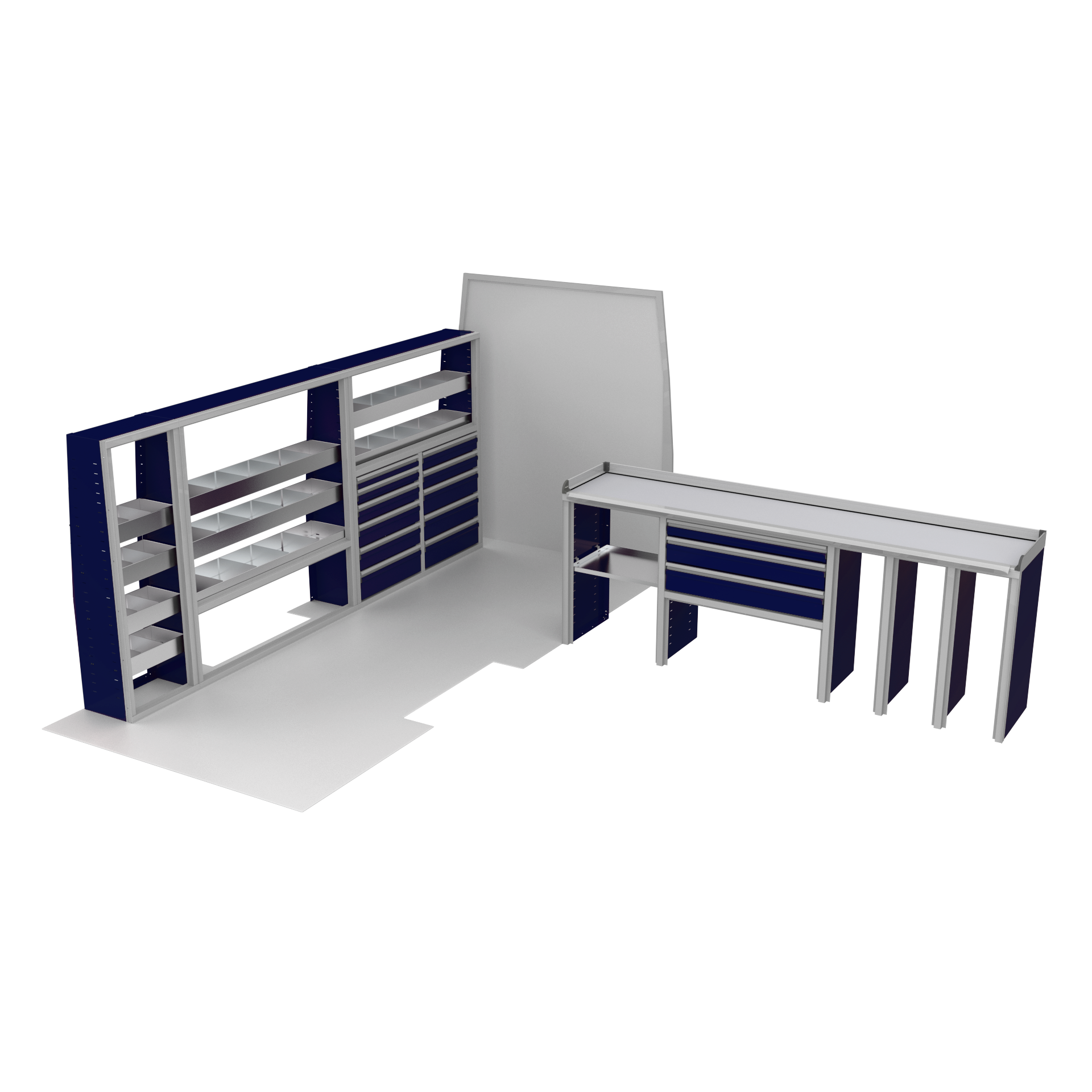

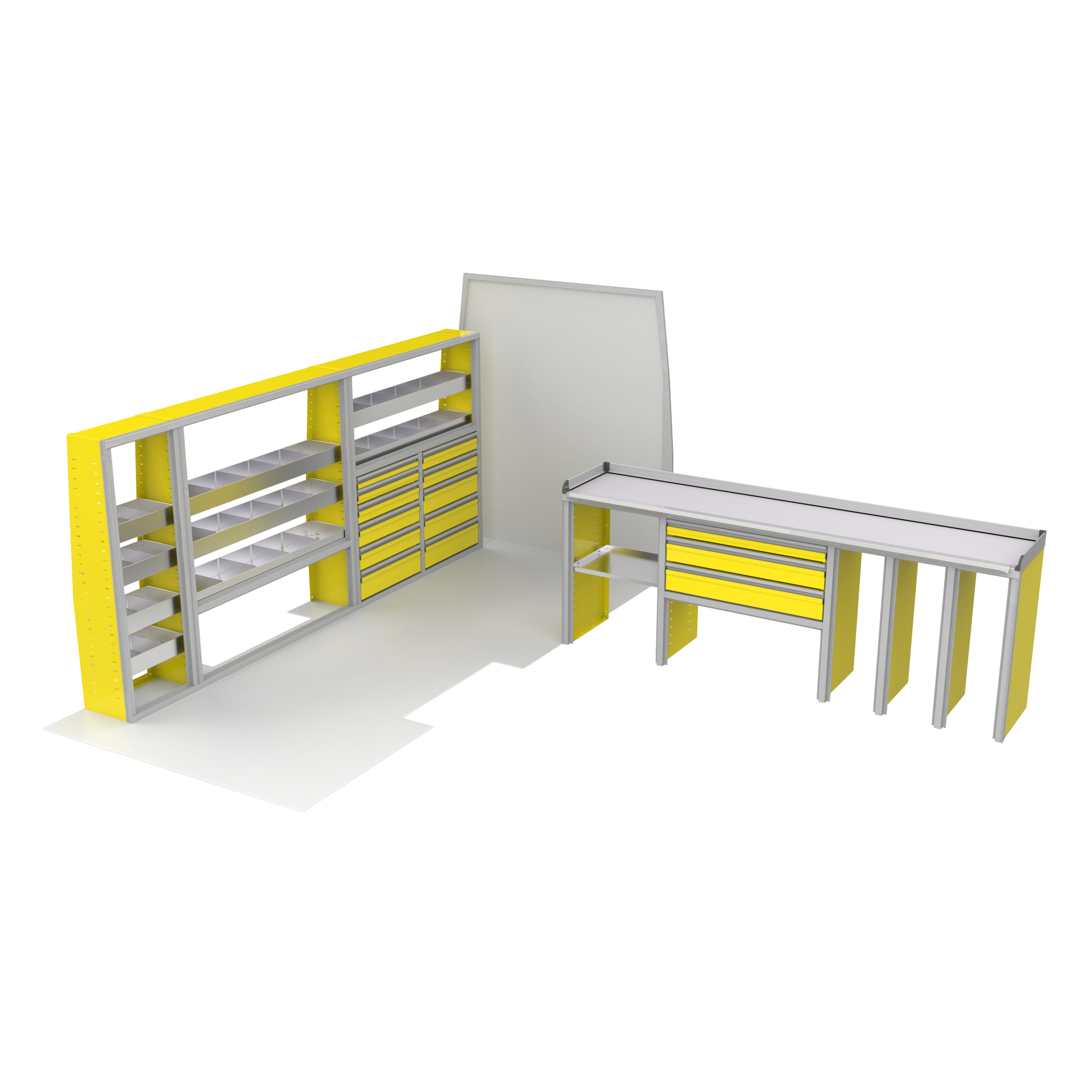

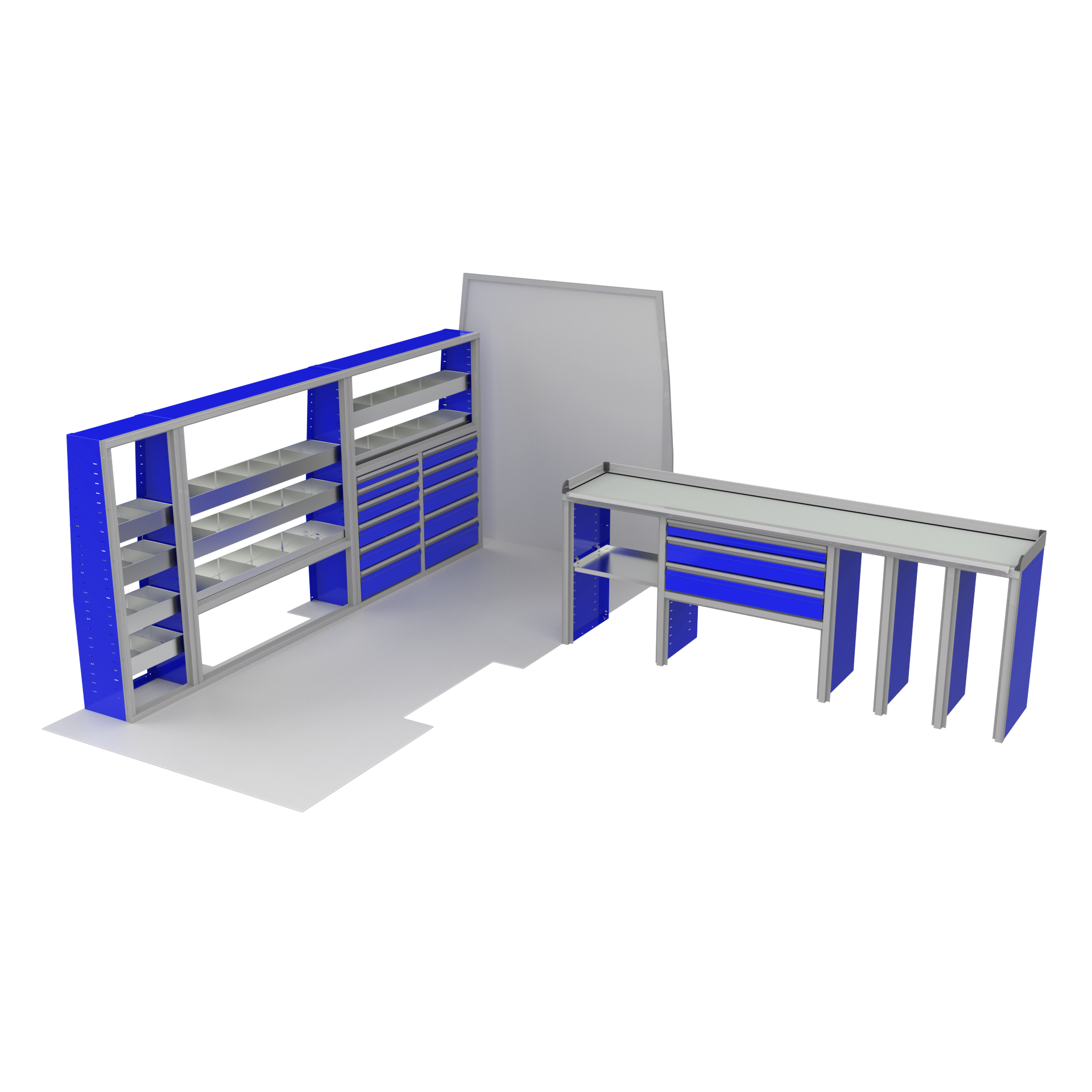

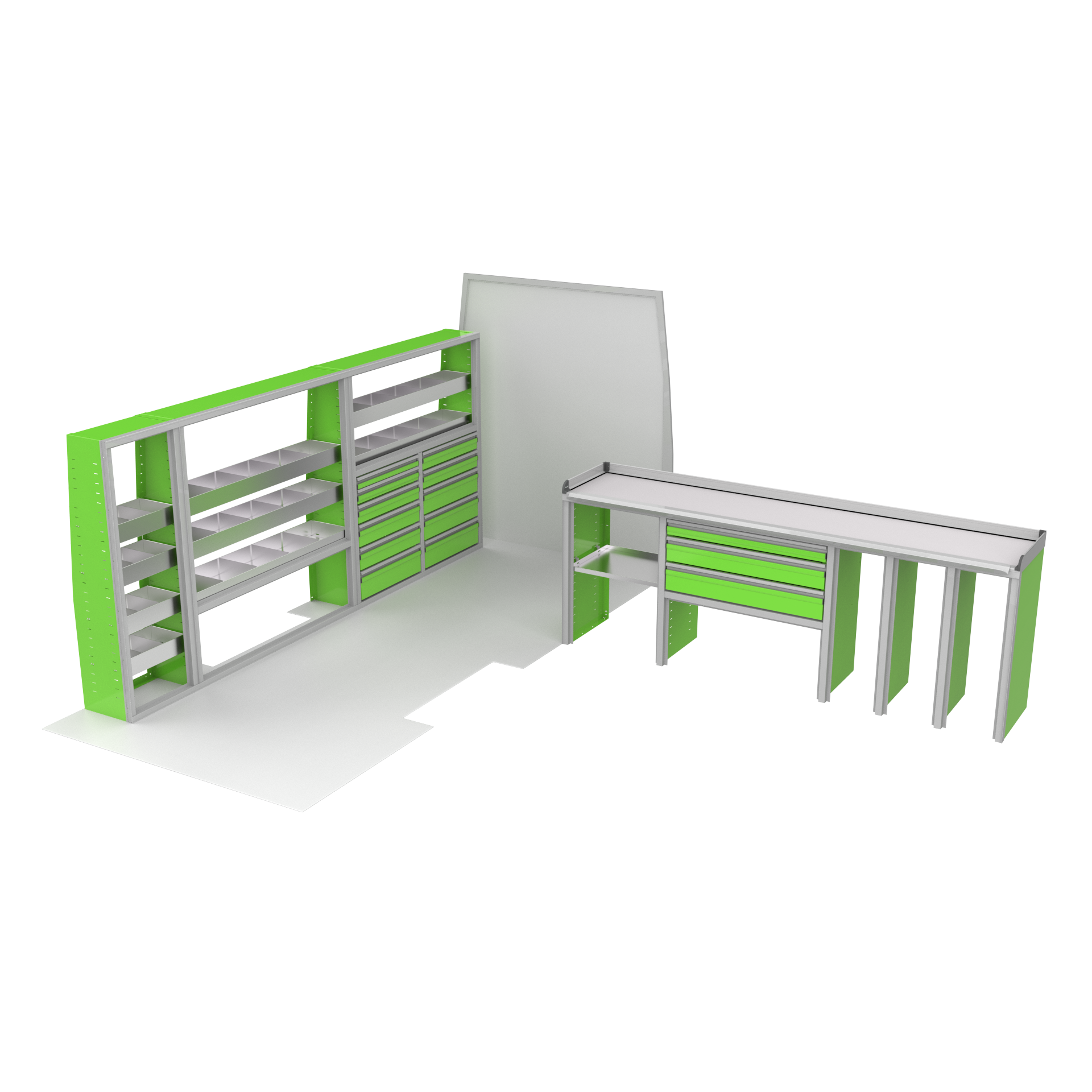

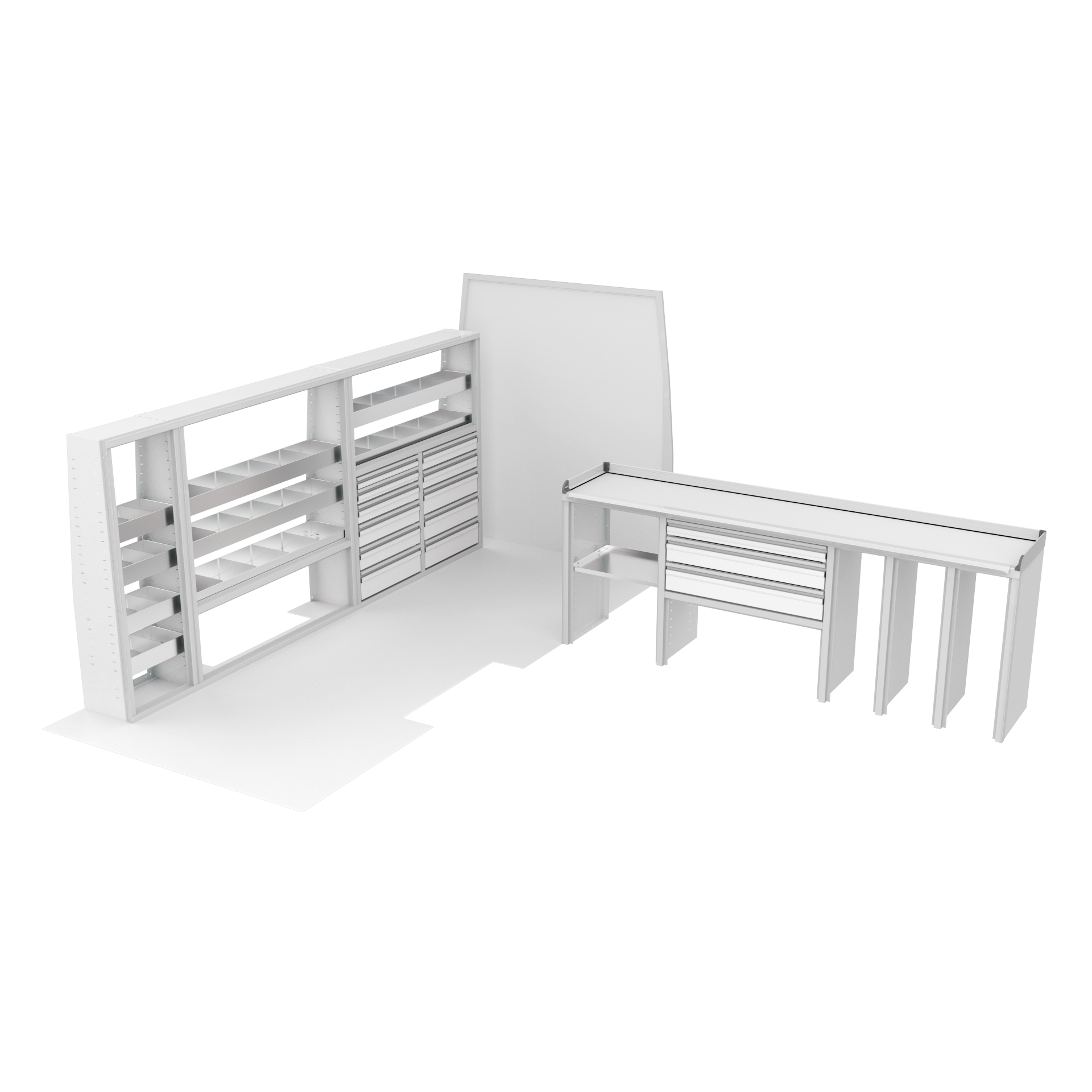

Take your Ford Transit 150/250/350 Extended to the next level with the VanPro Package FTEXT3, designed for medium or high roof models. This all-in-one storage solution features multiple shelving units and a durable workbench, creating a highly efficient mobile workspace. Built from lightweight, corrosion-resistant aluminum, this package ensures that tools, materials, and equipment stay secure and organized, even on the move.
FT-306 Shelving Section
Location: Front Streetside
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 23.375H**EMPTY**
* Adjustable Shelves : 1 (54.758w x 12d)
-Opening 2: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
6in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x6)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
5in [Lnr]
5in [Lnr]
7in [Lnr]
7in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x5)
Inside Dwr Dim: 21.28 W x 11.671 D
ADDITIONAL OPTIONS
---------------------------------------
- Back panel behind drawers only
- Custom deep shelves with 4 front to back dividers each
- Transit Profile
FT-300 Shelving Section
Location: Middle Streetside
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Transit Profile
FT-303 Shelving Section
Location: Rear Streetside
Overall Cabinet Size: 20W x 60H x 14D
Cabinet Frame Size: 20W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 17W x 57H**EMPTY**
* Adjustable Shelves : 4 (18.758w x 12d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves
- Transit Profile
FT-307 Shelving Section
Location: Curbside
Overall Cabinet Size: 102W x 37H x 20D
Cabinet Frame Size: 102W x 37H x 20D
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
OPENING LIST
---------------------------------------
-Opening 1: 23W x 35H**EMPTY**
* Adjustable Shelves : 1 (24.129w x 18d)
-Opening 2: 37W x 17H
**EXTREME DUTY**
Tabbed Drawer Covers
Drawers:
4in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
Divider Clip Kit - QTY: 7
Divider Screw Kit - QTY: 6
Bottom Space = .952
Slide Type:
Heavy Duty 16 inch Slide (x3)
Inside Dwr Dim: 32.51 W x 15.651 D
-Opening 3: 37W x 16.5H**EMPTY**
-Opening 4: 11W x 35H**EMPTY**
-Opening 5: 11W x 35H**EMPTY**
-Opening 6: 11W x 35H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
