VANPRO PACKAGE ML3

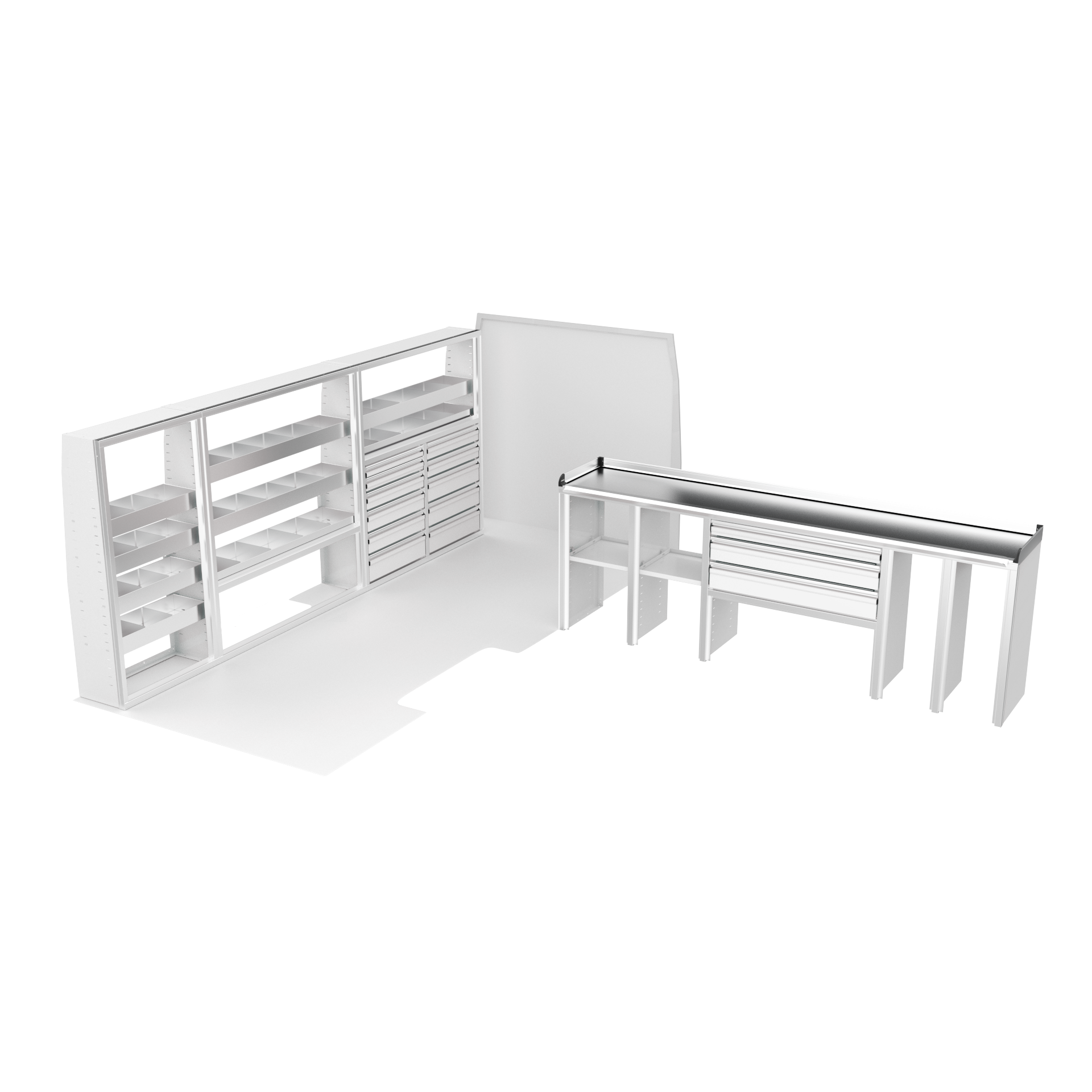

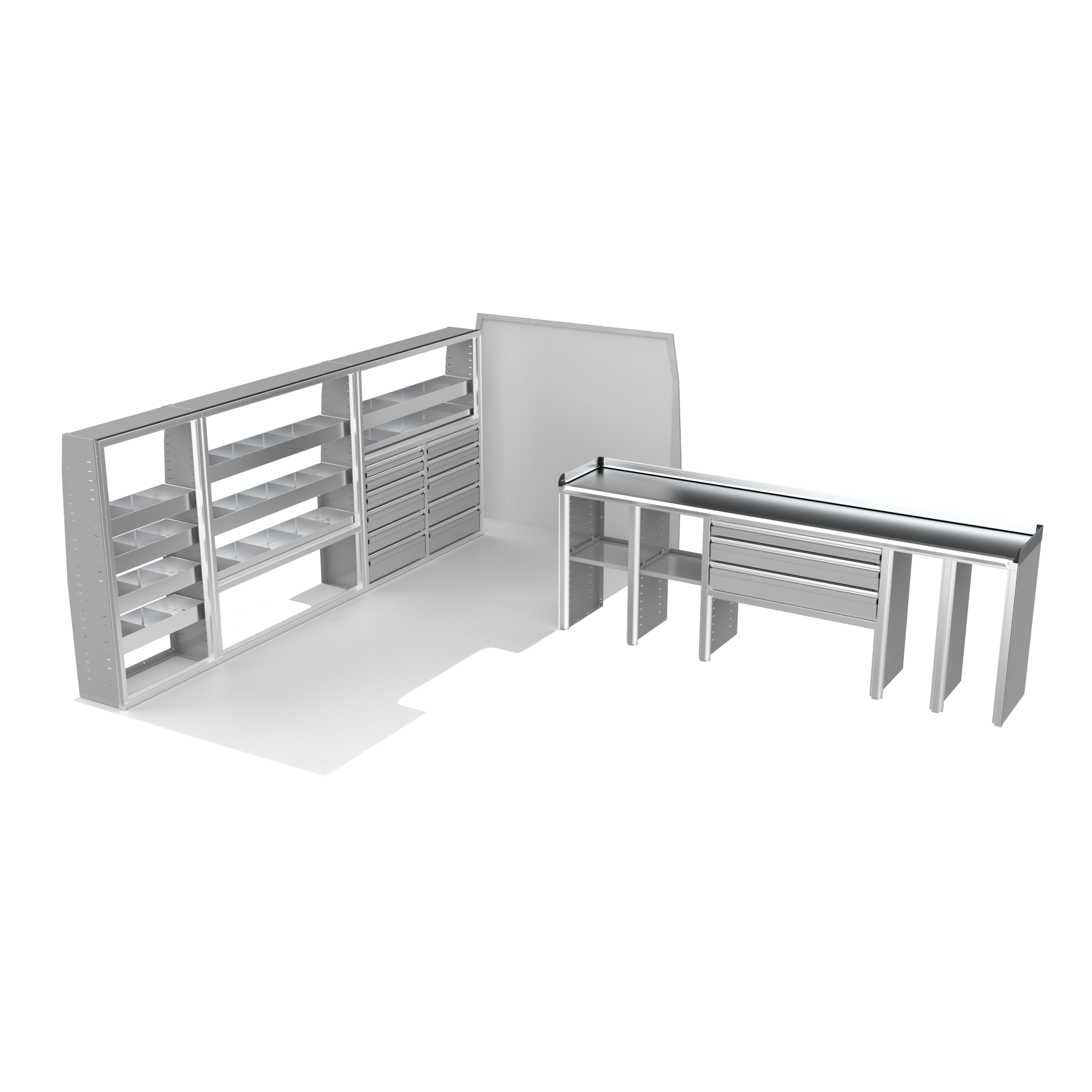

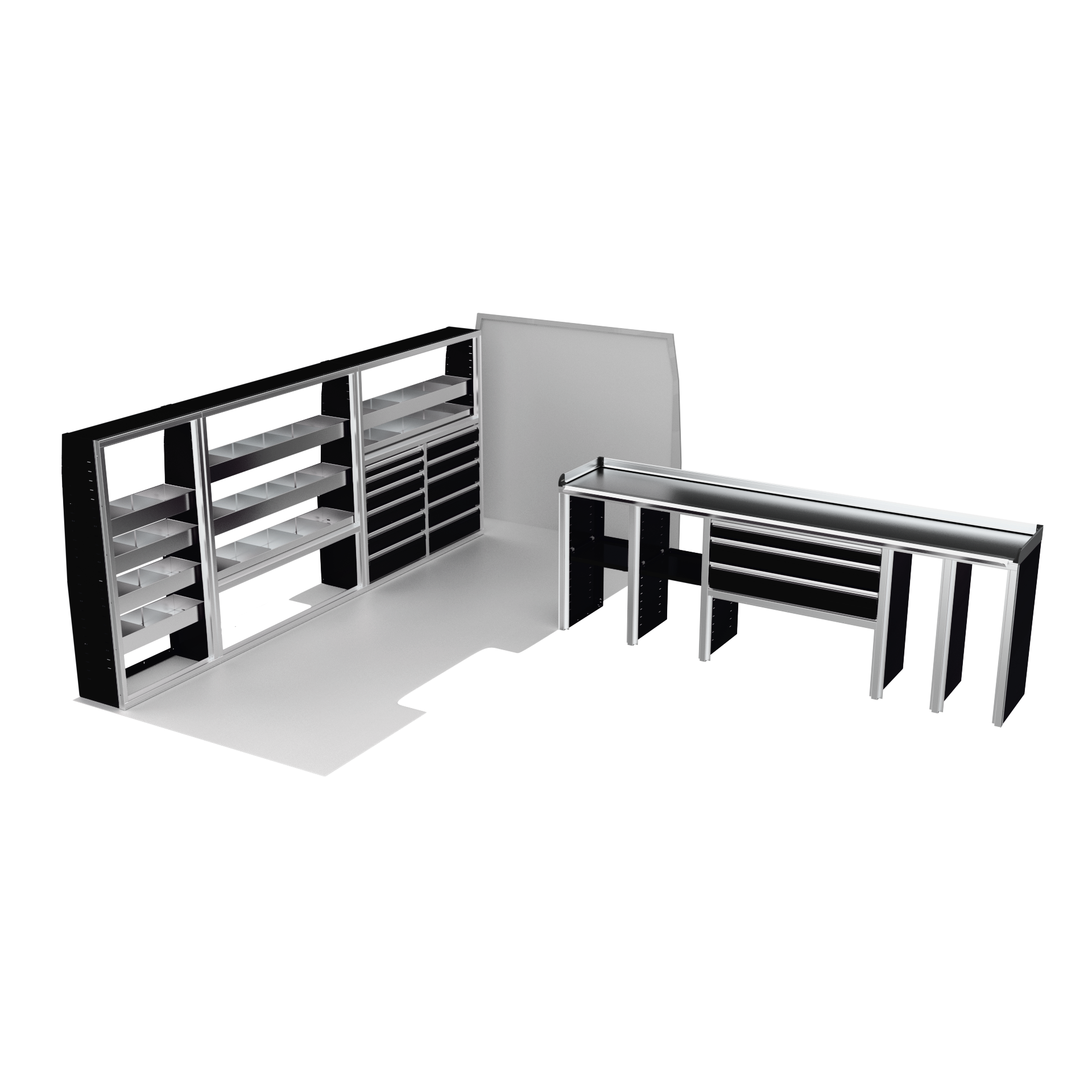

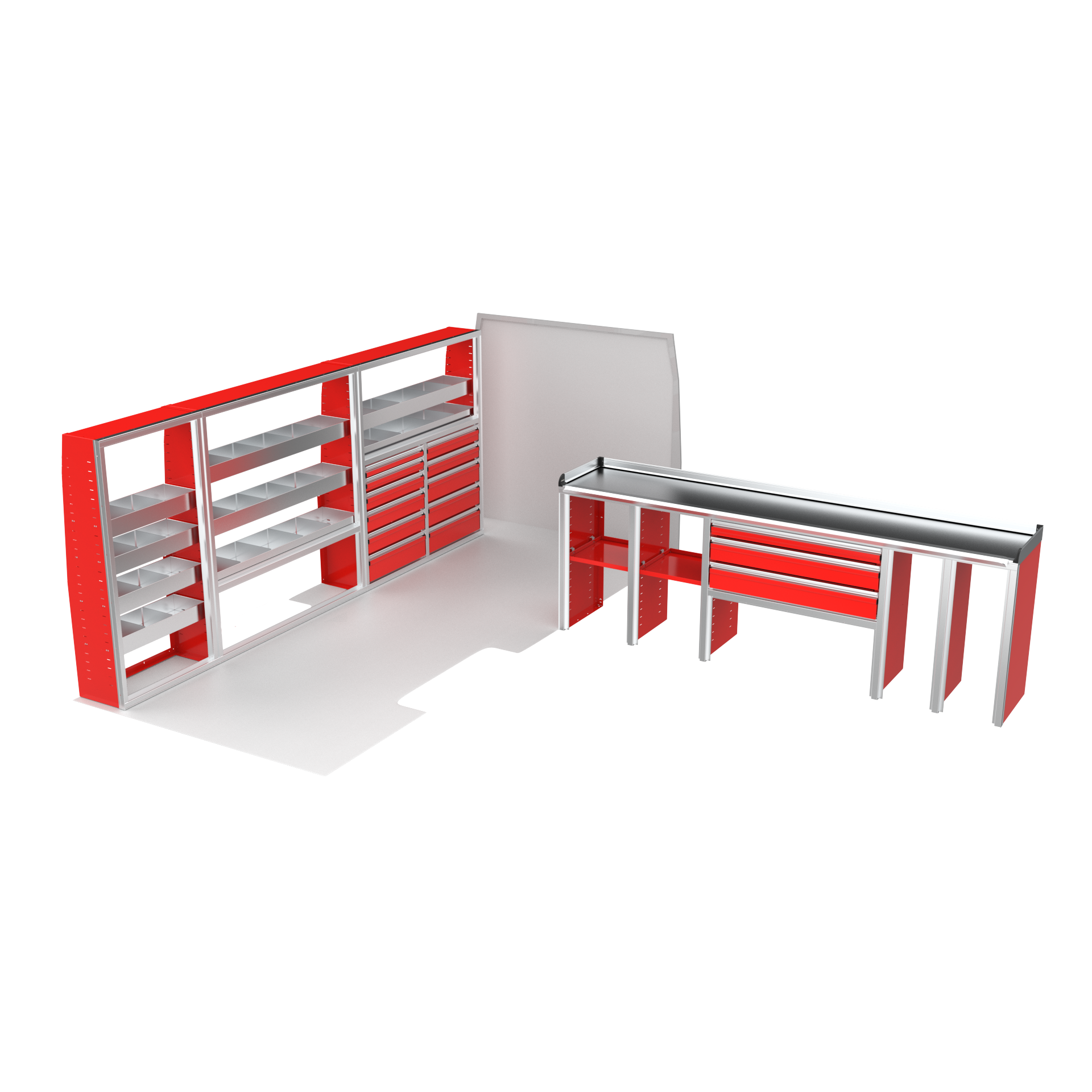

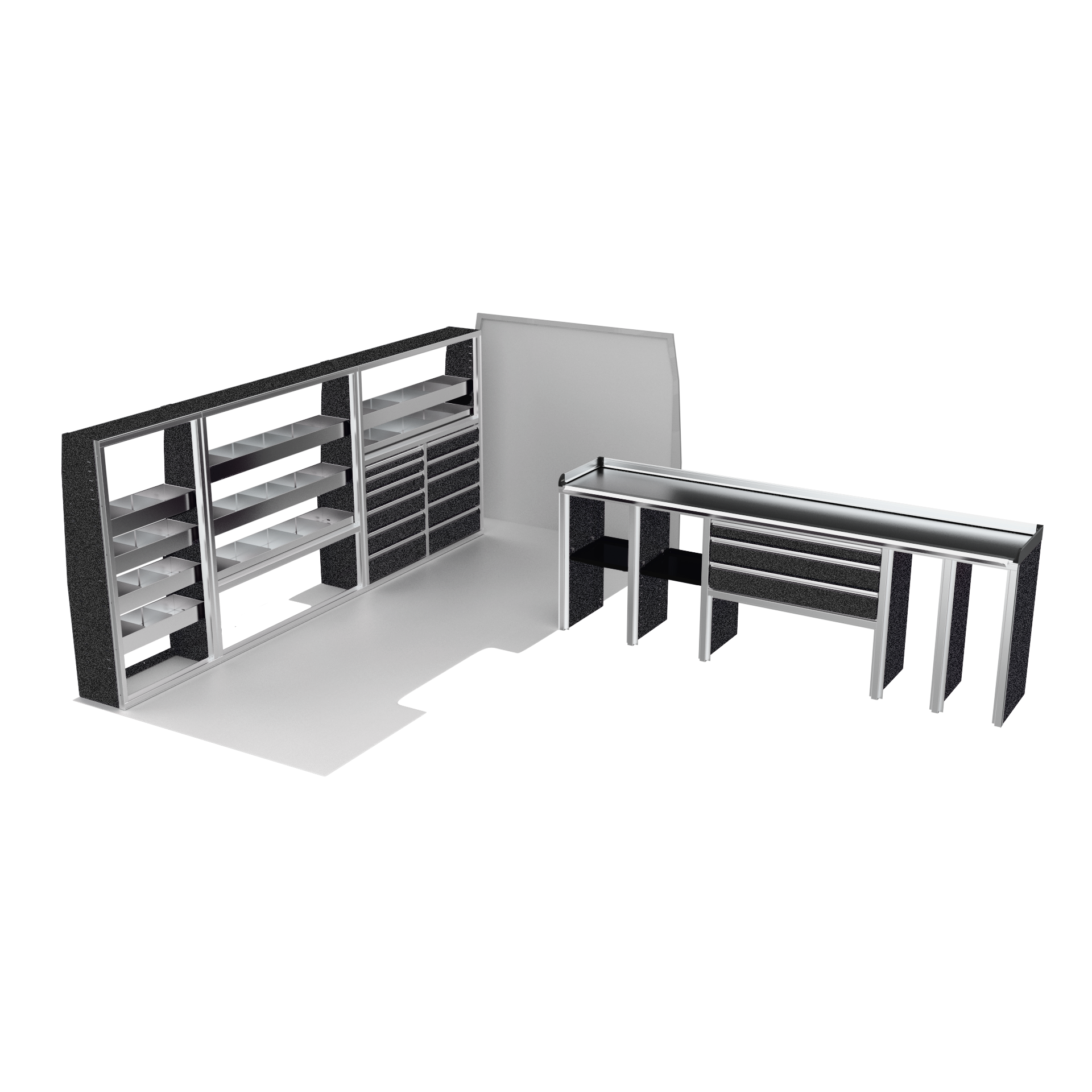

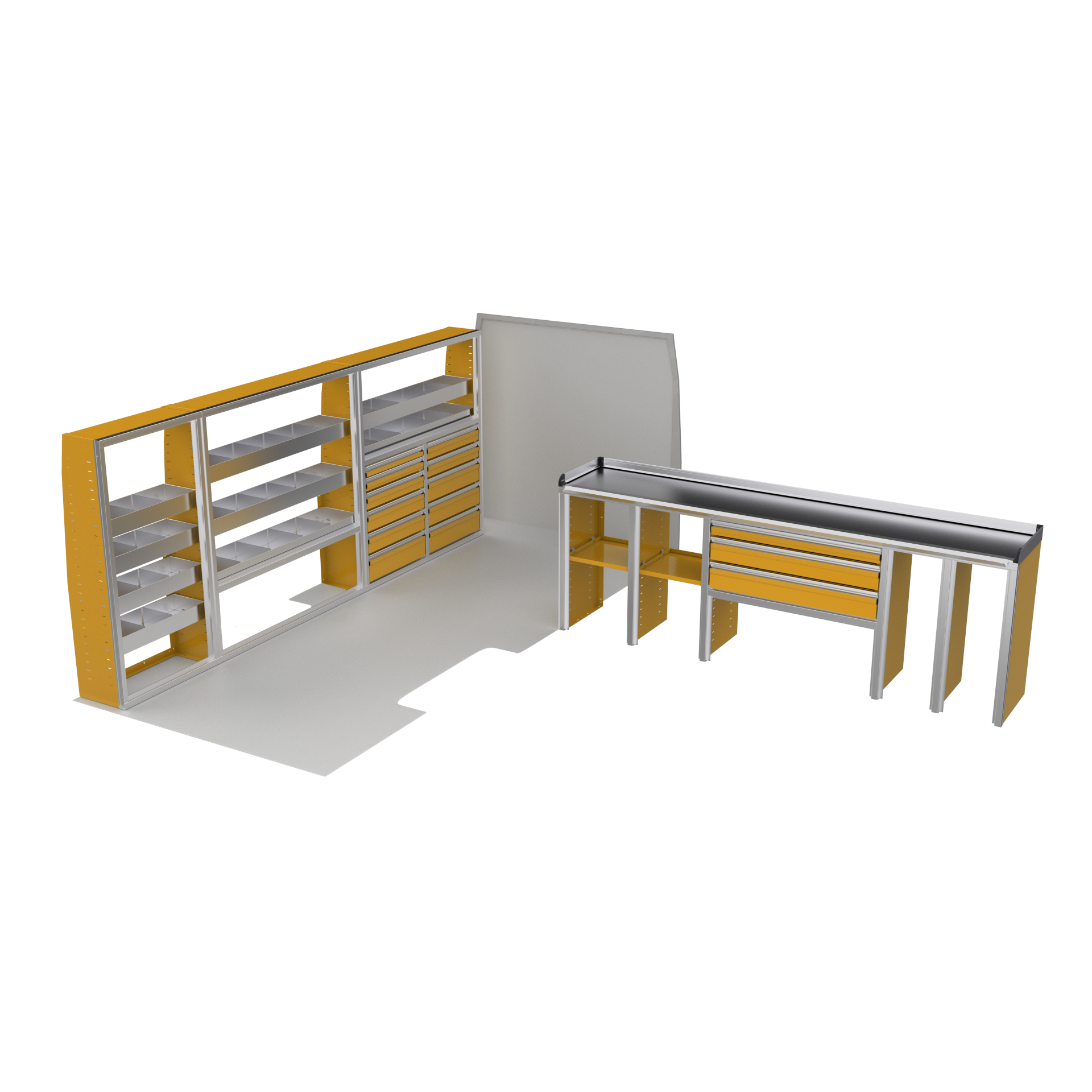

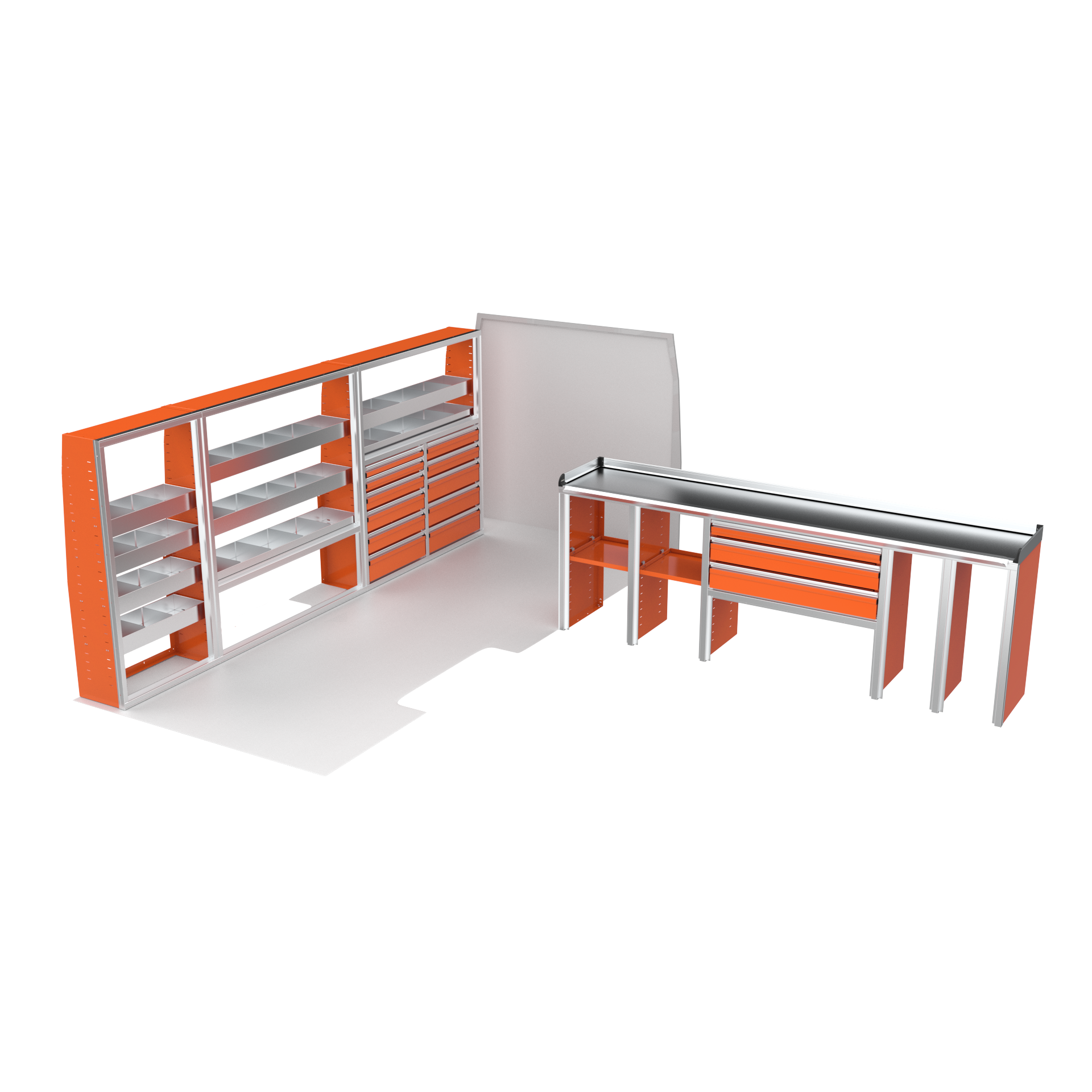

The VanPro Package ML3 for the Mercedes Sprinter 170 includes the MS300 Shelving Unit, MS305 Shelving Unit, MS312 Shelving Unit, and MS313 Workbench. This comprehensive package provides a perfect blend of customizable shelving, versatile storage options, and a high-performance workbench with motion-controlled drawers, all designed to maximize space and organization in your van. Tailored specifically for the Mercedes Sprinter 170, this package ensures an efficient and organized mobile workspace for your business or job site.
MS-312 MotionLatch Parts Cabinet
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 23.375H**EMPTY**
* Adjustable Shelves : 1 (54.758w x 12d)
-Opening 2: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
6in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x6)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
5in [Lnr]
5in [Lnr]
7in [Lnr]
7in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x5)
Inside Dwr Dim: 21.28 W x 11.671 D
ADDITIONAL OPTIONS
---------------------------------------
- Back panel behind drawers only
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile
MS-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile
MS-305 Shelving Unit
Overall Cabinet Size: 30W x 60H x 14D
Cabinet Frame Size: 30W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 27W x 57H**EMPTY**
* Adjustable Shelves : 4 (28.758w x 12d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- Sprinter Profile
MS-313 Workbench
Overall Cabinet Size: 108W x 37H x 20D
Cabinet Frame Size: 108W x 37H x 20D
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
OPENING LIST
---------------------------------------
-Opening 1: 17.5W x 35H**EMPTY**
* Adjustable Shelves : 1 (18.629w x 18d)
-Opening 2: 17.5W x 35H**EMPTY**
* Adjustable Shelves : 1 (18.001w x 18d)
-Opening 3: 40W x 17H
Tabbed Drawer Covers
Drawers:
4in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
Divider Clip Kit - QTY: 7
Divider Screw Kit - QTY: 6
Bottom Space = .952
Slide Type:
Medium Duty 16 inch Slide (x3)
Inside Dwr Dim: 35.53 W x 15.671 D
-Opening 4: 40W x 16.5H**EMPTY**
-Opening 5: 12W x 35H**EMPTY**
-Opening 6: 12W x 35H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
