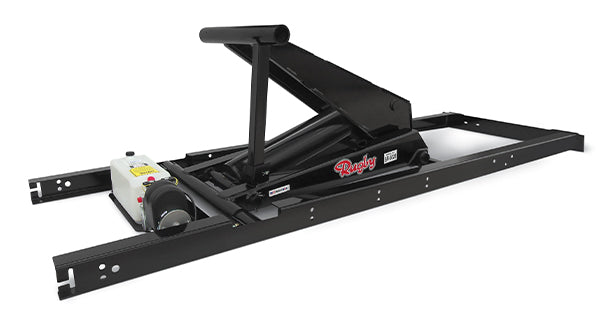

Rugby LR-628 Low-Mount Scissor Hoist
The Rugby LR-628 is part of the LR Series of low-mount scissor hoists, built with a low profile so it adds minimal height to the body, for dump and conversion applications. Rugby hoists are black powder coated for a durable, rust-resistant finish and carry Rugby's 3-year warranty.
| Model | LR-628 |
|---|---|
| Series | LR Series low-mount scissor hoist |
| Body lengths | 12' - 18' |
| NTEA class | F / 60 |
| Cylinders | 1 |
| Bore | 6" |
| Stroke | 28" |
| Rod diameter | 2.5" |
| Mounting height | 8.5" |
| Recommended CA/CT | 108 - 168" CA |
| Capacity range | 10.9 - 20.1 T |
| Approx. weight | 865 lbs |
| Available hydraulics | DA, DM |
Capacity range includes both payload and body weight, based on 3,200 PSI with a water-level load; see Rugby's capacity reference charts for your body length. Hydraulics: SA = single acting, DA = double acting, DM = direct mount.
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
