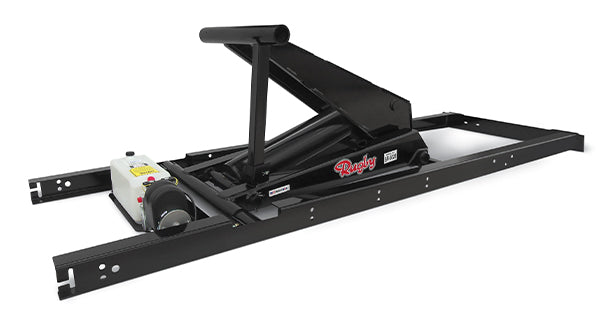

Rugby LR-623 Low-Mount Scissor Hoist
The Rugby LR-623 is part of the LR Series of low-mount scissor hoists, built with a low profile so it adds minimal height to the body, for dump and conversion applications. A subframe is optional for this model. Rugby hoists are black powder coated for a durable, rust-resistant finish and carry Rugby's 3-year warranty.
| Model | LR-623 |
|---|---|
| Series | LR Series low-mount scissor hoist |
| Body lengths | 10' - 16' |
| NTEA class | 50 |
| Cylinders | 1 |
| Bore | 6" |
| Stroke | 23" |
| Rod diameter | 2.5" |
| Mounting height | 8" |
| Recommended CA/CT | 84 - 138" CA |
| Capacity range | 13.4 - 33.5 T |
| Approx. weight | 972 lbs |
| Available hydraulics | DA, DM |
Capacity range includes both payload and body weight, based on 3,200 PSI with a water-level load; see Rugby's capacity reference charts for your body length. Hydraulics: SA = single acting, DA = double acting, DM = direct mount.
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
