VANPRO PACKAGE FTEXT2
By C Tech

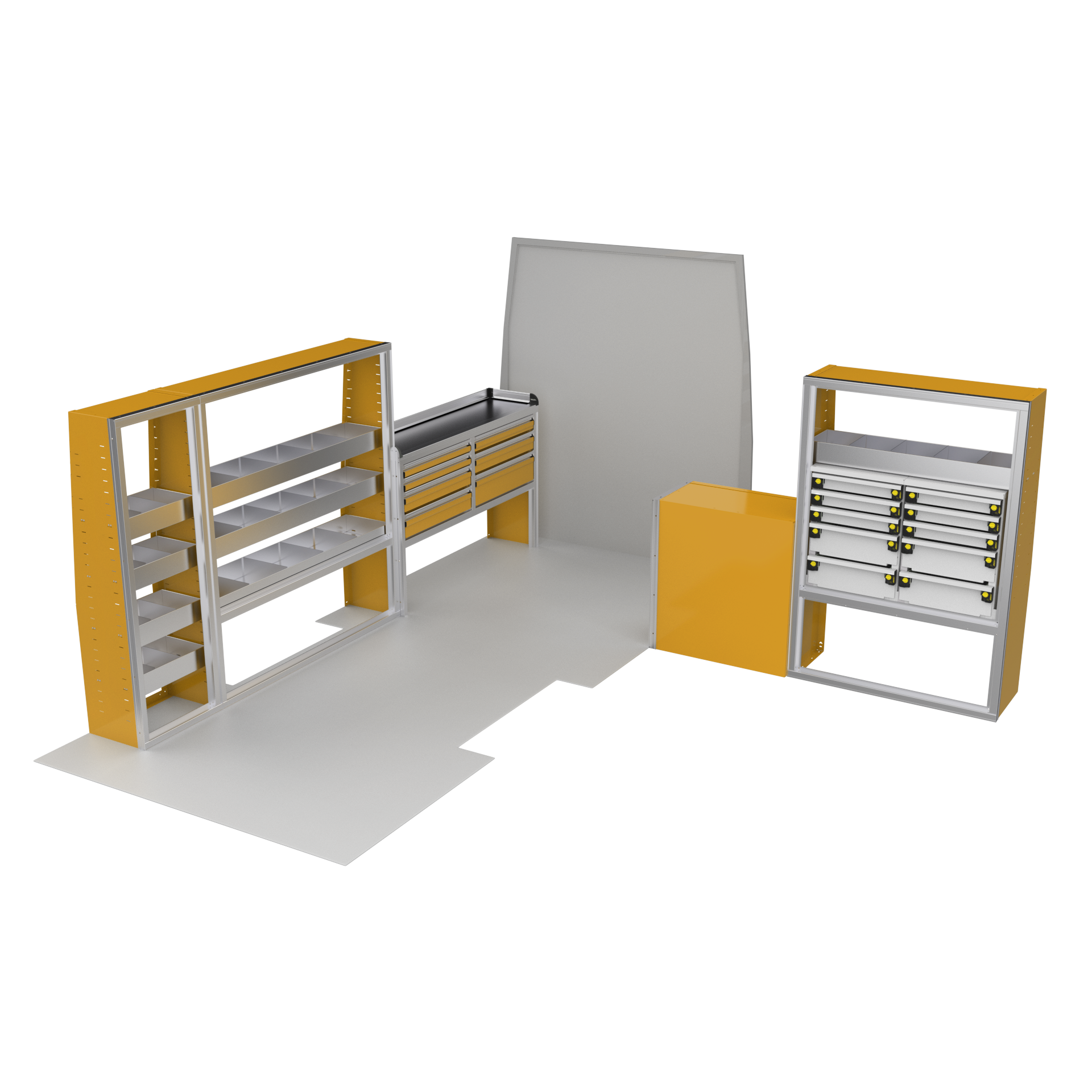

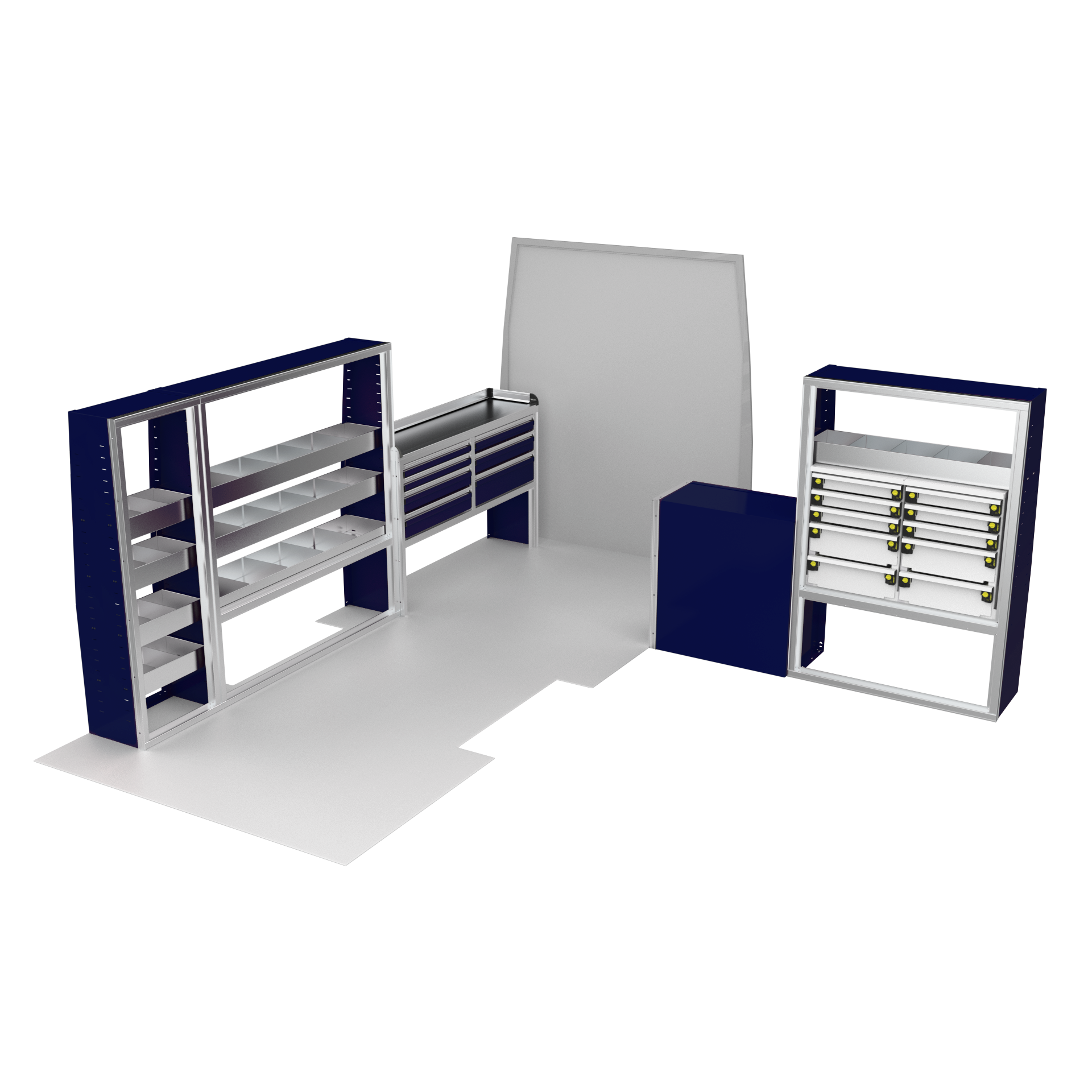

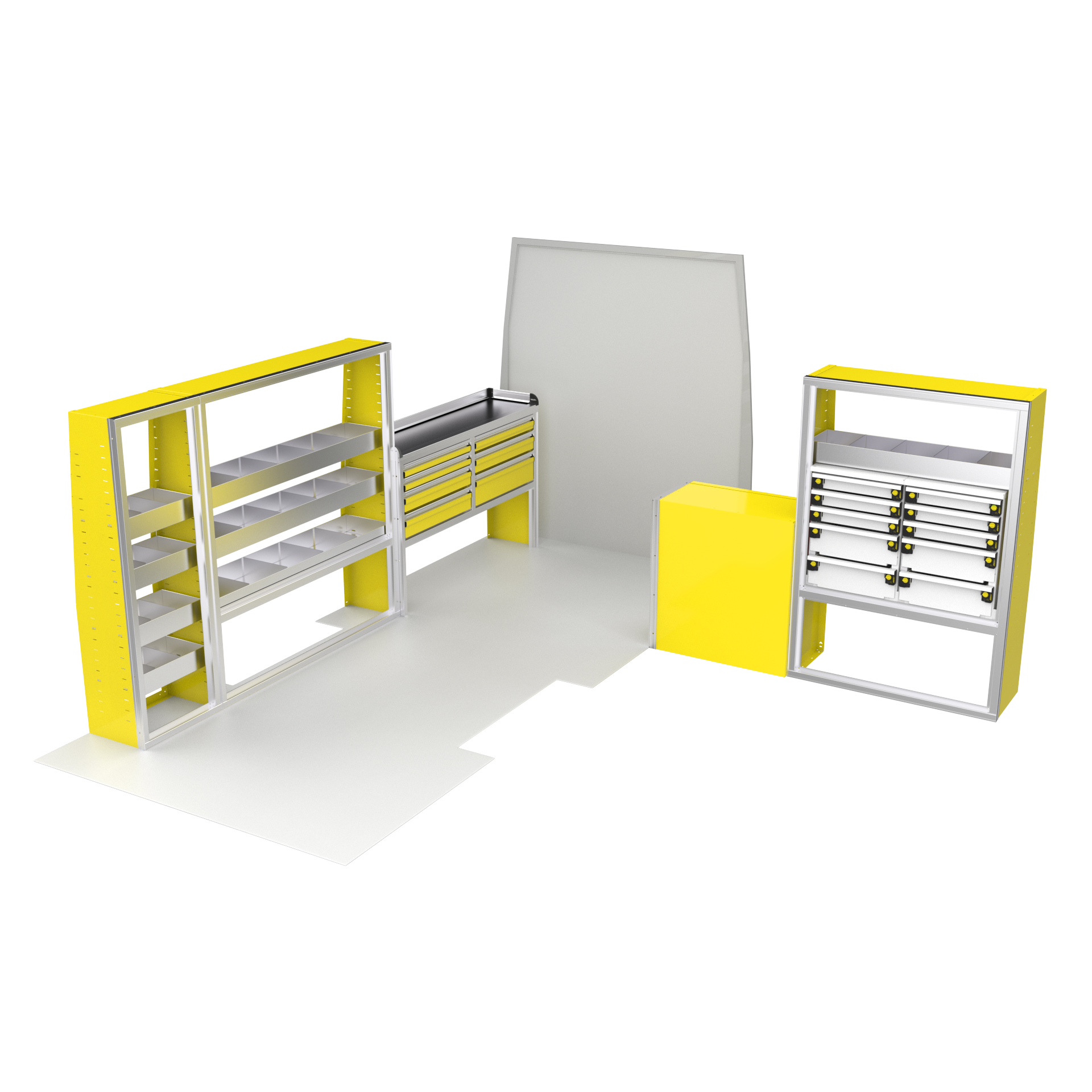

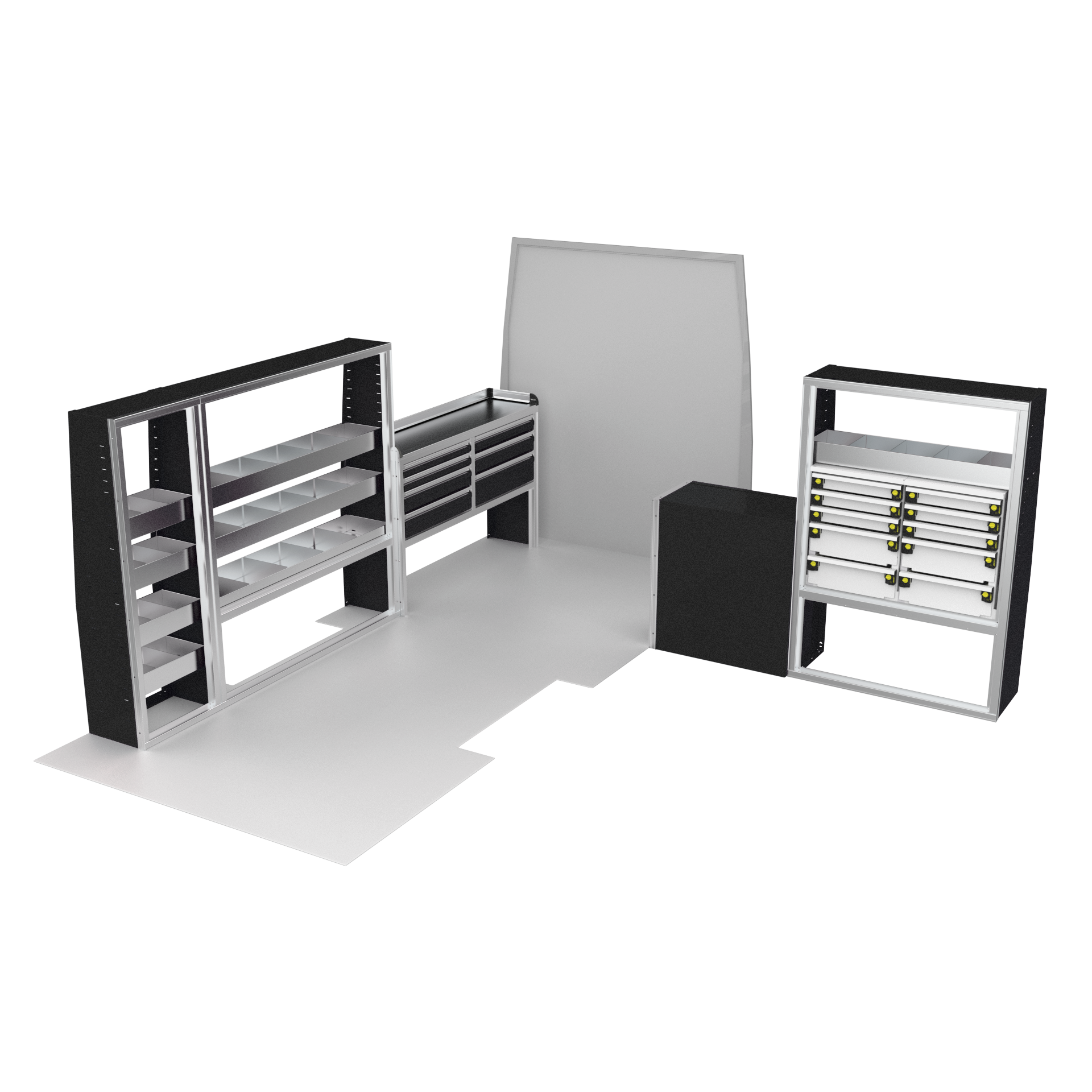

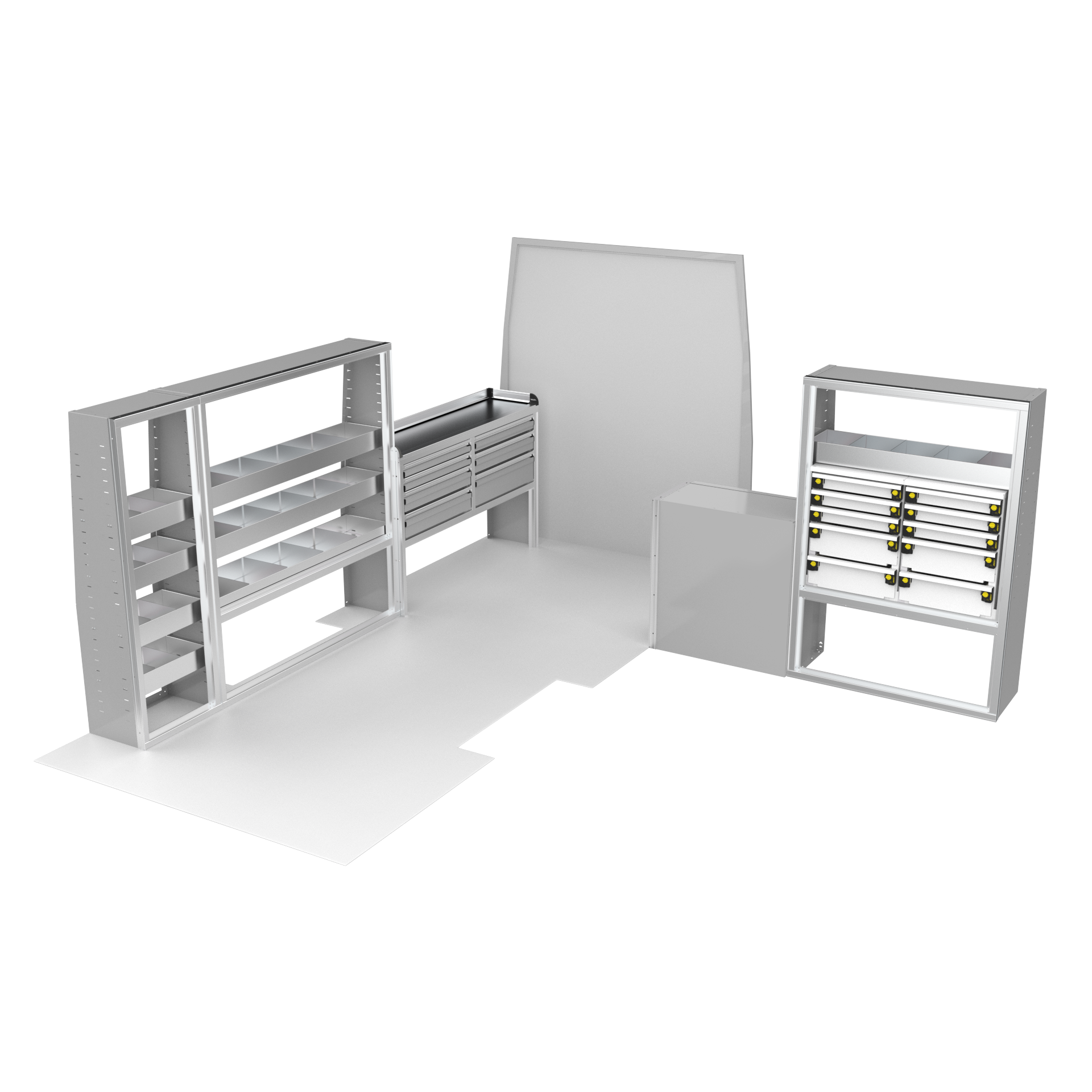

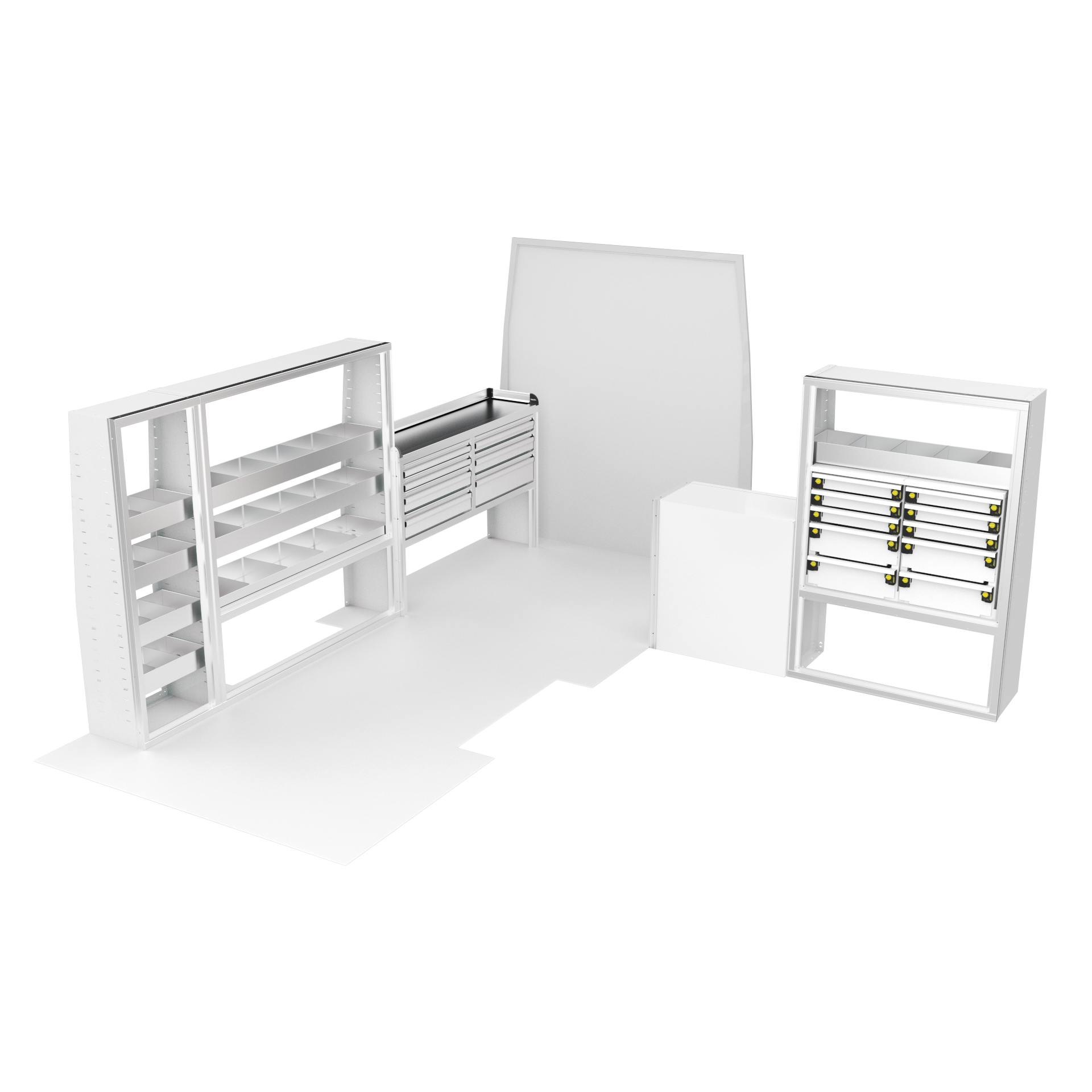

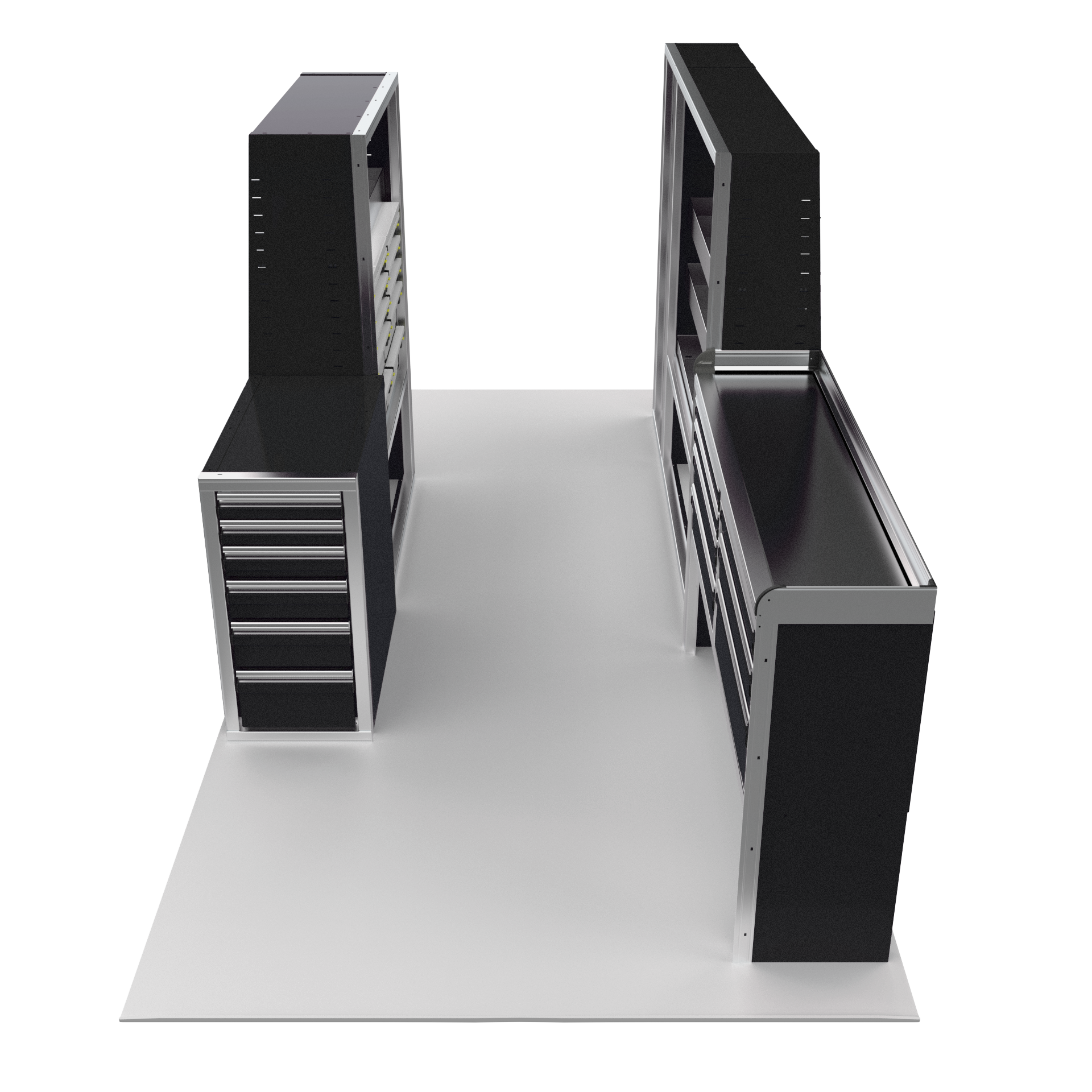

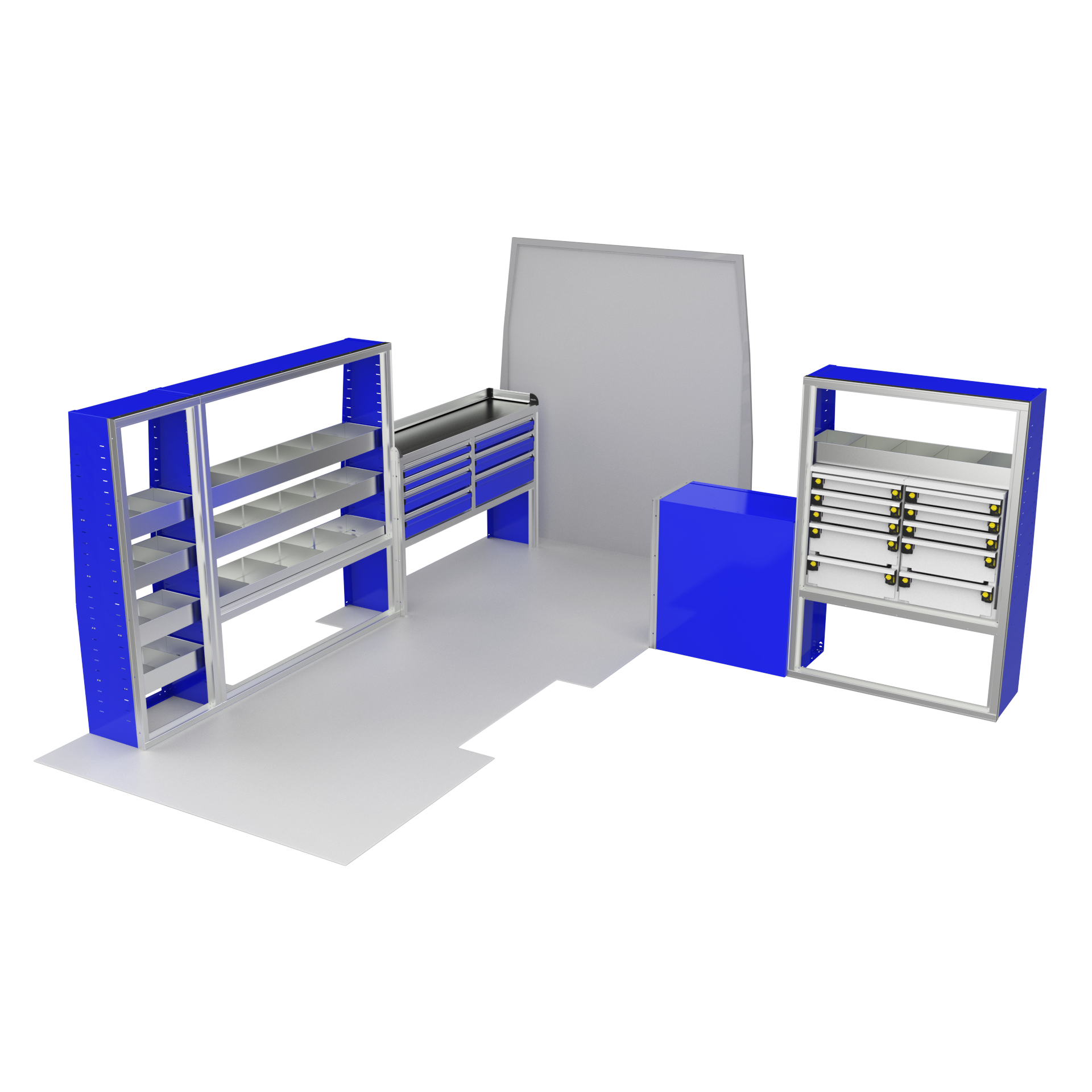

For the ultimate storage solution in your Ford Transit Extended model, the VanPro Package FTEXT2 has everything you need. Designed for medium or high roof Transit 150/250/350 vans, this system includes versatile shelving, a durable workbench, and a drawer housing for additional small-item storage. Crafted from premium aluminum and built to withstand the toughest demands, this package offers easy access and maximized space to keep your tools and equipment organized and ready to go.
Location: Front Streetside
Overall Cabinet Size: 56W x 36H x 14D
Cabinet Frame Size: 56W x 36H x 14D
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Plastic Laminate
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
OPENING LIST
---------------------------------------
-Opening 1: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
5in [Lnr]
5in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x4)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
4in [Lnr]
5in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x3)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 2: 53W x 15.5H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Delete back panel in opening 2
FT-300 Shelving Section
Location: Middle Streetside
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Transit profile
FT-303 Shelving Section
Location: Rear Streetside
Overall Cabinet Size: 20W x 60H x 14D
Cabinet Frame Size: 20W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 17W x 57H**EMPTY**
* Adjustable Shelves : 4 (18.758w x 12d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves
- Transit Profile
FT-301 Shelving Unit
Location: Rear Curbside
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- Transit Profile
MG-9 MotionGlide Unit (x2)
-Weight: 36 lbs.
-Powder Coat Finish: Tool Cabinet White
-Extrusion Finish: Tool Cabinet White
MOTIONGLIDE UNIT
-----------------------------------------
Unit Dim: (18w x 25h x 14d)
Drawers:
3in [Toolgrid Board]
3in [Toolgrid Board]
3in [Toolgrid Board]
6in [Toolgrid Board]
6in [Toolgrid Board]
FT-305 Drawer Housing
Location: Front Curbside
Overall Cabinet Size: 16W x 32H x 30D
Cabinet Frame Size: 16W x 32H x 30D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 13W x 29H
Tabbed Drawer Covers
Drawers:
3in [Lnr] [Sep:4] [STS]
3in [Lnr] [Sep:4] [STS]
4in [Lnr] [Sep:4] [STS]
5in [Lnr] [Sep:4] [STS]
6in [Lnr] [Sep:4] [STS]
7in [Lnr] [Sep:4] [STS]
Divider Clip Kit - QTY: 4
Bottom Space = .952
Slide Type:
Medium Duty 28 inch Slide (x6)
Inside Dwr Dim: 8.53 W x 27.671 D
