VANPRO PACKAGE MEXT2

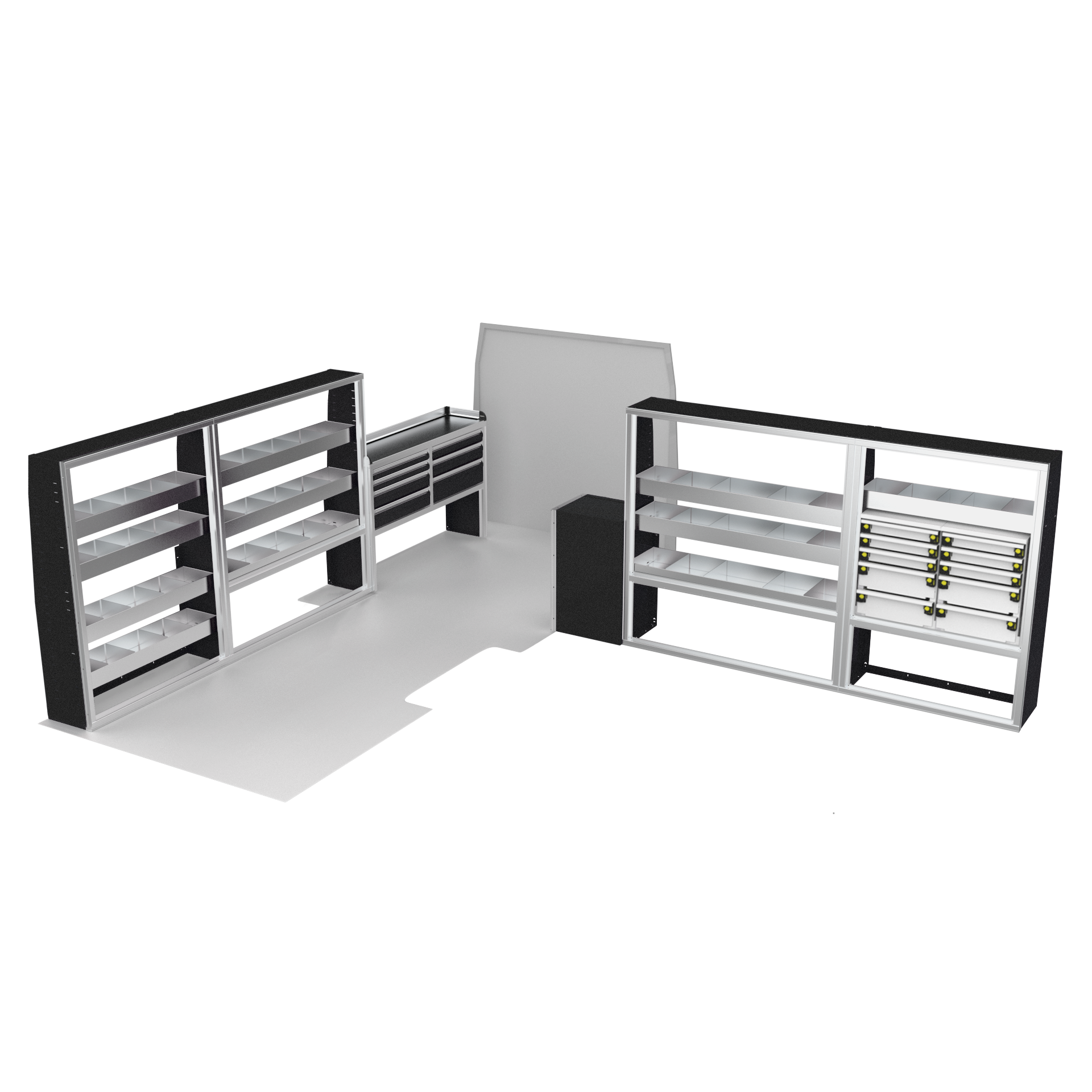

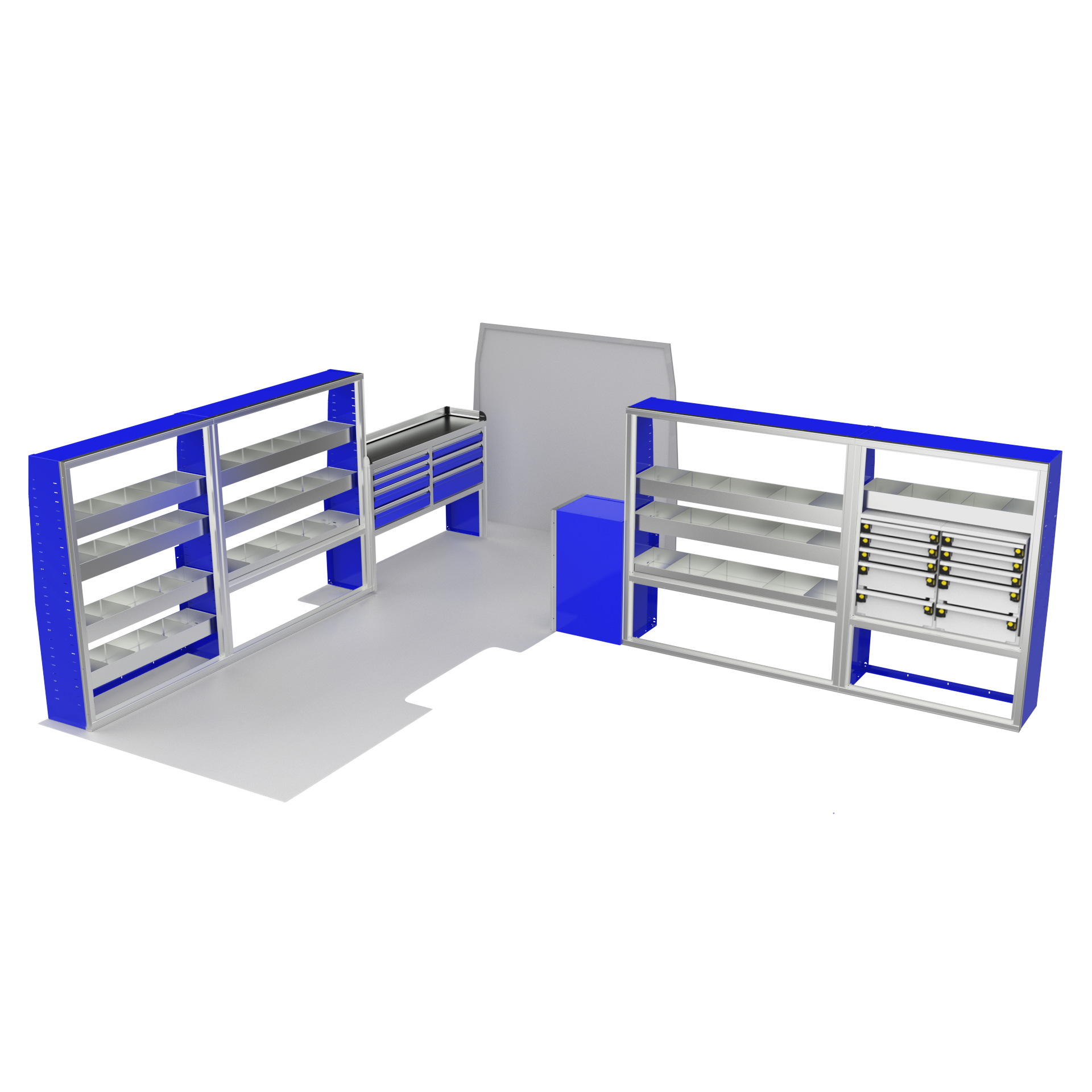

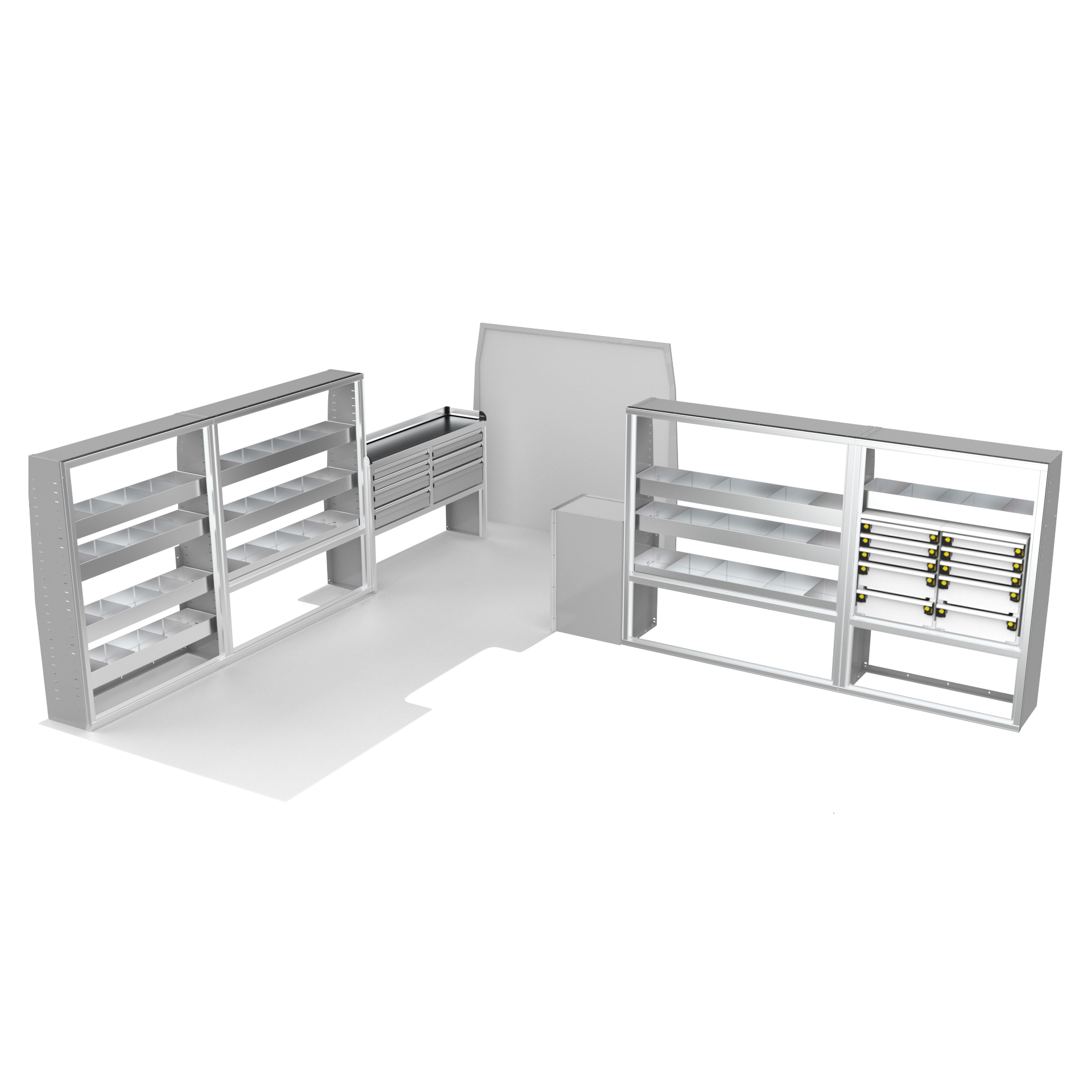

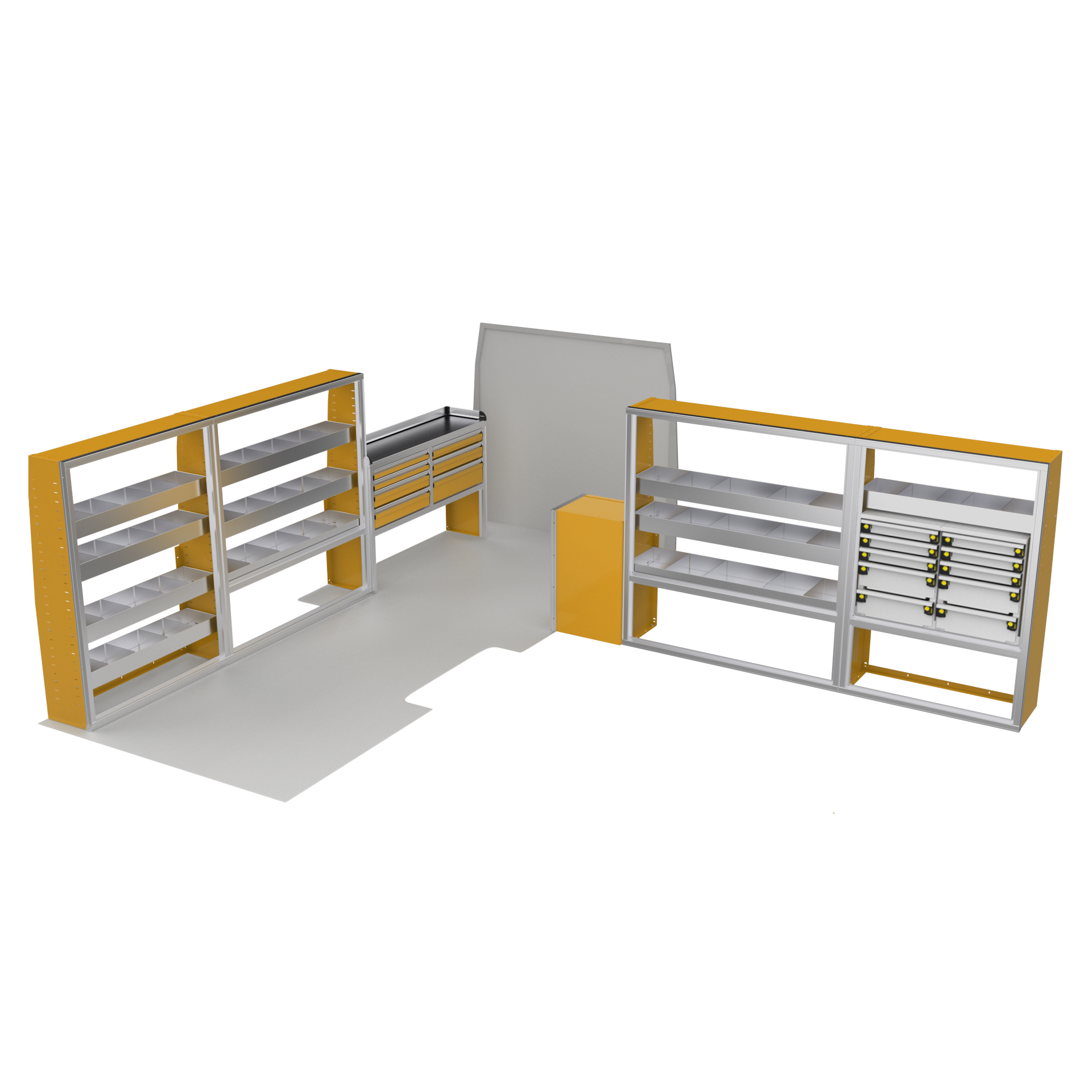

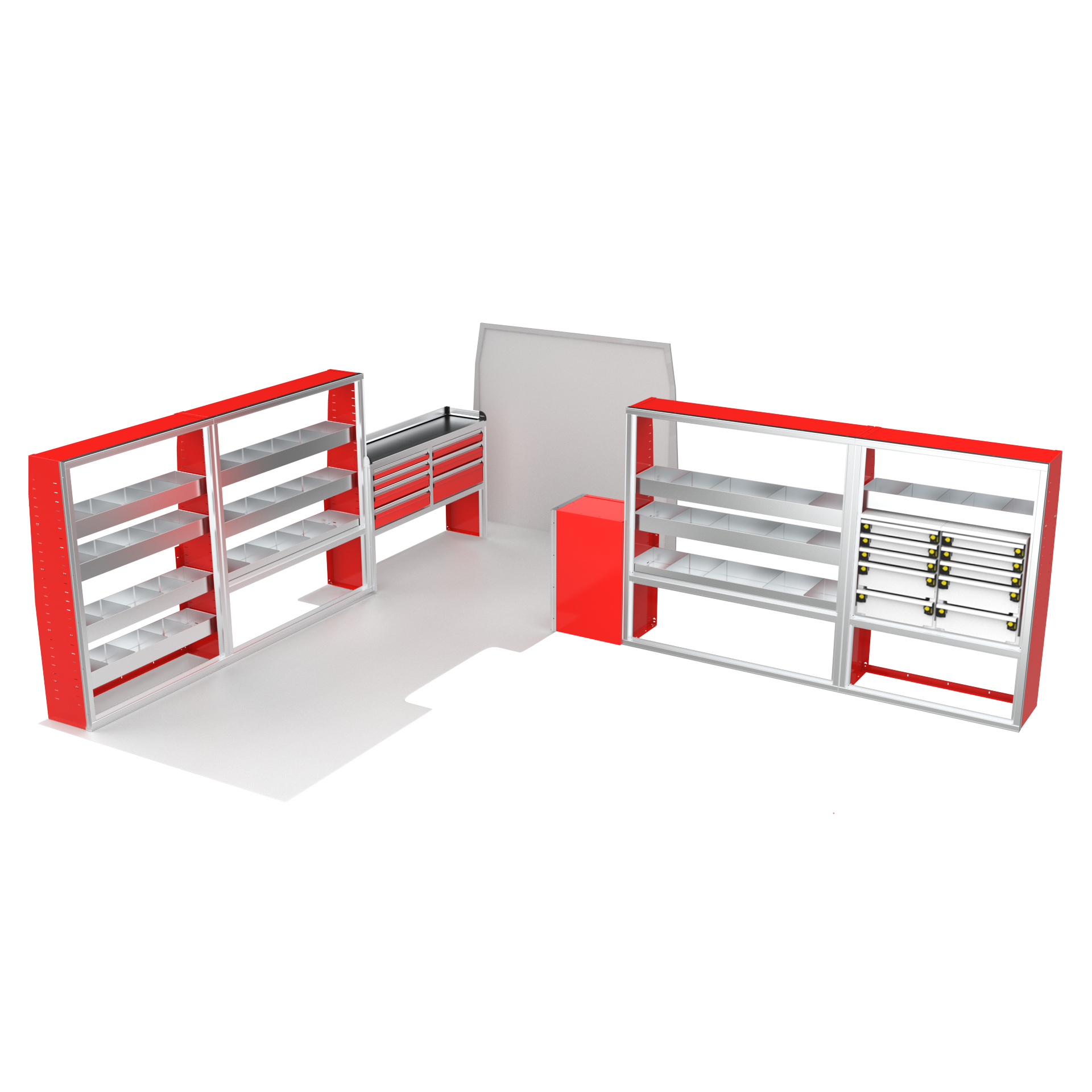

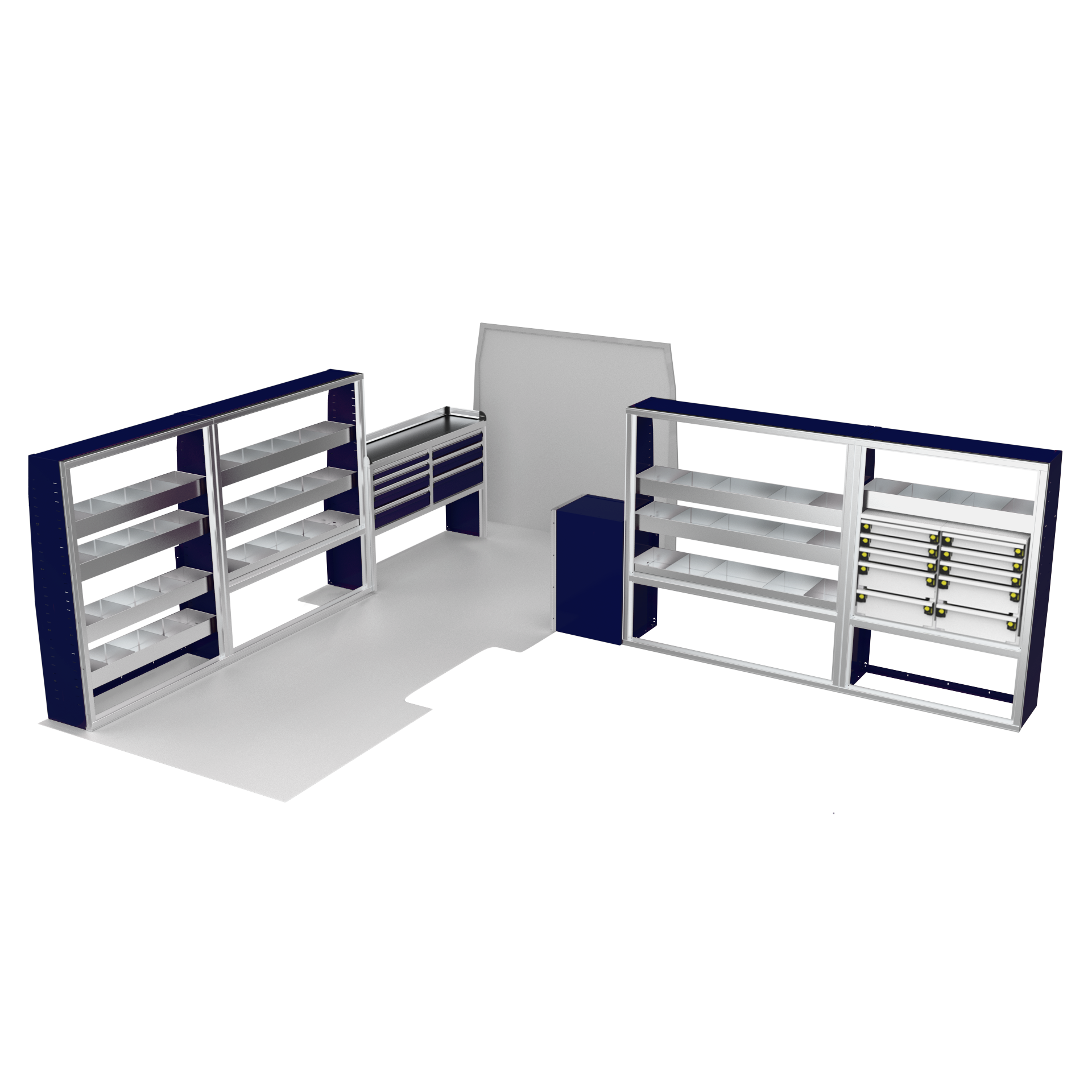

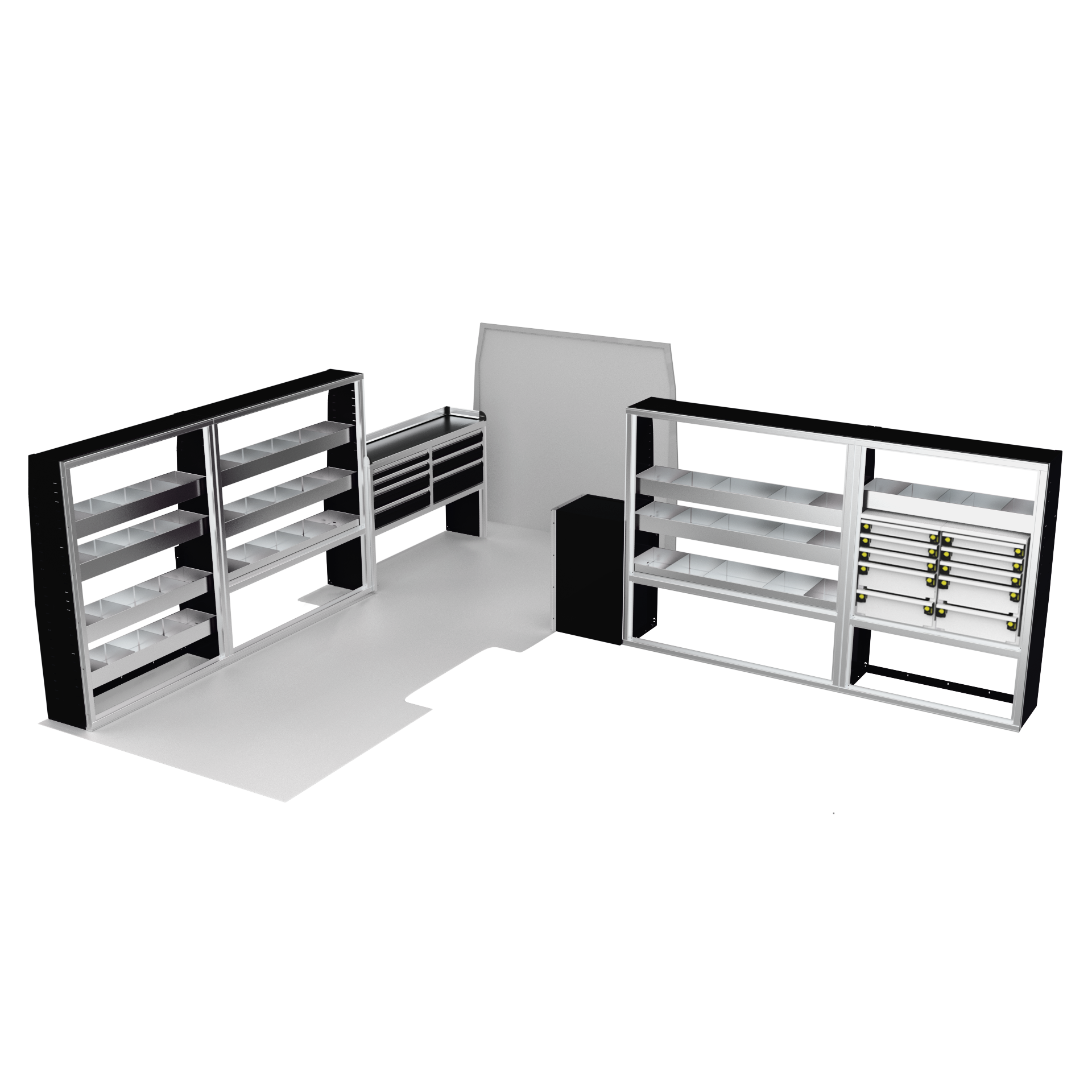

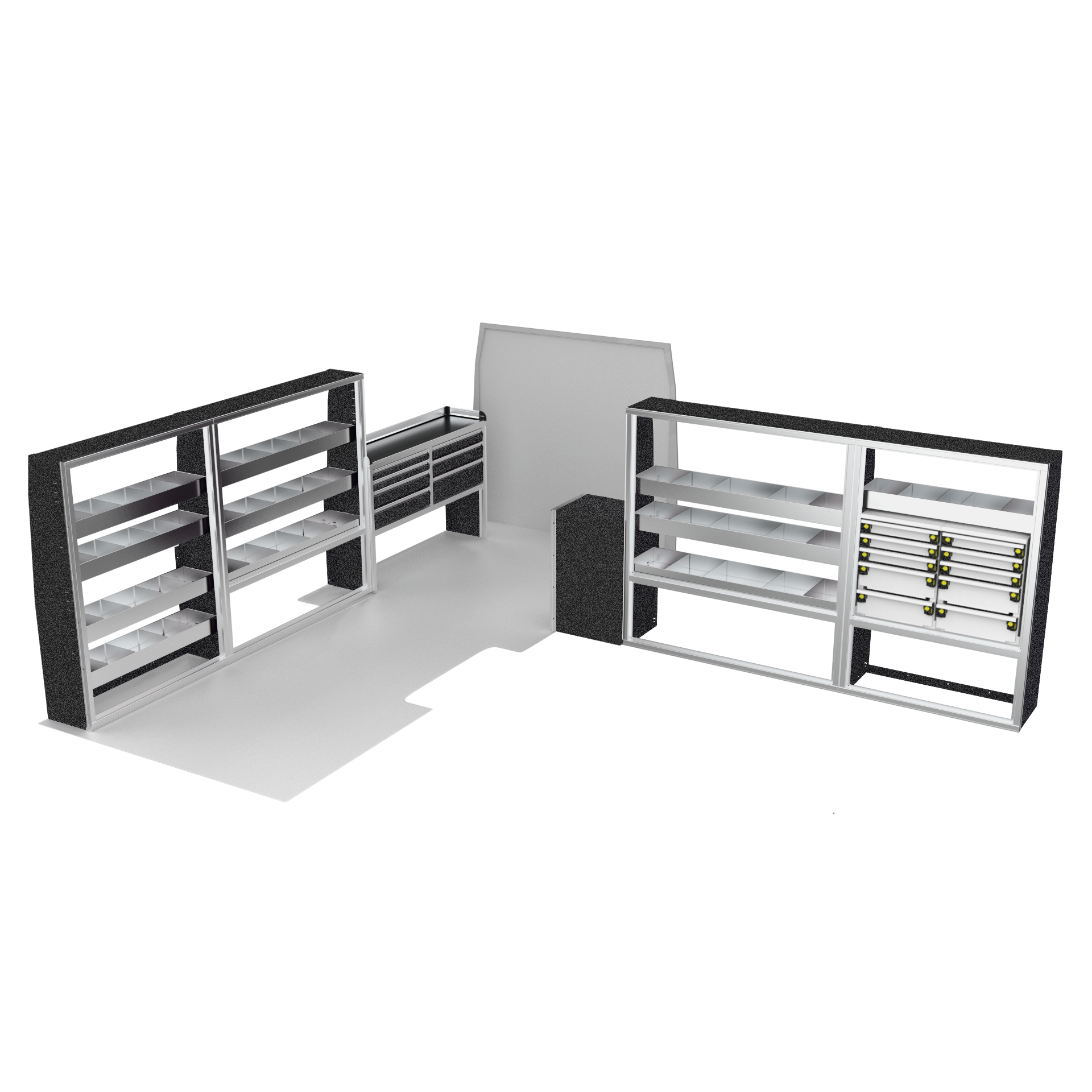

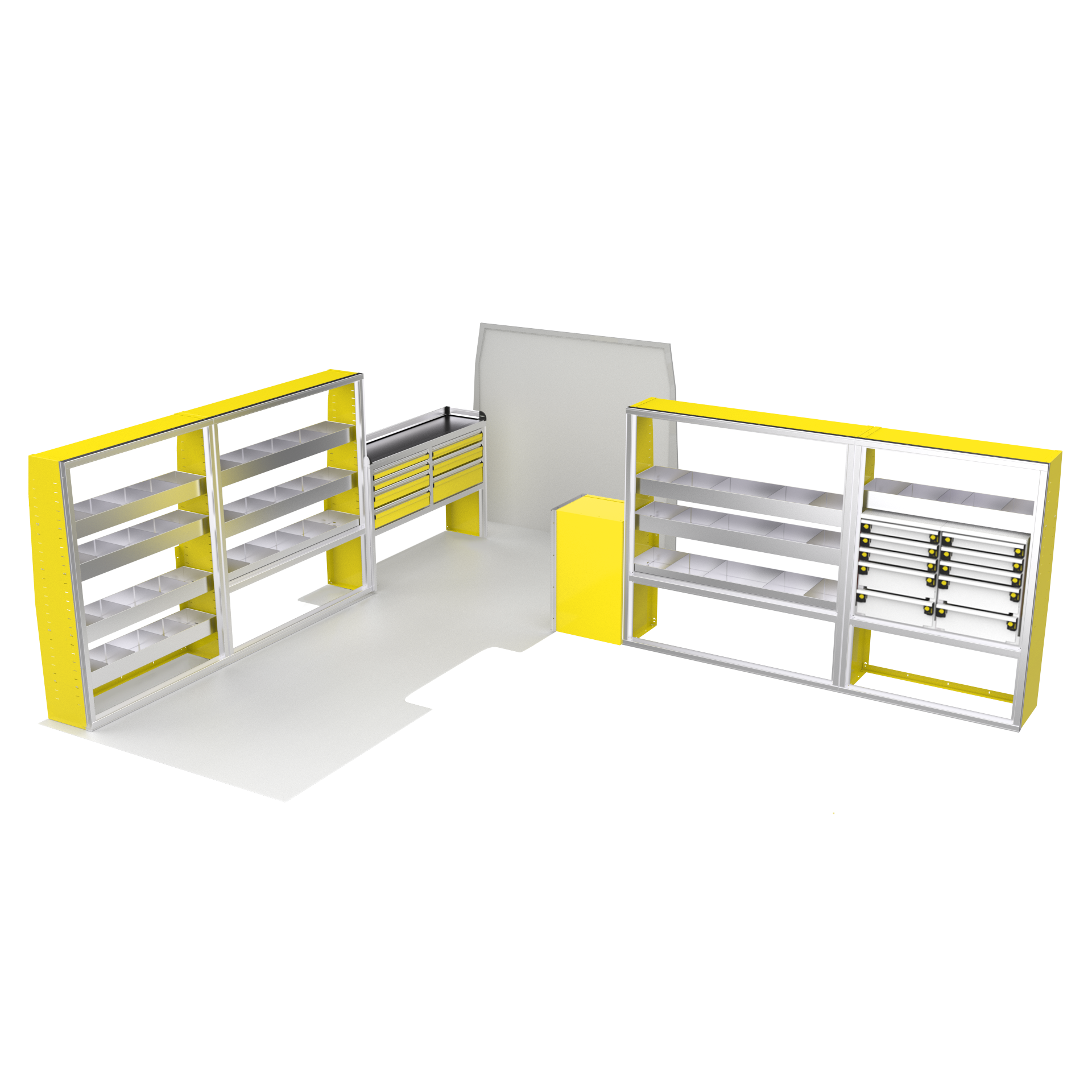

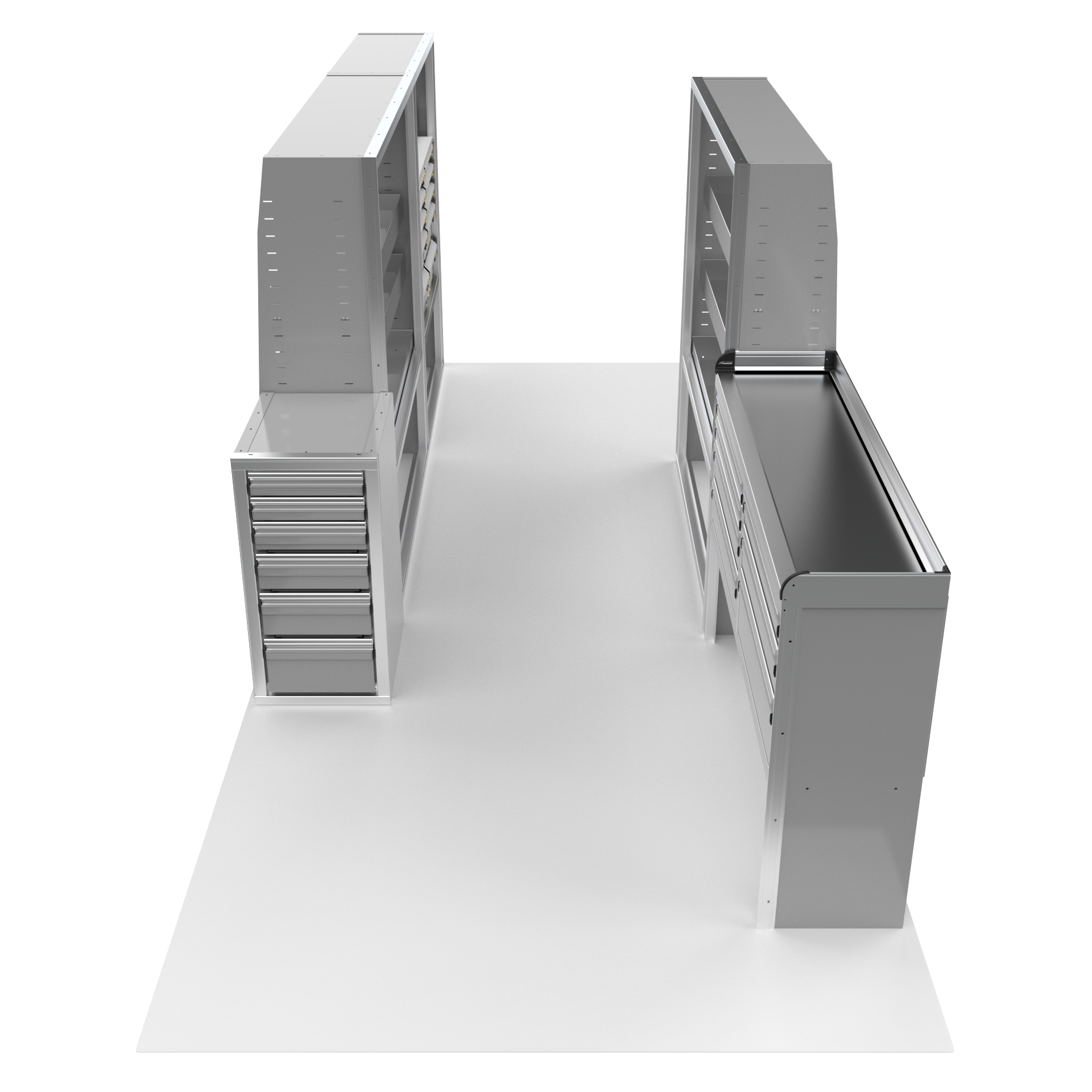

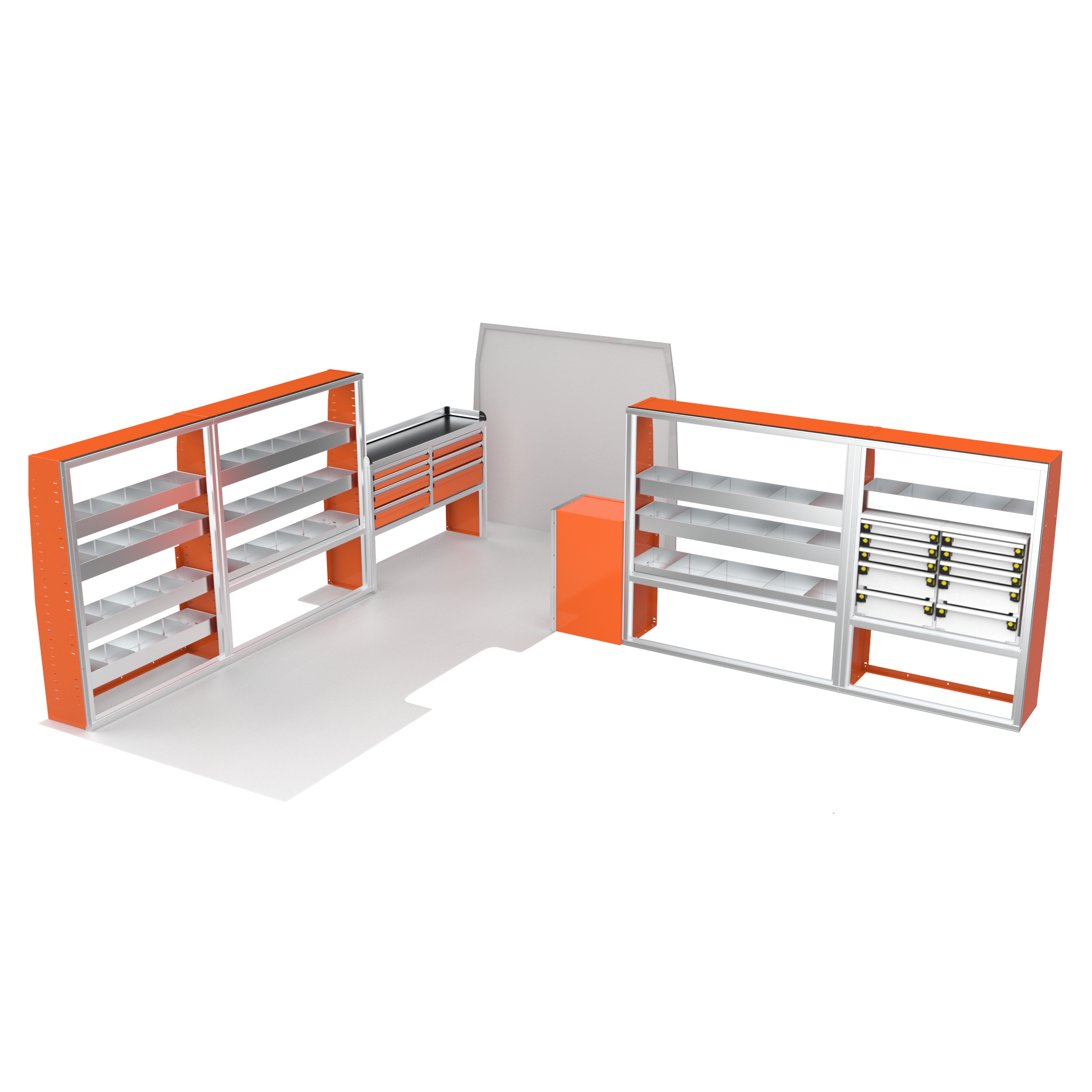

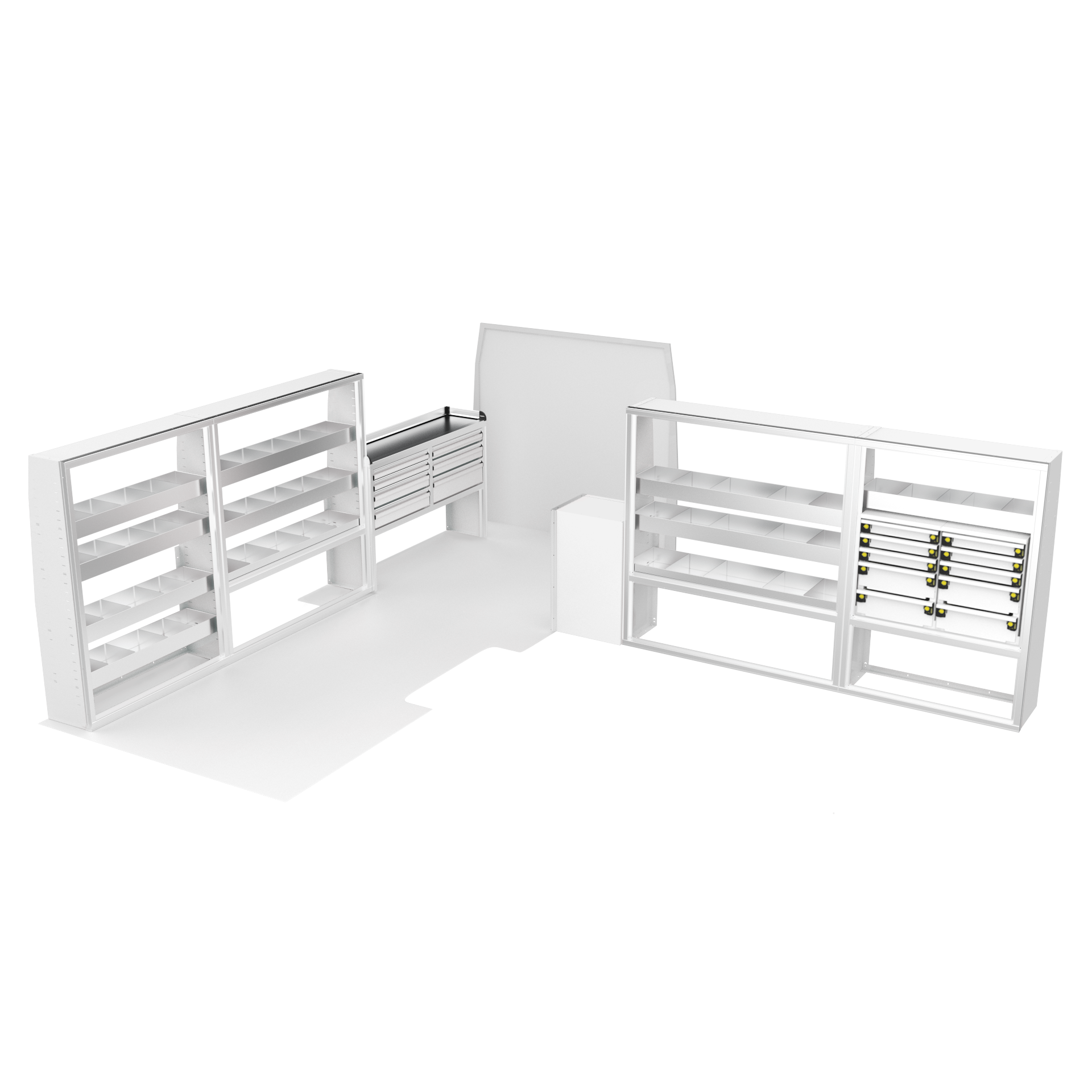

The VanPro Package MEXT2 for the Mercedes Sprinter 170 EXT includes the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS302 Shelving Unit, MS303 Shelving Unit, MS307 Workbench, and MS310 Drawer Housing. This package combines adjustable shelving, motion-controlled access, and versatile drawer housing to provide a fully optimized storage solution for your mobile workspace. Designed for the Mercedes Sprinter 170 EXT, it maximizes storage capacity while keeping tools and equipment neatly organized and easily accessible.

MS-307 Workbench
Overall Cabinet Size: 56W x 36H x 14D
Cabinet Frame Size: 56W x 36H x 14D


CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Plastic Laminate
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel

OPENING LIST
---------------------------------------
-Opening 1: 25.75W x 17H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
5in [Lnr]
5in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x4)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 17H

Tabbed Drawer Covers
Drawers:
4in [Lnr]
5in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x3)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 2: 53W x 15.5H**EMPTY**

MS-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-302 Shelving Unit
Overall Cabinet Size: 44W x 60H x 14D
Cabinet Frame Size: 44W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 41W x 57H**EMPTY**
* Adjustable Shelves : 4 (42.758w x 12d)

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-301 MotionGlide Parts Cabinet
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- Sprinter Profile

MG-9 MotionGlide Drawer Unit (x2)
Location: Mounted in FT301
Unit Dim: (18w x 25h x 14d)

Drawers:
3in
3in
3in
6in
6in

MS-303 Shelving Unit
Overall Cabinet Size: 56W x 60H x 16D
Cabinet Frame Size: 56W x 60H x 16D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 14d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-310 Drawer Housing
Overall Cabinet Size: 16W x 32H x 20D
Cabinet Frame Size: 16W x 32H x 20D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 13W x 29H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 18 inch Slide (x6)


Inside Dwr Dim: 8.53 W x 17.671 D
