VANPRO PACKAGE MEXT3

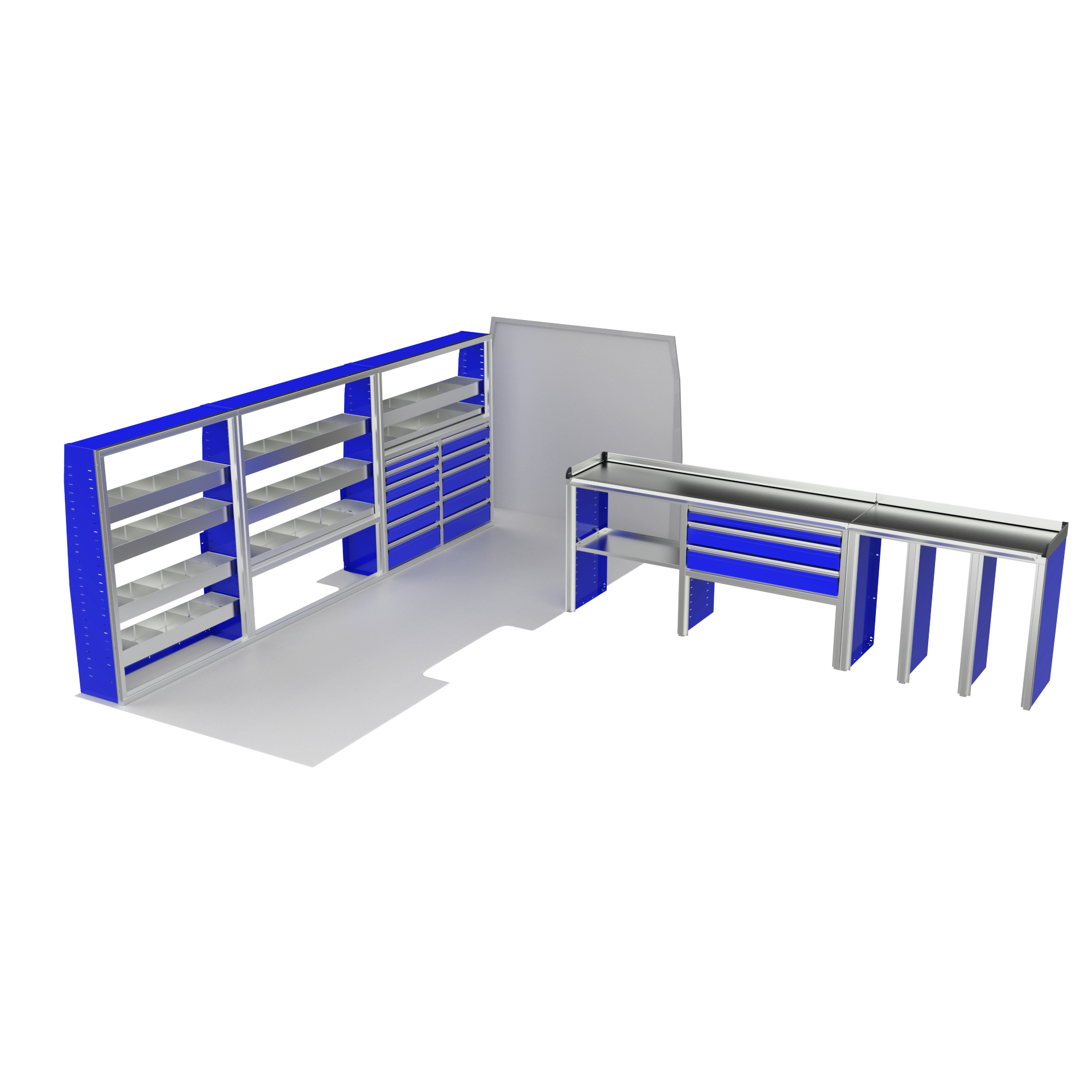

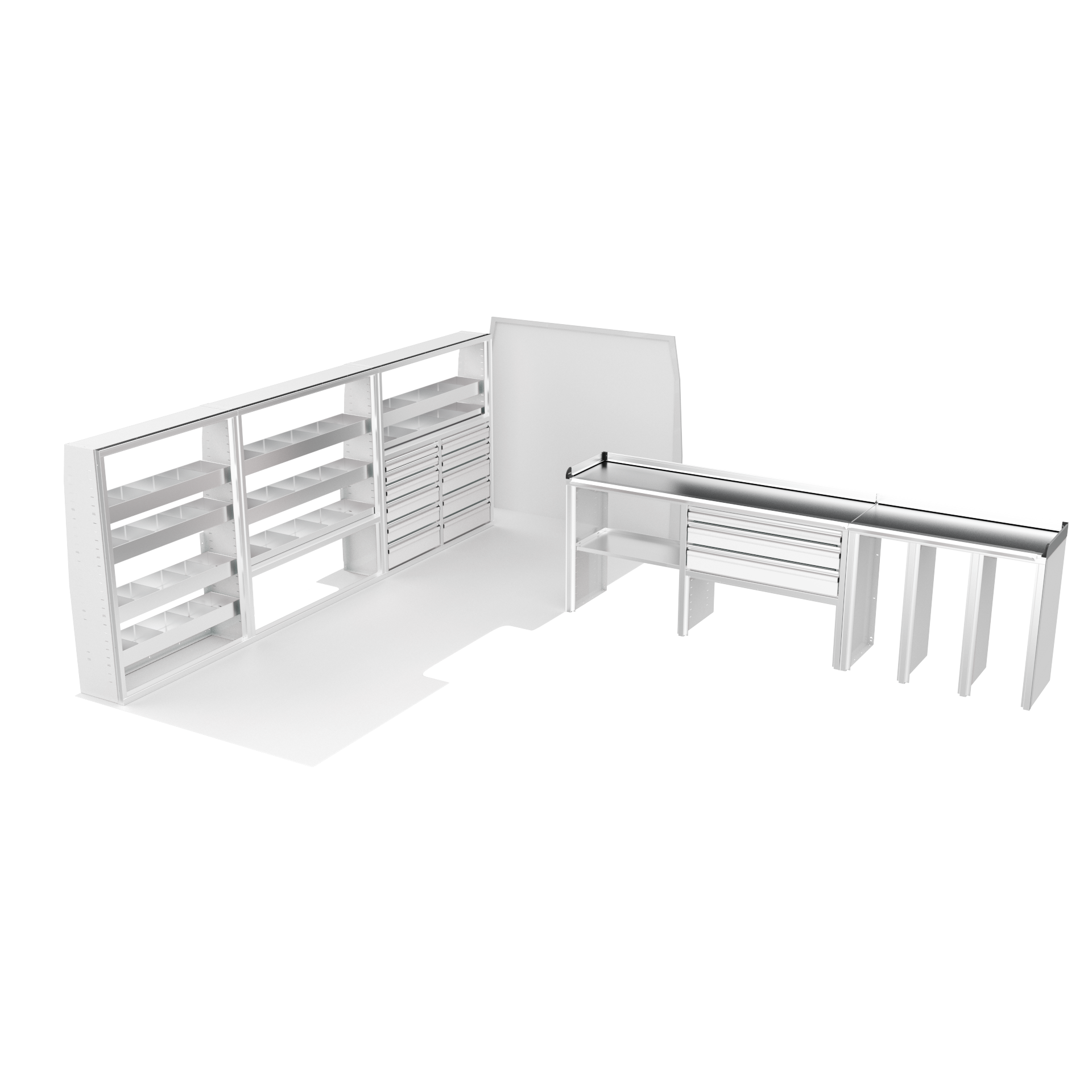

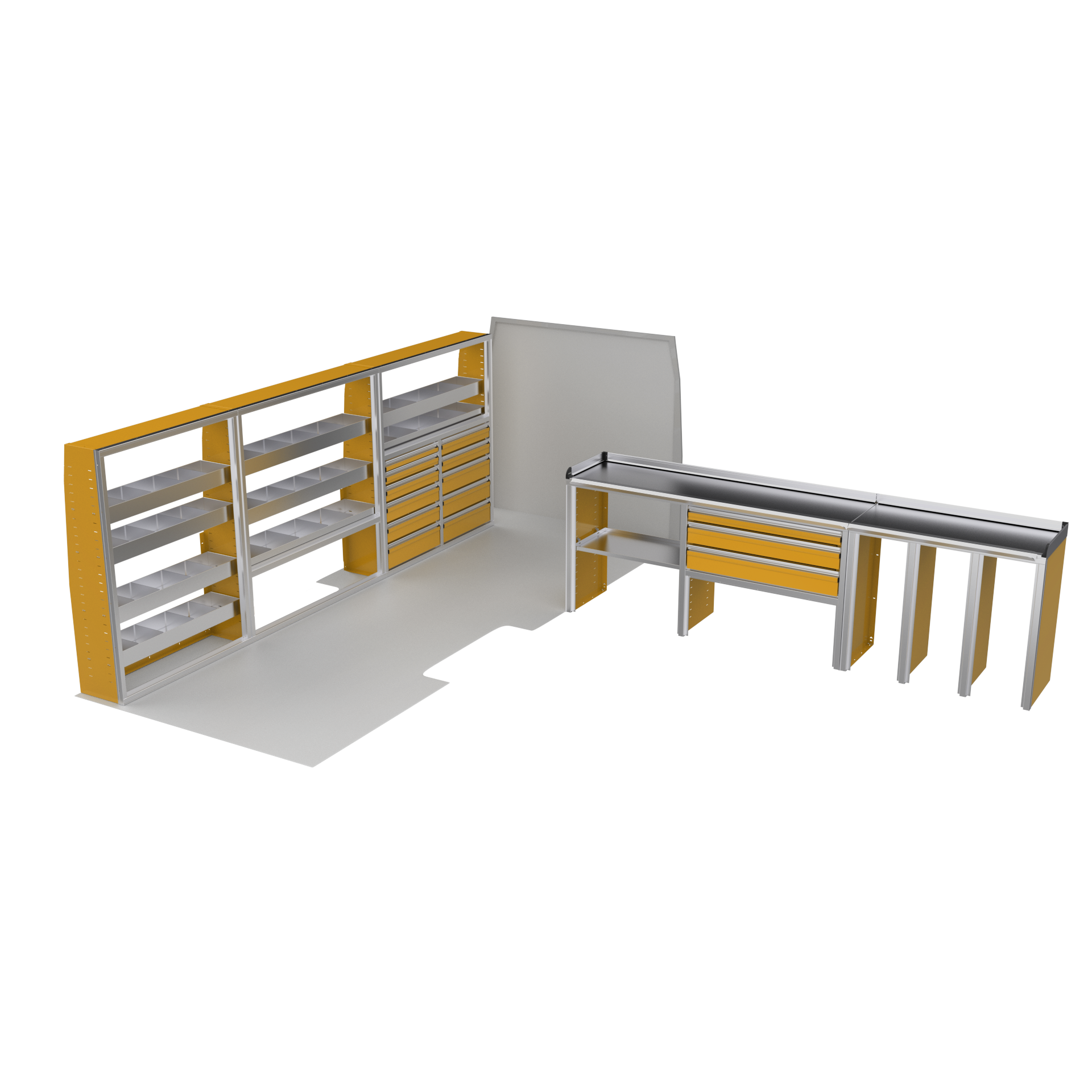

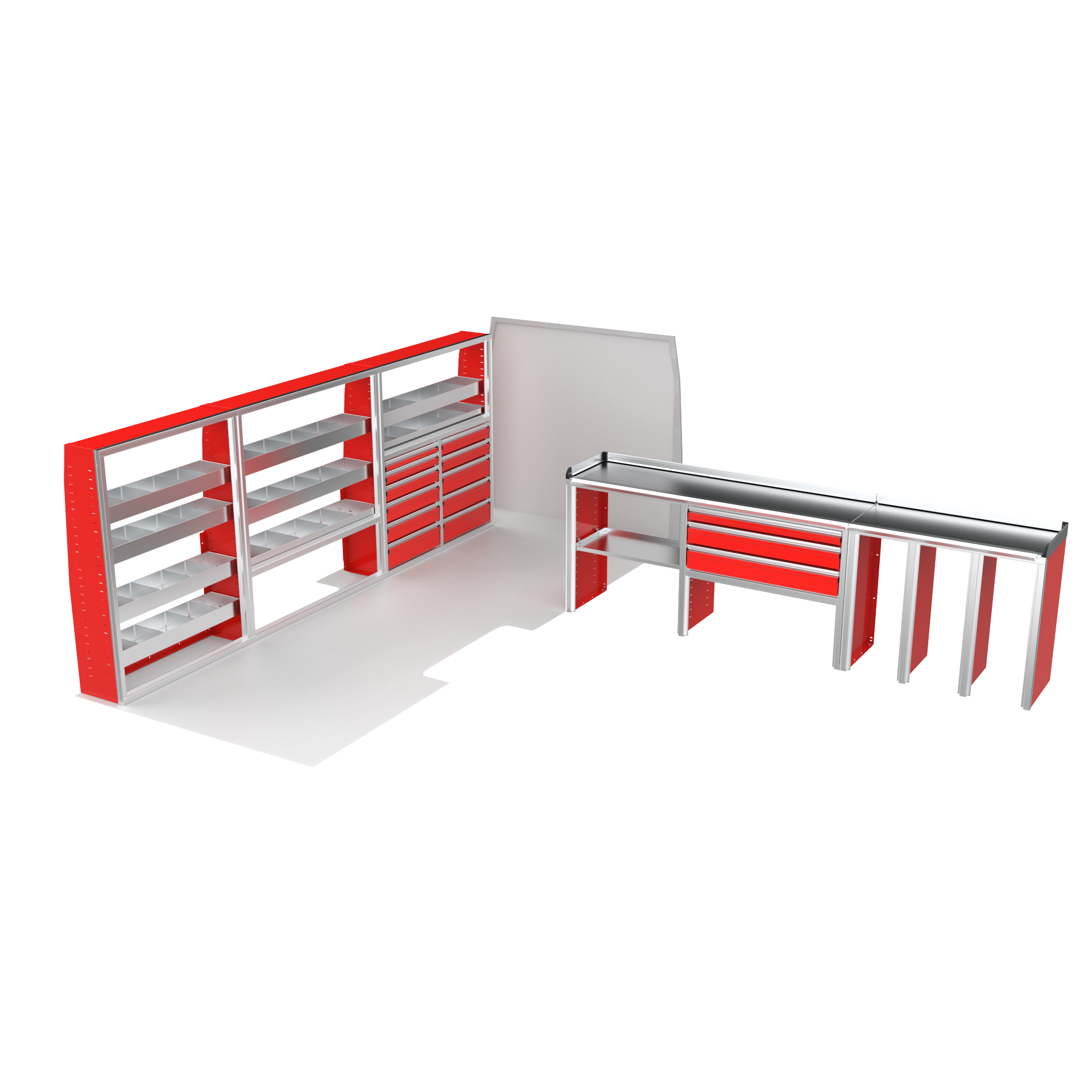

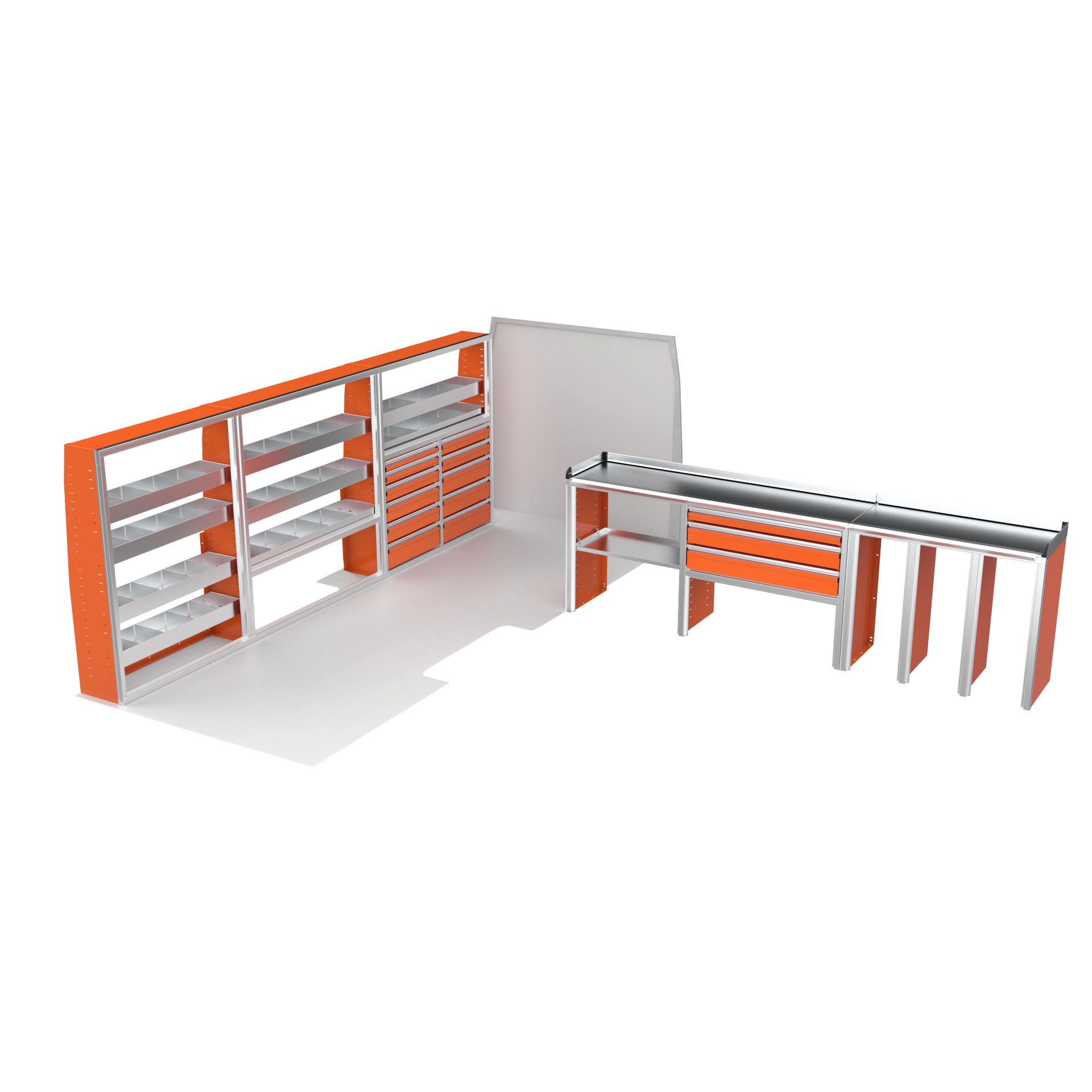

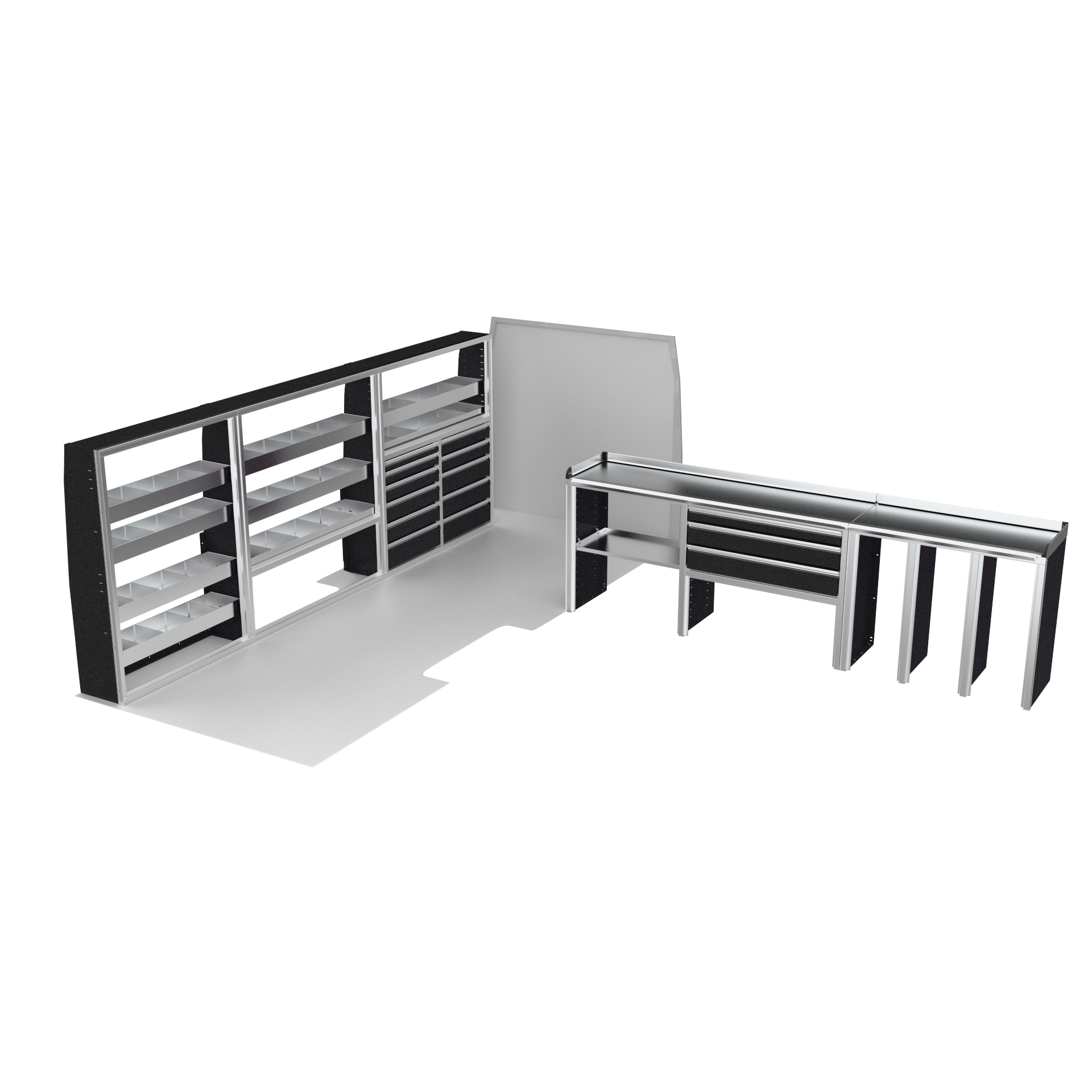

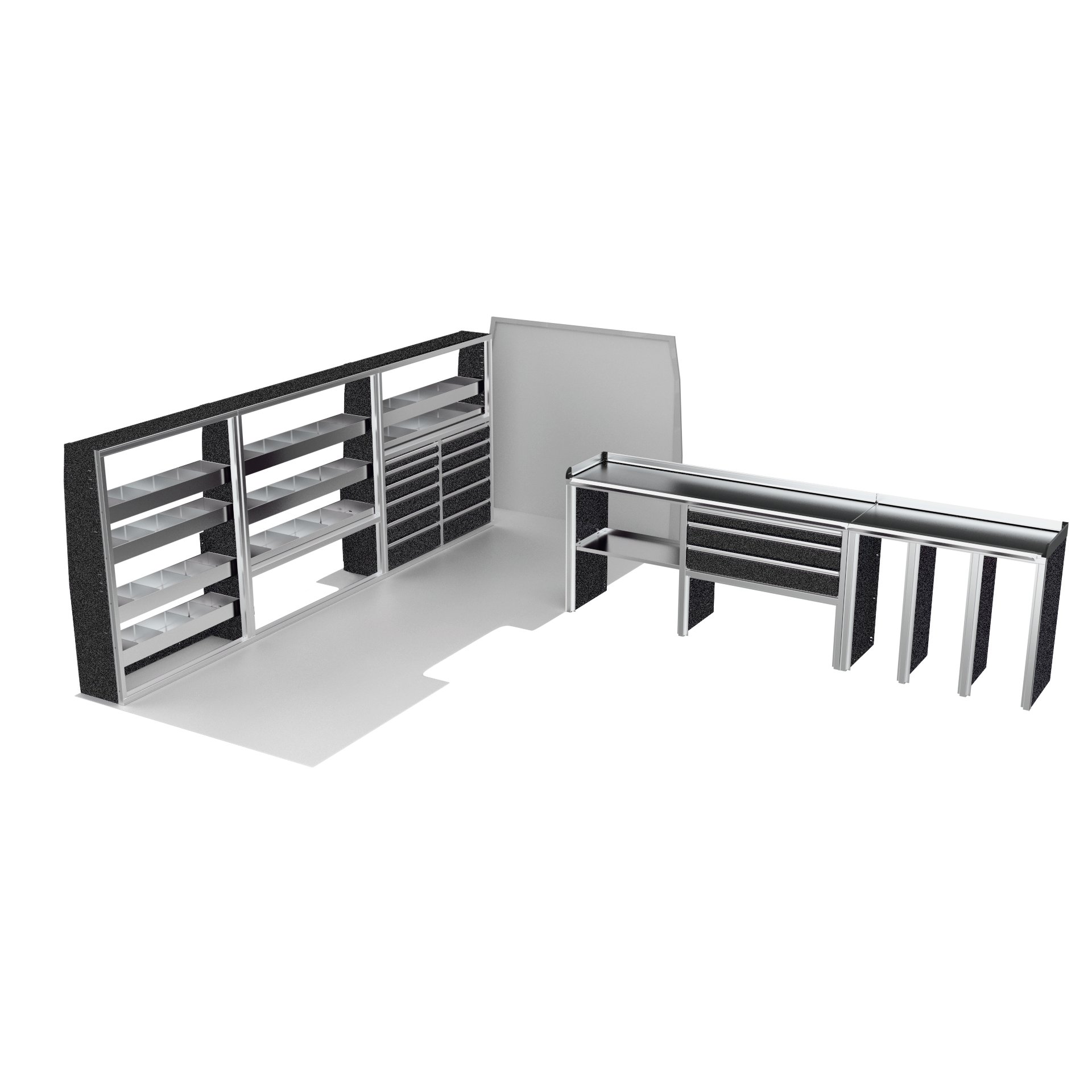

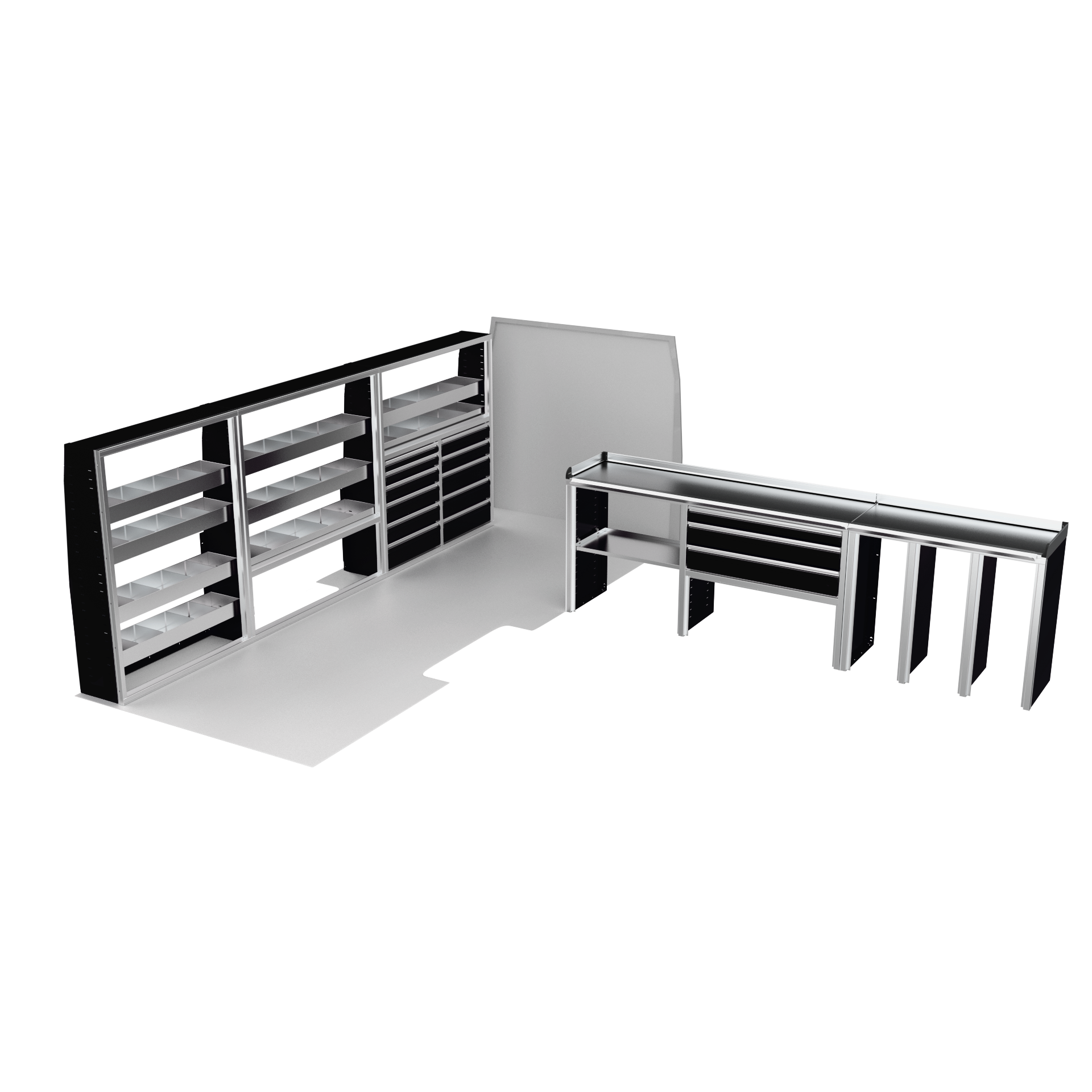

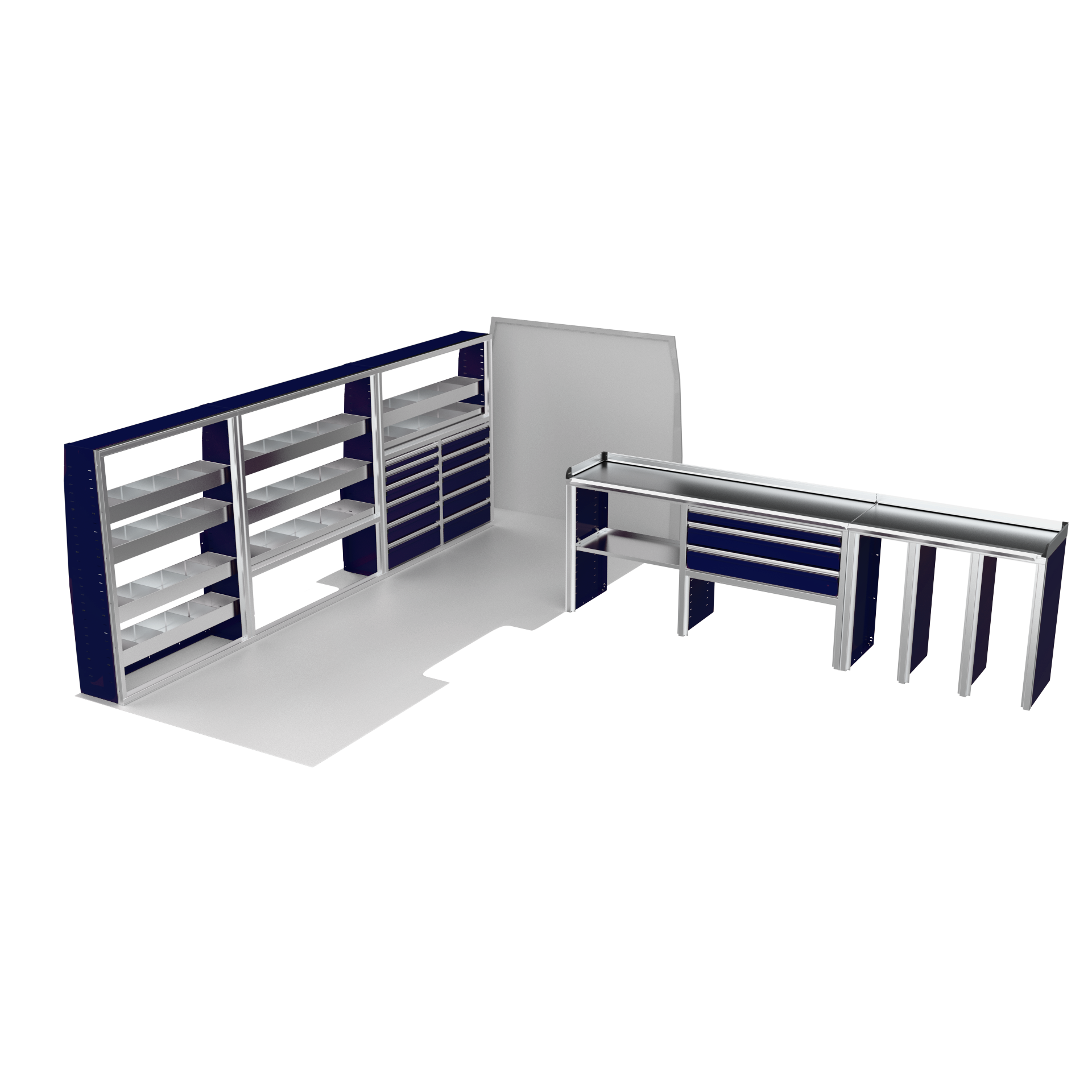

The VanPro Package MEXT3 for the Mercedes Sprinter 170 EXT includes the MS300 Shelving Unit, MS302 Shelving Unit, MS312 Shelving Unit, MS314A Workbench, and MS314B Workbench. This package combines robust shelving solutions with flexible workstations, designed to optimize storage and workspace in the extended Mercedes Sprinter. Offering customizable shelving and motion-latch drawers, this package provides durability and efficiency for mobile businesses and professionals who need a high-performance van setup.
MS-312 MotionLatch Parts Cabinet
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 23.375H**EMPTY**
* Adjustable Shelves : 1 (54.758w x 12d)
-Opening 2: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
6in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x6)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 32.125H
Tabbed Drawer Covers
Drawers:
5in [Lnr]
5in [Lnr]
7in [Lnr]
7in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x5)
Inside Dwr Dim: 21.28 W x 11.671 D
ADDITIONAL OPTIONS
---------------------------------------
- Back panel behind drawers only
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile
MS-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile
MS-302 Shelving Unit
Overall Cabinet Size: 44W x 60H x 14D
Cabinet Frame Size: 44W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 41W x 57H**EMPTY**
* Adjustable Shelves : 4 (42.758w x 12d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile
MS-314A Workbench
Overall Cabinet Size: 76W x 37H x 20D
Cabinet Frame Size: 76W x 37H x 20D
RIGHT - Joined Cabinet
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
OPENING LIST
---------------------------------------
-Opening 1: 31.5W x 35H**EMPTY**
* Adjustable Shelves : 1 (32.629w x 18d)
-Opening 2: 40W x 17H
Tabbed Drawer Covers
Drawers:
4in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
Divider Clip Kit - QTY: 7
Divider Screw Kit - QTY: 6
Bottom Space = .952
Slide Type:
Medium Duty 16 inch Slide (x3)
Inside Dwr Dim: 35.53 W x 15.671 D
-Opening 3: 40W x 16.5H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
- Offset countertop joint
MS-314B Workbench
Overall Cabinet Size: 45W x 37H x 20D
Cabinet Frame Size: 45W x 37H x 20D
LEFT - Joined Cabinet
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
OPENING LIST
---------------------------------------
-Opening 1: 13W x 35H**EMPTY**
-Opening 2: 13W x 35H**EMPTY**
-Opening 3: 13W x 35H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
- Offset countertop joint
