VANPRO PACKAGE ML1

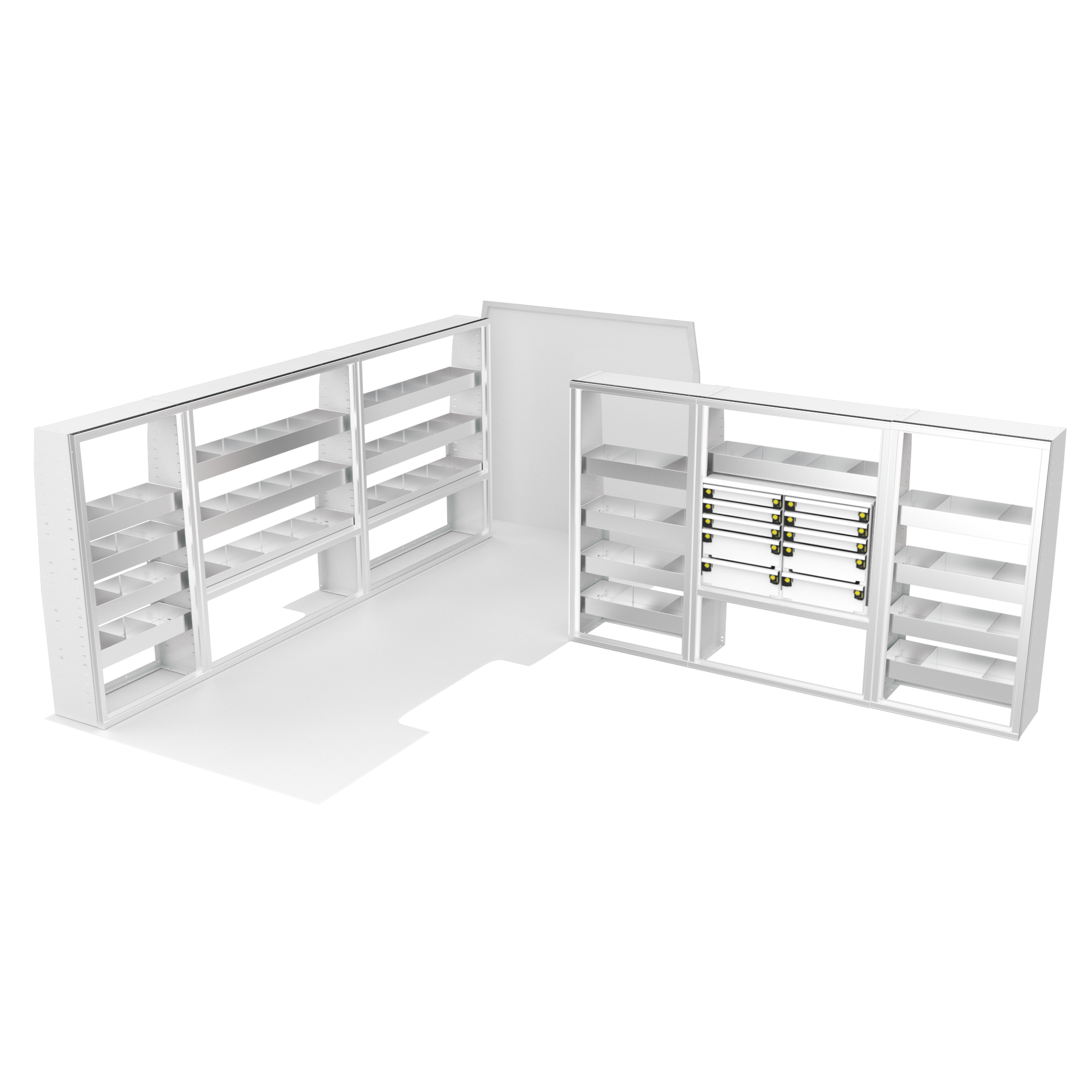

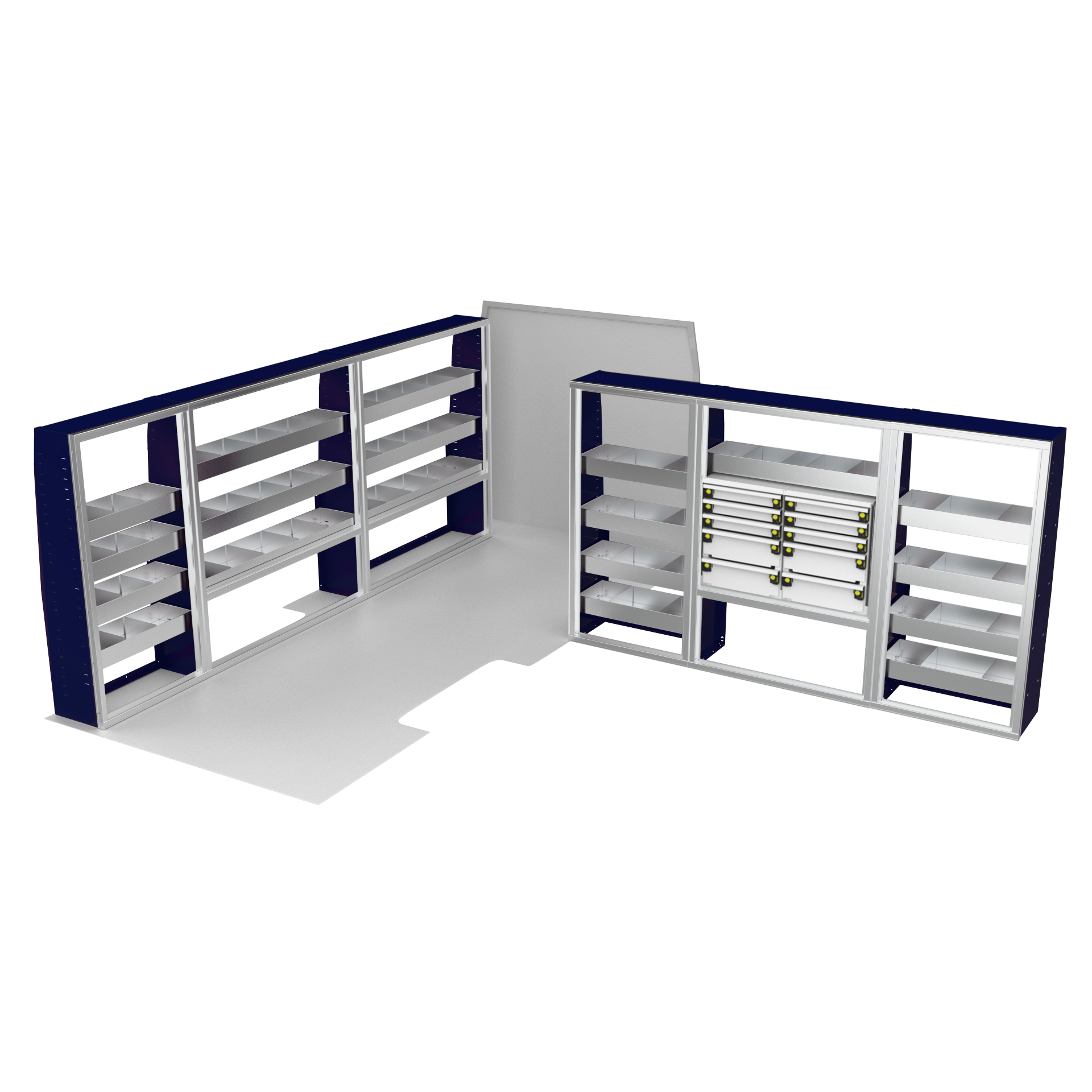

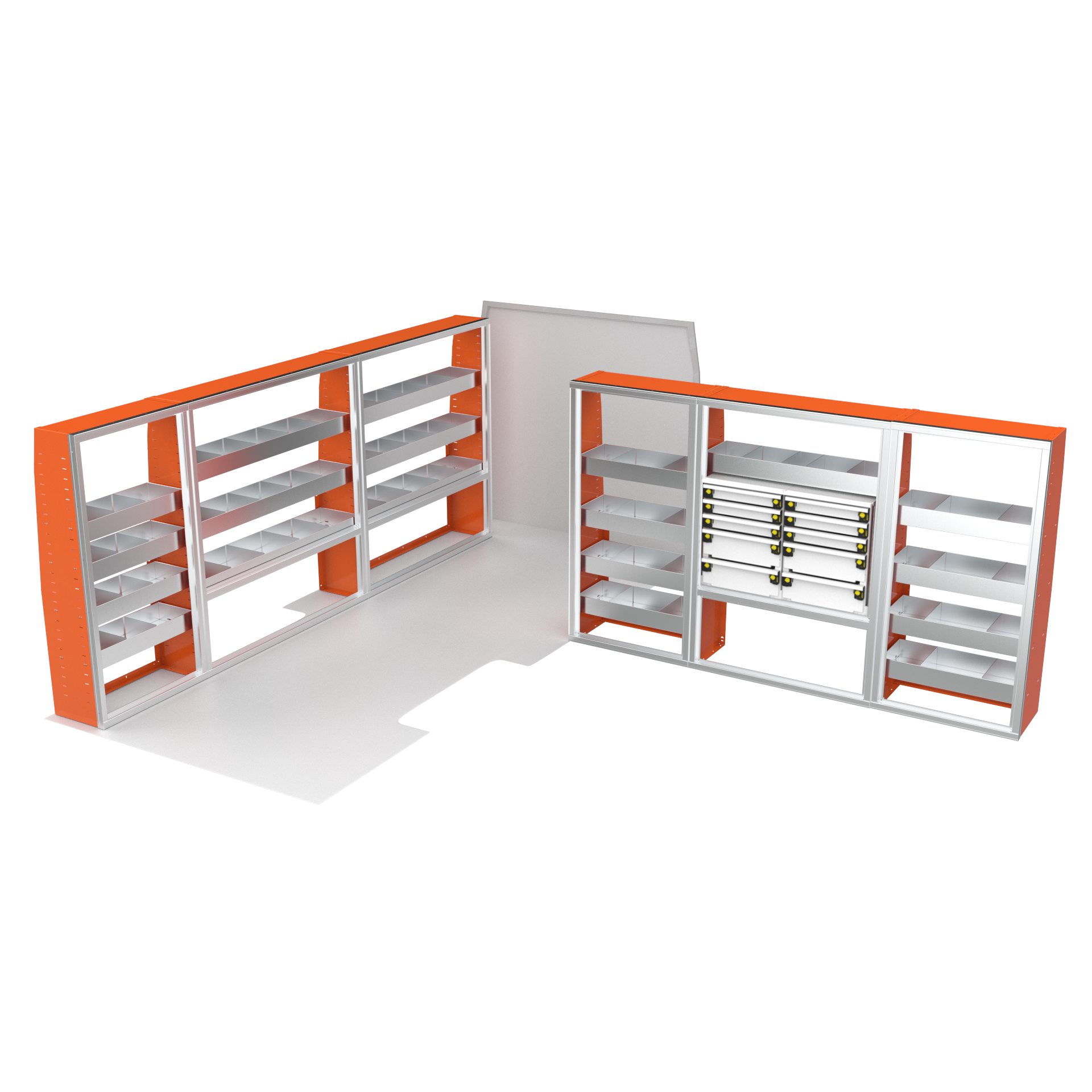

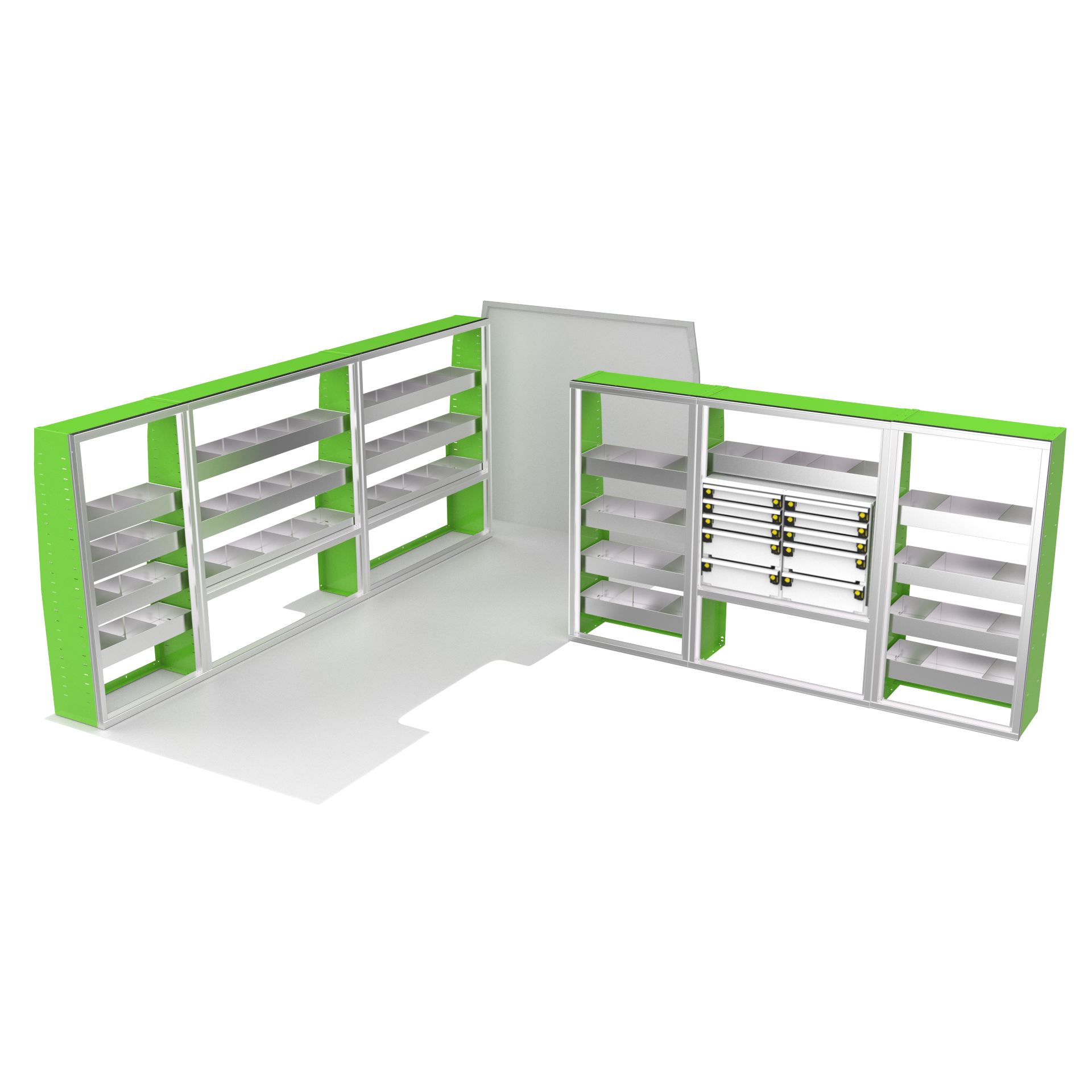

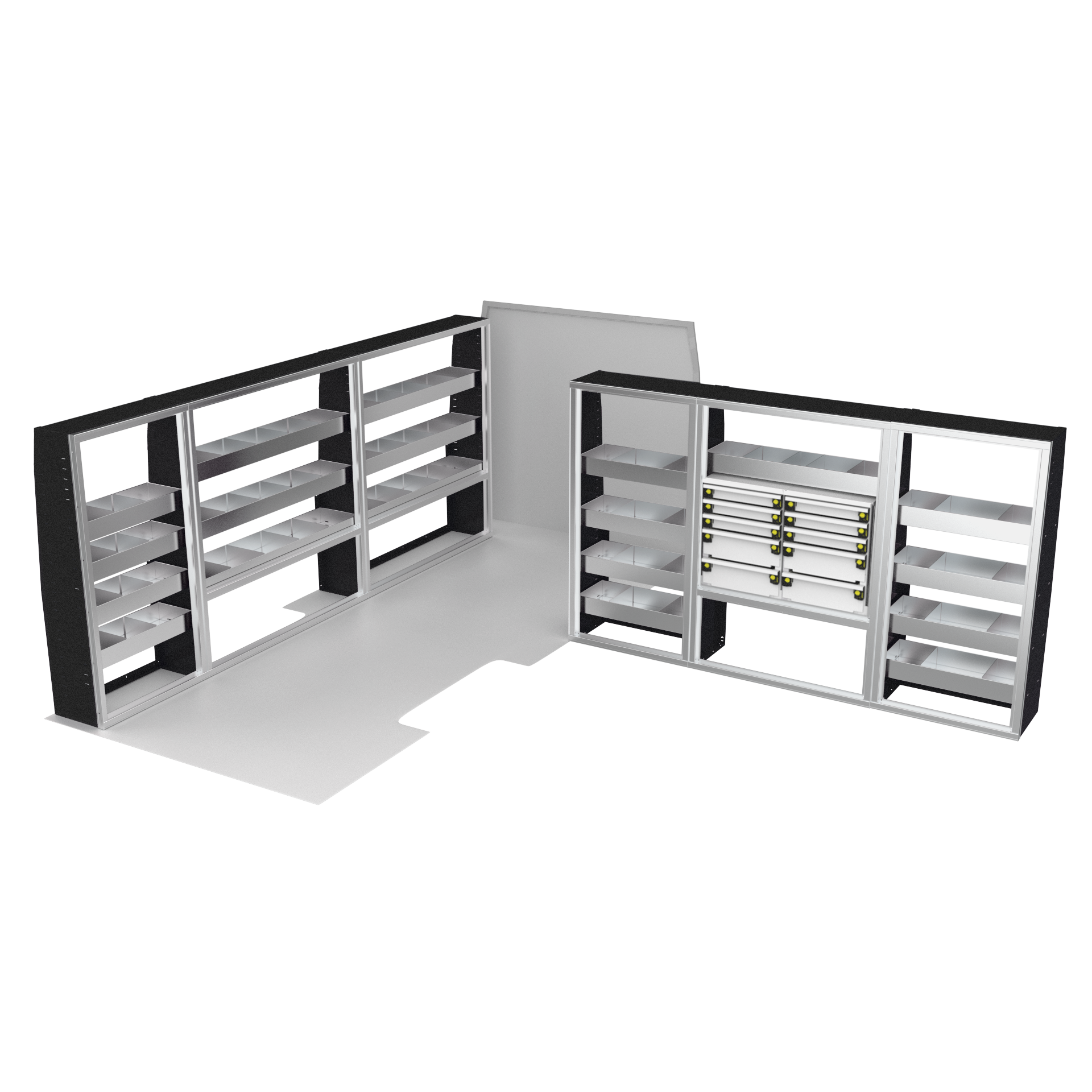

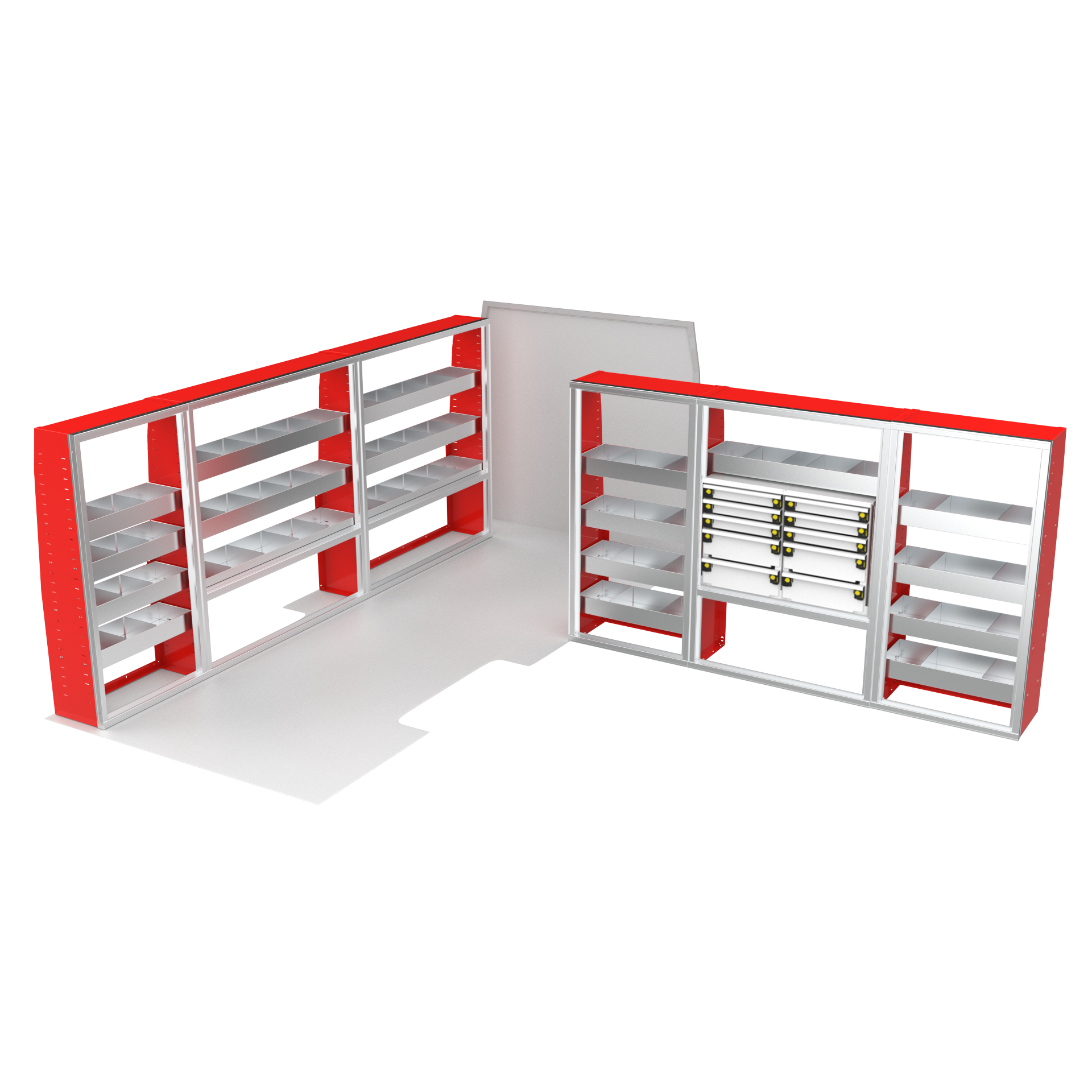

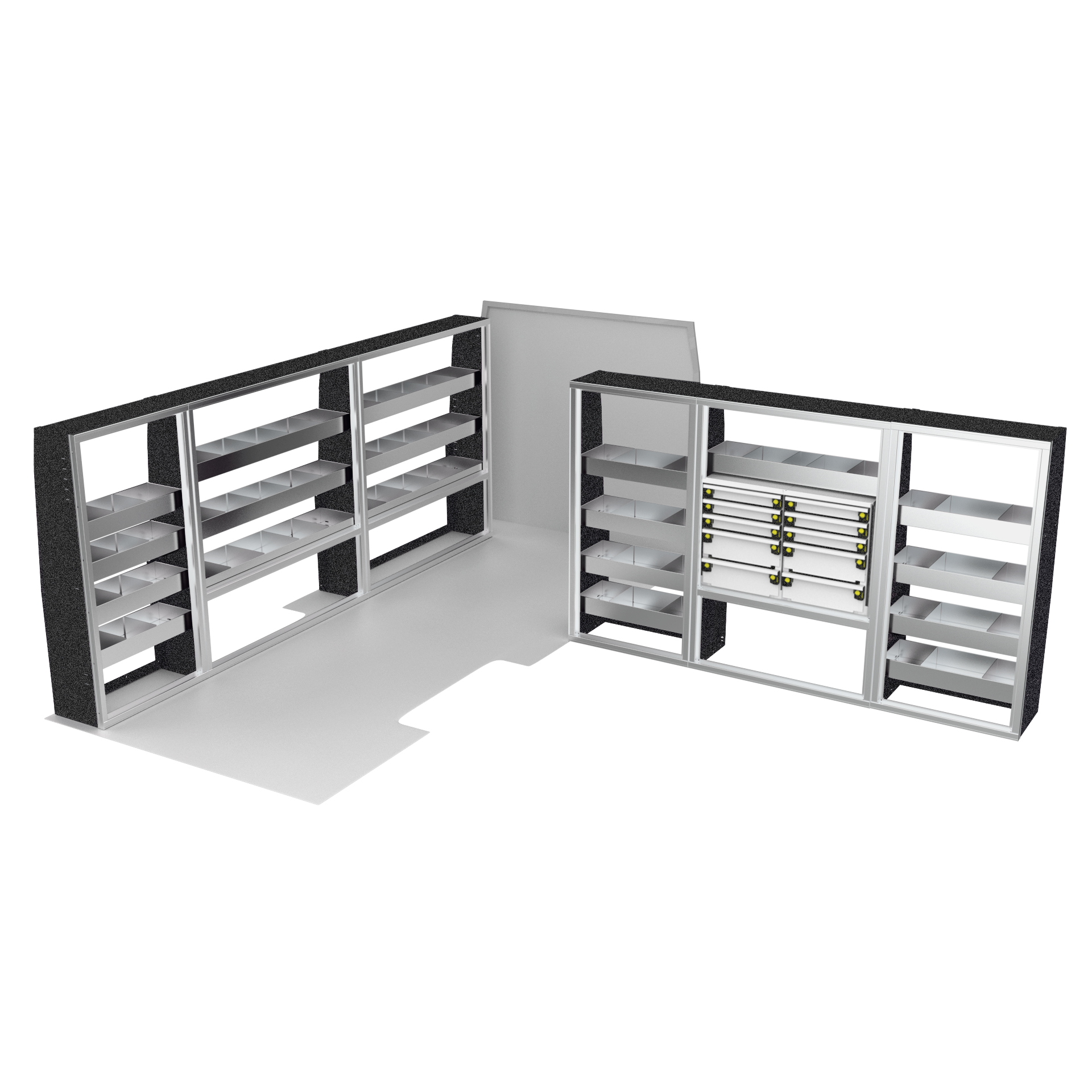

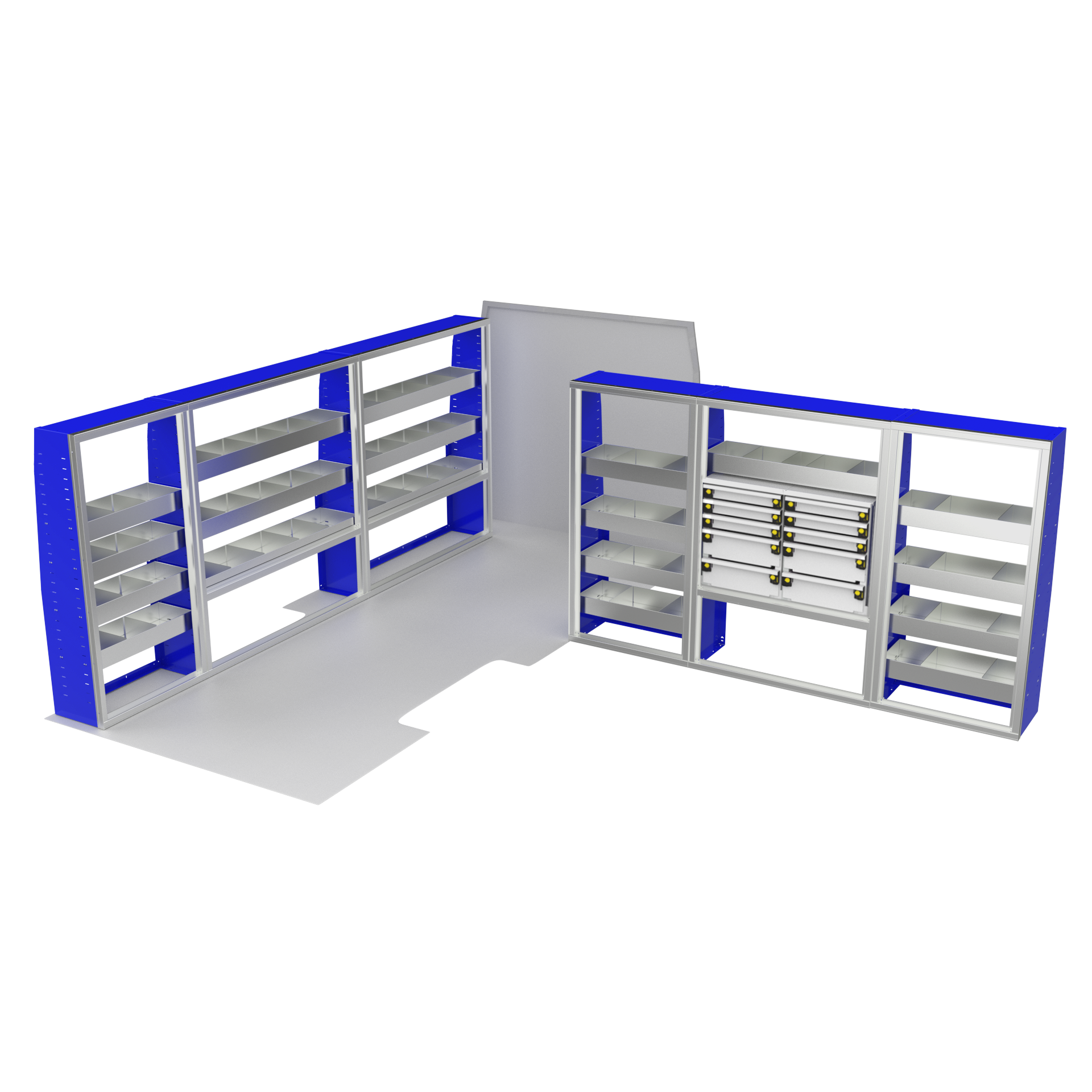

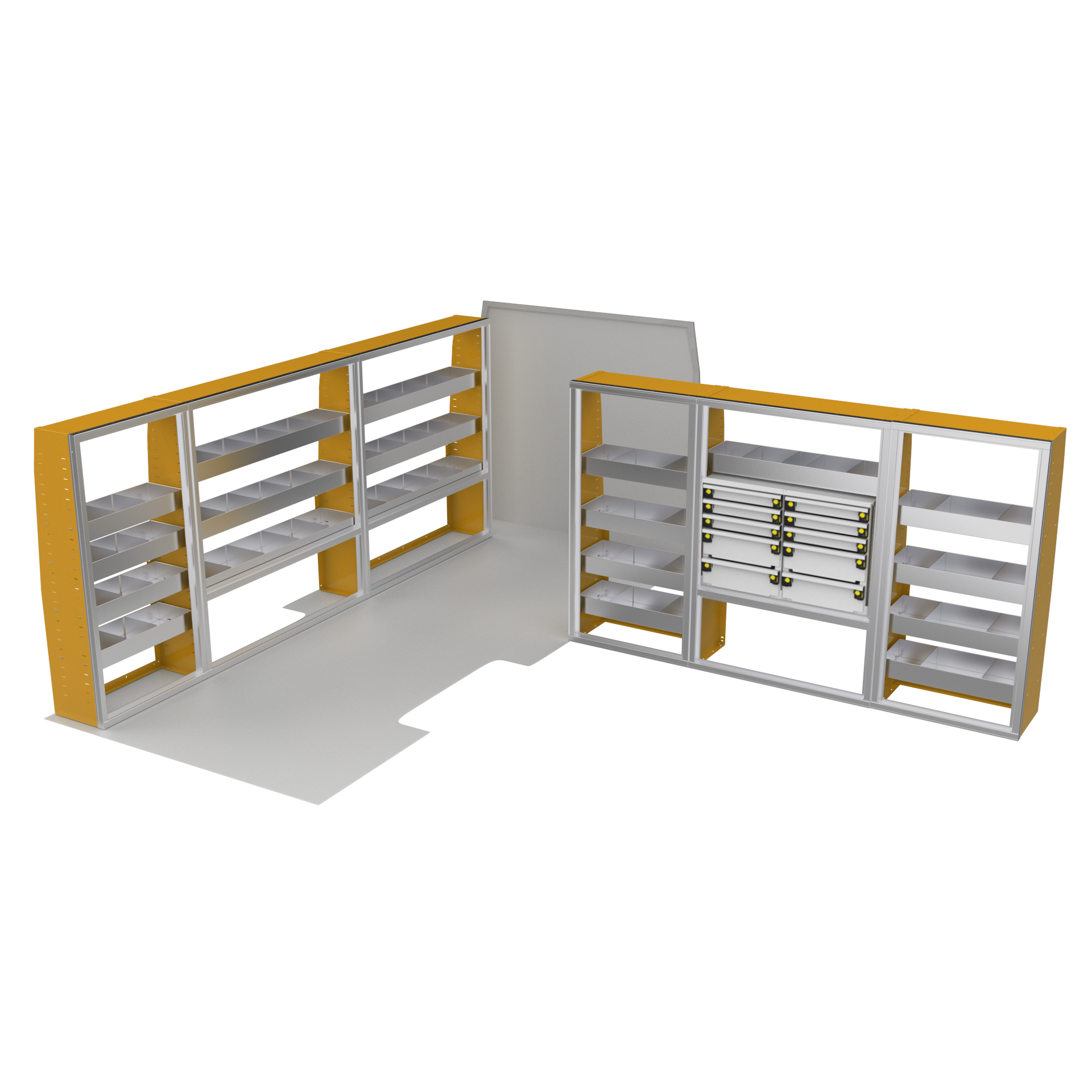

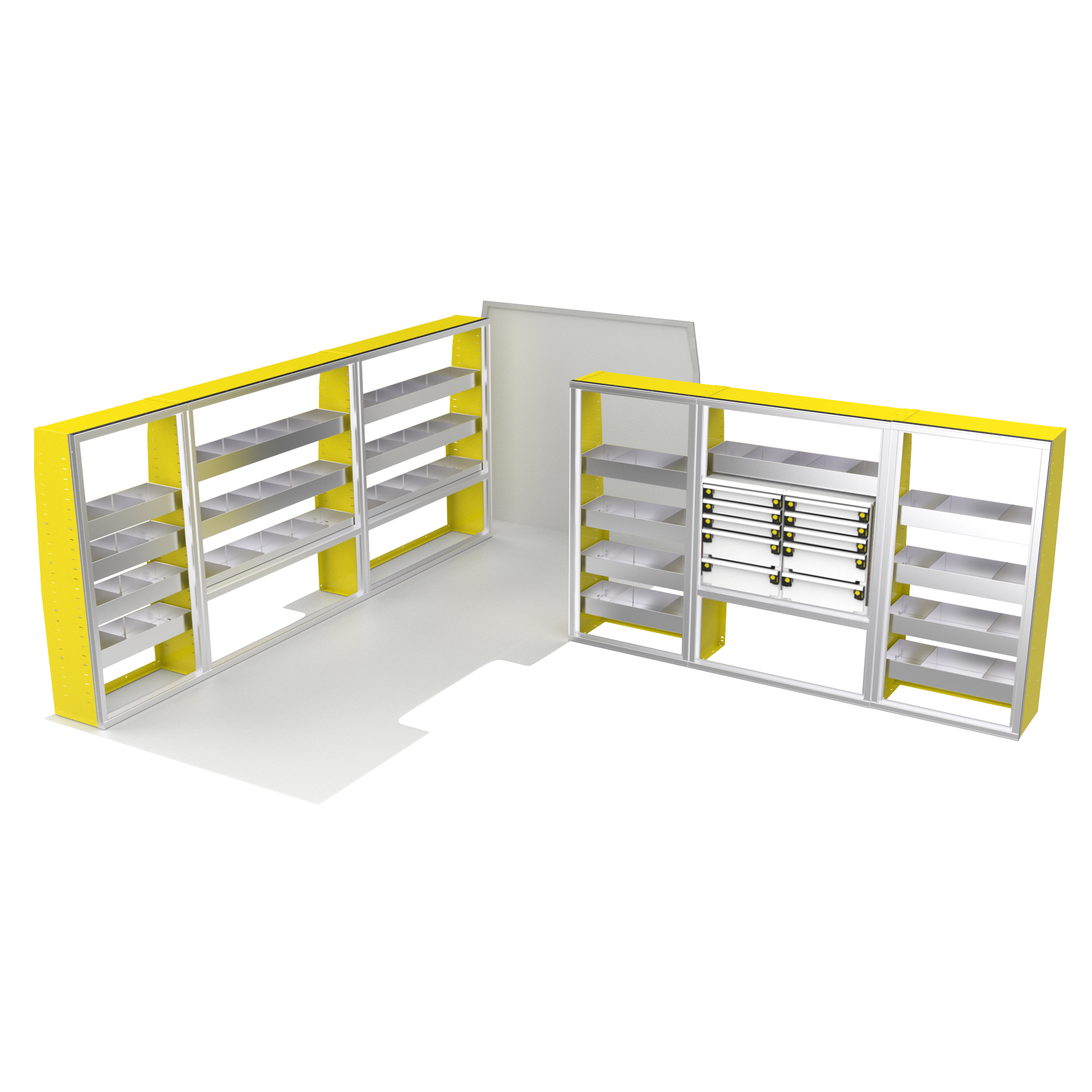

The VanPro Package ML1 for Mercedes Sprinter 170 combines the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS305 Shelving Unit, and MS306 Shelving Unit to provide an all-encompassing storage solution for your work van. Featuring custom deep shelves, adjustable shelves, motion-controlled shelving, and dividers for enhanced organization, this package is designed to maximize your storage space, ensuring tools and equipment are easily accessible and securely stored.

MS-300 Shelving Unit (x2)
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-305 Shelving Unit
Overall Cabinet Size: 30W x 60H x 14D
Cabinet Frame Size: 30W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 27W x 57H**EMPTY**
* Adjustable Shelves : 4 (28.758w x 12d)

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- Sprinter Profile

MS-301 MotionGlide Parts Cabinet
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- Sprinter Profile

MG-9 MotionGlide Drawer Unit (x2)
Location: Mounted in FT301
Unit Dim: (18w x 25h x 14d)

Drawers:
3in
3in
3in
6in
6in

MS-306 Shelving Unit
Overall Cabinet Size: 30W x 60H x 16D
Cabinet Frame Size: 30W x 60H x 16D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 27W x 57H**EMPTY**
* Adjustable Shelves : 4 (28.758w x 14d)

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- Sprinter Profile
