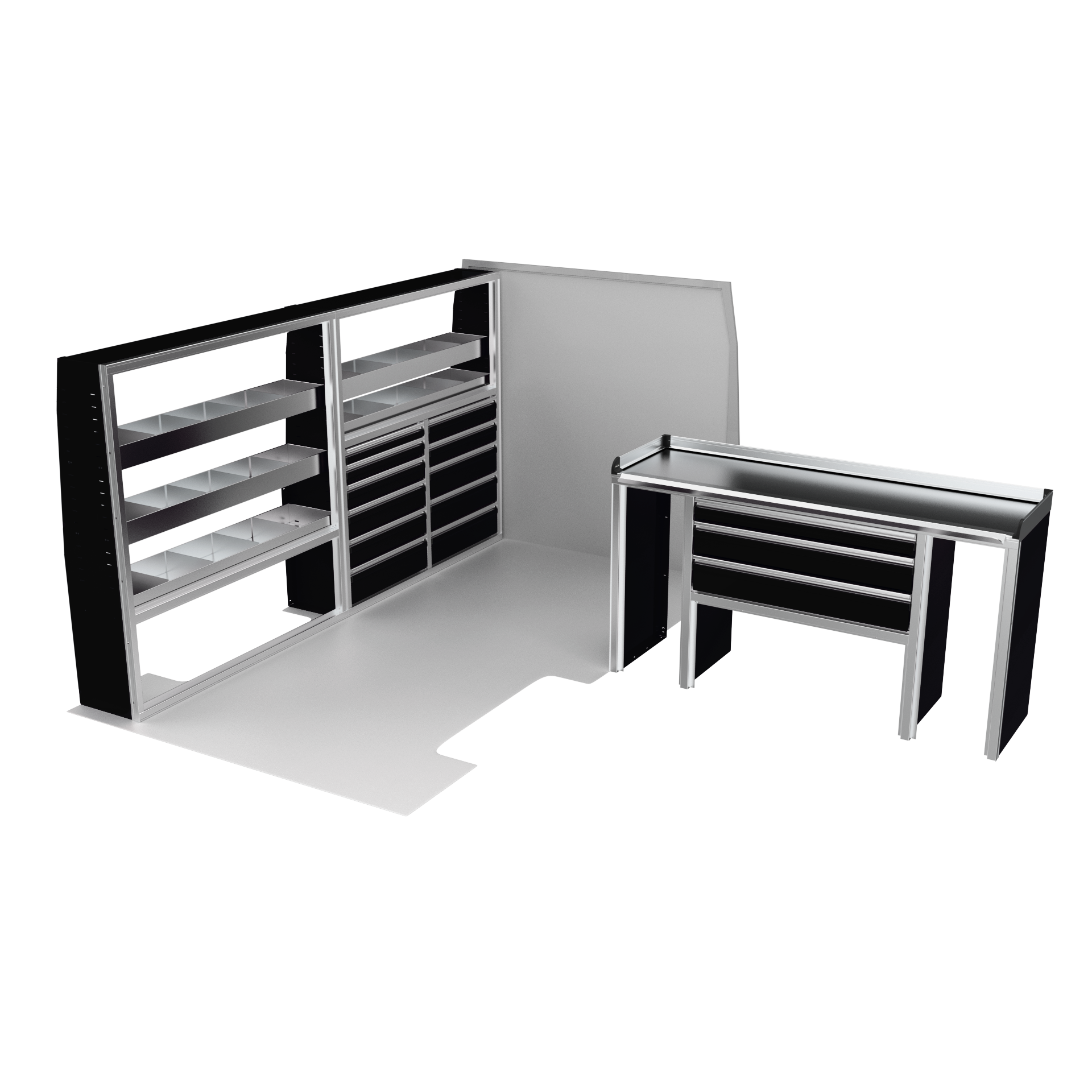

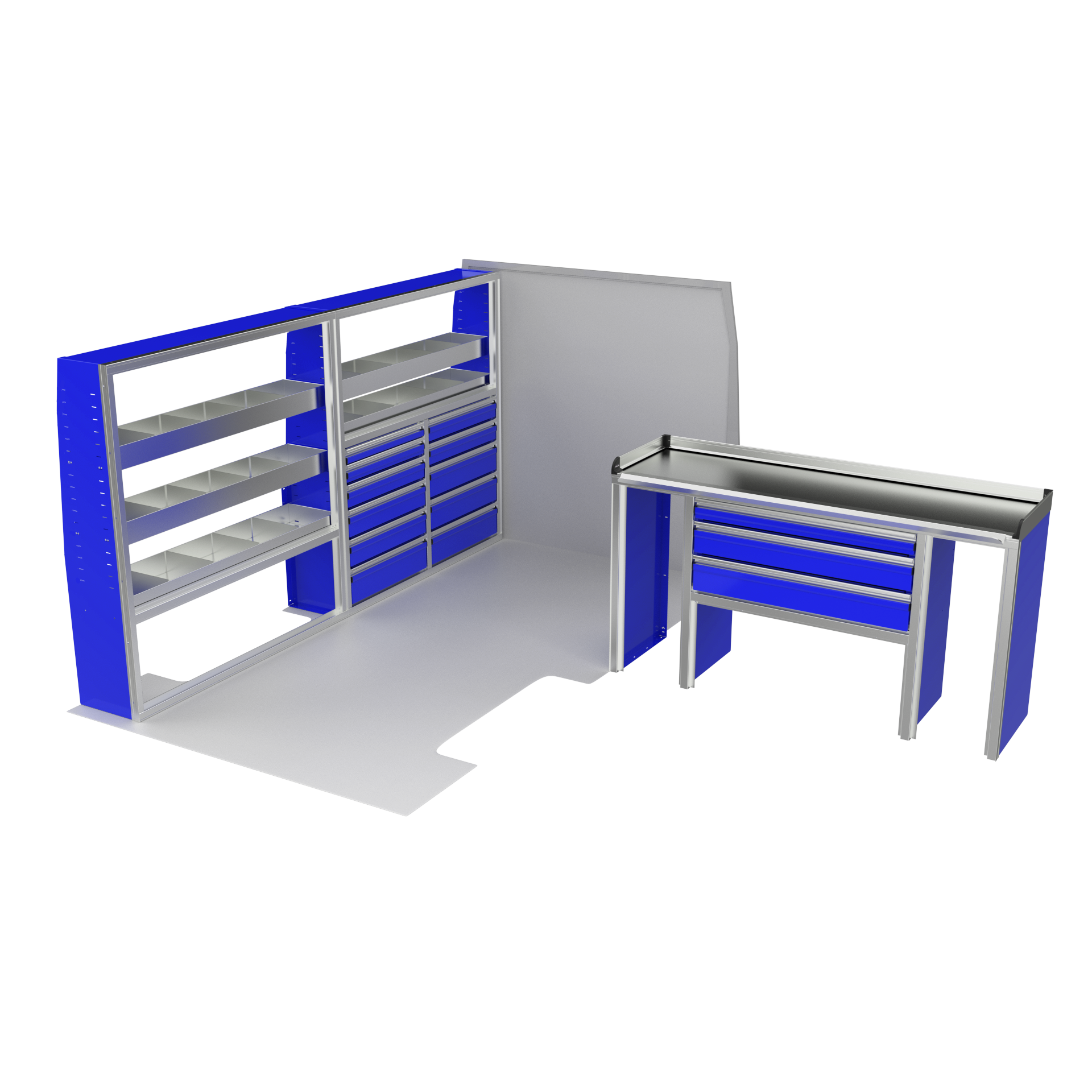

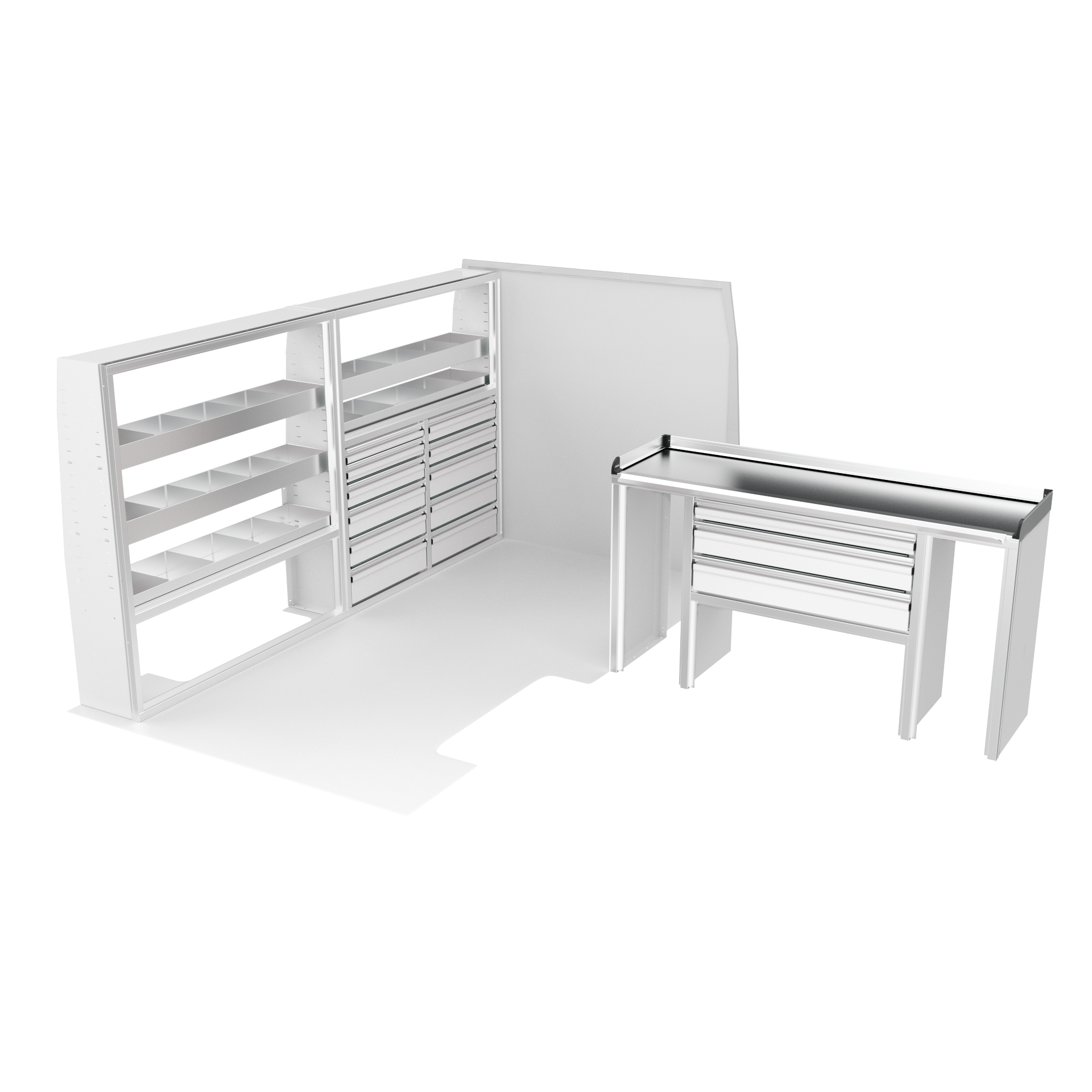

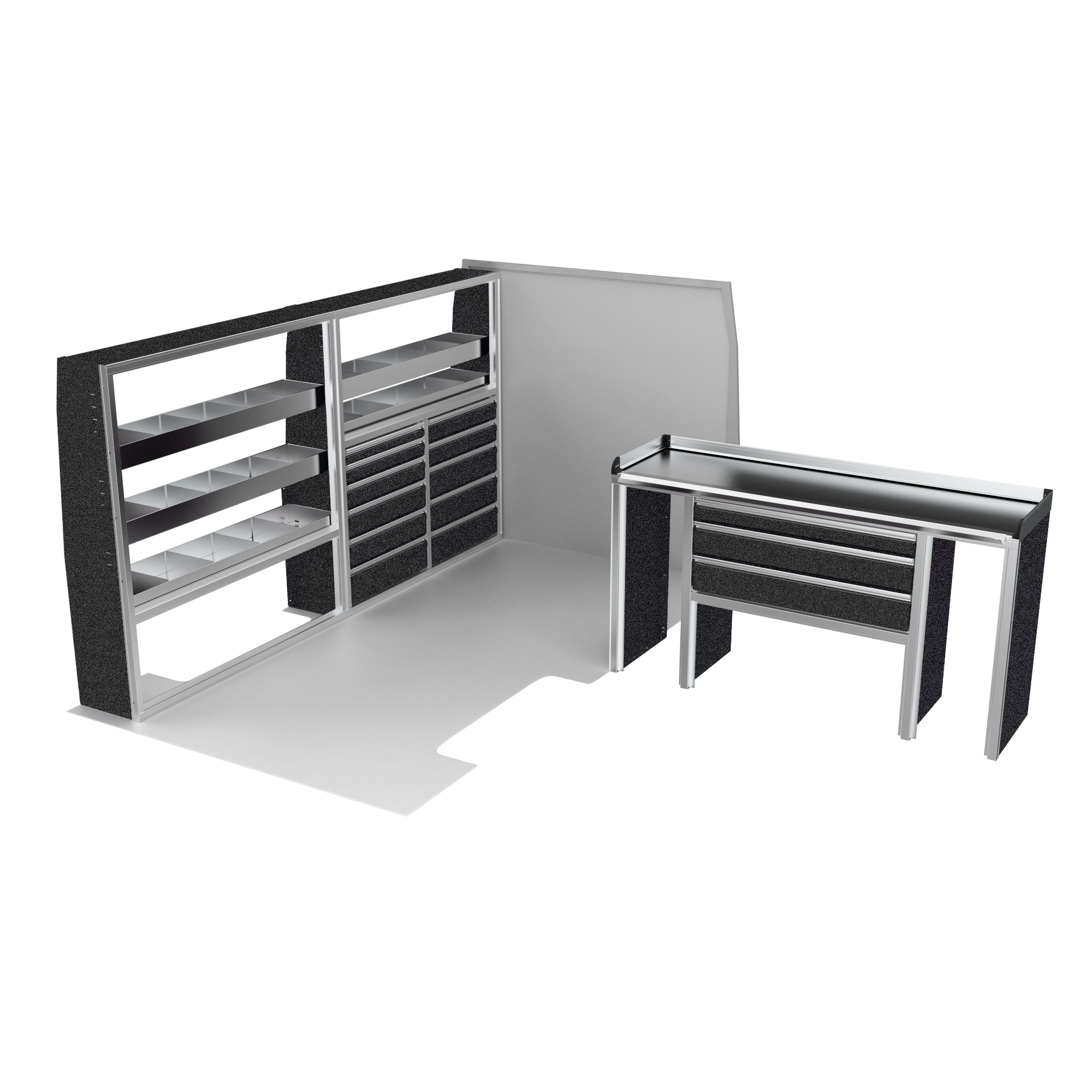

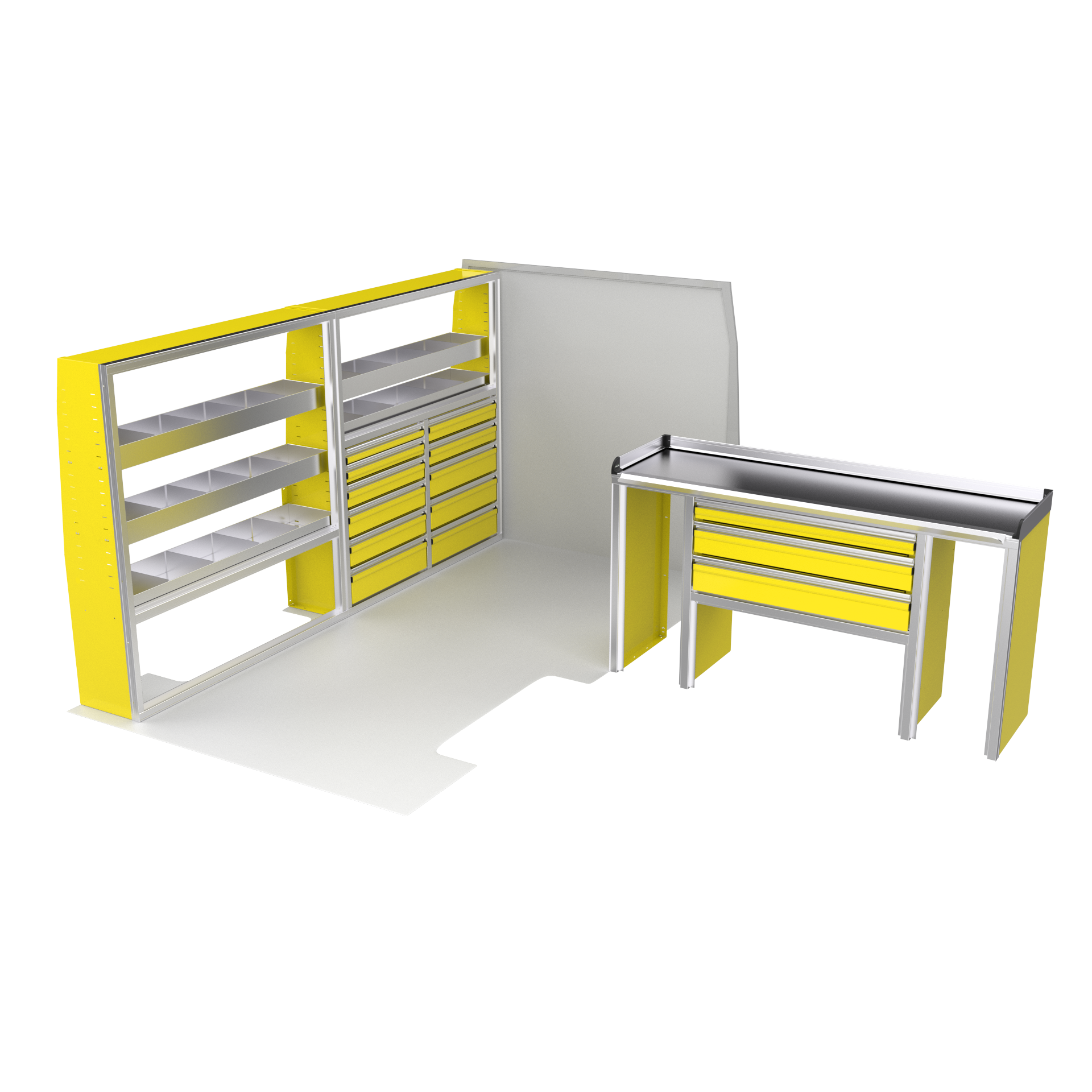

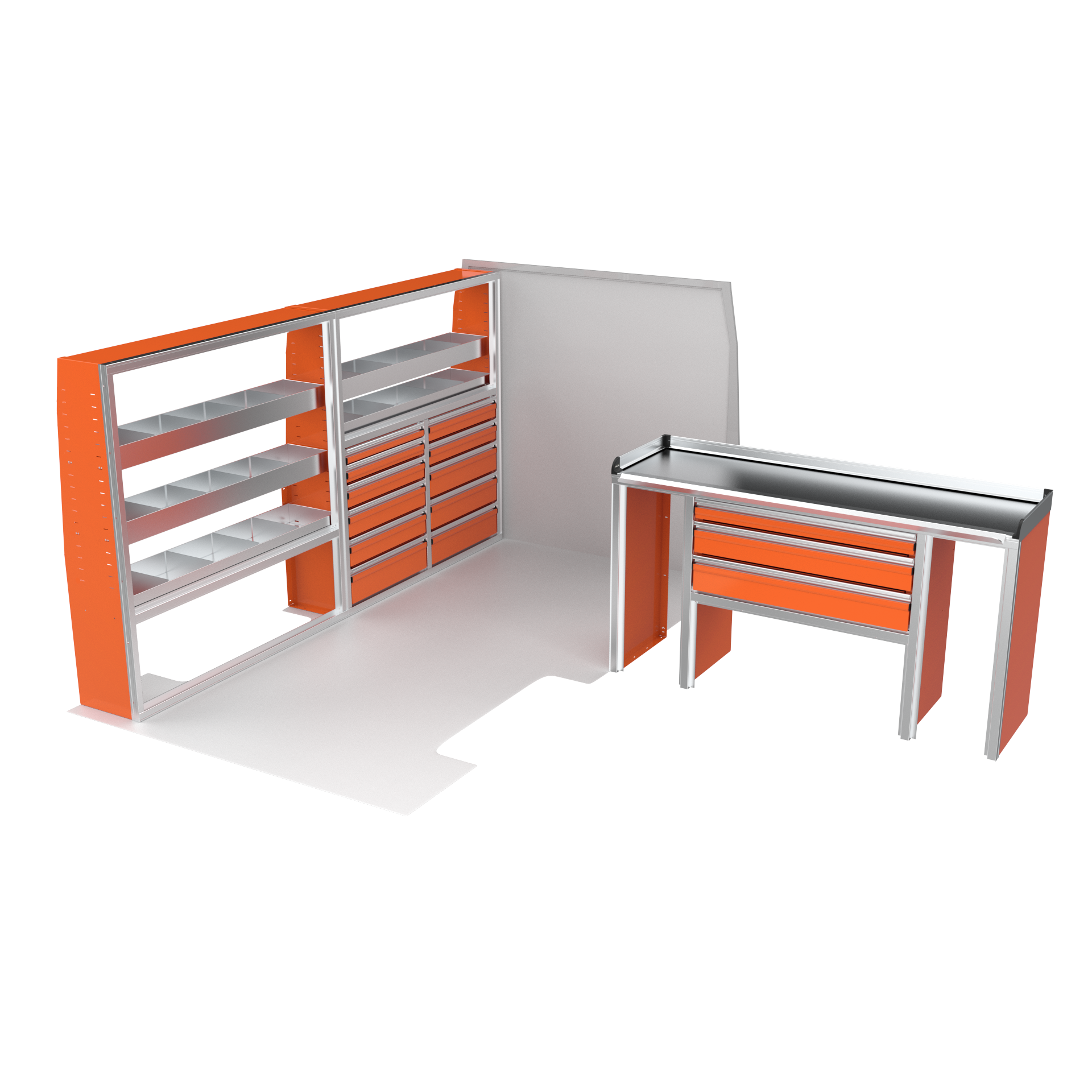

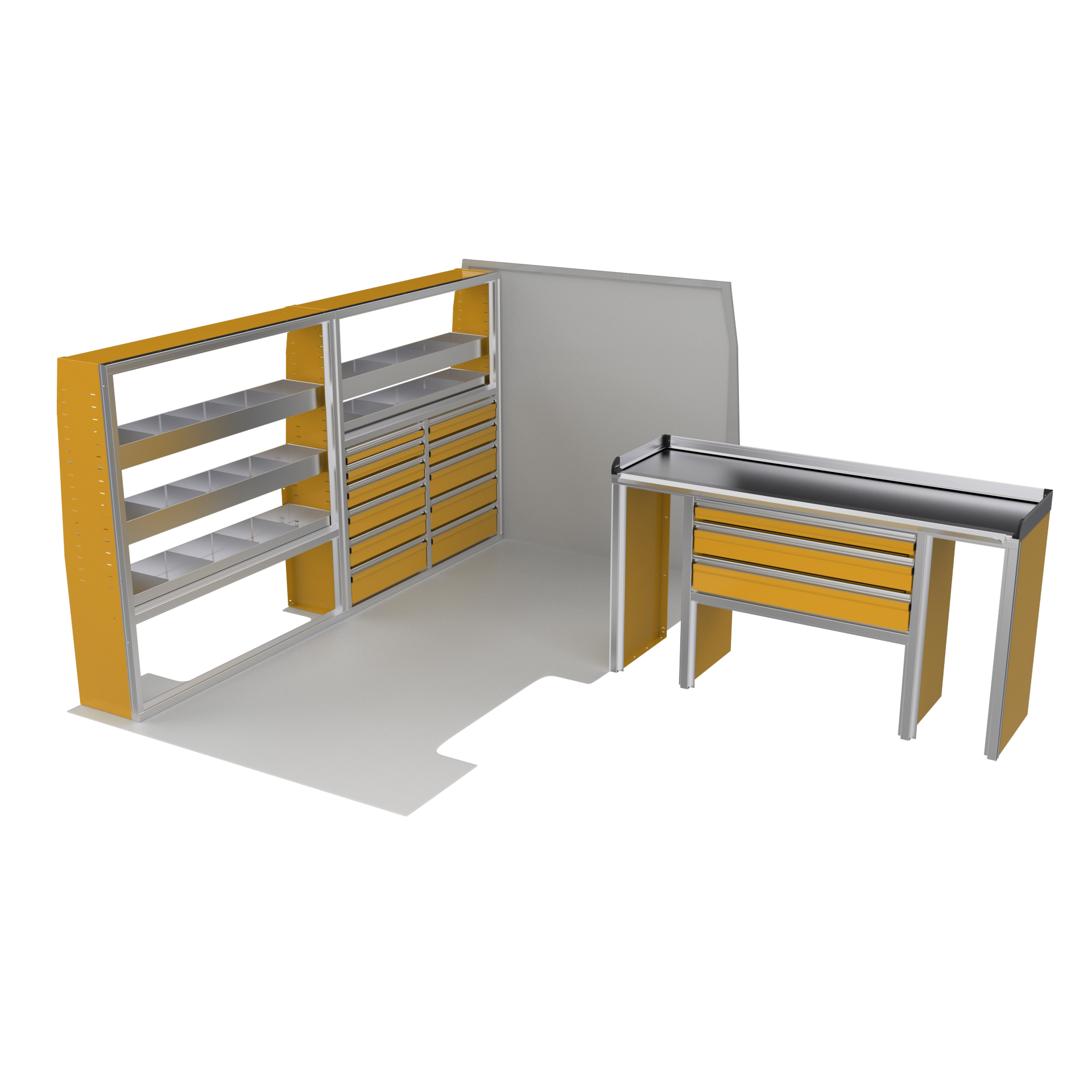

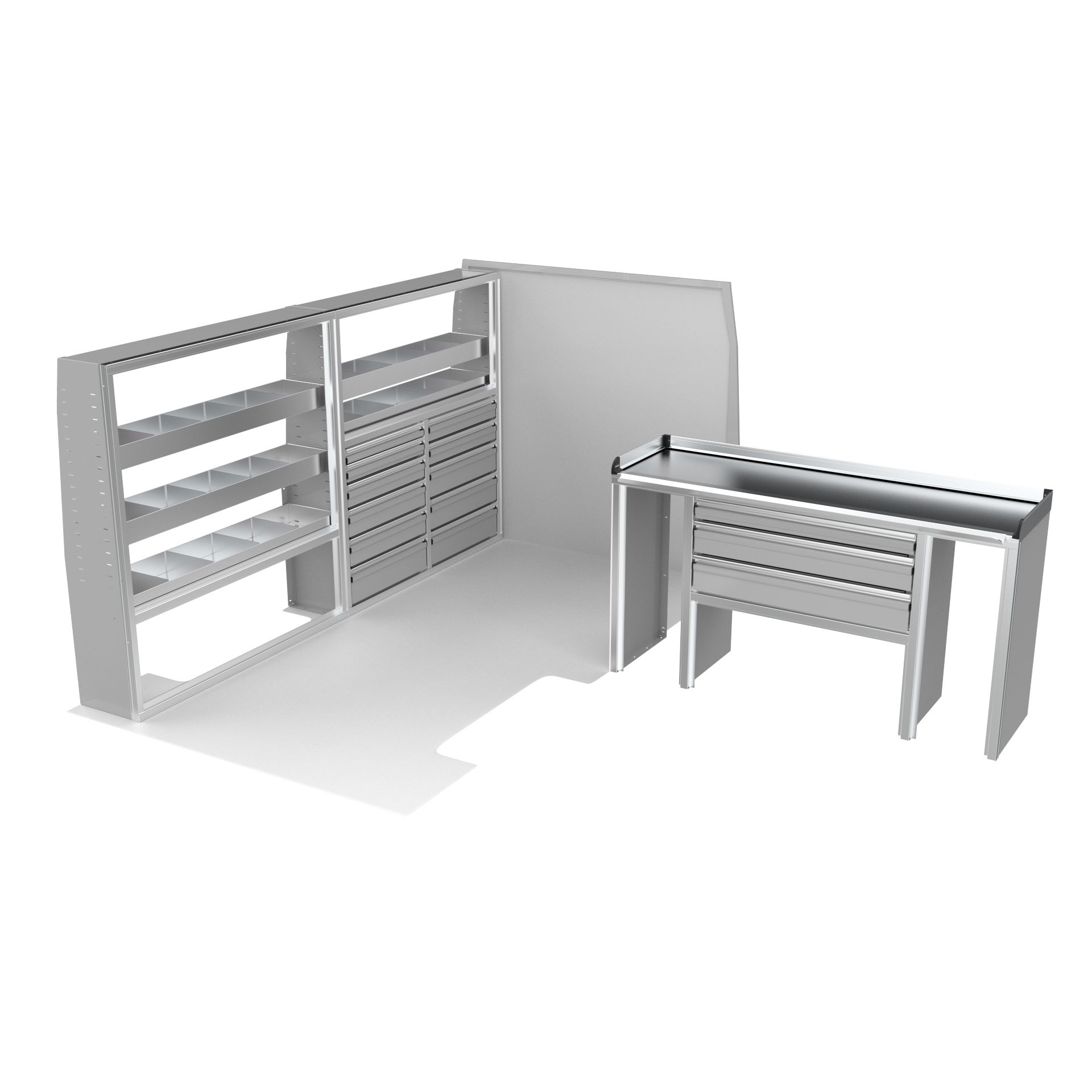

VANPRO PACKAGE MS3

The VanPro Package MS3 for the Mercedes Sprinter 144 includes the MS300 Shelving Unit, MS311 Workbench, and MS312 Shelving Unit. This package offers a combination of customizable shelving, a high-performance workbench with motion-controlled drawers, and additional storage options to enhance organization and accessibility. Designed specifically for the Mercedes Sprinter 144, it provides a complete solution for optimizing your van’s workspace, making it perfect for any mobile business or job site.

MS-312 MotionLatch Parts Cabinet
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 23.375H**EMPTY**
* Adjustable Shelves : 1 (54.758w x 12d)
-Opening 2: 25.75W x 32.125H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
6in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x6)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 32.125H

Tabbed Drawer Covers
Drawers:
5in [Lnr]
5in [Lnr]
7in [Lnr]
7in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x5)


Inside Dwr Dim: 21.28 W x 11.671 D

ADDITIONAL OPTIONS
---------------------------------------
- Back panel behind drawers only
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- Sprinter Profile

MS-311 Workbench
Overall Cabinet Size: 69W x 37H x 20D
Cabinet Frame Size: 69W x 37H x 20D


CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame

OPENING LIST
---------------------------------------
-Opening 1: 12.5W x 35H**EMPTY**
-Opening 2: 38W x 17H

Tabbed Drawer Covers
Drawers:
4in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]

Divider Clip Kit - QTY: 7
Divider Screw Kit - QTY: 6

Bottom Space = .952
Slide Type:
Medium Duty 16 inch Slide (x3)


Inside Dwr Dim: 33.53 W x 15.671 D
-Opening 3: 38W x 16.5H**EMPTY**
-Opening 4: 12.5W x 35H**EMPTY**

ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
