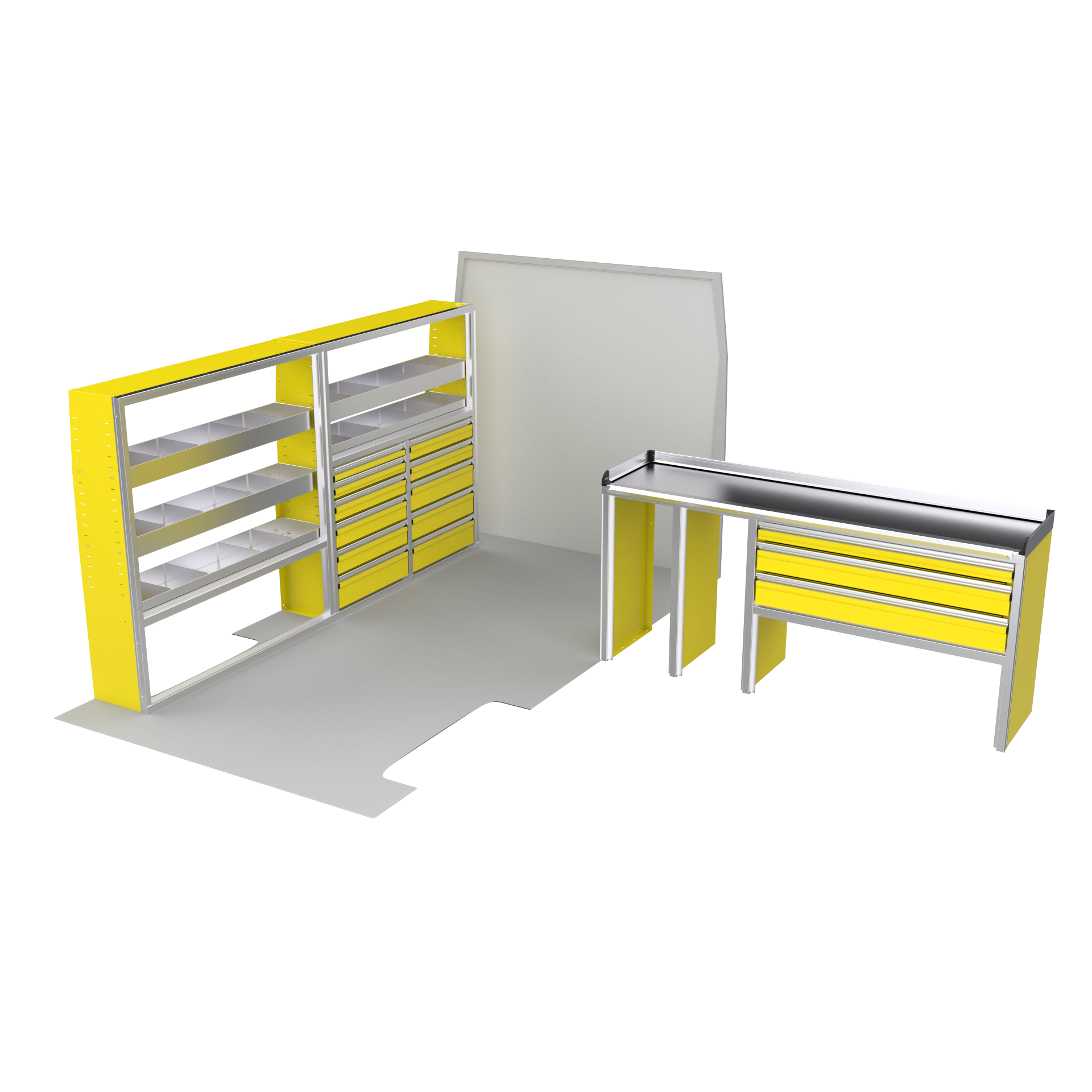

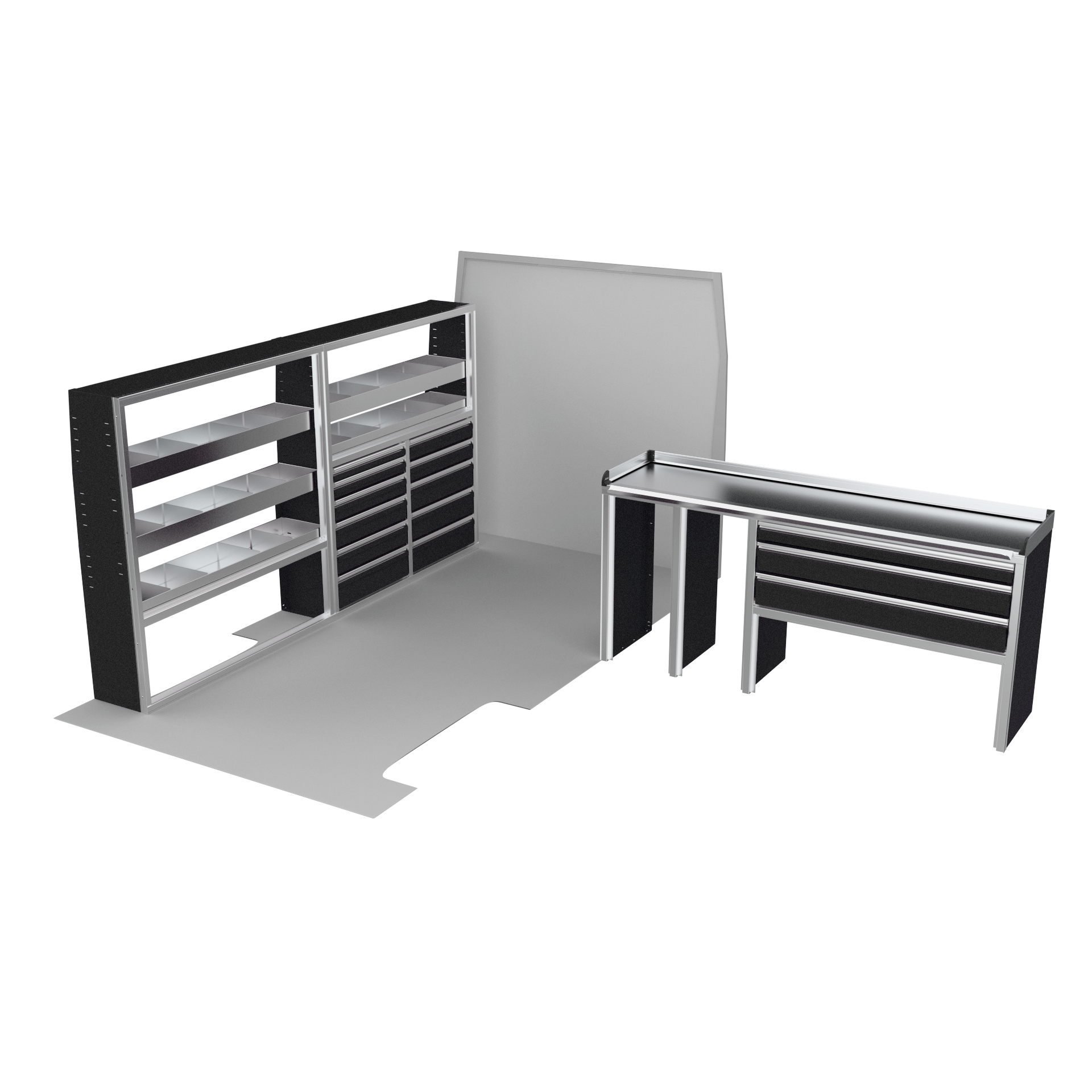

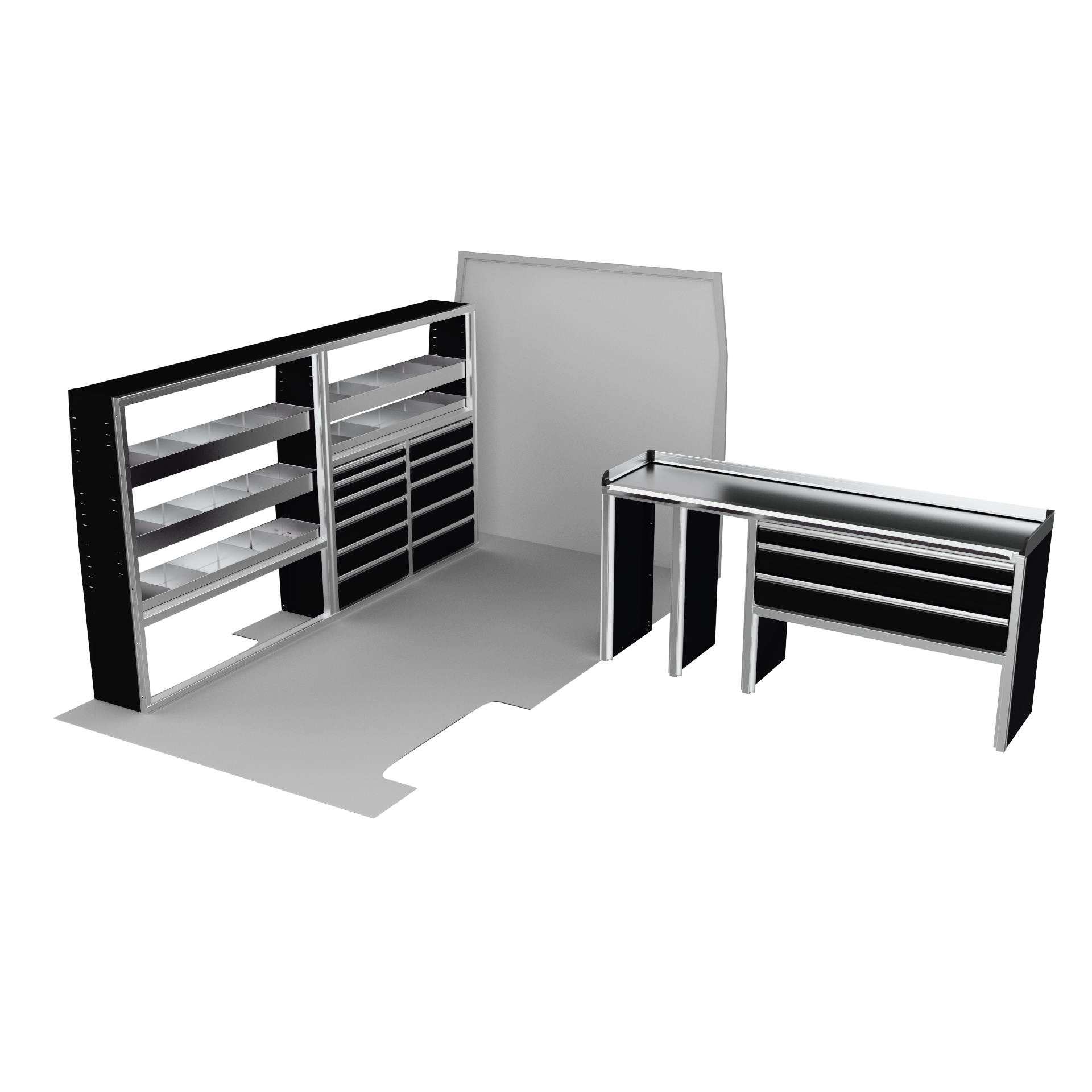

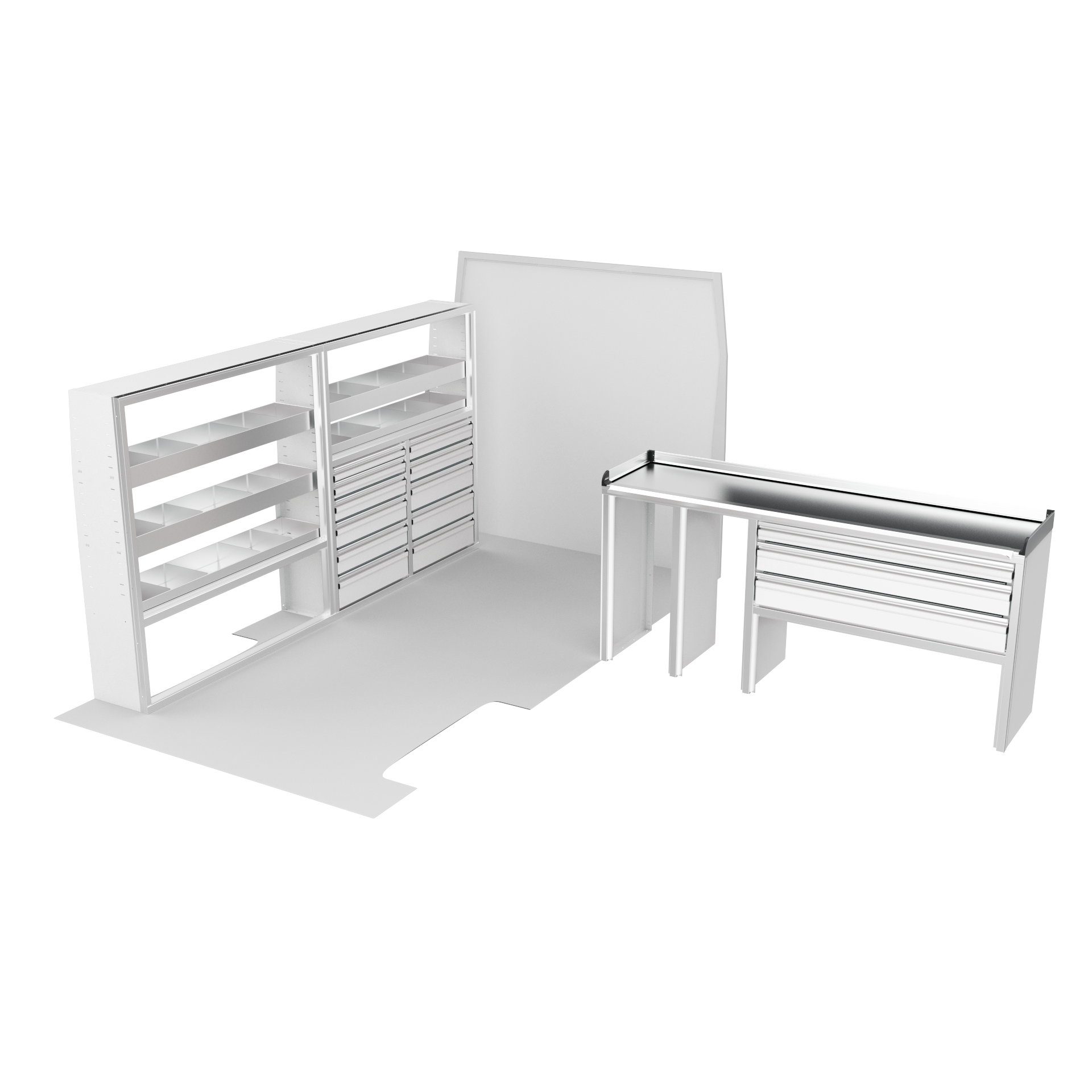

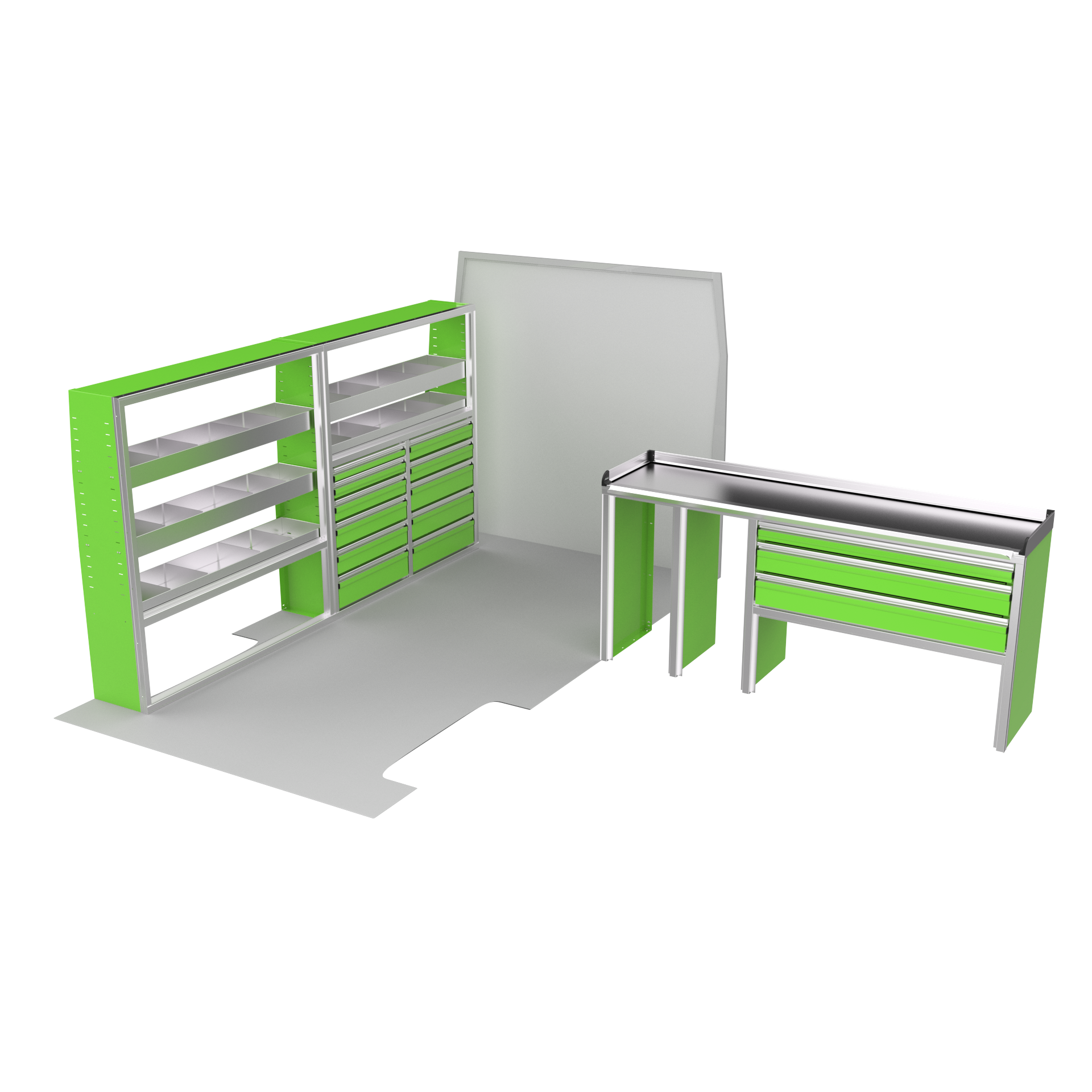

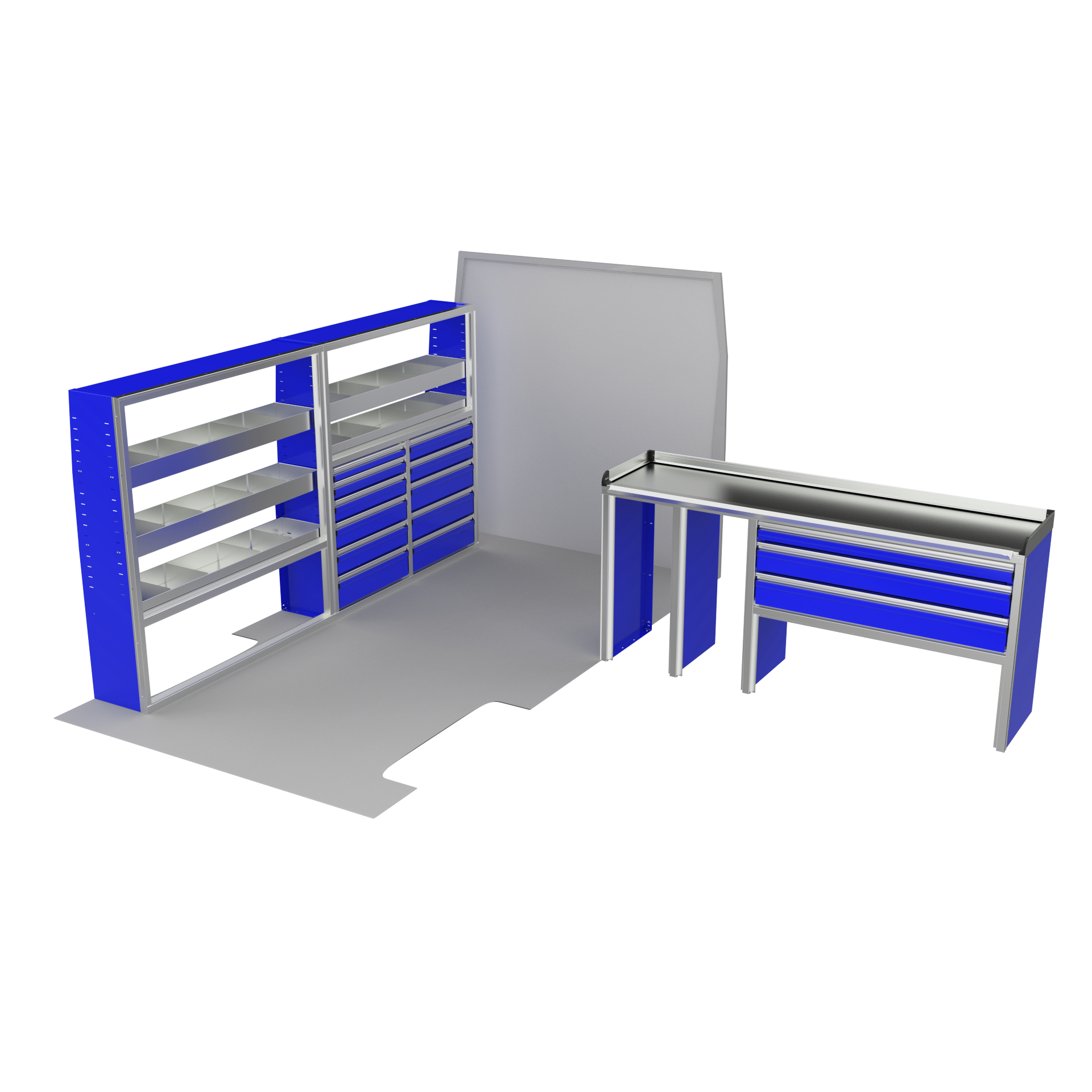

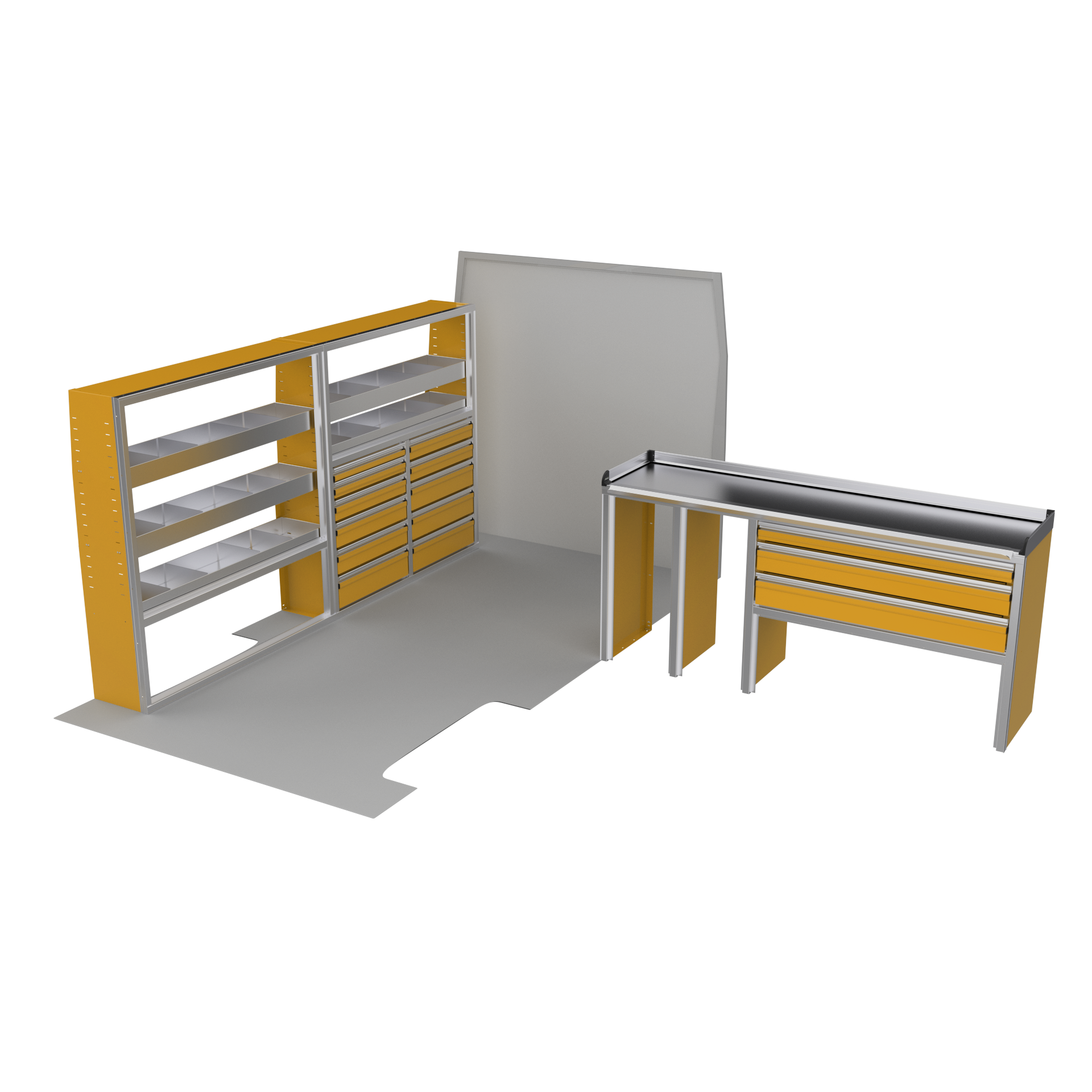

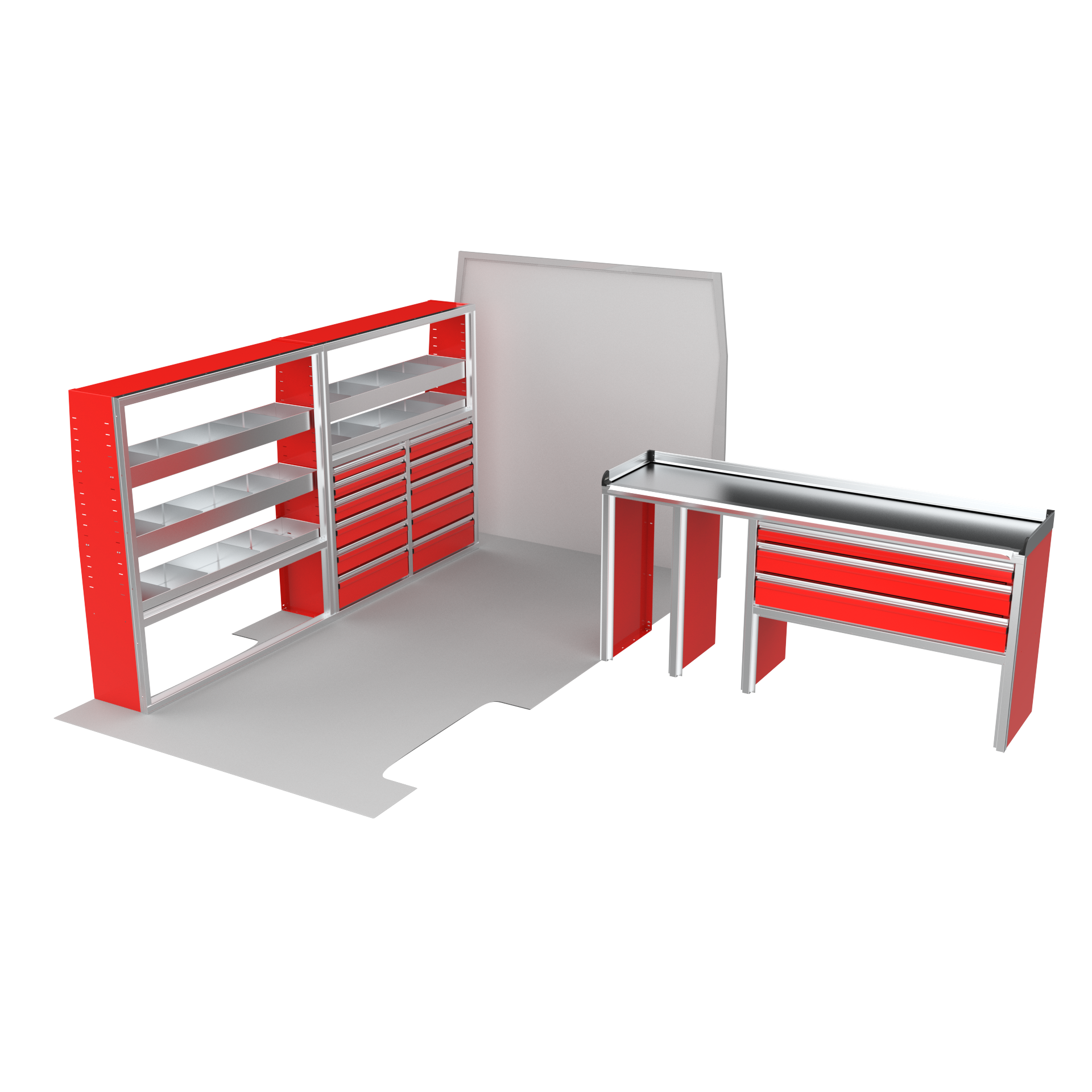

VANPRO PACKAGE RP3

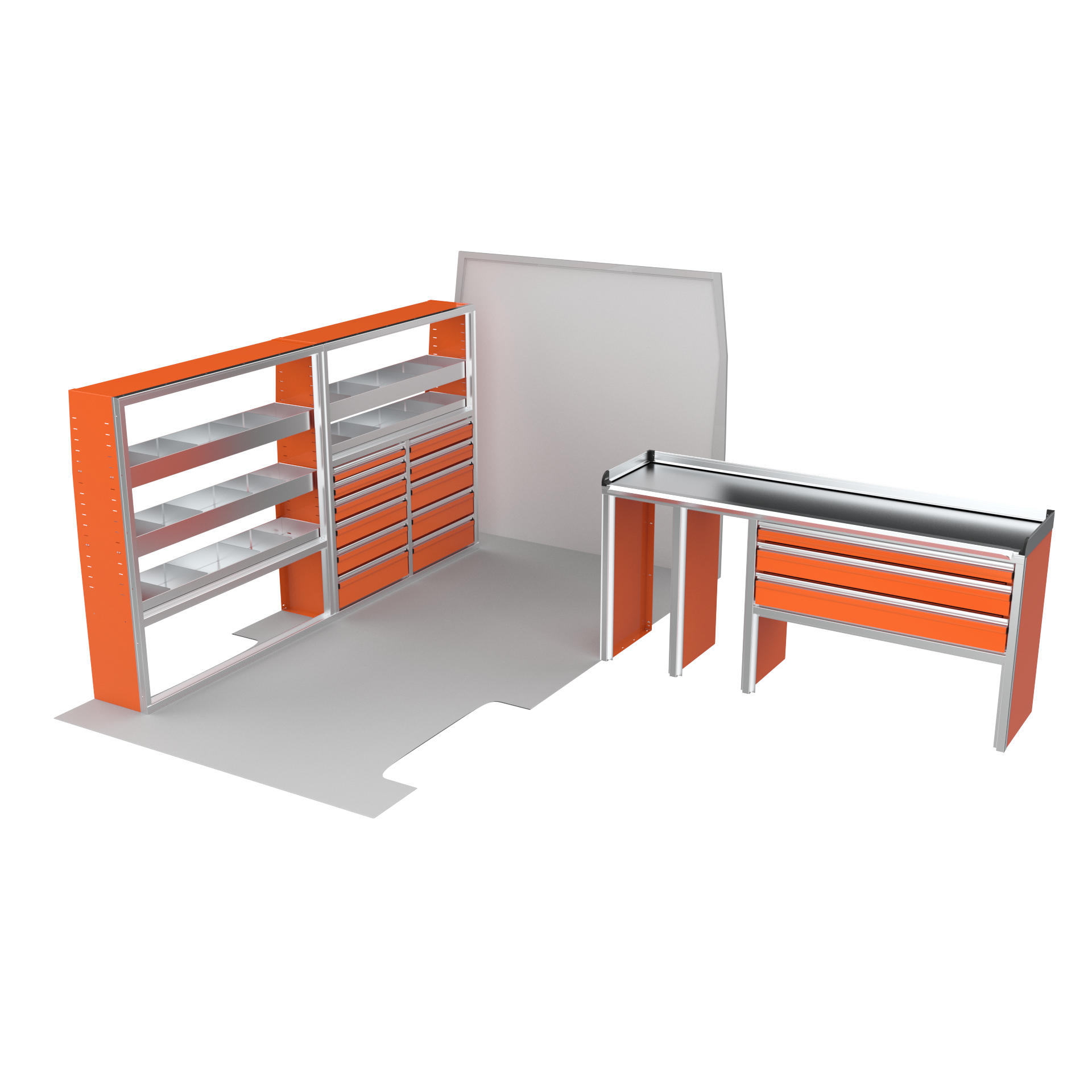

The VanPro Package RP2 includes the RP-300 Shelving Unit, RP-301 Shelving Unit, RP-303 Workbench, and RP-304 Drawer Housing for a comprehensive, efficient storage and workspace solution. Designed for the Ram ProMaster 2500/3500, this package features adjustable shelving, MotionGlide technology, and MotionLatch™ drawers for secure, easy-access organization. Constructed from lightweight, corrosion-resistant aluminum, it offers long-lasting durability, providing the flexibility and reliability your work van needs.

RP-303 Workbench
Overall Cabinet Size: 56W x 36H x 14D
Cabinet Frame Size: 56W x 36H x 14D


CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Plastic Laminate
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel

OPENING LIST
---------------------------------------
-Opening 1: 25.75W x 17H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
5in [Lnr]
5in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x4)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 17H

Tabbed Drawer Covers
Drawers:
4in [Lnr]
5in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x3)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 2: 53W x 15.5H**EMPTY**

ADDITIONAL OPTIONS
---------------------------------------
- Delete back panel in opening 2

RP-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- ProMaster Profile

RP-301 MotionGlide Parts Cabinet
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- ProMaster Profile

RP-304 Drawer Housing
Overall Cabinet Size: 16W x 32H x 36D
Cabinet Frame Size: 16W x 32H x 36D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 13W x 29H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 34 inch Slide (x6)


Inside Dwr Dim: 8.53 W x 33.671 D
