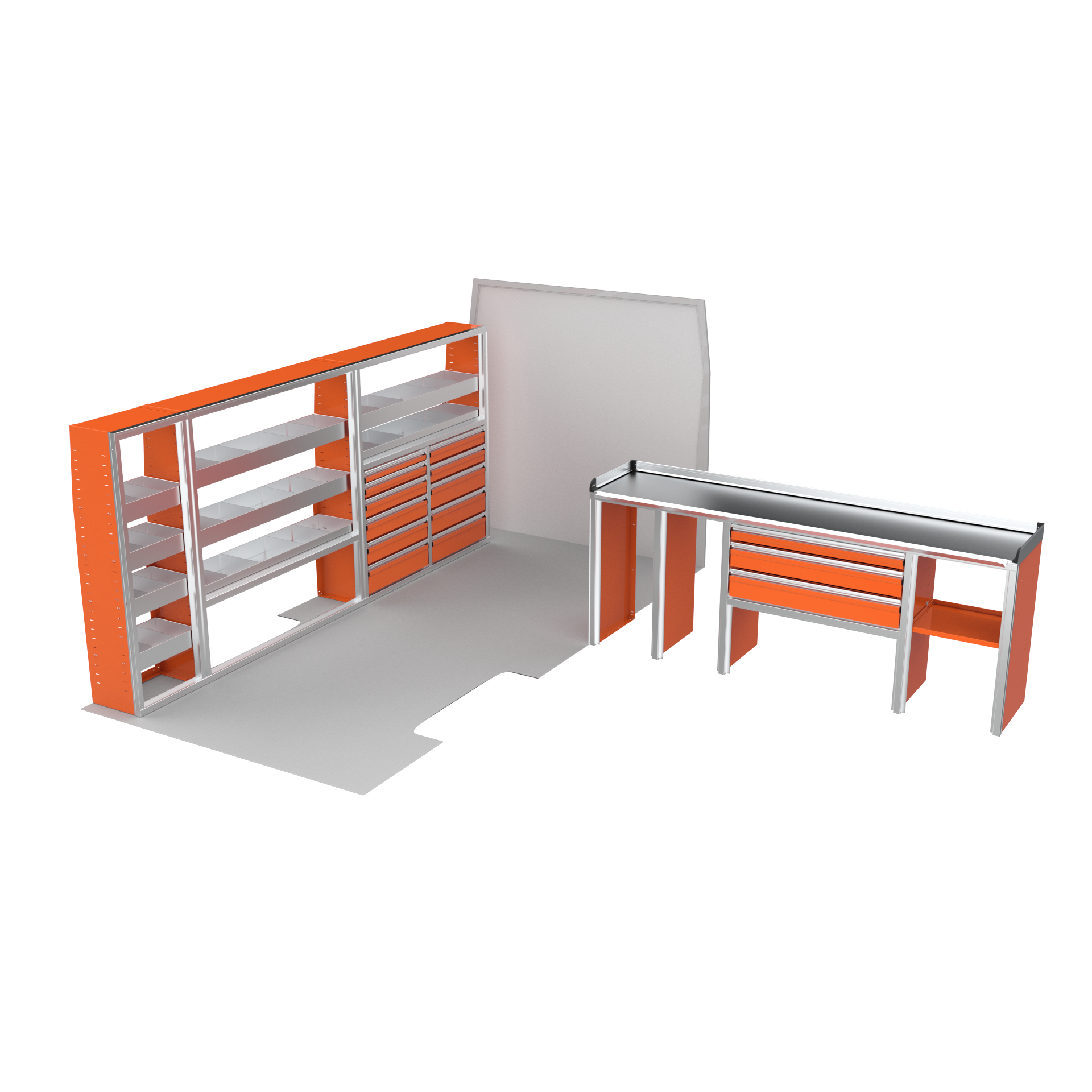

VANPRO PACKAGE RPEXT3

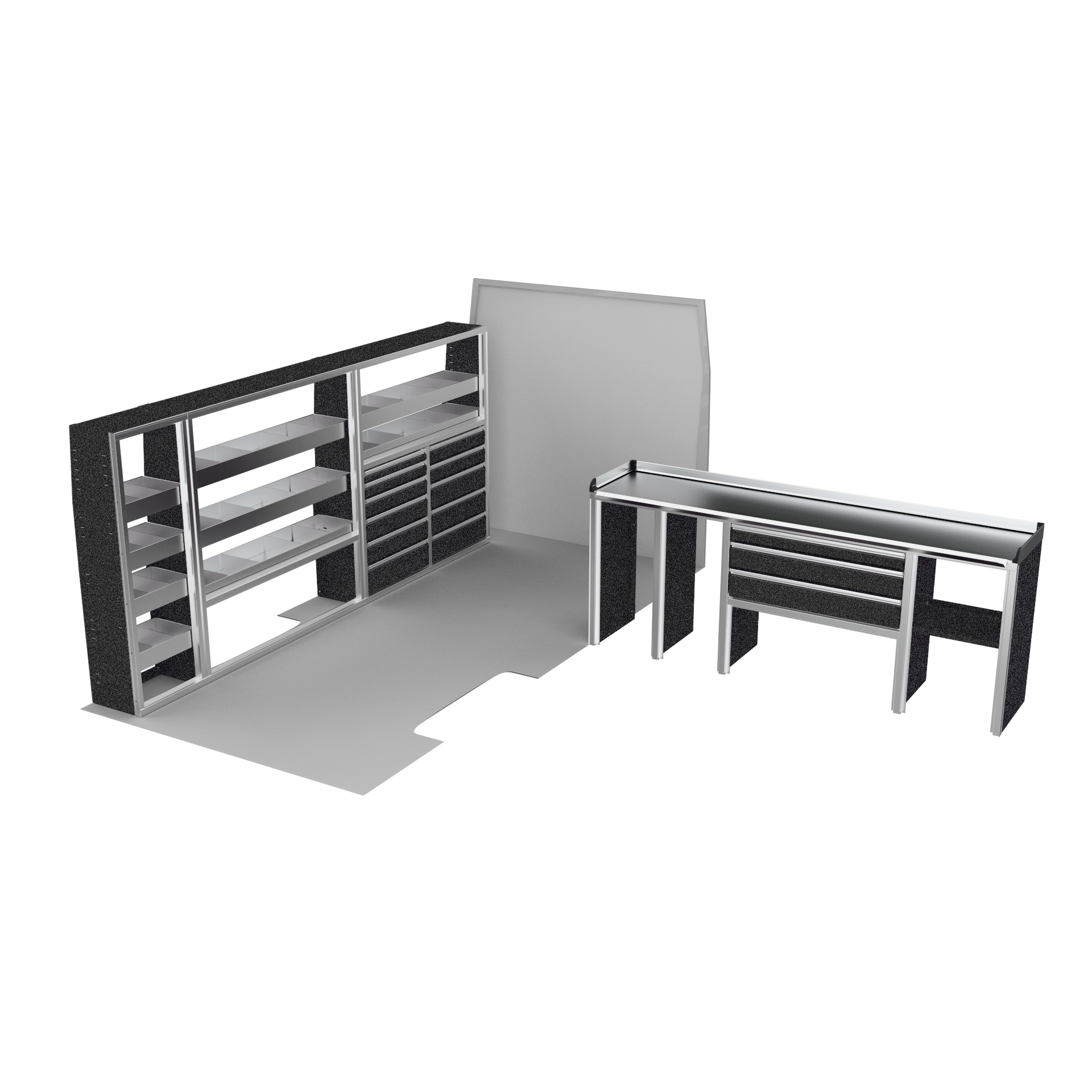

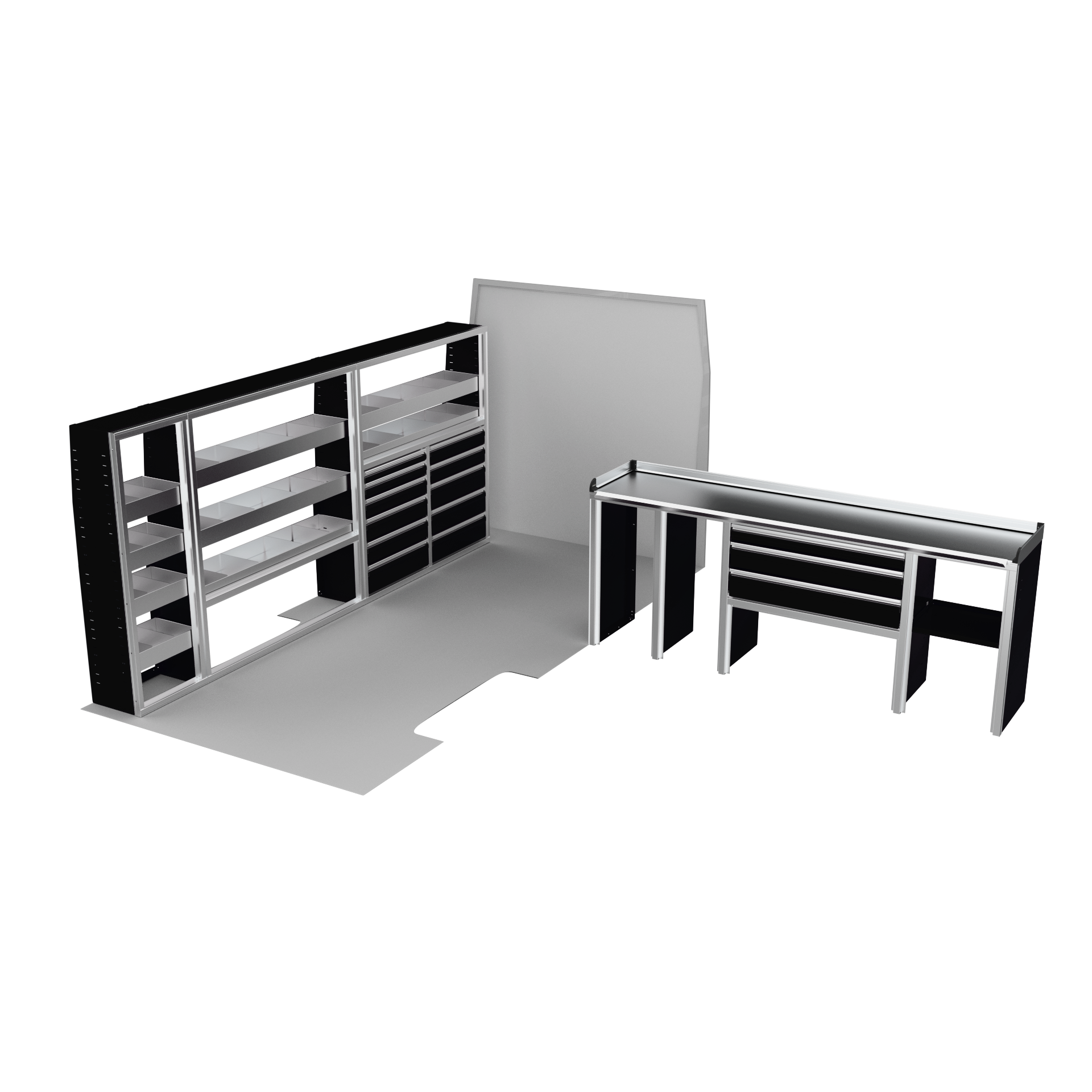

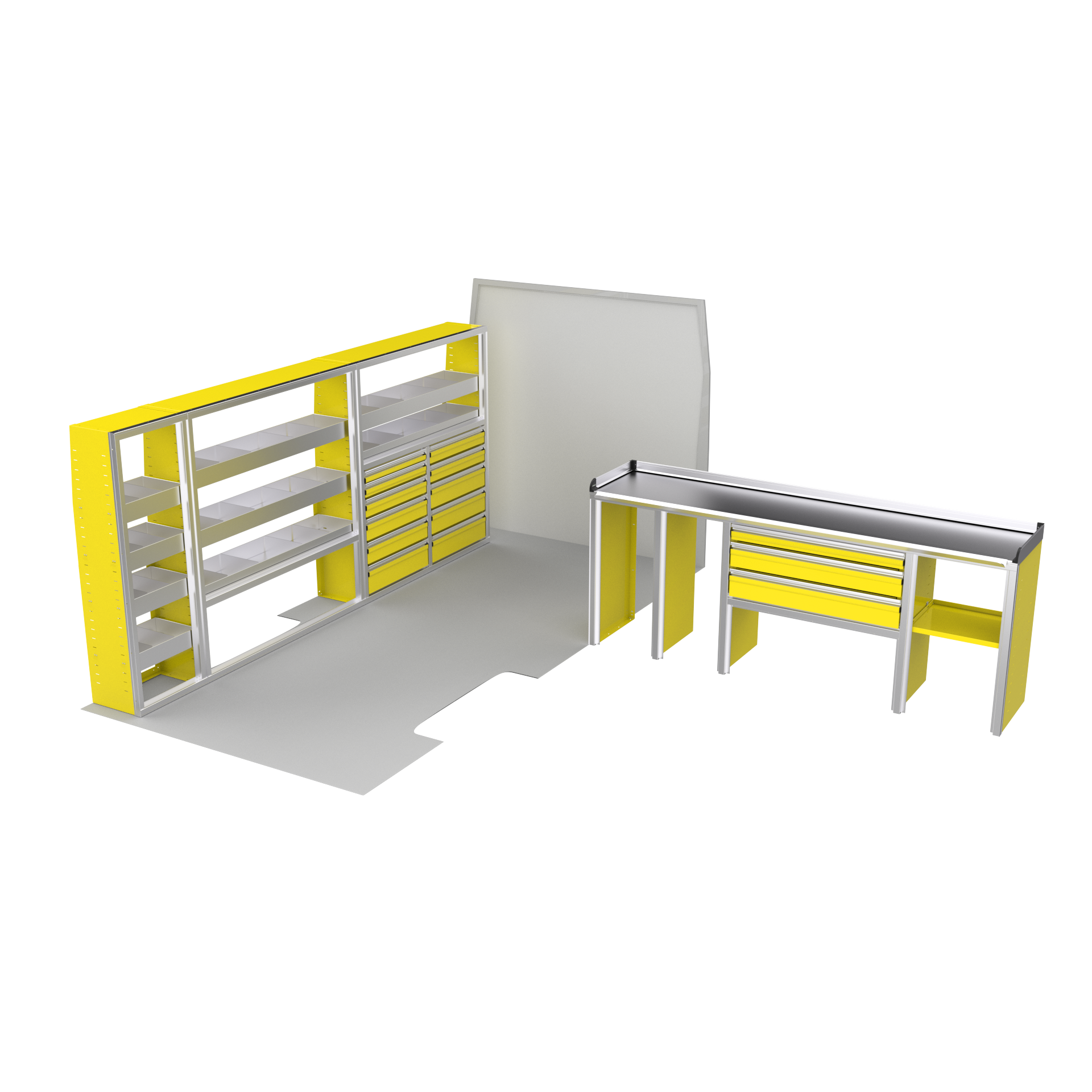

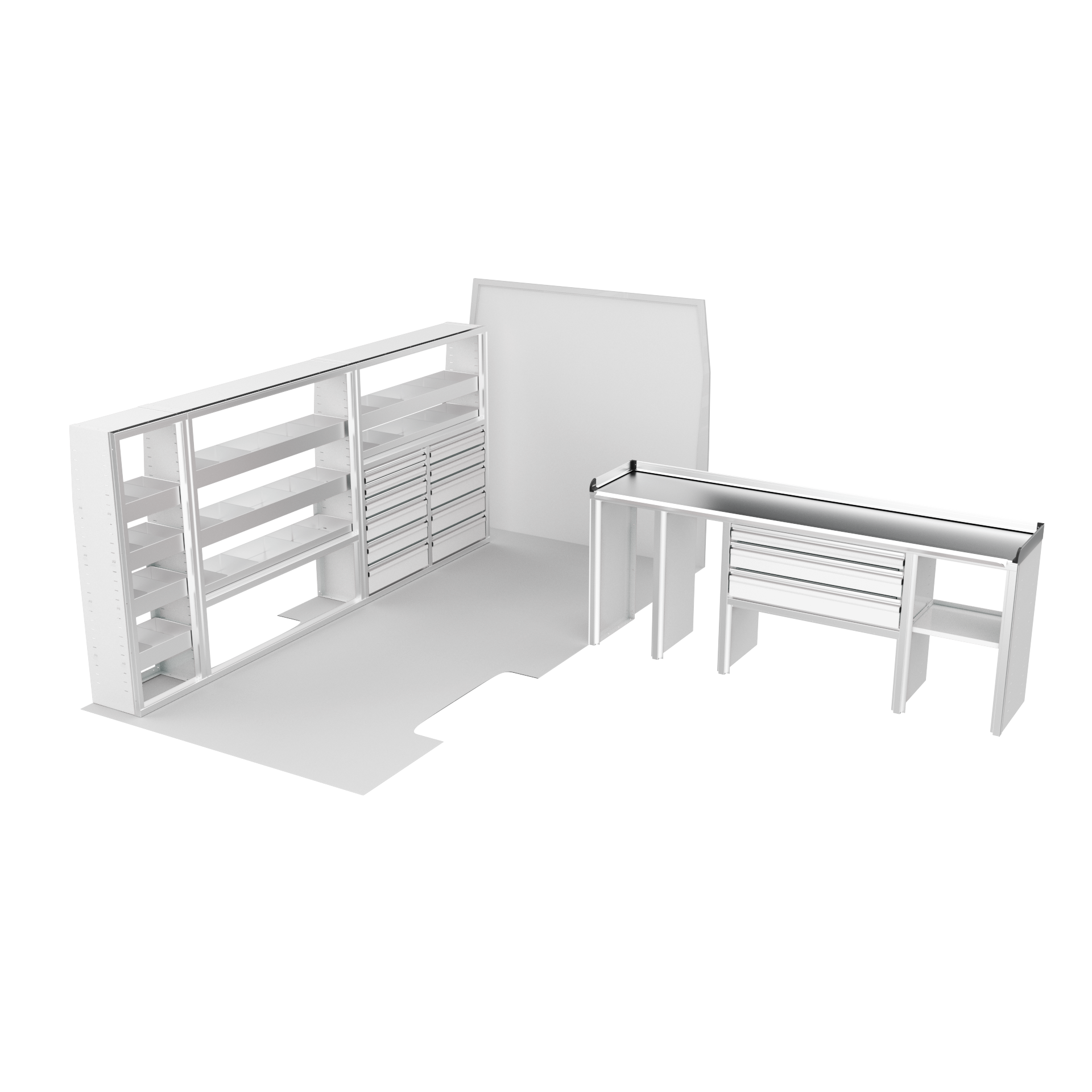

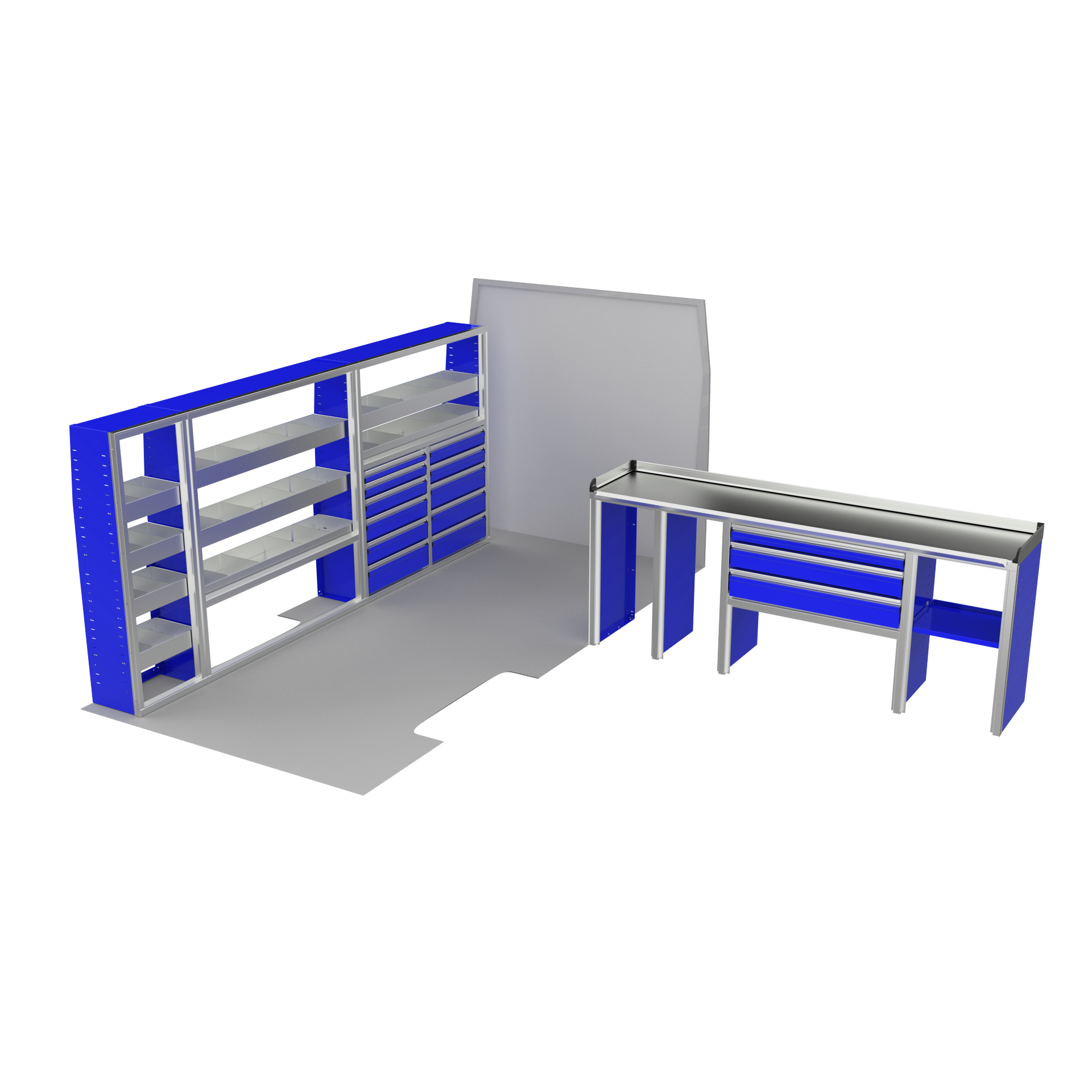

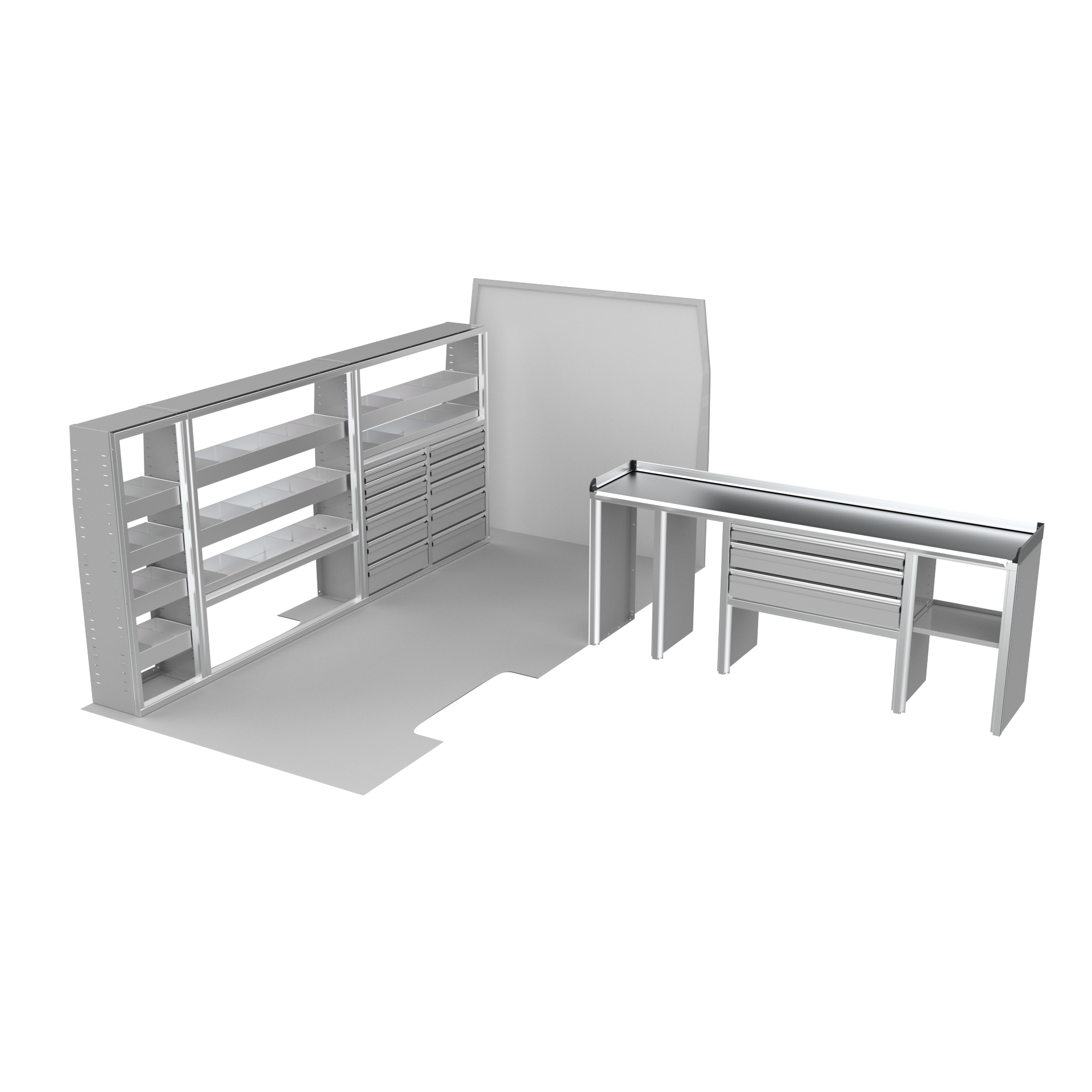

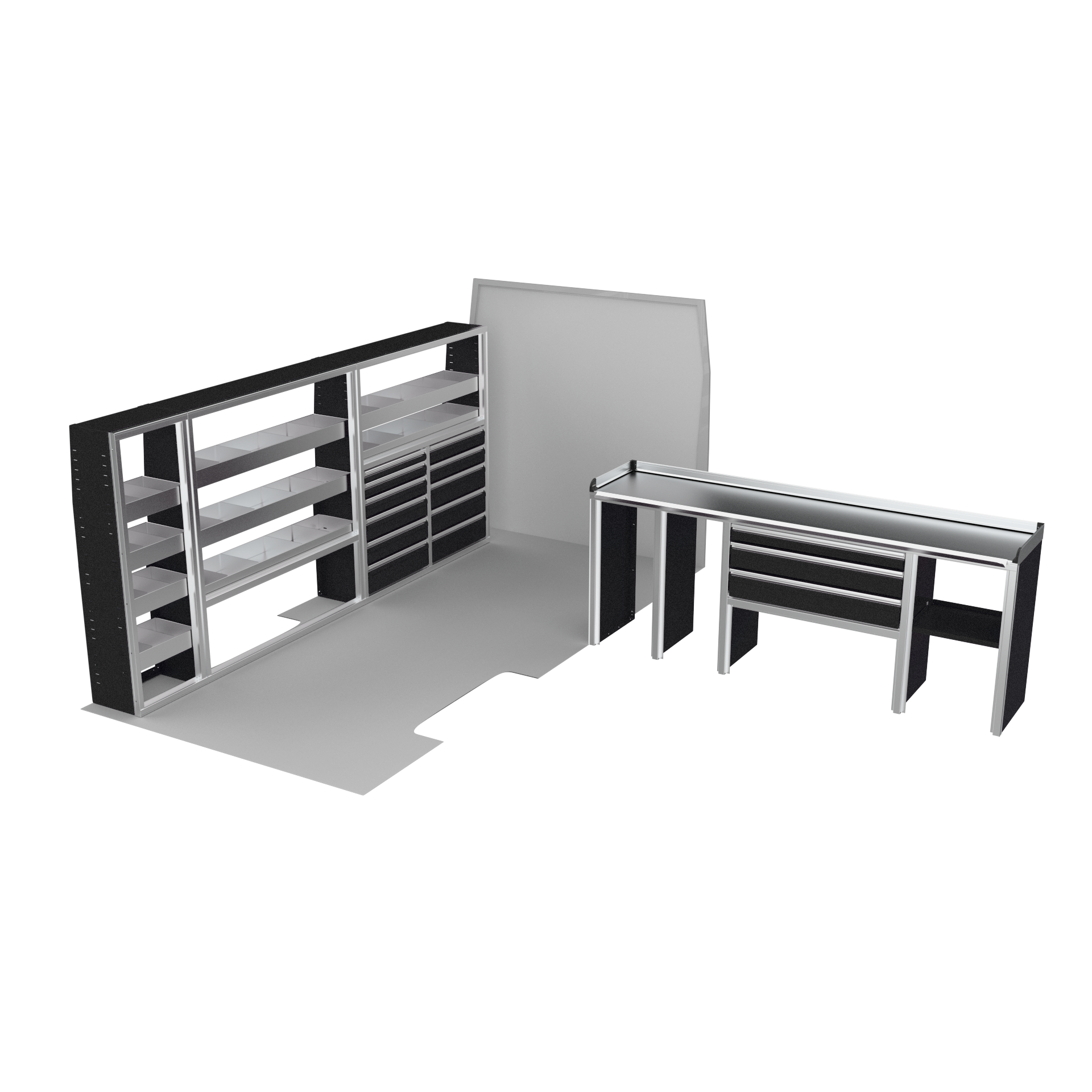

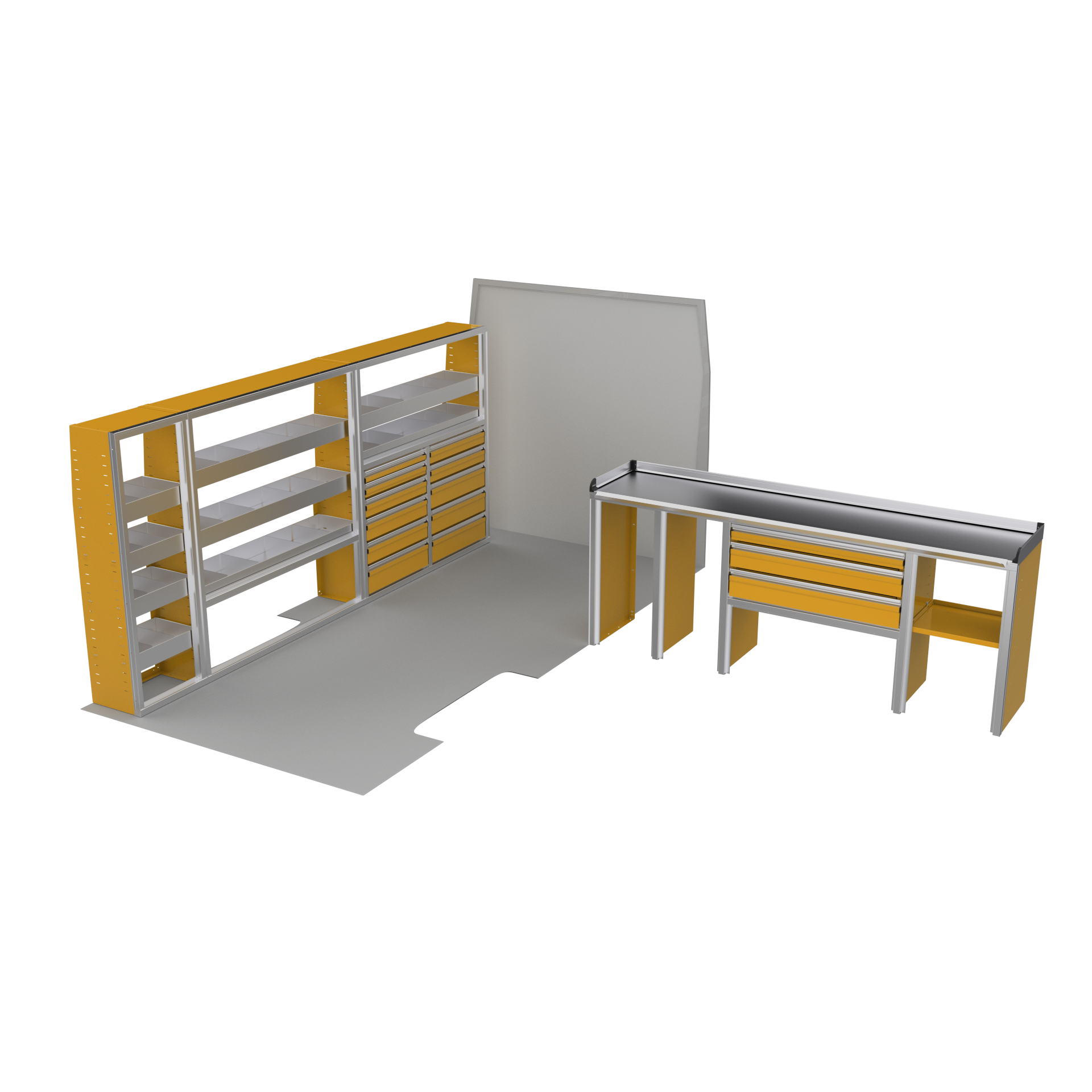

The VanPro Package RPEXT3 includes the RP-300 Shelving Unit, RP-305 Shelving Unit, RP-308 Shelving Unit, and RP-309 Workbench for a comprehensive storage and workspace solution. Specifically designed for the Ram ProMaster 2500/3500 EXT, this package features adjustable shelving, MotionLatch™ drawers, and a spacious workbench to ensure organized, easy-access storage. Made from lightweight, corrosion-resistant aluminum, it offers long-lasting durability, flexibility, and efficient use of space—ideal for maximizing your work van's functionality.

RP-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- ProMaster Profile

RP-308 MotionLatch Parts Cabinet
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel

OPENING LIST
---------------------------------------
-Opening 1: 53W x 23.375H**EMPTY**
* Adjustable Shelves : 1 (54.758w x 12d)
-Opening 2: 25.75W x 32.125H

Tabbed Drawer Covers
Drawers:
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
6in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x6)


Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 32.125H

Tabbed Drawer Covers
Drawers:
5in [Lnr]
5in [Lnr]
7in [Lnr]
7in [Lnr]
7in [Lnr]

Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x5)


Inside Dwr Dim: 21.28 W x 11.671 D

ADDITIONAL OPTIONS
---------------------------------------
- Back panel behind drawers only
- Custom deep shelves with 4 front to back dividers each
- ProMaster Profile

RP-305 Shelving Unit
Overall Cabinet Size: 20W x 60H x 14D
Cabinet Frame Size: 20W x 60H x 14D


CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel

OPENING LIST
---------------------------------------
-Single Opening: 17W x 57H**EMPTY**
* Adjustable Shelves : 4 (18.758w x 12d)

ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- ProMaster Profile

RP-309 Workbench
Overall Cabinet Size: 94W x 37H x 20D
Cabinet Frame Size: 94W x 37H x 20D


CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Stainless Steel
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame

OPENING LIST
---------------------------------------
-Opening 1: 14.75W x 35H**EMPTY**
-Opening 2: 14.75W x 35H**EMPTY**
-Opening 3: 38W x 17H

Tabbed Drawer Covers
Drawers:
4in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]
6in [5 Row] [Lnr] [Sep:10]

Divider Clip Kit - QTY: 7
Divider Screw Kit - QTY: 6

Bottom Space = .952
Slide Type:
Medium Duty 16 inch Slide (x3)


Inside Dwr Dim: 33.53 W x 15.671 D
-Opening 4: 38W x 16.5H**EMPTY**
-Opening 5: 19W x 35H**EMPTY**
* Adjustable Shelves : 1 (20.129w x 18d)

ADDITIONAL OPTIONS
---------------------------------------
- Add channel at front of cabinet.
