VANPRO PACKAGE RPEXT2

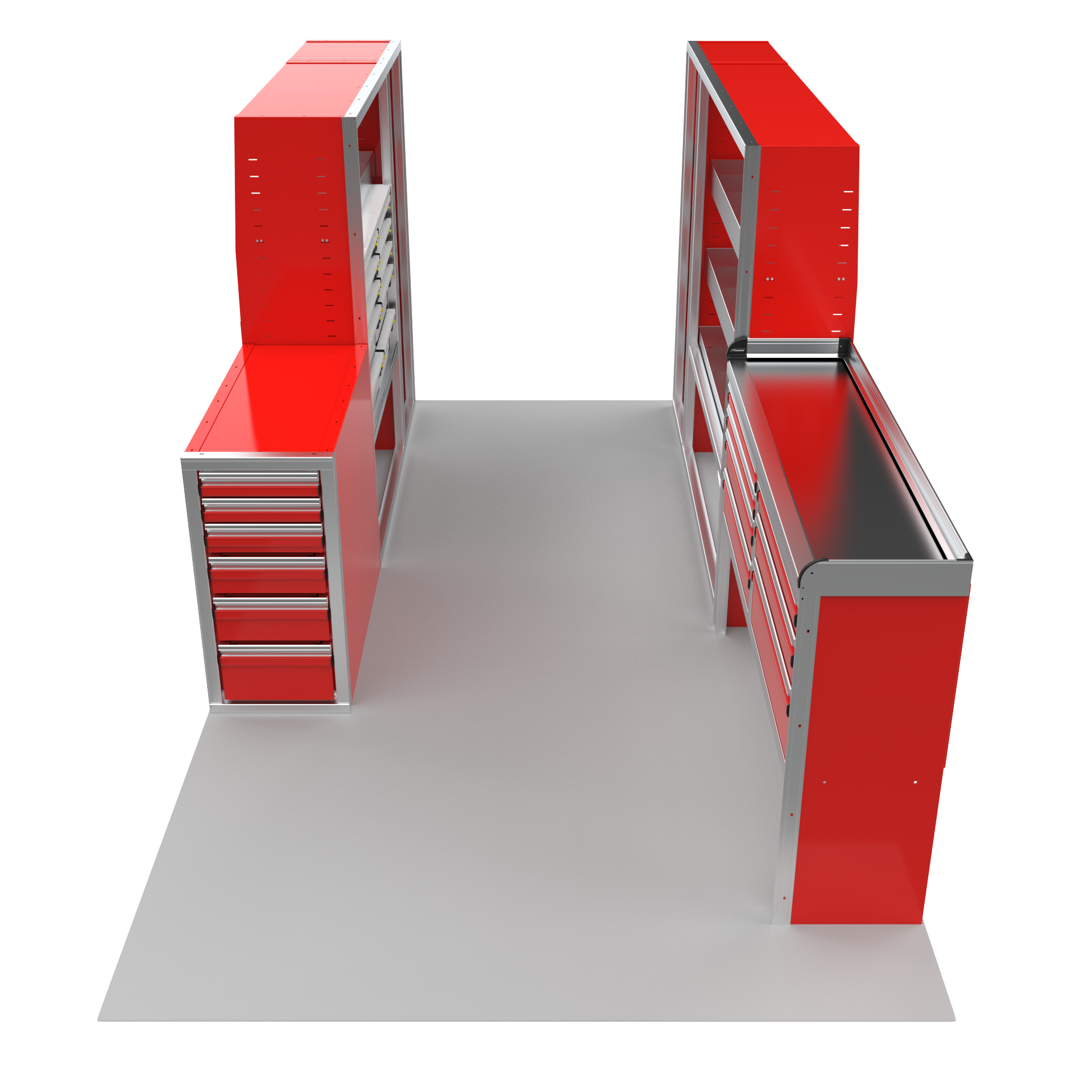

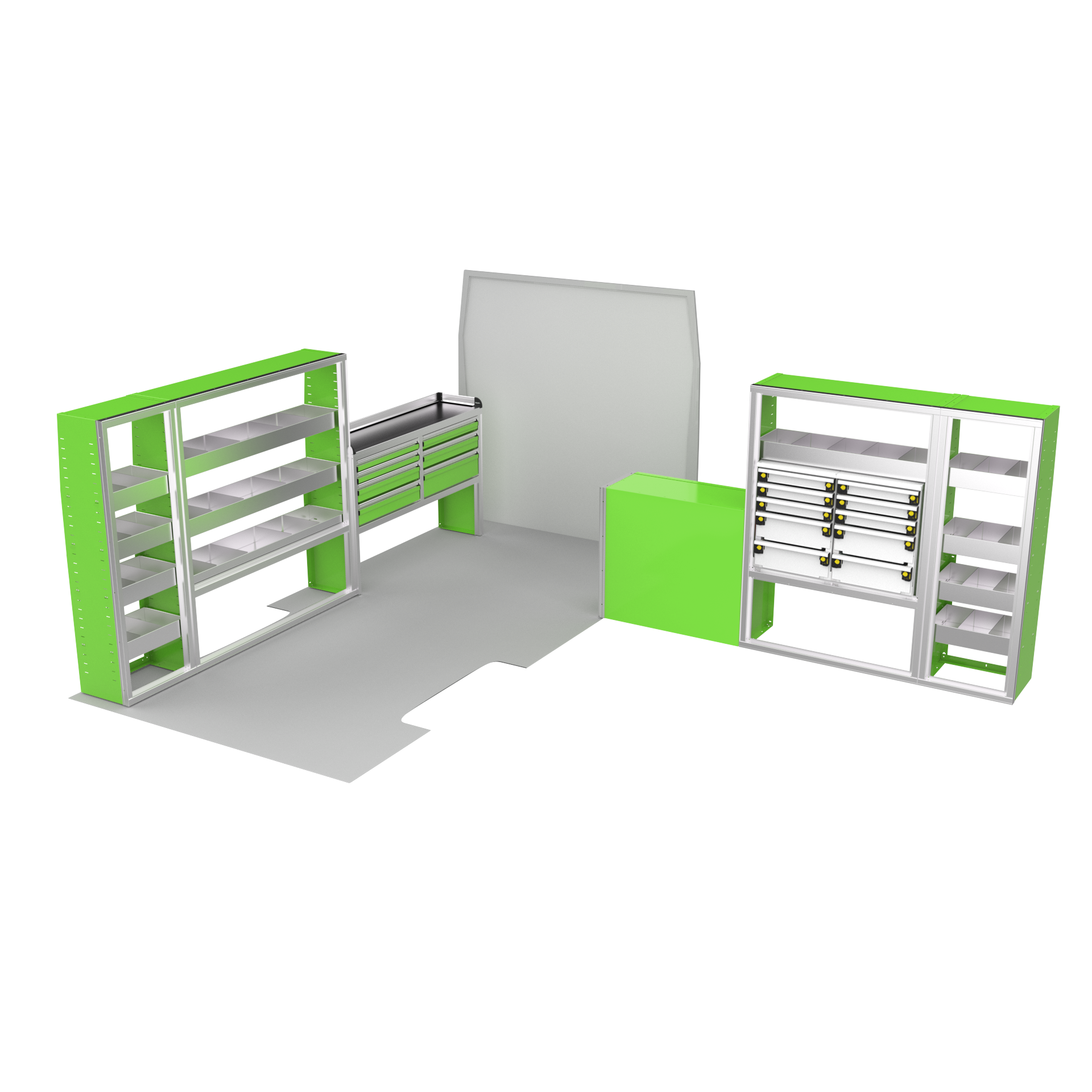

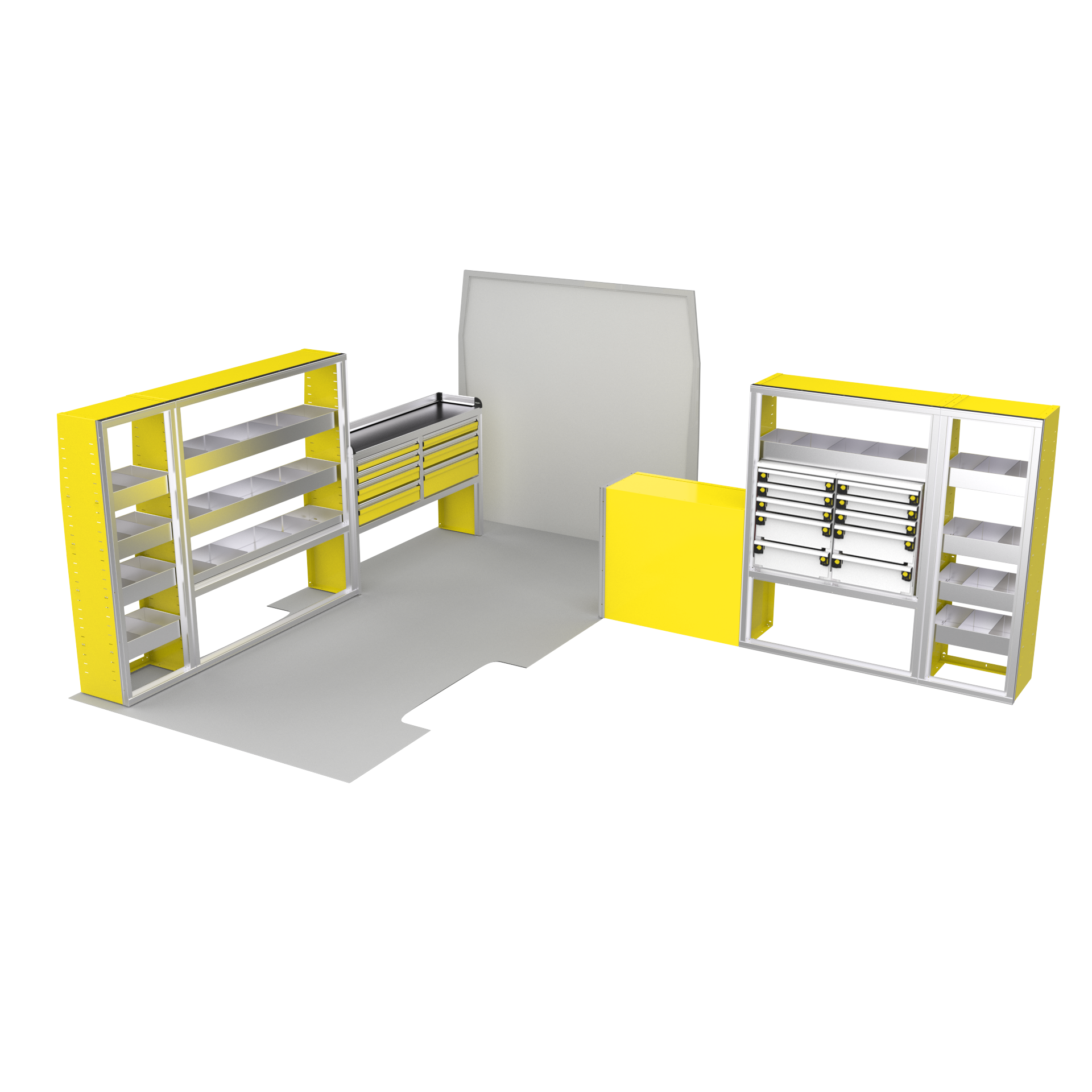

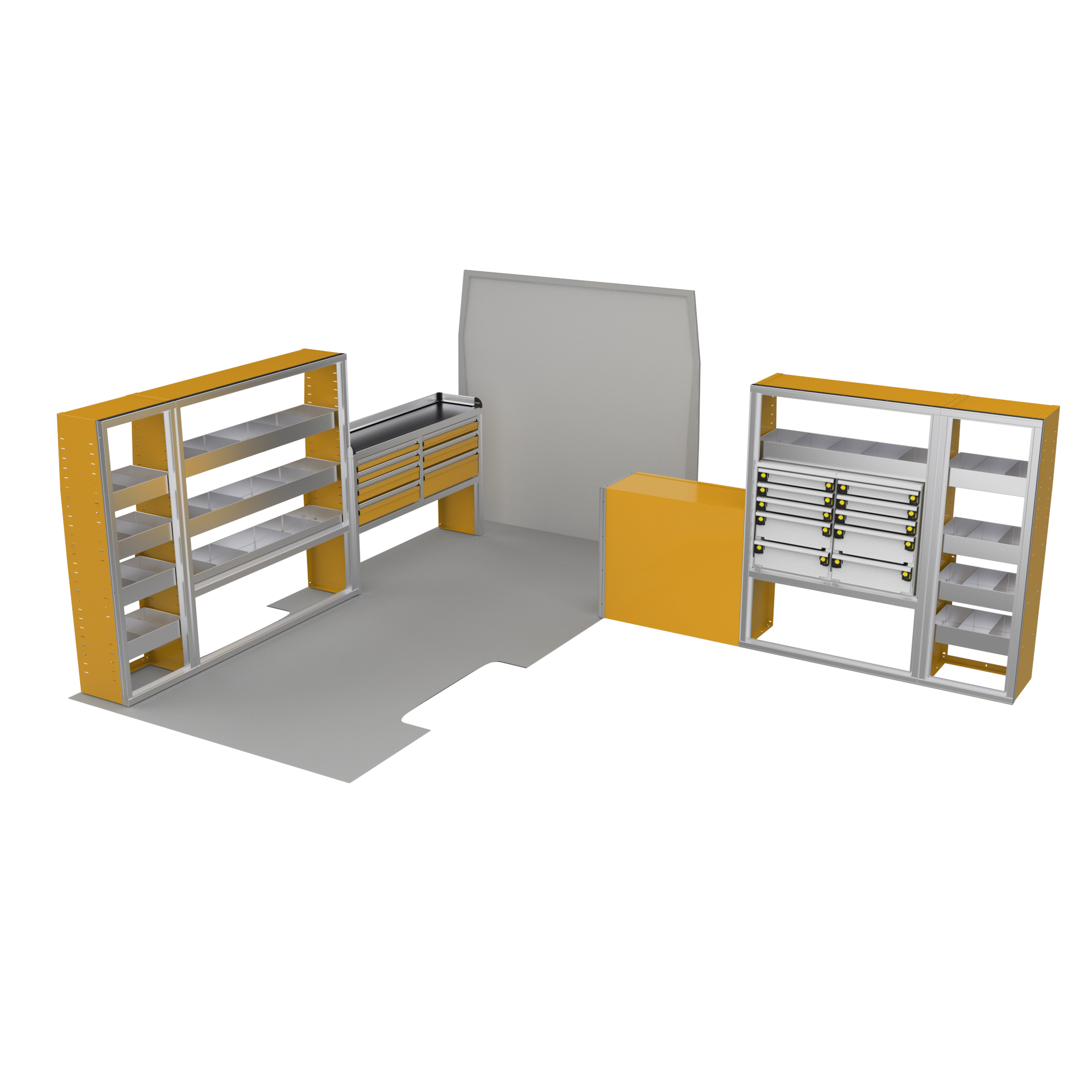

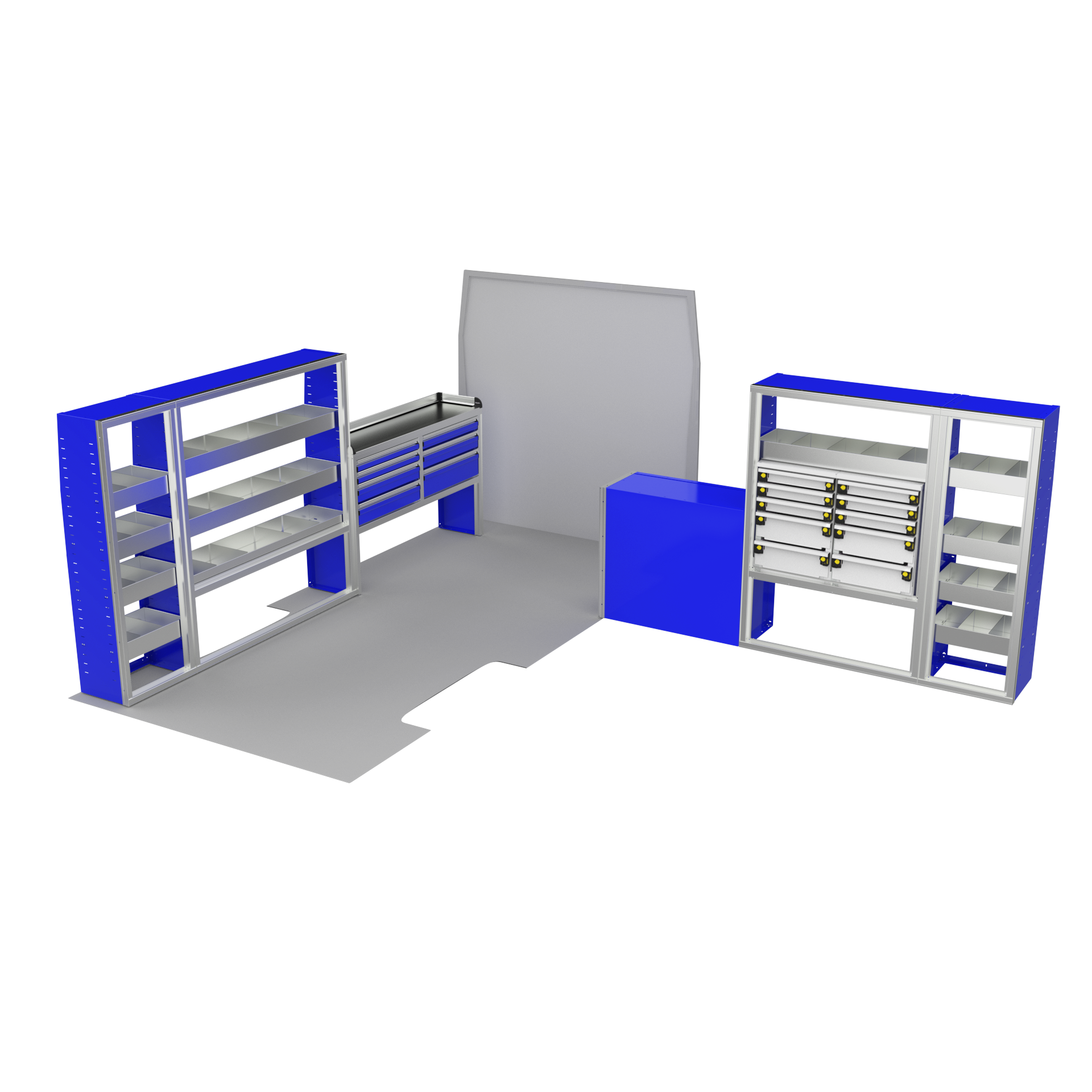

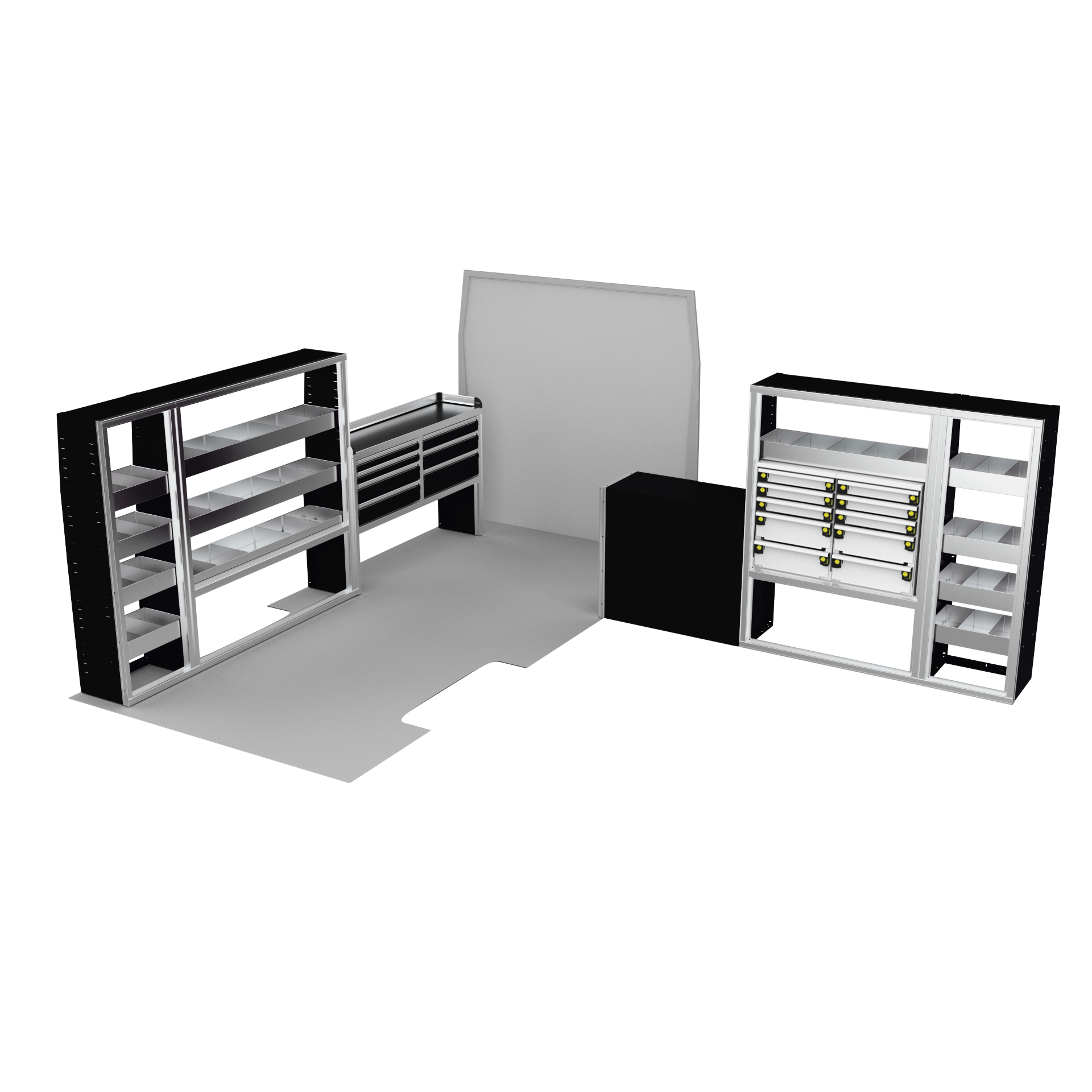

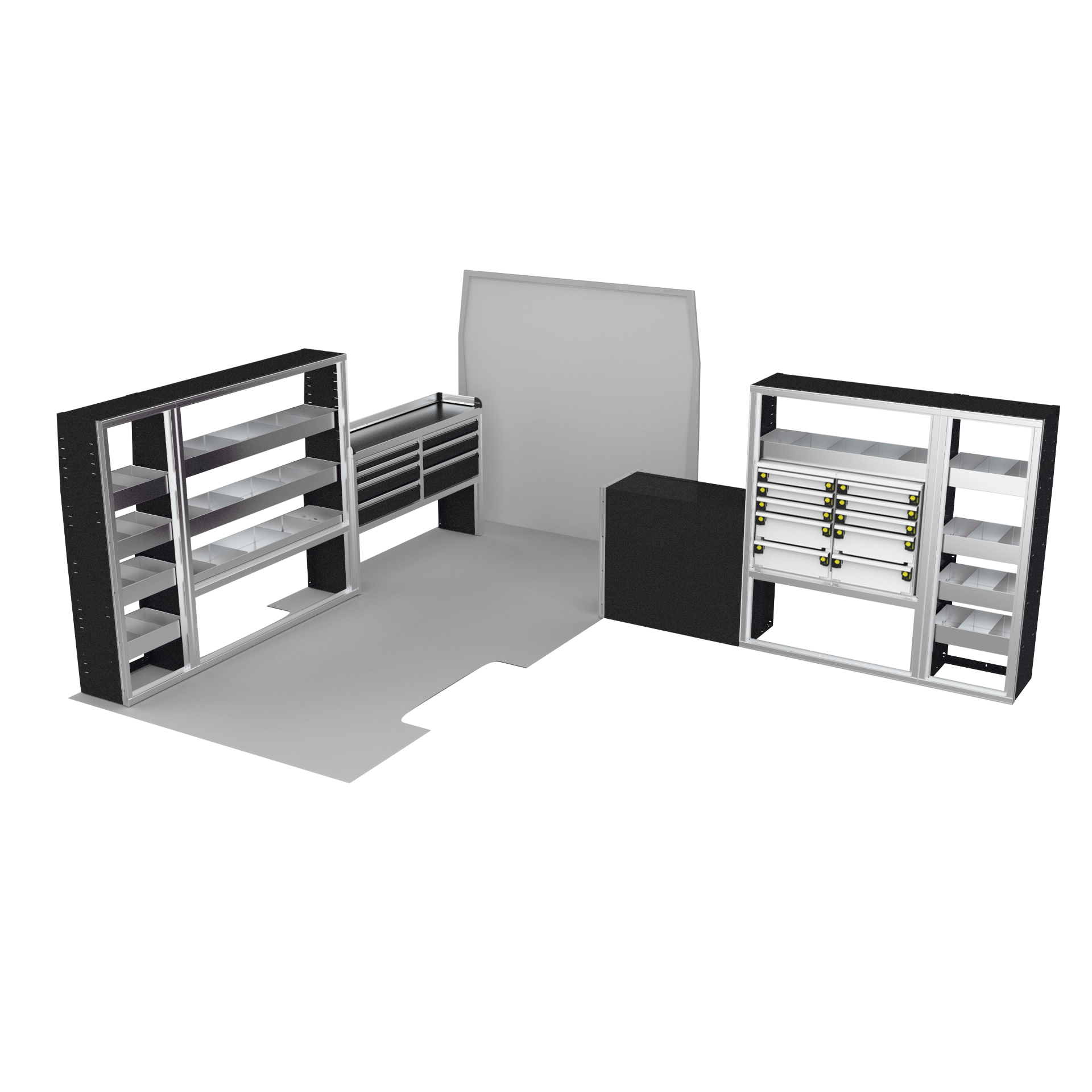

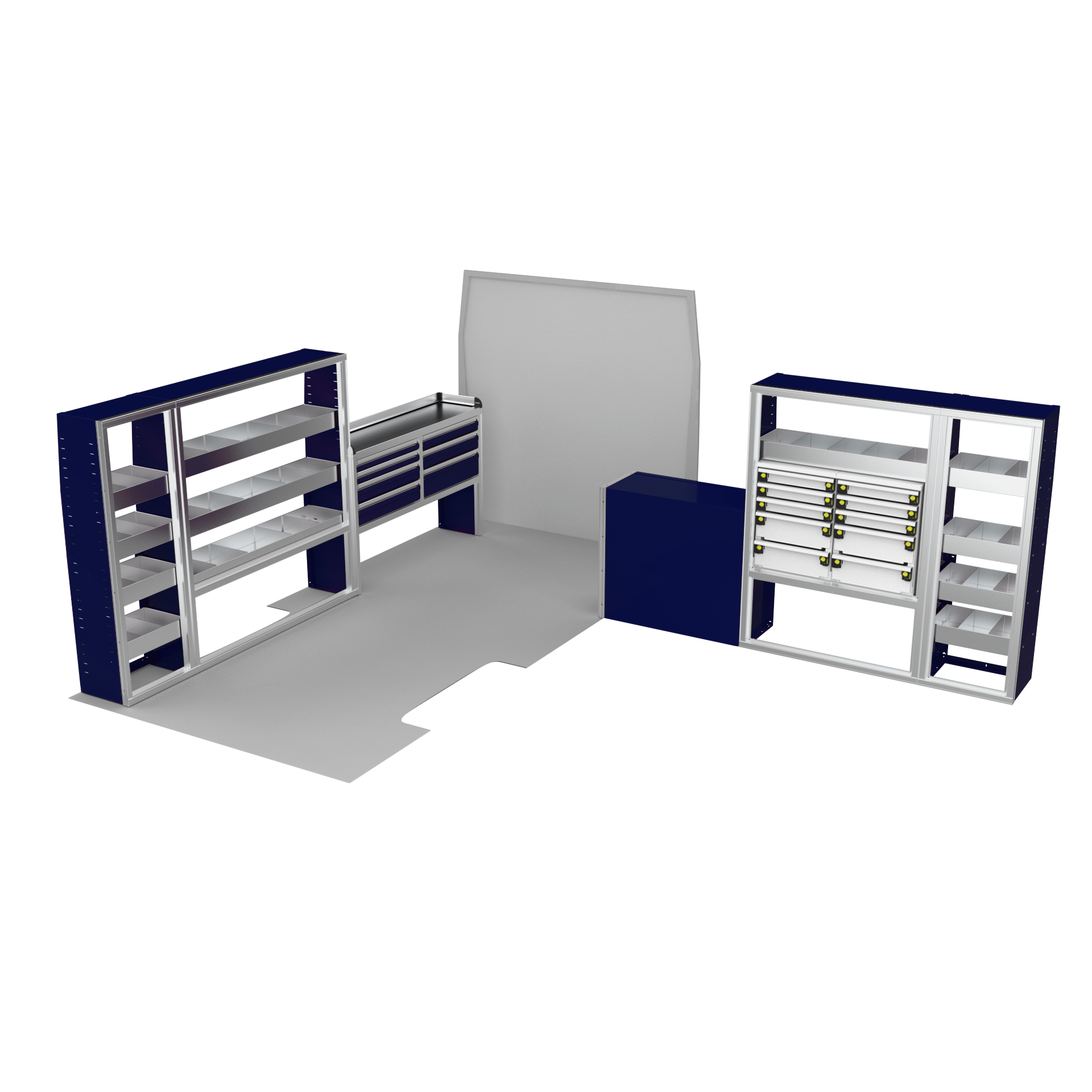

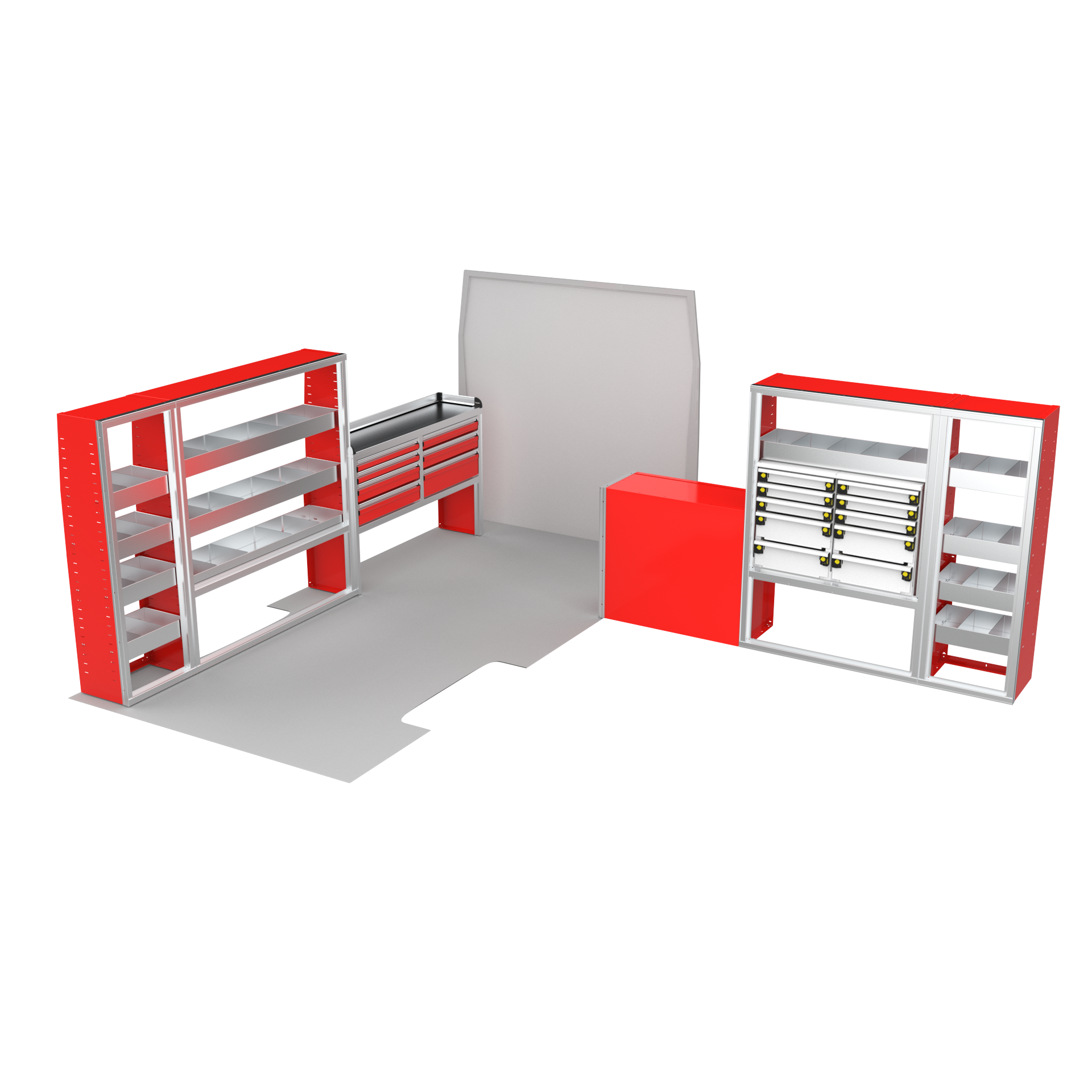

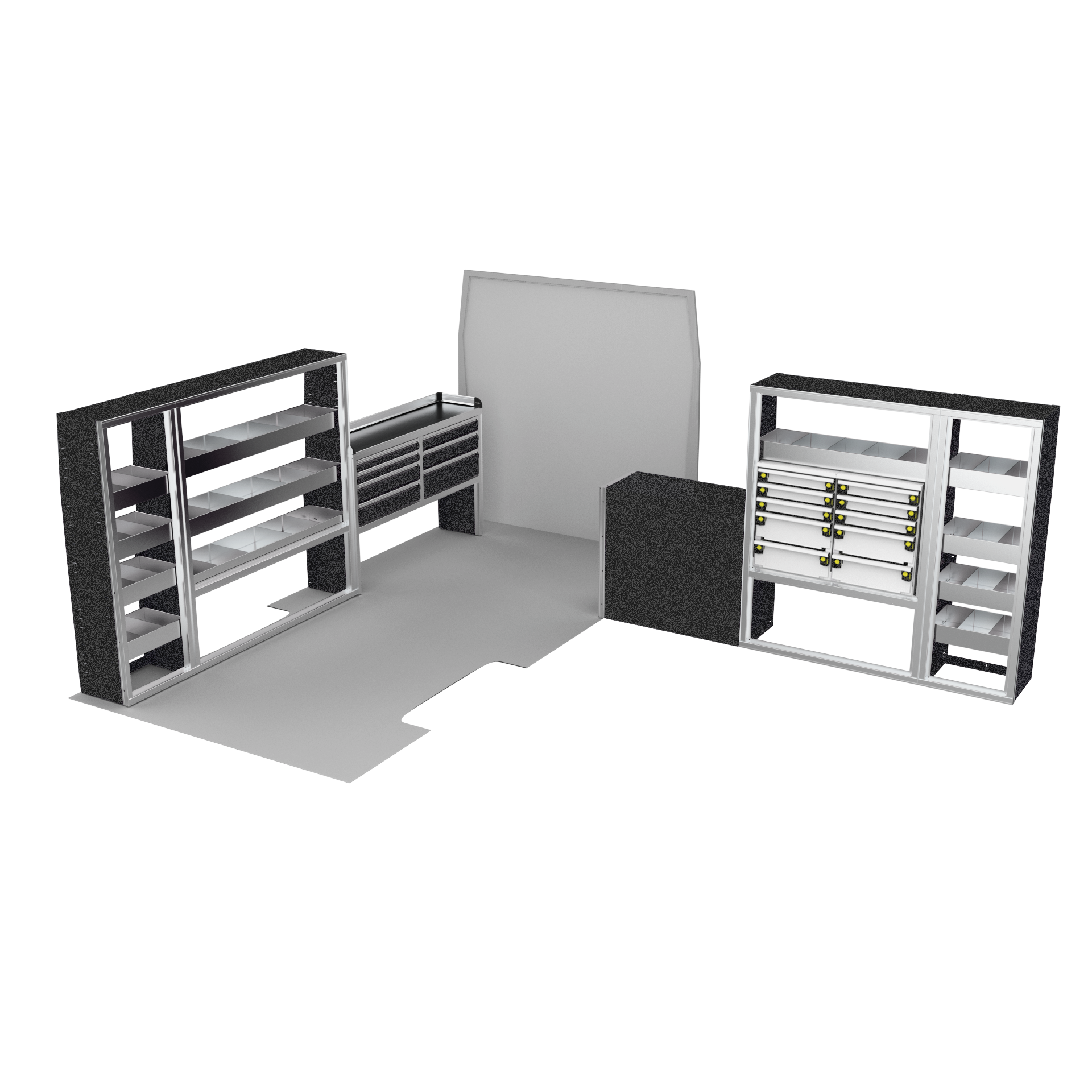

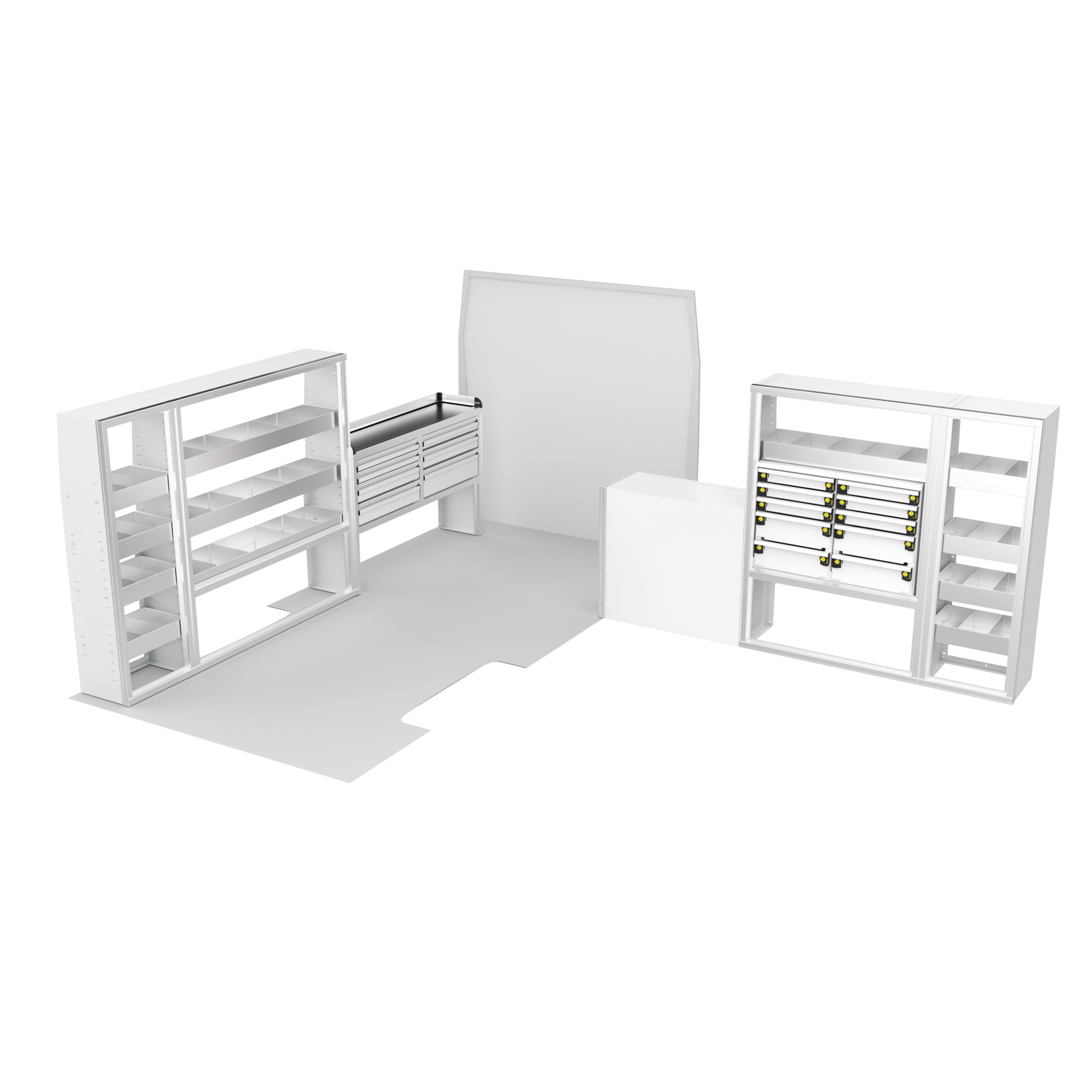

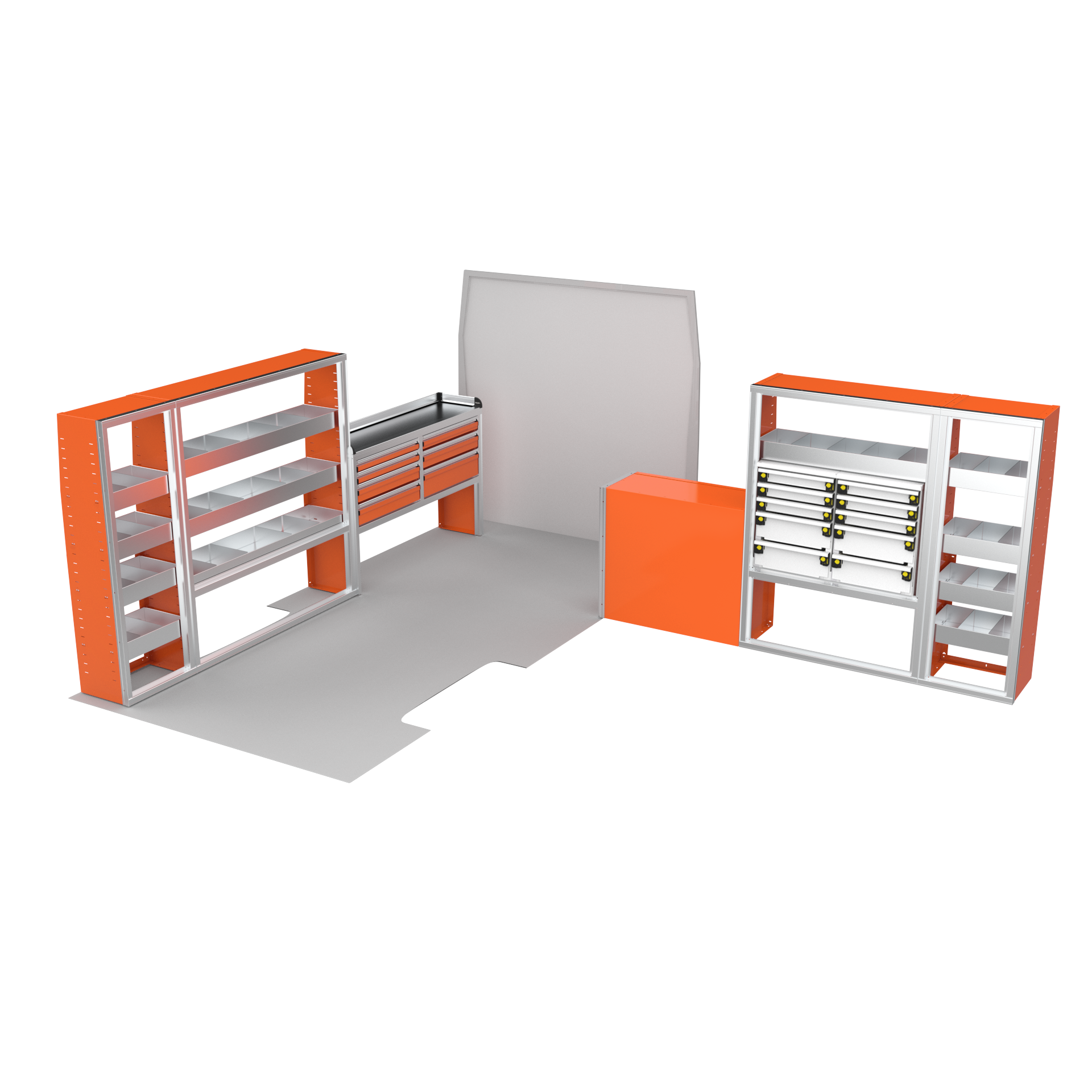

The VanPro Package RPEXT2 combines the RP-300 Shelving Unit, RP-301 Shelving Unit, RP-303 Workbench, RP-304 Drawer Housing, RP-305 Shelving Unit, and RP-306 Shelving Unit to provide a comprehensive, efficient storage and workspace solution for your Ram ProMaster 2500/3500 EXT. This package offers adjustable shelving, MotionGlide technology, secure drawer storage, and a spacious workbench, all built with lightweight, corrosion-resistant aluminum for maximum durability and efficiency. Ideal for work vans, this package ensures flexibility, reliable organization, and long-lasting performance.
RP-303 Workbench
Overall Cabinet Size: 56W x 36H x 14D
Cabinet Frame Size: 56W x 36H x 14D
CABINET OPTIONS
---------------------------------------
-GasketLoc Countertop - Plastic Laminate
*Overall Cabinet Height does not include 2.25" Backsplash
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
OPENING LIST
---------------------------------------
-Opening 1: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
5in [Lnr]
5in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x4)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 3: 25.75W x 17H
Tabbed Drawer Covers
Drawers:
4in [Lnr]
5in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 12 inch Slide (x3)
Inside Dwr Dim: 21.28 W x 11.671 D
-Opening 2: 53W x 15.5H**EMPTY**
ADDITIONAL OPTIONS
---------------------------------------
- Delete back panel in opening 2
RP-300 Shelving Unit
Overall Cabinet Size: 56W x 60H x 14D
Cabinet Frame Size: 56W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 53W x 40H**EMPTY**
* Adjustable Shelves : 2 (54.758w x 12d)
-Opening 2: 53W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 4 front to back dividers each
- ProMaster Profile
RP-305 Shelving Unit
Overall Cabinet Size: 20W x 60H x 14D
Cabinet Frame Size: 20W x 60H x 14D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 17W x 57H**EMPTY**
* Adjustable Shelves : 4 (18.758w x 12d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- ProMaster Profile
RP-301 MotionGlide Parts Cabinet
Overall Cabinet Size: 41W x 60H x 16D
Cabinet Frame Size: 41W x 60H x 16D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Opening 1: 38W x 40H**EMPTY**
* Adjustable Shelves : 1 (39.758w x 14d)
-Opening 2: 38W x 15.5H**EMPTY**
* Fixed Shelf
ADDITIONAL OPTIONS
---------------------------------------
- Two MG-9 to be mounted on fixed shelf
- ProMaster Profile
RP-304 Drawer Housing
Overall Cabinet Size: 16W x 32H x 36D
Cabinet Frame Size: 16W x 32H x 36D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Back Panel
-Bottom Rail
-Floor Panel
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 13W x 29H
Tabbed Drawer Covers
Drawers:
3in [Lnr]
3in [Lnr]
4in [Lnr]
5in [Lnr]
6in [Lnr]
7in [Lnr]
Bottom Space = .952
Slide Type:
Medium Duty 34 inch Slide (x6)
Inside Dwr Dim: 8.53 W x 33.671 D
RP-306 Shelving Unit
Overall Cabinet Size: 20W x 60H x 16D
Cabinet Frame Size: 20W x 60H x 16D
CABINET OPTIONS
---------------------------------------
-Clear Anodized Door and Drawer Handles
-Clear Anodized Frame
-Bottom Rail
-Top Panel
OPENING LIST
---------------------------------------
-Single Opening: 17W x 57H**EMPTY**
* Adjustable Shelves : 4 (18.758w x 14d)
ADDITIONAL OPTIONS
---------------------------------------
- Custom deep shelves with 2 front to back dividers each
- ProMaster Profile
