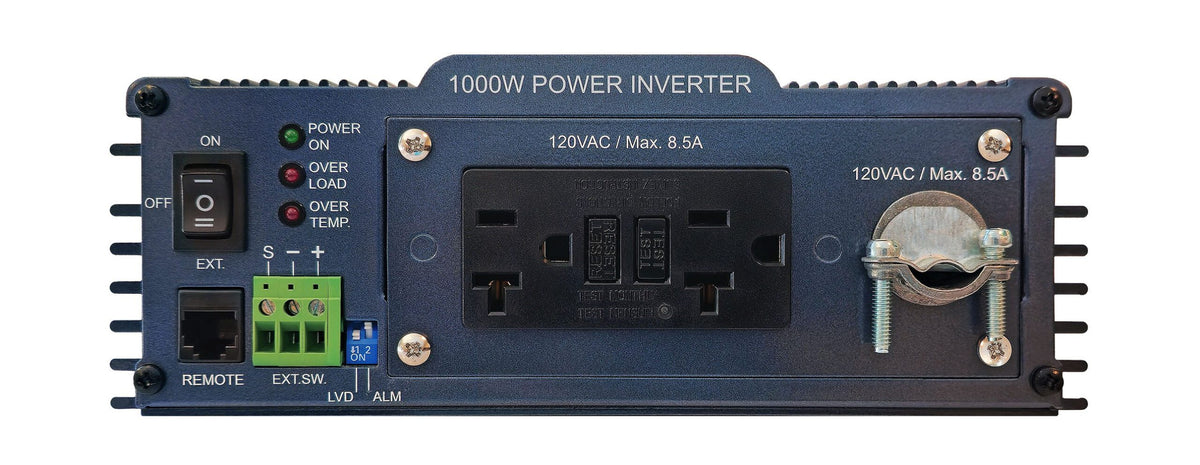

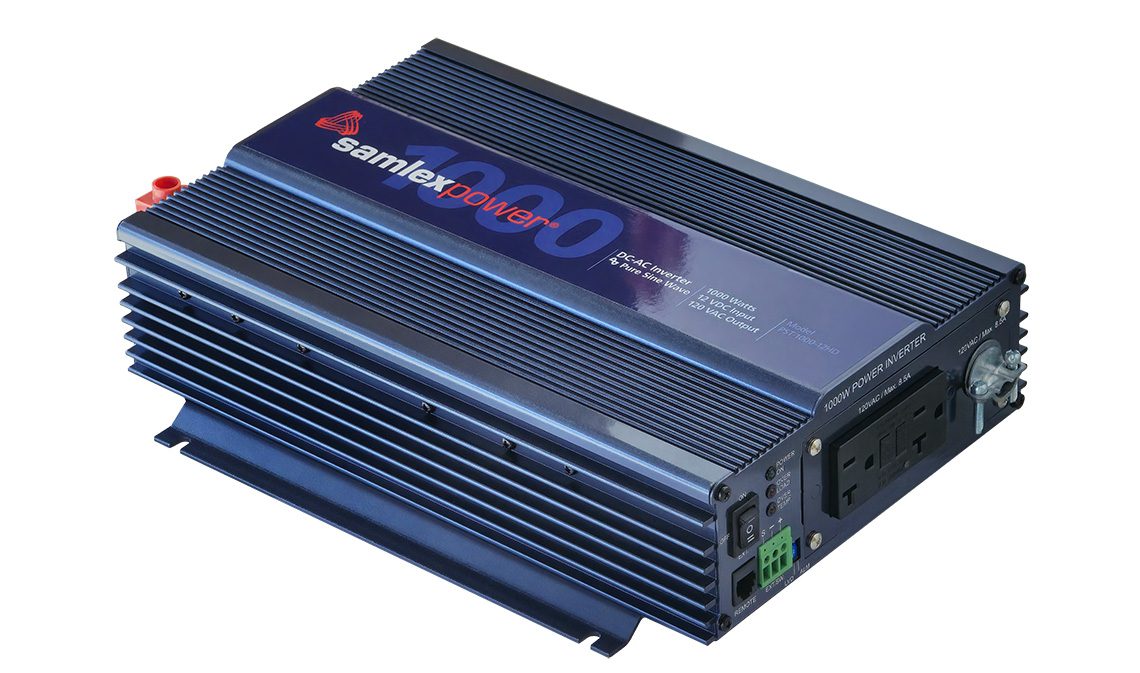

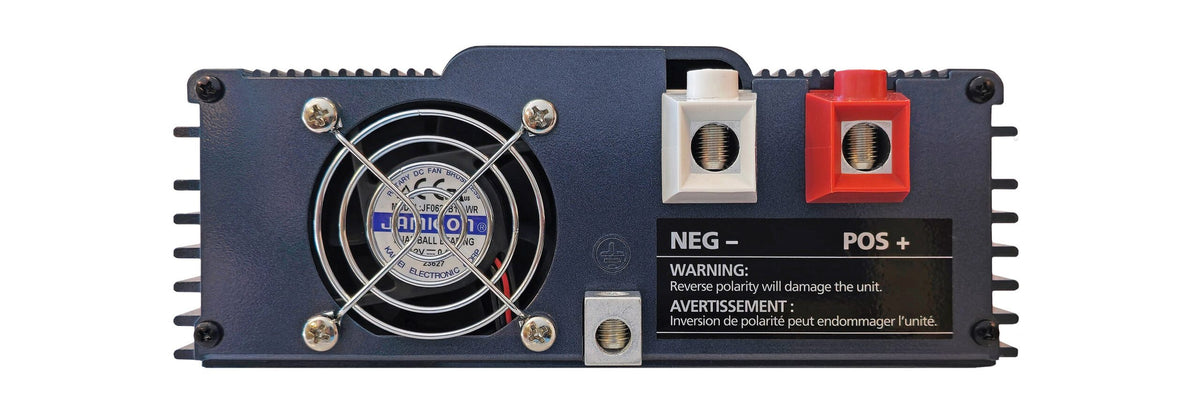

Samlex PST-1000-12HD 1000 Watt Pure Sine Wave Inverter (12V)
PST-1000-12HD is a pure sine inverter and features a hardwire connection for flexibility in installation, selectable low voltage shutdown (battery protection), and a low voltage alarm and alarm buzzer disable switch. PST-1000-12HD is user-friendly, easy to install, and has a small footprint. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards. All Samlex PST series pure sine inverters are high-efficiency, offer quiet operation, low-idle power draw, GFCI protected outlets, and a universal protection circuit – low voltage, over temperature, overload, and short circuit. 3 Year Limited Warranty
Features
- Selectable low voltage shutdown settings
- Enable/ Disable Buzzer DIP Switch
- Low voltage alarm and alarm buzzer disable switch
- Commercial-grade, suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- Hardwire connection for choice & flexibility in installation
- GFCI protected AC outlets
- Compact design, ideal for small spaces
- Wide operating DC input range: 10.0 – 18.0 VDC
- Wide operating temperature range: -13°F to 131°F / -25 ˚ C to +55 ˚ C
- Ignition ON/OFF – 1 wire input
- Temperature controlled cooling fan – reduces energy consumption
- Universal Protection Circuit – Low Voltage, Over Temperature, Overload, and Short Circuit
- Low idle power draw
- Optional remote control (sold separately): Model RC-15A
| Input | 12 VDC |
|---|---|
| Output | 120 VAC |
| Watts | 1000 Watts |
| Surge | 2000 Watts |
| Weight | 8.33 (lbs) |
| Dimensions | 13.11 x 9.37 x 3.23 (in) |
| Safety | ETL Listed. Conforms to UL Std. |
Specifications from Samlex America. VSI sizes the inverter, battery and wiring for your truck or van on the quote.
