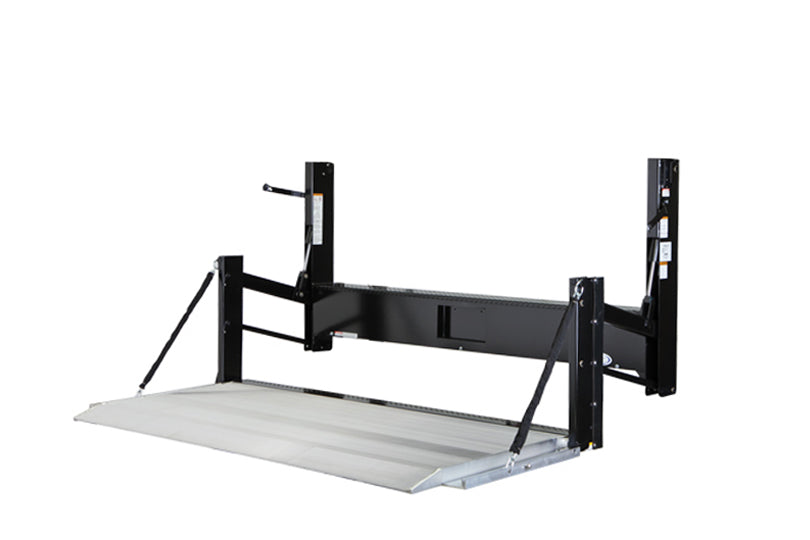

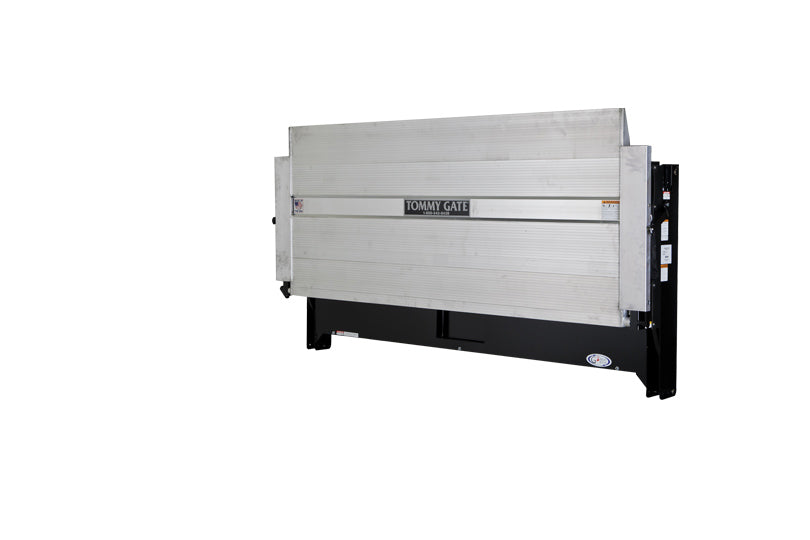

Tommy Gate G2 Series Flatbed & Van Body Liftgate
By TOMMY GATE

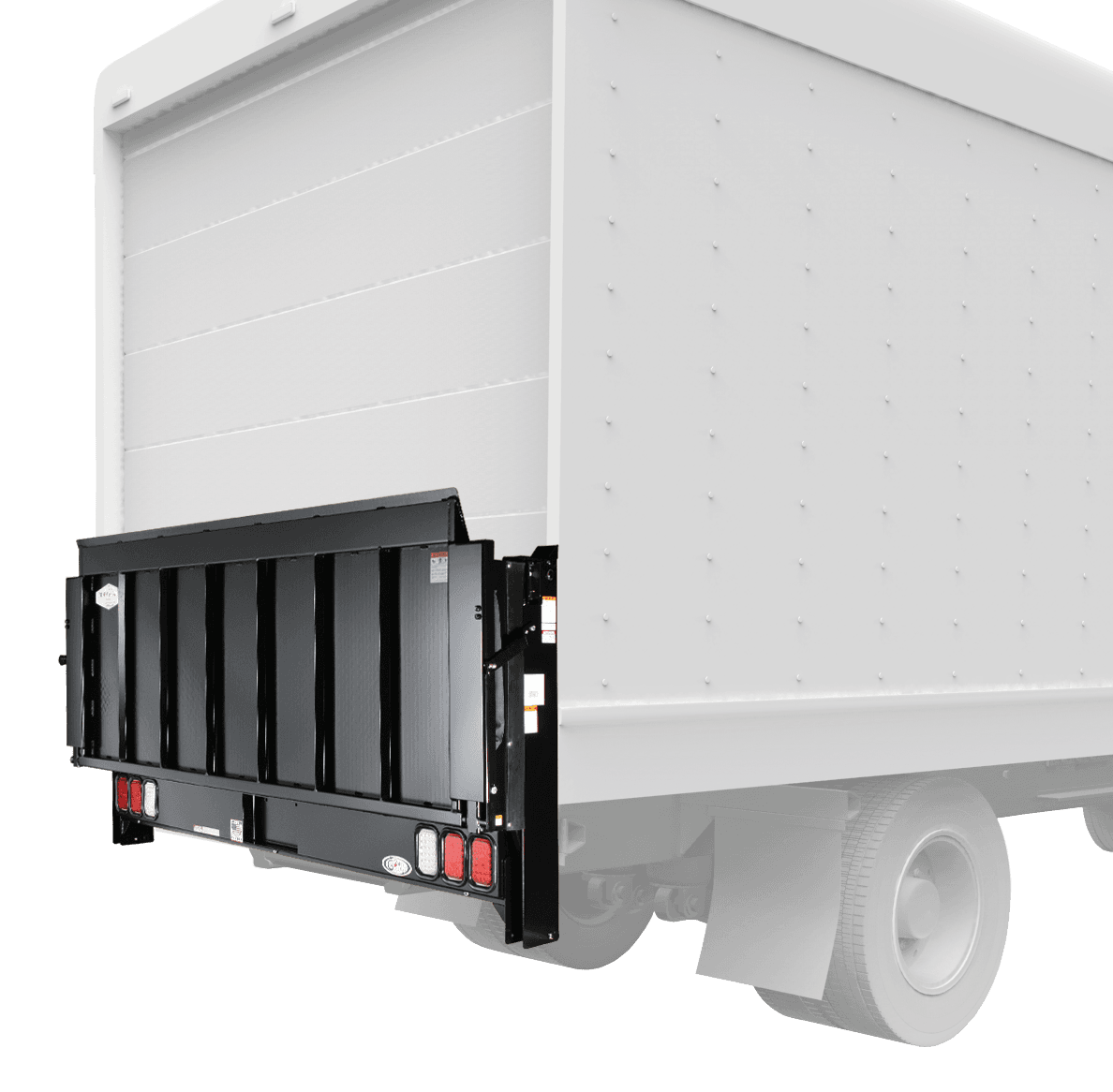

Supporting larger platforms, G2 Series models are compatible with flatbed, stake and van bodies and offer a wide selection of platform materials to accommodate almost any industry application.
| Liftgate capacity | 1000 - 2000 lbs. |
|---|---|

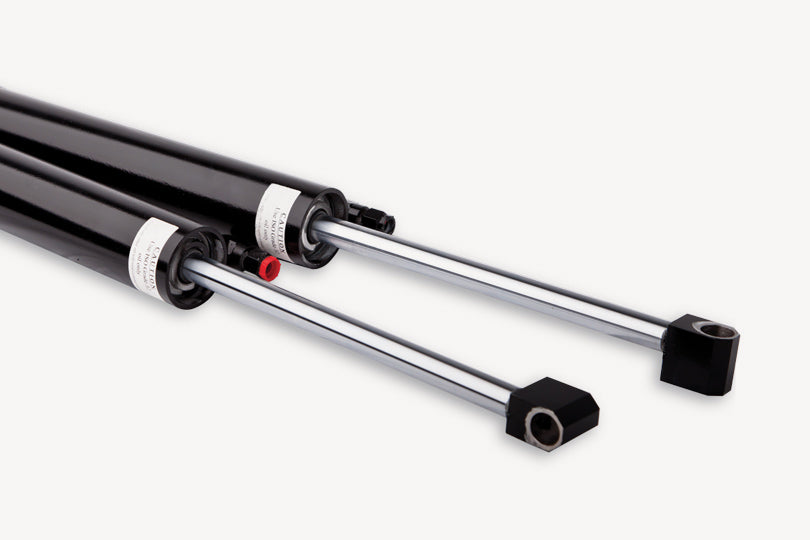

| Hydraulic system | Dual-Cylinder |

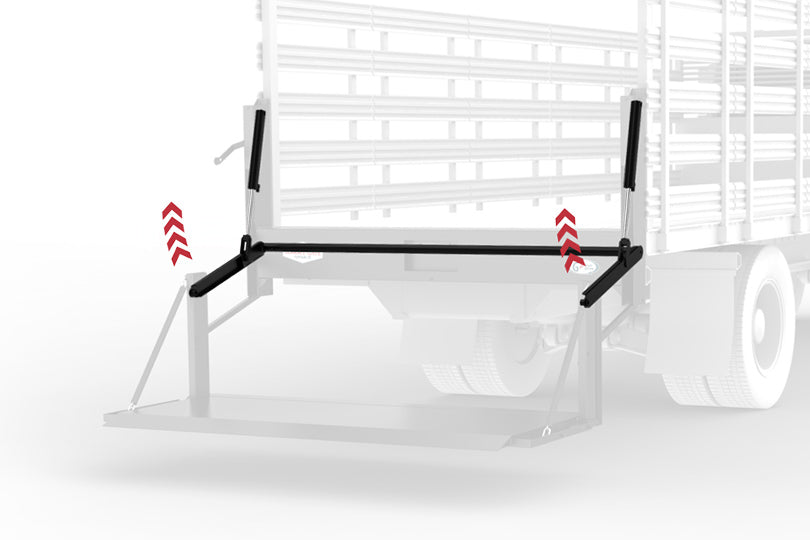

| Lift style | Parallel-Arm |
Models
| Model | Capacity | Load area | Weight |
|---|---|---|---|
| G2-92-2050 TP35 | 2000 lb | 87" x 35" | 653 lb |
| G2-92-2050 TP41 | 2000 lb | 87" x 41" | 686 lb |
| G2-92-2050 EA37 | 2000 lb | 85" x 37" | 569 lb |
| G2-92-2050 EA41 | 2000 lb | 85" x 41" | 585 lb |
| G2-92-2050 TT33 | 2000 lb | 87" x 33" | 637 lb |
| G2-92-1650 BG33 | 1600 lb | 87" x 33" | 637 lb |
| G2-92-1650 EA41 | 1600 lb | 85" x 41" | 577 lb |
| G2-92-1650 EA37 | 1600 lb | 85" x 37" | 561 lb |
| G2-92-1650 TT33 | 1600 lb | 87" x 33" | 612 lb |
| G2-92-1650 TP41 | 1600 lb | 87" x 41" | 655 lb |
| G2-92-1650 TP35 | 1600 lb | 87" x 35" | 628 lb |
| G2-92-1350 BG33 | 1300 lb | 87" x 33" | 637 lb |
| G2-92-1350 EA41 | 1300 lb | 85" x 41" | 577 lb |
| G2-92-1350 EA37 | 1300 lb | 85" x 37" | 561 lb |
| G2-92-1350 TT33 | 1300 lb | 87" x 33" | 612 lb |
| G2-92-1350 TP41 | 1300 lb | 87" x 41" | 655 lb |
| G2-92-1350 TP35 | 1300 lb | 87" x 35" | 628 lb |
| G2-87-2050 TP35 | 2000 lb | 82" x 35" | 623 lb |
| G2-87-2050 TP41 | 2000 lb | 82" x 41" | 664 lb |
| G2-87-2050 EA37 | 2000 lb | 80" x 37" | 542 lb |
| G2-87-2050 EA41 | 2000 lb | 80" x 41" | 557 lb |
| G2-87-2050 TT33 | 2000 lb | 82" x 33" | 592 lb |
| G2-87-1650 BG33 | 1600 lb | 82" x 33" | 615 lb |
| G2-87-1650 EA41 | 1600 lb | 80" x 41" | 557 lb |
| G2-87-1650 EA37 | 1600 lb | 80" x 37" | 542 lb |
| G2-87-1650 TT33 | 1600 lb | 82" x 33" | 592 lb |
| G2-87-1650 TP41 | 1600 lb | 82" x 41" | 633 lb |
| G2-87-1650 TP35 | 1600 lb | 82" x 35" | 607 lb |
| G2-87-1350 BG33 | 1300 lb | 82" x 33" | 615 lb |
| G2-87-1350 EA41 | 1300 lb | 80" x 41" | 557 lb |
| G2-87-1350 EA37 | 1300 lb | 80" x 37" | 542 lb |
| G2-87-1350 TT33 | 1300 lb | 82" x 33" | 592 lb |
| G2-87-1350 TP41 | 1300 lb | 82" x 41" | 633 lb |
| G2-87-1350 TP35 | 1300 lb | 82" x 35" | 607 lb |
| G2-81-2050 EA37 | 2000 lb | 75" x 37" | 524 lb |
| G2-81-2050 EA41 | 2000 lb | 75" x 41" | 538 lb |
| G2-81-2050 TT33 | 2000 lb | 76" x 33" | 572 lb |
| G2-81-1650 TP35 | 1600 lb | 76" x 35" | 578 lb |
| G2-81-1650 TP41 | 1600 lb | 76" x 41" | 612 lb |
| G2-81-1650 TT33 | 1600 lb | 76" x 33" | 572 lb |
| G2-81-1650 EA37 | 1600 lb | 75" x 37" | 524 lb |
| G2-81-1650 EA41 | 1600 lb | 75" x 41" | 538 lb |
| G2-81-1650 BG33 | 1600 lb | 76" x 33" | 592 lb |
| G2-81-1350 TP35 | 1300 lb | 76" x 35" | 578 lb |
| G2-81-1350 TP41 | 1300 lb | 76" x 41" | 612 lb |
| G2-81-1350 TT33 | 1300 lb | 76" x 33" | 572 lb |
| G2-81-1350 EA37 | 1300 lb | 75" x 37" | 524 lb |
| G2-81-1350 EA41 | 1300 lb | 75" x 41" | 538 lb |
| G2-81-1350 BG33 | 1300 lb | 76" x 33" | 592 lb |
| G2-73-2050 EA37 | 2000 lb | 66" x 37" | 493 lb |
| G2-73-2050 EA41 | 2000 lb | 66" x 41" | 505 lb |
| G2-73-2050 TT33 | 2000 lb | 68" x 33" | 534 lb |
| G2-73-1650 TP35 | 1600 lb | 68" x 35" | 547 lb |
| G2-73-1650 TP41 | 1600 lb | 68" x 41" | 570 lb |
| G2-73-1650 TT33 | 1600 lb | 68" x 33" | 534 lb |
| G2-73-1650 EA37 | 1600 lb | 66" x 37" | 493 lb |
| G2-73-1650 EA41 | 1600 lb | 66" x 41" | 505 lb |
| G2-73-1650 BG33 | 1600 lb | 68" x 33" | 553 lb |
| G2-73-1350 TP35 | 1300 lb | 68" x 35" | 547 lb |
| G2-73-1350 TP41 | 1300 lb | 68" x 41" | 570 lb |
Plus 55 more configurations; ask us for the full model chart.
Specifications from Tommy Gate. Model availability, platform options and chassis fit are confirmed on your quote.
