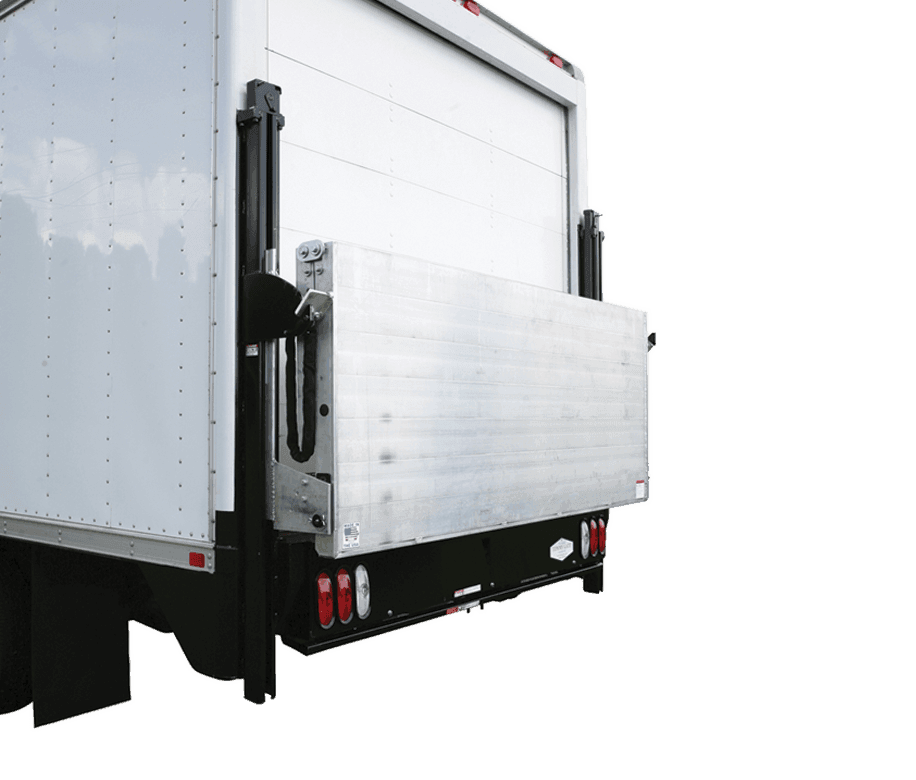

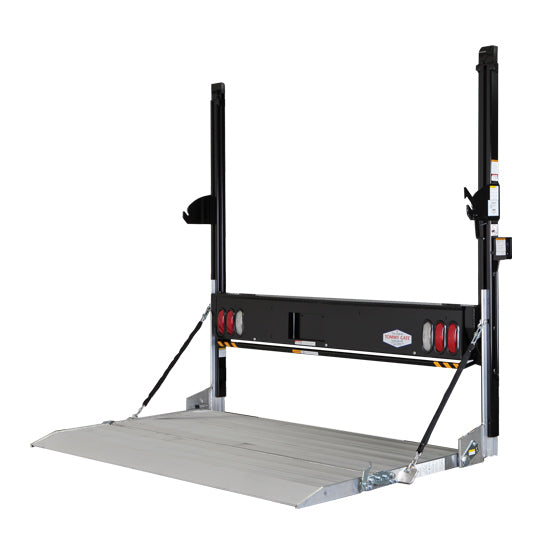

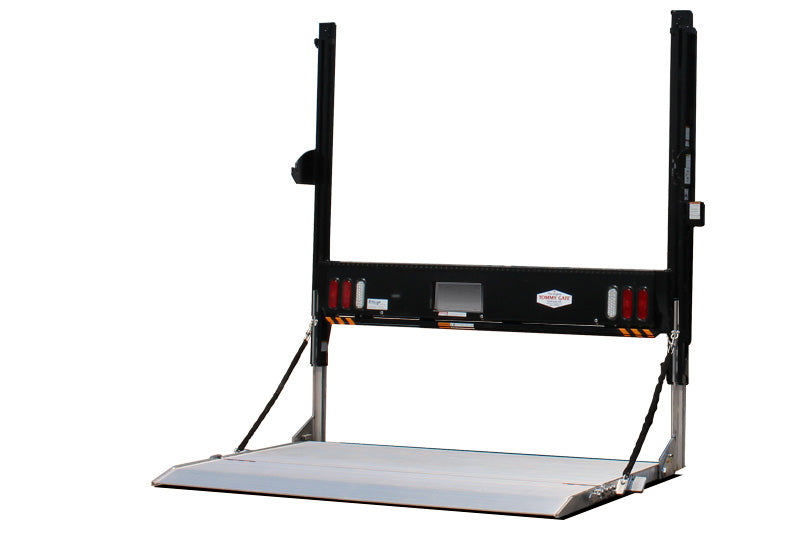

Tommy Gate Railgate Series Dock-Friendly Liftgate
Dock-friendly models feature folding "RF" platforms able to achieve non-obstructing positions for forklift or dock loading. Also included are a closure-assist torsion bar and maintenance-free bushings, making them some of the best liftgates ever seen in a loading bay.

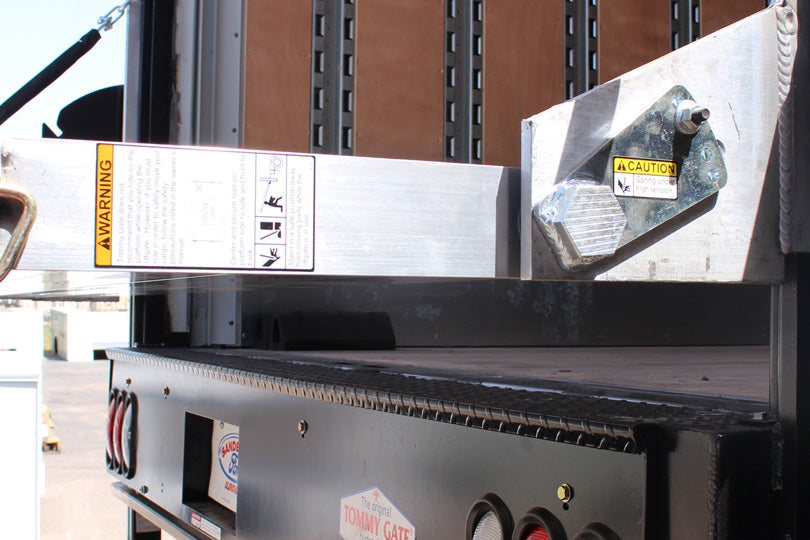

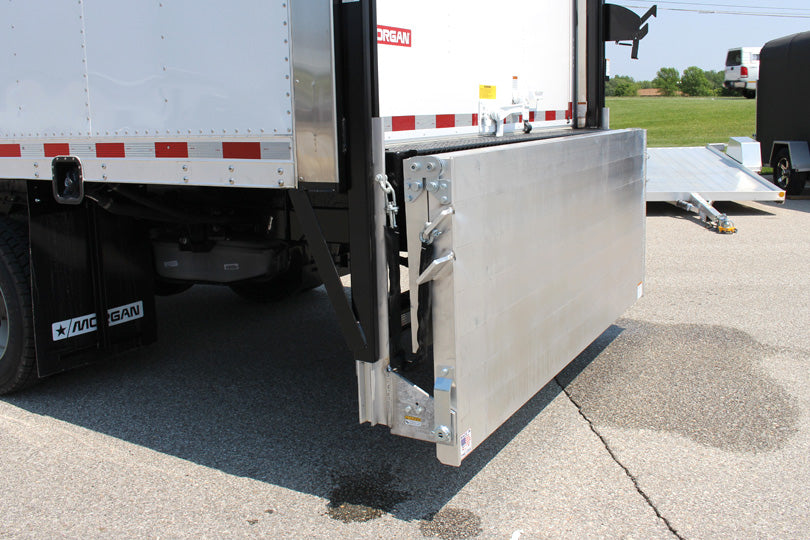

Standard features: Dock-friendly platforms fold and can be lowered in the vertical position to allow for easy dock or forklift loading. Drop-Away Function The "drop away" position allows for the liftgate platform to be easily moved out of the way of direct dock loading. Above-Bed Travel All "dock-friendly" model railgates come with standard above-bed capability, allowing the platform to rise above the liftgate mainframe to meet additional dock height. Steel-Frame
| Liftgate capacity | 1600 & 2000 lbs. |
|---|---|
| Hydraulic system | Single-Cylinder |
| Rail style | Padded Sliders |
Models
| Model | Capacity | Load area | Weight |
|---|---|---|---|
| 45-6 | 1600 lb | 95" x 45" | 697 lb |
| 45-12 | 1600 lb | 95" x 45" | 711 lb |
| 50-6 | 1600 lb | 95" x 50" | 717 lb |
| 55-12 | 1600 lb | 85" x 55" | - |
Specifications from Tommy Gate. Model availability, platform options and chassis fit are confirmed on your quote.
