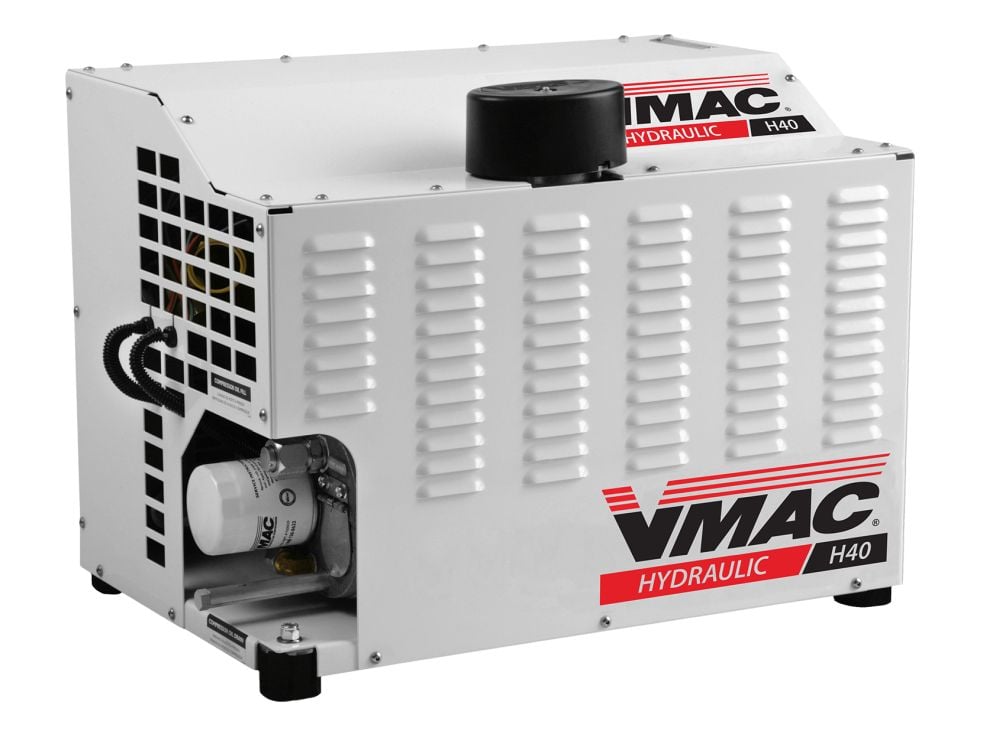

VMAC 40 CFM Hydraulic Air Compressor
By VMAC
VMAC’s 40 CFM hydraulic air compressor is the best choice for fleet managers and owners who require hydraulic powered compressed air and aren’t satisfied with the performance of reciprocating air compressors.
| Air Compressor Output | 25-40 CFM* @ 100 psi (150 psi max) |
|---|---|
| Air Compressor Type | Direct-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Hydraulic Flow Required | 9-12 GPM; open center hydraulic circuit |
| Hydraulic Pressure at Full Load (hydraulic pump is recommended) | 2,345 psi; 3,000 psi |
| Weight (dry) | Approximately 150 lb (68 kg) |
| Dimensions | 24.0” (l) x 16.5” (w) x 18.0” (h); 61.0 cm (l) x 41.9 cm (w) x 45.7 cm (h) |
| Cooler | Integrated hydraulic/compressor oil; 12V or 24V fan |
| Hydraulic Connections | #12 ORB Inlet, #16 ORB Outlet |
| Control System | LCD digital control box with hour meter, service reminders, and error messages; Live monitoring of air pressure, hydraulic and compressor temperatures; Automatic cold climate protection; Automatic warm-up mode extends system life; Standby Mode turns system off and on depending on air use |
| Safety System | Compressor/hydraulic overheat protection; Cooler bypass check valve; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Automatic cold climate protection; 2,800 psi hydraulic pressure relief valve |
| Air Receiver Tank (recommended, not included) | Minimum 6-gallon air receiver tank recommended for proper operation of all functions |
| Panel Color | White; Black; Custom (Fleet orders only) |
| Warranty | Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited).; For more information about VMAC’s Warranty, visit www.vmacair.com/support/warranty . |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
