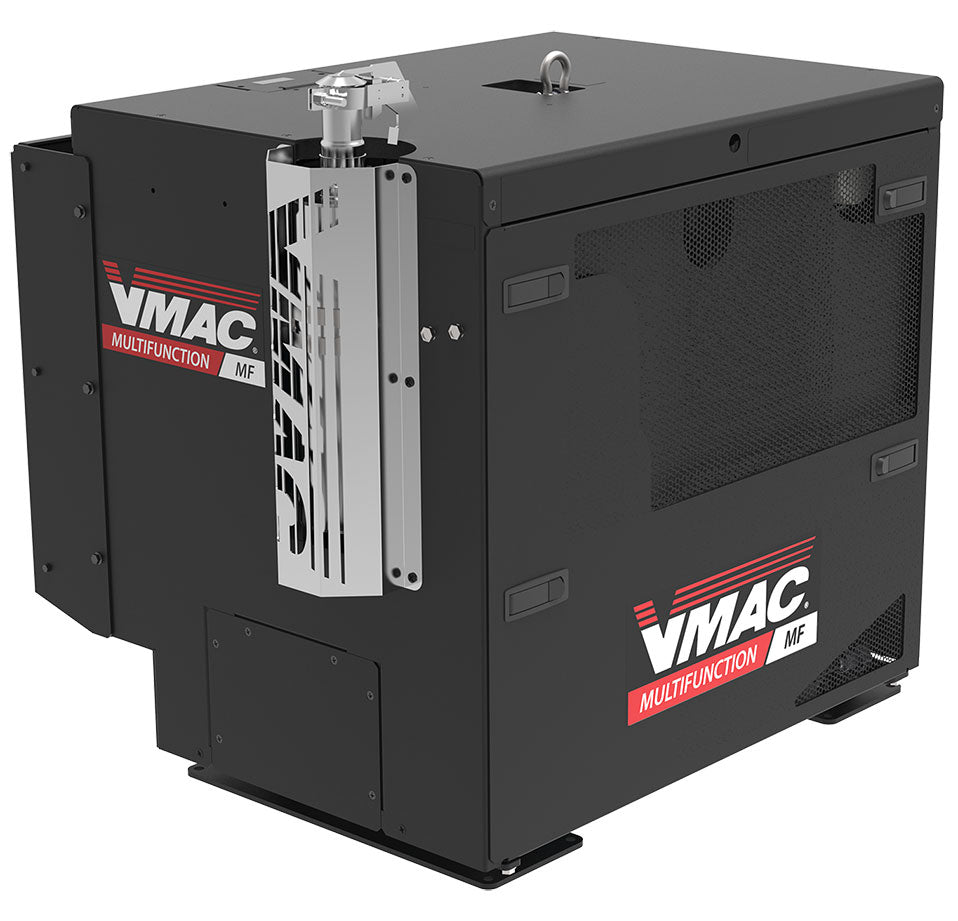

VMAC 6-in-1 Multifunction Power System (Kubota)
By VMAC
With everything needed in a single, compact system, nothing will stop operators on the job site. The included cold climate kit, sound shroud and noise reduction panels provide quieter operation in the most extreme conditions.
| Air Compressor | 45 CFM @ 100 psi (175 psi max); VMAC oil-injected rotary screw; 100% duty cycle; belt-driven |
|---|---|
| Engine | Kubota D902 Diesel 3-cylinder, naturally aspirated 3,600 RPM, Tier 4 Final |
| Weight (wet) | Approximately 570 lb (259 kg) |
| Dimensions | 33” (l) x 23” (w)* x 29” (h); 83.8cm (l) x 58.4 cm (w)* x 73.7 cm (h); Base footprint: 30” (l) x 20” (w); 76.2 cm (l) x; *27” (68.6 cm) w/ radiator sound deflector |
| Decibels (dB) @ 21 feet (6.4 meters) | 75 dB at max idle, 66 dB at low idle, 0 dB in standby mode |
| AC/DC Generator/Welder | AC: 8 kW output (w/ receptacles) 1 x 30 A, 240V, 60 Hz three phase circuit; 1 x 30 A, 240V, 60 Hz single phase circuit; 2 x 20 A, 120V, 60 Hz single phase circuit; DC: For battery boosting/charging; other DC loads Boost – 300 A max @ 13V; Charge – 100 A max @ 12V & 24V; CC mode for SMAW and GTAW (stick/TIG welding); 250 A @ 35% duty cycle; 190 A @ 60% duty cycle |
| Power Take-off Port (optional) | Clutched SAE ‘A’ port with 9-toothed spline, 2,800 RPM output, 35 lb-ft continuous torque max (patented) |
| Hydraulic Pump (optional) | 5 GPM, 8 GPM or 10 GPM @ 3,500 psi (max) |
| Battery | ACDelco 12V, 460 CCA, 575 CA |

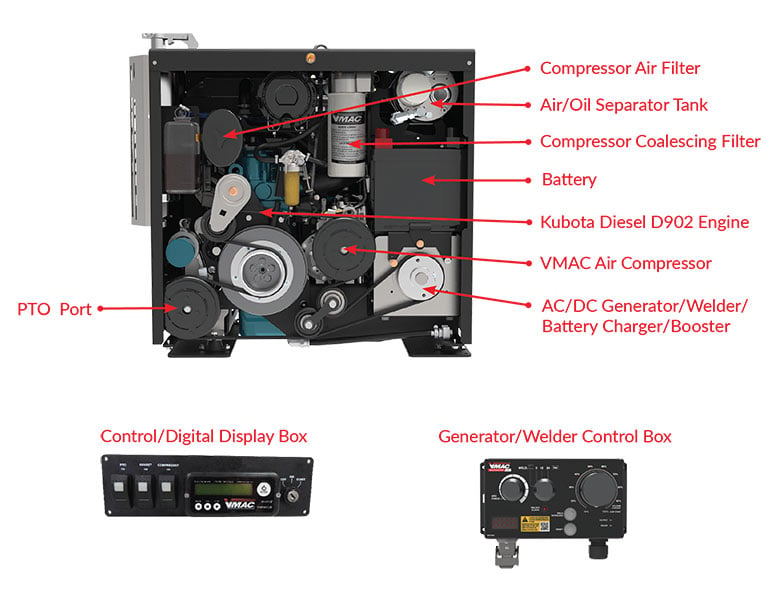

| Control System | Remote mounted control/digital display box with electronic key switch and LCD for compressor on/off controls, observing system status, and adjusting parameters; Remote mounted generator/welder control box with genset voltage meter and selector, welding current and ARC force control; Socket for optional remote welding control; Integrated voltage sensing interlock feature ensures safe welding/battery boosting and protects equipment by disabling the genset in unsafe conditions; Separate selector switches engage compressor, generator and PTO; any function or all three can be selected at any time; Multi-speed throttle control responds to operating function and air demand; With compressor-only selected, and sustained periods of no air use, the control system will shut down the engine (standby mode); the engine will not shut down automatically with generator selected |
| Cold Climate Protection | Engine and compressor wait until the system temperatures are above 41°F (5°C) before loading and going into a running state; Engine automatically restarts when system temperature falls below 23°F (-5°C); Small heat strip included in LCD Digital Control Box; Battery jump start connections are recommended to be tied into the truck batteries in locations where extreme cold is expected. It is not necessary in mild climates |
| Cold Climate Kit | Recommended to use if ambient temperatures frequently drop below -10ºC (14ºF); Plugs into a 120V power source and the compressor and separator tank heaters will turn on; Optional 1,750 W power inverter allows cold climate kit to engage on the way to the job site |
| Fuel Supply Options | 7-gallon tank with fuel gauge and low fuel shut-off sensor; External Diesel Fuel Pump Kit |
| Air Receiver Tank | Minimum 10-gallon air receiver tank recommended (not included) for proper operation of all functions |
| Warranty | Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited); Kubota engine covered by Kubota’s 3-Year warranty; For more information about warranty policies, visit www.vmacair.com/warranty |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
