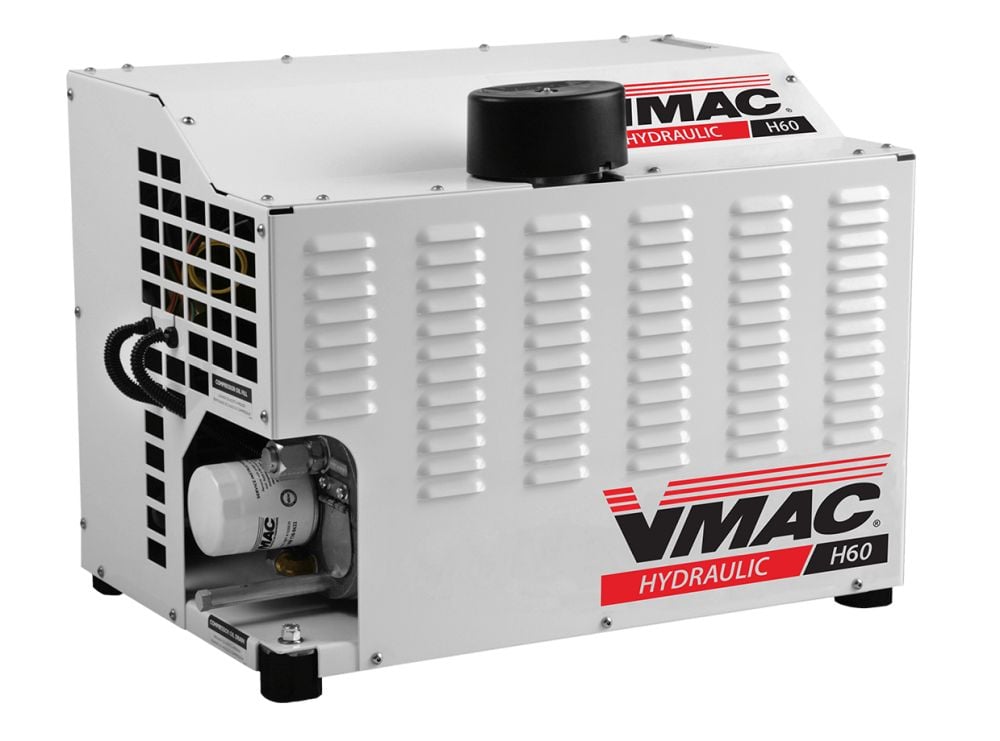

VMAC 60 CFM Hydraulic Air Compressor
By VMAC
The 60 CFM VMAC hydraulic air compressor is the best choice for fleet managers and owners requiring hydraulic-powered compressed air for continuous duty applications and tools.
| Air Compressor Output | 40-60 CFM @ 100 psi (150 psi max) |
|---|---|
| Air Compressor Type | Direct-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Hydraulic Flow Required | 14-21 GPM; open center hydraulic circuit |
| Hydraulic Pressure at Full Load (hydraulic pump is recommended) | 2,450 psi; 3,000 psi hydraulic pump recommended |
| Weight (dry) | Approximately 160 lb (73 kg) |
| Dimensions | 24.0” (l) x 16.5” (w) x 18.0” (h); 61.0 cm (l) x 41.9 cm (w) x 45.7 cm (h) |
| Cooler | Integrated hydraulic / compressor oil; 12V fan |
| Hydraulic Connections | #12 ORB Inlet, #16 ORB Outlet |
| Control System | LCD digital control box with hour meter, service reminders, and error messages; Live monitoring of air pressure, hydraulic and compressor temperatures.; Automatic cold climate protection; Automatic warm-up mode extends system life; Standby Mode, turns system off and on depending on air use |
| Safety System | Compressor/Hydraulic overheat protection; Cooler bypass check valve; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; 2,800 psi hydraulic pressure relief valve; Automatic cold climate protection |
| Air Receiver Tank (recommended, not included) | Minimum 6-gallon air receiver tank recommended for proper operation of all functions |
| Panel Color | White; Black; Custom (Fleet orders only) |
| Warranty | Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited).; For more information about VMAC’s Warranty, visit www.vmacair.com/warranty . |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
