VMAC DTM70 Direct-Transmission Mounted Air Compressor
By VMAC

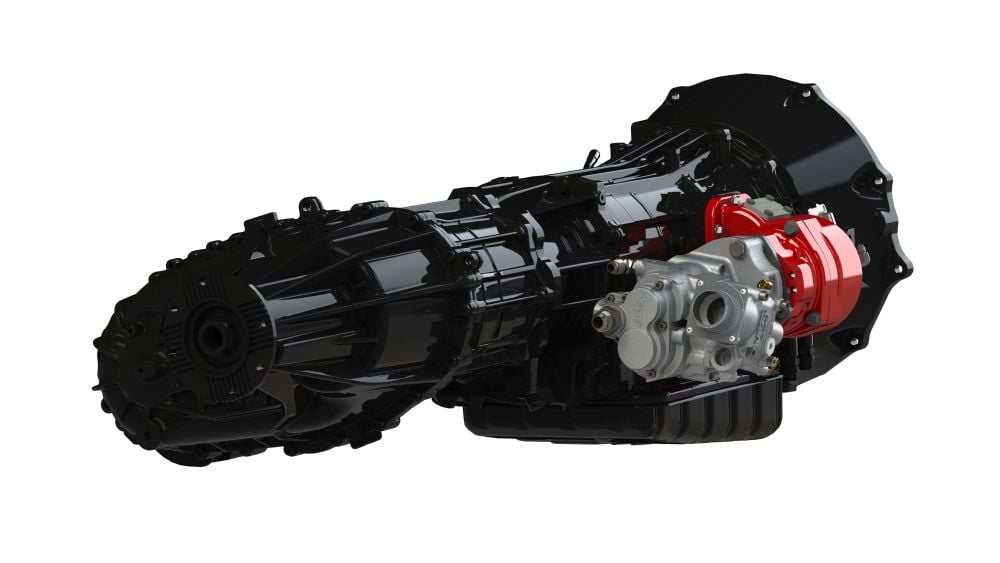

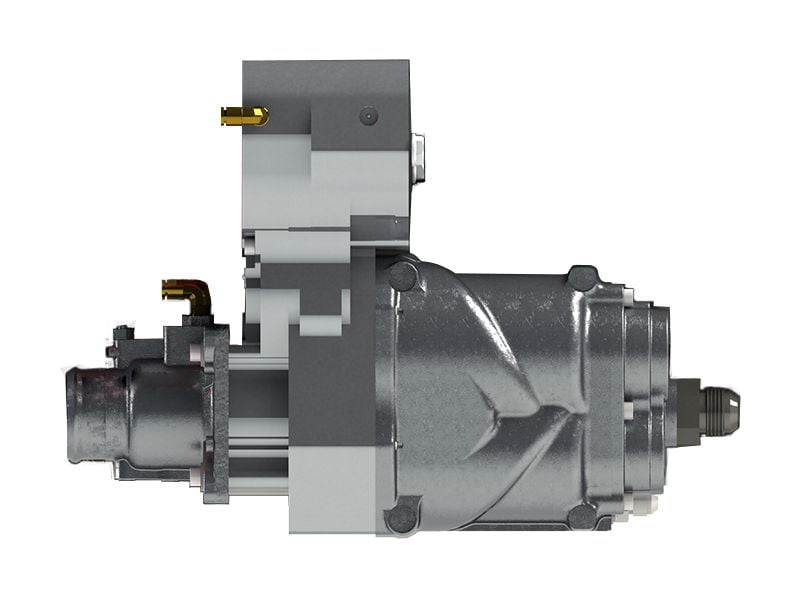

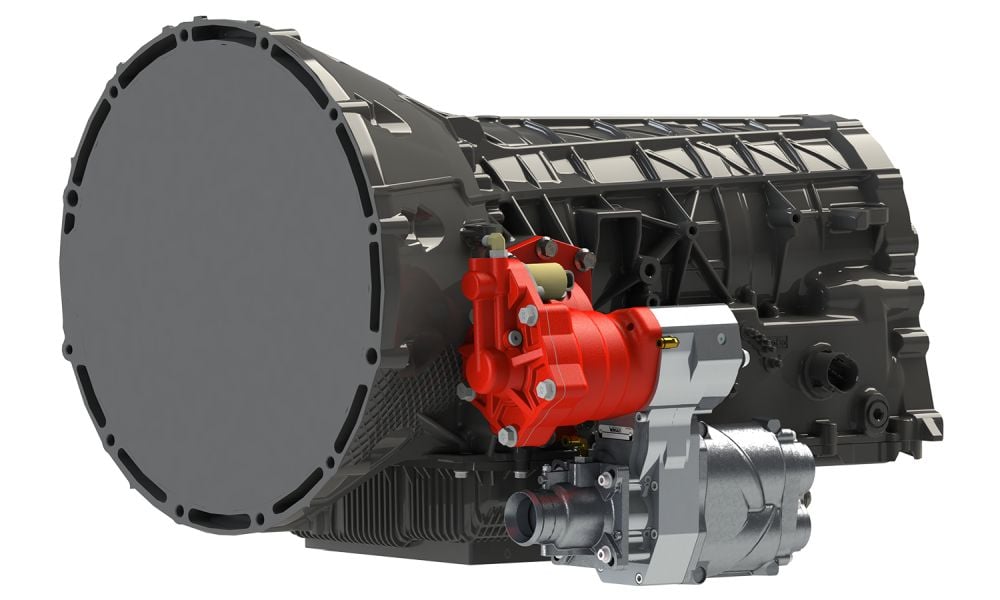

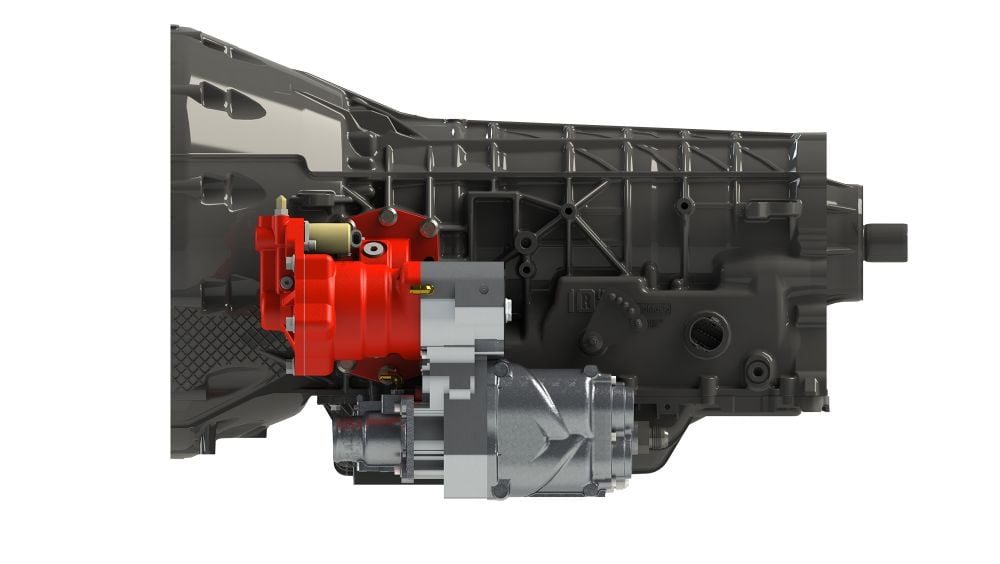

The VMAC DTM70 air compressor is a direct-transmission mounted PTO driven air compressor that provides up to 70 CFM.
Mounting kits available for: Ford F-250 to F-600 Power Stroke Diesel RAM 3500 to 5500 Chassis Cab Cummins Turbo Diesel. Some applications are limited to specific series or models; VSI confirms fit against VMAC's application list.
| Air Compressor Output | Up to 70 CFM* @ 100 psi (175 psi max) |
|---|---|
| Air Compressor Type | PTO driven, direct transmission mounted, 100% duty cycle, VMAC oil-injected rotary screw |
| PTO (included) | PTO; electrically actuated, PTO indicator lamp Chelsea® 272 Series (RAM); Muncie® Z21 Series (2025+ RAM); Chelsea® 210 Series (2020+ Ford) |
| Weight (wet) | Approximately 150 lb (68 kg) |
| Display Box | On/off function of PTO and compressor; LCD display; Service notifications; Displays error messages and stores error codes; System temperature |
| Throttle Control | Variable speed; digital throttle control connects to OBD2 CAN bus connector; adjusts truck engine speed automatically to match air demand |
| Safety System | Automatic compressor heater function; Compressor over-temp sensor; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Truck drive disable circuit on throttle control; Truck park brake safety shut-off switch on control box |
| Warranty | VMAC Lifetime Warranty (Limited) on VMAC air compressors; two years on all other major components; for details, visit www.vmacair.com/warranty . |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
