VMAC DTM70-H PTO-Driven Multi-Power System
By VMAC

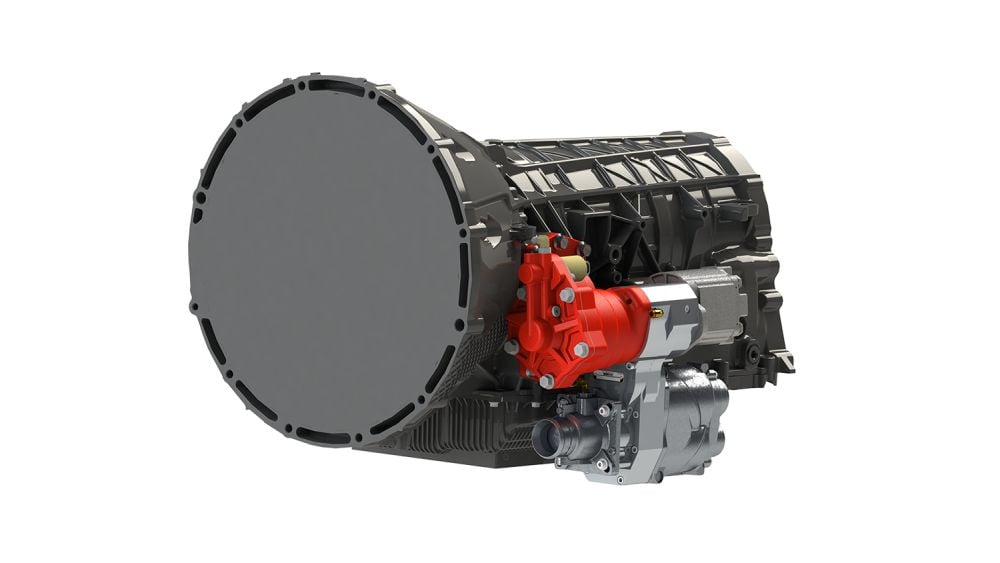

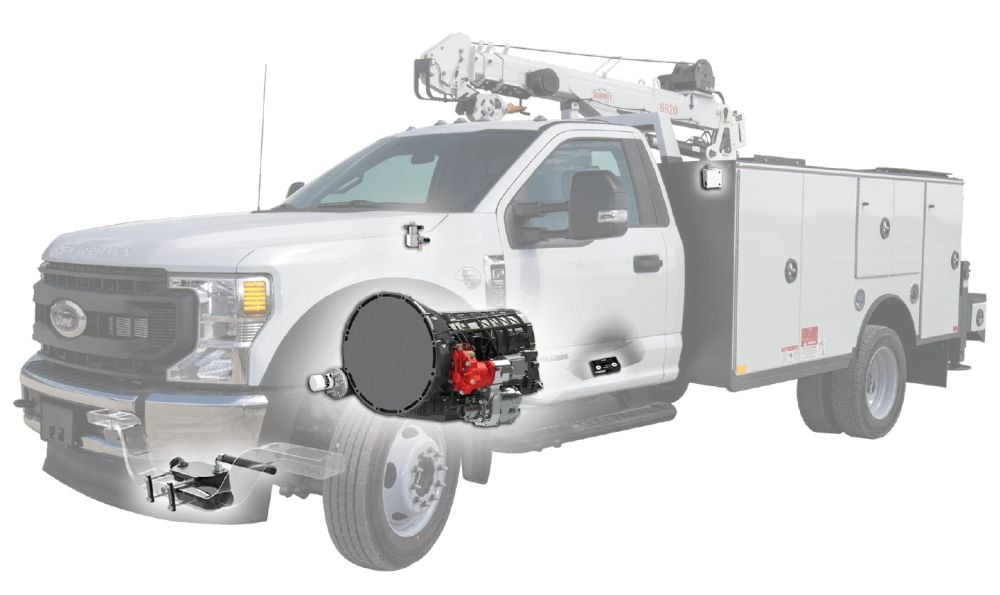

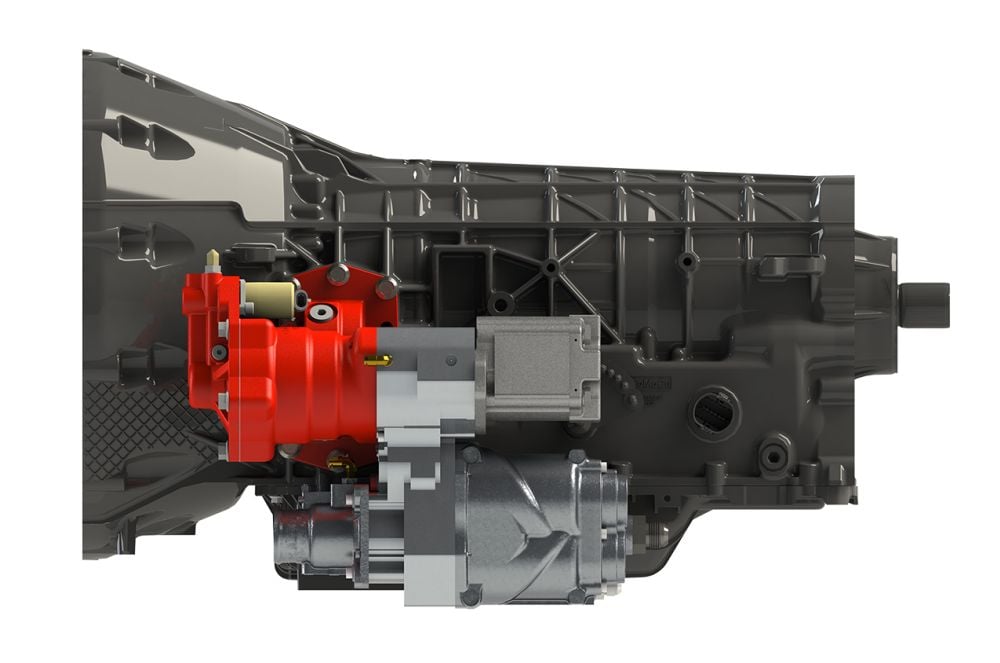

The VMAC DTM70-H multi-power system is a direct-transmission mounted PTO driven air compressor with a hydraulic pump.
Mounting kits available for: Ford F-250 to F-600 Power Stroke Diesel VMAC designs truck mounting kits for the easiest possible installation. Working closely with leading truck manufacturers, VMAC ensures that mounting kits do not affect OEM warranties. Some applications are limited to specific series or models; VSI confirms fit against VMAC's application list.
| Air Compressor Output | Up to 65 CFM* @ 100 psi (175 psi max); *Actual CFM output dependent on engine RPM and operating mode (see chart below) |
|---|---|
| Air Compressor Type | PTO driven, direct-transmission mounted, 100% duty cycle, VMAC oil-injected rotary screw |
| Weight (wet) | Approximately 180 lb (81.6 kg) |
| PTO (included) | Chelsea® 210 series PTO; electrically actuated, PTO indicator lamp |
| Hydraulic Pump Options | 2.5 GPM-8.0 GPM*; *Actual GPM output dependent on hydraulic pump, engine RPM, and operating mode (see chart below) |
| Throttle Control | Two Operating Modes: variable and fixed; includes toggle switch to switch modes; Fixed Mode: engine RPM stays constant at engine RPM set-point (factory pre-set 1,250, +/- 250 RPM) Variable Mode: engine RPM increases and decreases automatically based on air demand (up to max RPM for the pump); Both modes allow for simultaneous operation of both the air compressor and hydraulic pump |
| Control System | On/off function of PTO and compressor; Operating mode toggle switch on PTO indicator panel; LCD display; Service notifications; Allows for simultaneous operation of both the air compressor and hydraulic pump; Error messages; System temperature; Compatible with start/stop crane modules |
| Safety System | Automatic compressor heater function; Compressor over-temp sensor; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Truck drive disable circuit on throttle control; Truck park brake safety shut-off switch on control box; Priority valve diverts excess hydraulic flow to reservoir tank |
| Warranty | Two years on all major components; VMAC air-ends are covered by VMAC’s Lifetime Warranty (Limited); Chelsea PTO is covered by Parker Chelsea Two Year Warranty; Chelsea pumps are covered by Parker Chelsea 18-Month Warranty; For details visit vmacair.com/warranty |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
