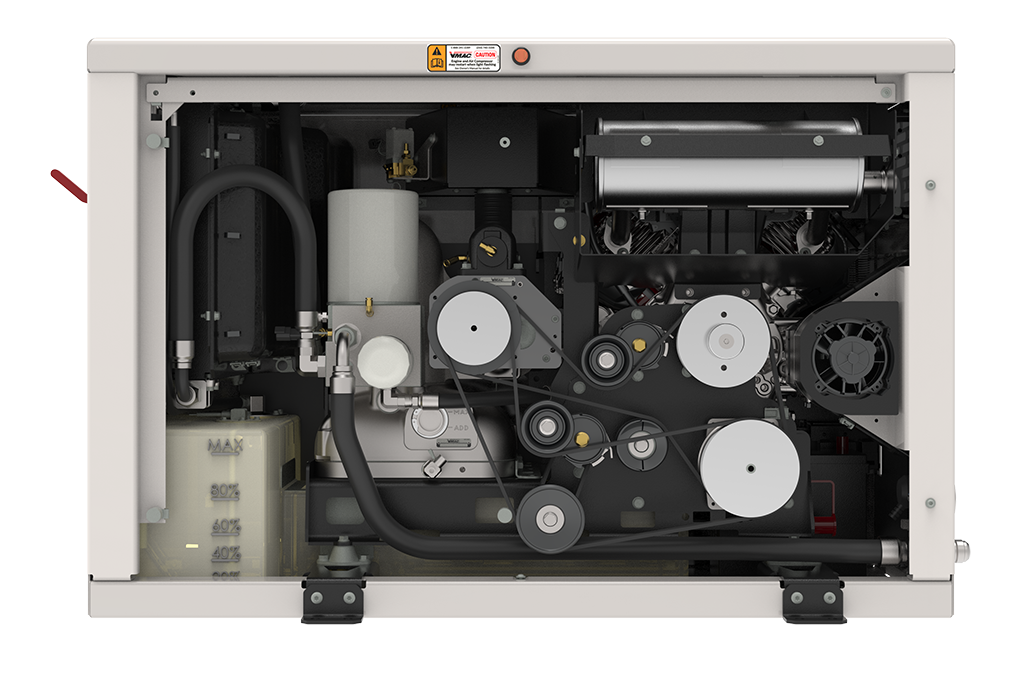

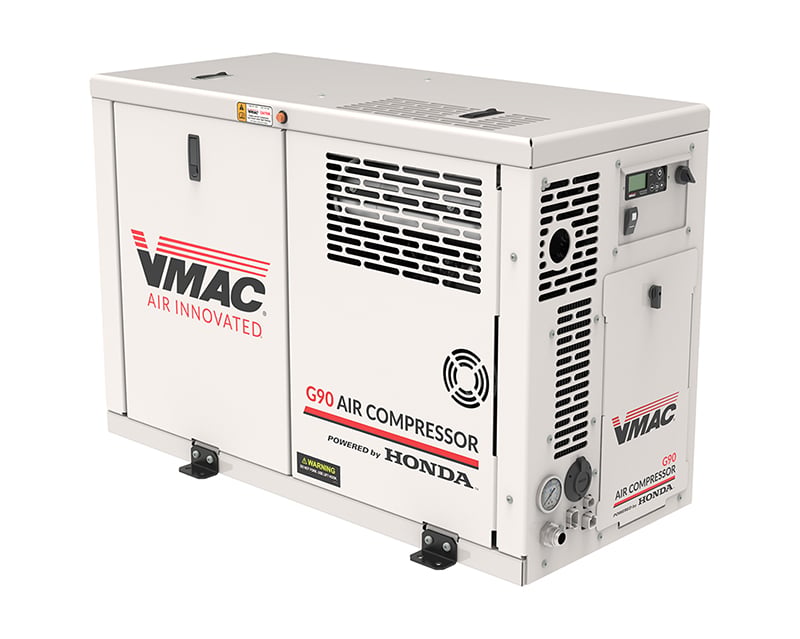

VMAC G90 Gas-Driven Air Compressor with FlexDrive AMS
By VMAC
The VMAC G90 gas driven air compressor gives fleets and operators the flexibility to take on a wider range of demanding jobs with high airflow, higher pressure capability, and continuous compressed air in one compact system.
| Air Compressor Output | Up to 90 CFM @ 100 psi; Up to 50 CFM @ 170 psi |
|---|---|
| Air Compressor Type | Belt-driven, 100% duty cycle, VMAC EC100 encapsulated rotary screw air end* |
| Engine | Honda iGX800 V-Twin EFI gas engine |
| Weight (dry) | 495 lb (224.5 kg) |
| Dimensions | 47” (L) x 20.9” (W) x 31.5” (H); 120 cm (L) x 53 cm (W) x 80 cm (H) |
| Decibels (dB) @ 21 feet (6.4 meters) | 73 dB at high idle, 63 dB at compressor idle, 59 dB at low idle, 0 dB in Standby Mode |
| Gas Tank | Integrated 10-gallon gas tank, EPA compliant |
| Control System/Telematics | Controls mounted on the G90 include an OLED display box, the interface for adjusting all air compressor settings, and displaying real-time system information, service notifications and informative diagnostic messages; separate momentary rocker switch engages the air compressor. The display can be easily removed and mounted anywhere with an optional extension harness.; Optional telematics provide real-time diagnostics, system use, hours, service intervals, remote start/stop, and error codes through industry standard J1939 interface.; With sustained periods of no air use, the control system switches to Standby Mode, the compressor and engine shut down but remain ready to automatically restart when compressed air is used. |
| Safety Features | Compressor and engine overheat shutdown; Automatic rapid blowdown valve; 200 psi air pressure relief valve; Battery protection; Automatic cold climate protection. |
| Cold Climate Protection | System will wait to load and go into a running state until the engine temperature is above 50ºF (10ºC); high speed operation will be available once compressor temperature is above 104ºF (40ºC).; There is an optional cold climate kit if ambient temperatures frequently drop below -10ºC (14ºF).; Optional 800 W (minimum) power inverter allows cold climate kit to engage on the way to the job site. |
| Air Receiver Tank (recommended, not included) | Minimum 10-gallon air receiver tank recommended for proper operation of all functions. |
| Warranty | Two years on all major components; VMAC air-ends are covered by VMAC’s Lifetime Limited Warranty; Honda engine is covered by Honda’s 3-year Limited Warranty; For more information about warranty policies, visit www.vmacair.com/warranty |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
