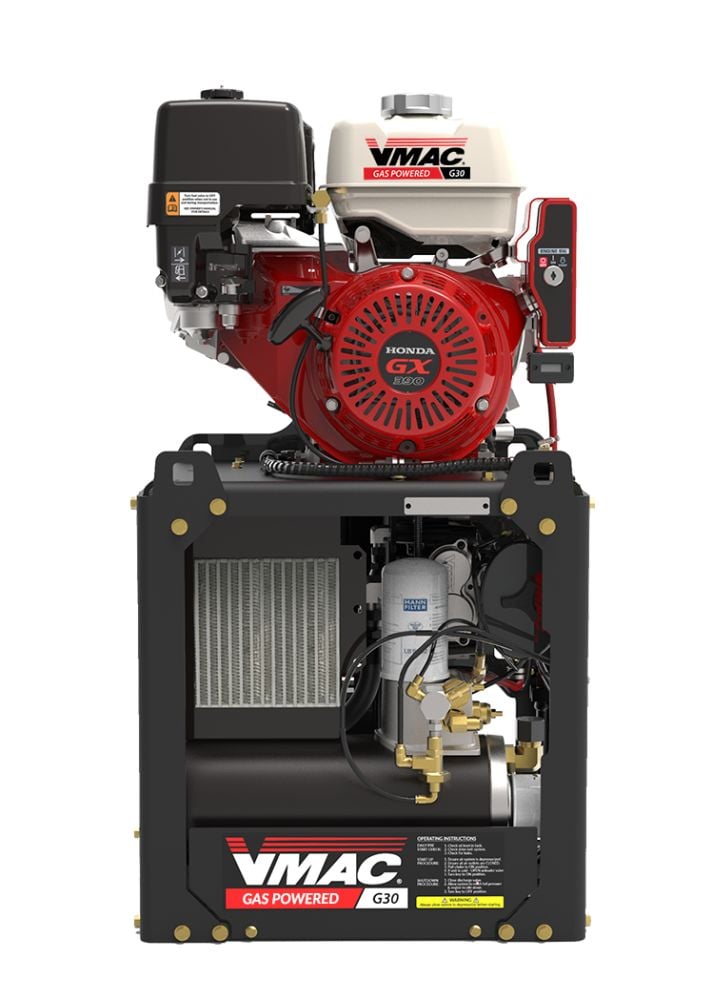

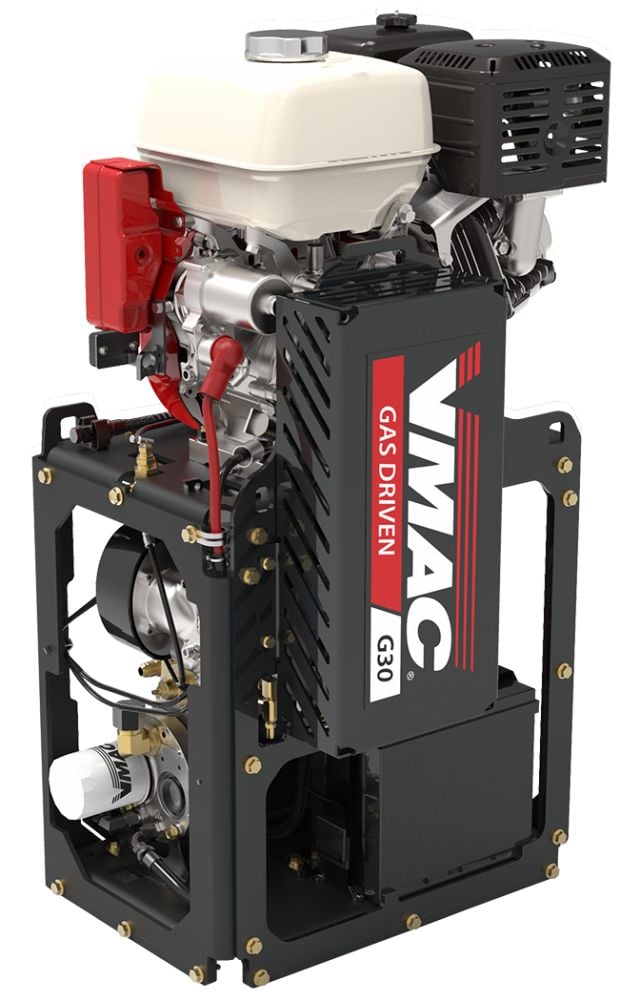

VMAC G30 Stacked Gas-Powered Air Compressor
By VMAC

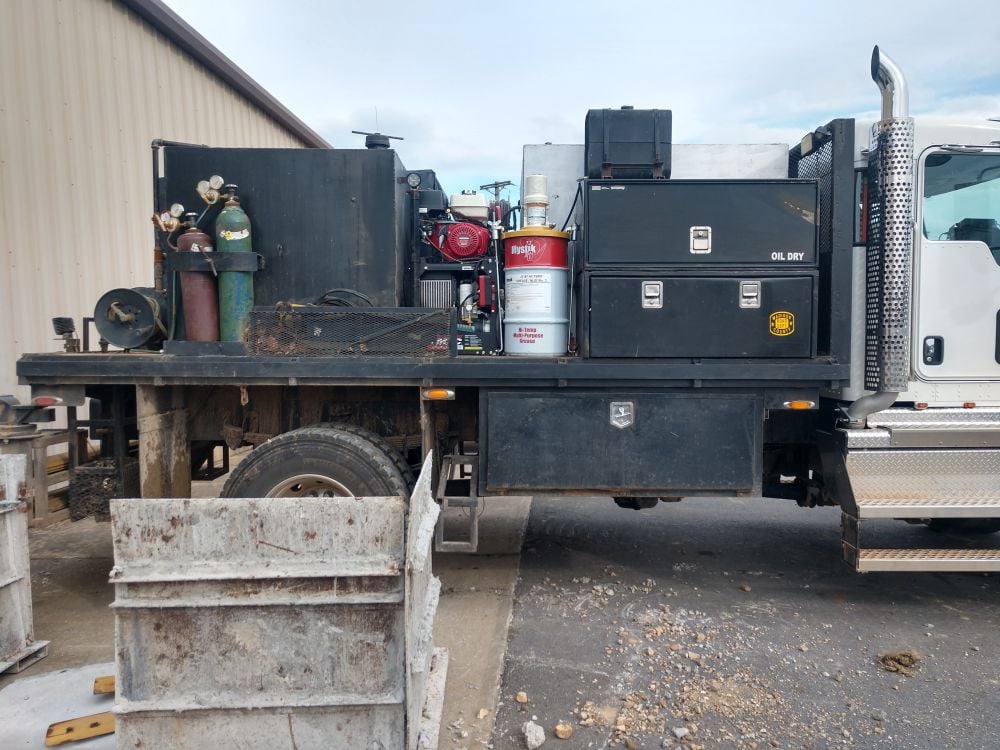

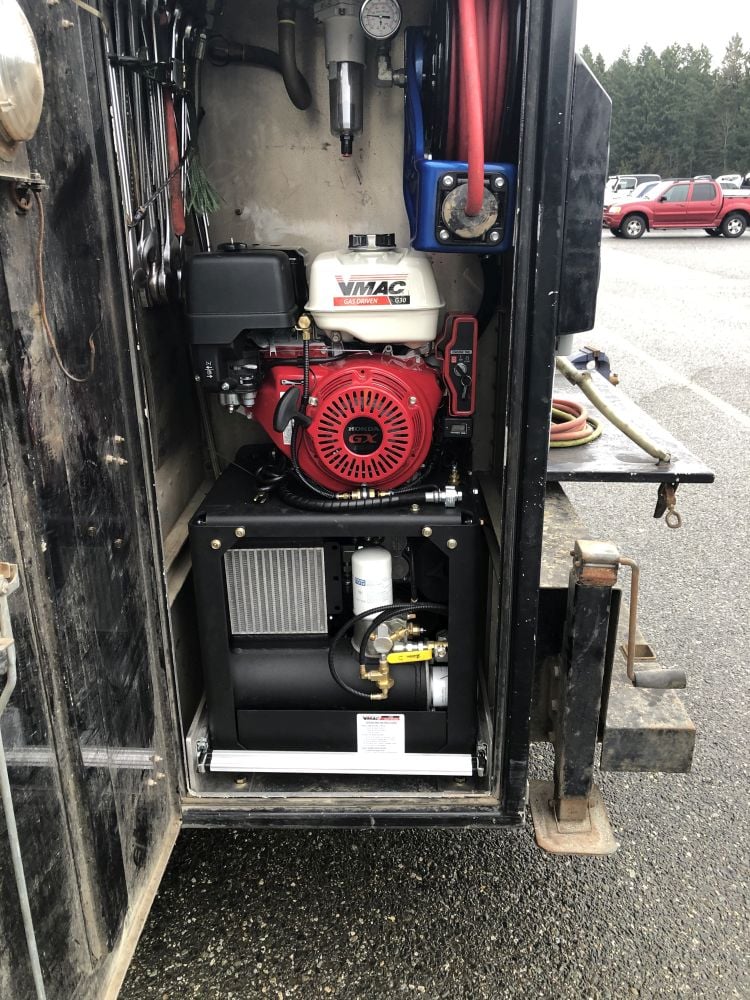

VMAC’s stacked G30 gas powered air compressor is the best choice for fleet managers and owners who want the smallest possible footprint on their service truck, without compromising on power or performance.
| Air Compressor Output | 30 CFM @ 100 psi (150 psi max) |
|---|---|
| Air Compressor Type | Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Engine | Honda GX390 air cooled 4-stroke OHV with electric start, EPA certified, Honda approved application. |
| Weight (wet) | Approximately 210 lb (95 kg) |
| Dimensions | 20” (l) x 18” (w) x 38” (h); 50.8 cm (l) x 45.7 cm (w) x 96.5 cm (h); Mounting Plate: 16.75” (l) x 10.75” (w); 42.5 cm (l) x 27.3 cm (w) |
| Throttle Control | 2-speed throttle, responds to air demand |
| Battery (included) | ACDelco 12V, 460 CCA, 575 CA |
| Control System | Key switch, choke, hour meter; Automatically idles down/up with air demand; Unloader decreases engine load, lowers sound levels, reduces fuel use and engine wear |
| Safety System | Compressor thermal protection circuit; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Low engine oil pressure shutoff |
| Decibels (dB) @ 20 feet (6.1 meters) | 81 dB at high idle; 67 dB at low idle |
| Fuel Tank Capacity | 1.6-gallons (6.1 L) |
| Air Receiver Tank (recommended for high duty cycle applications in hot climates) | 10-Gallon Air Receiver Tank w/ Mounting Feet; 6-Gallon Air Receiver Wing Tank |
| Warranty | Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited); Honda engine is covered by Honda’s 3-Year Warranty. |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
