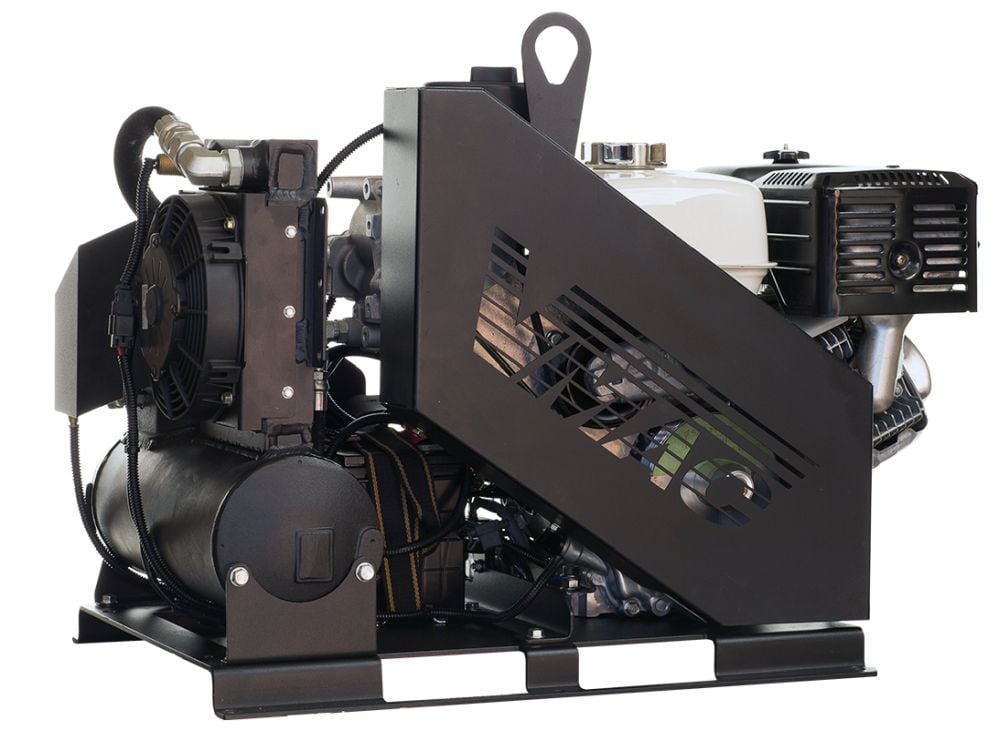

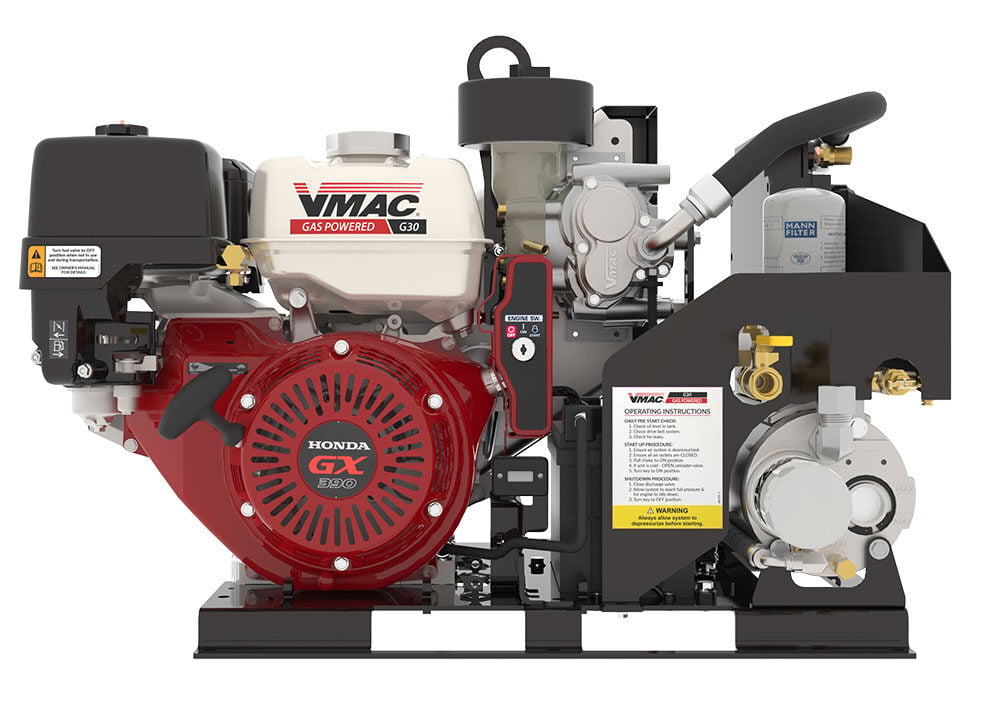

VMAC G30 Gas-Powered Air Compressor
By VMAC
VMAC G30 gas powered air compressors are designed for fleet managers, service truck operators, mobile mechanics, tire service technicians, and light-duty contractors who need compact, lightweight, continuous-duty compressed air.
| G30 Standard | Best for Service trucks needing compact mobile air; 30 CFM at 100 psi; Honda GX390 gas engine; Lowest-cost G30 rotary screw air option |
|---|---|
| G30 Stacked | Best for space-constrained truck bodies and vans; 30 CFM at 100 psi; Honda GX390 gas engine; Vertical footprint saves deck space |
| G30+GEN | Best for crews needing air and AC power; 25 CFM at 100 psi; Honda GX390 gas engine plus 3.6 kW generator; 3,600 W continuous AC output |
| Air Compressor Output | 30 CFM @ 100 psi (150 psi max) |
| Air Compressor Type | Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Engine | Honda GX390 air cooled 4-stroke OHV with electric start, EPA certified, Honda approved application. |
| Weight (wet) | Approximately 205 lbs (93 kg) |
| Dimensions | 33.5” (l) x 21.4” (w) x 23.9” (h); 85.1 cm (l) x 54.4 cm (w) x 60.7 cm (h); Mounting Plate: 25.0” (l) x 19.125” (w); 63.5 cm (l) x 48.6 cm (w) |
| Throttle Control | 2-speed throttle, responds to air demand |
| Battery (included) | ACDelco 12V, 300 CCA, 360 CA |
| Control System | Key switch, choke, hour meter; Automatically idles down/up with air demand; Unloader decreases engine load, lowers sound levels, reduces fuel use and engine wear |
| Safety System | Compressor thermal protection circuit; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Low engine oil pressure shutoff |
| Decibels (dB) @ 20 feet (6.1 meters) | 81 dB at high idle; 67 dB at low idle |
| Fuel Tank Capacity | 1.6-gallons (6.1 L) |
| Air Receiver Tank (recommended for high duty cycle applications in hot climates) | 10-Gallon Air Receiver Tank w/ Mounting Feet; 6-Gallon Air Receiver Wing Tank; Dual 6-Gallon Air Receiver Tanks (Base Mounted) |
| Warranty | Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited); Honda engine is covered by Honda’s 3-Year Warranty. |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
