VMAC UNDERHOOD 150 Air Compressor
By VMAC

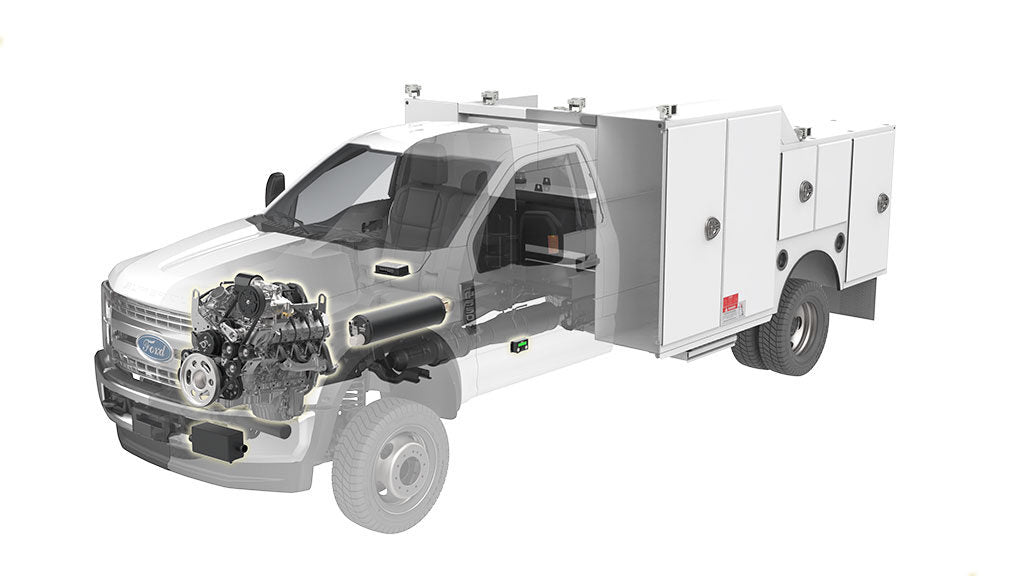

The UNDERHOOD ® 150 air compressor system is the best choice for fleet managers and owners with space and weight concerns on their service or utility truck.
Mounting kits available for: Ford F-250 to F-650 Power Stroke Diesel Ford F-250 to F-600 Gas RAM 3500 to 5500 Chassis Cab Cummins Turbo Diesel. Some applications are limited to specific series or models; VSI confirms fit against VMAC's application list.
| Air Compressor Output | 90 to 110 CFM* @100 psi (175 psi max) |
|---|---|
| Air Compressor Type | Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Total System Weight (wet) | Approximately 200 lb (90 kg) |
| Control System | LCD display; Service notifications; Displays error messages and stores error codes; System temperature |
| Throttle Control | Variable speed; digital throttle control connects to OBD2 CAN bus connector; adjusts truck engine speed automatically to match air demand |
| Safety System | Electro-magnetic clutch; Compressor over-temp sensor; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Truck drive disable circuit on throttle control; Truck park brake safety shut-off switch on control box |
| Warranty | Two years on all major components; VMAC air-ends are covered by VMAC’s Lifetime Warranty (Limited); for details, visit www.vmacair.com/warranty |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
