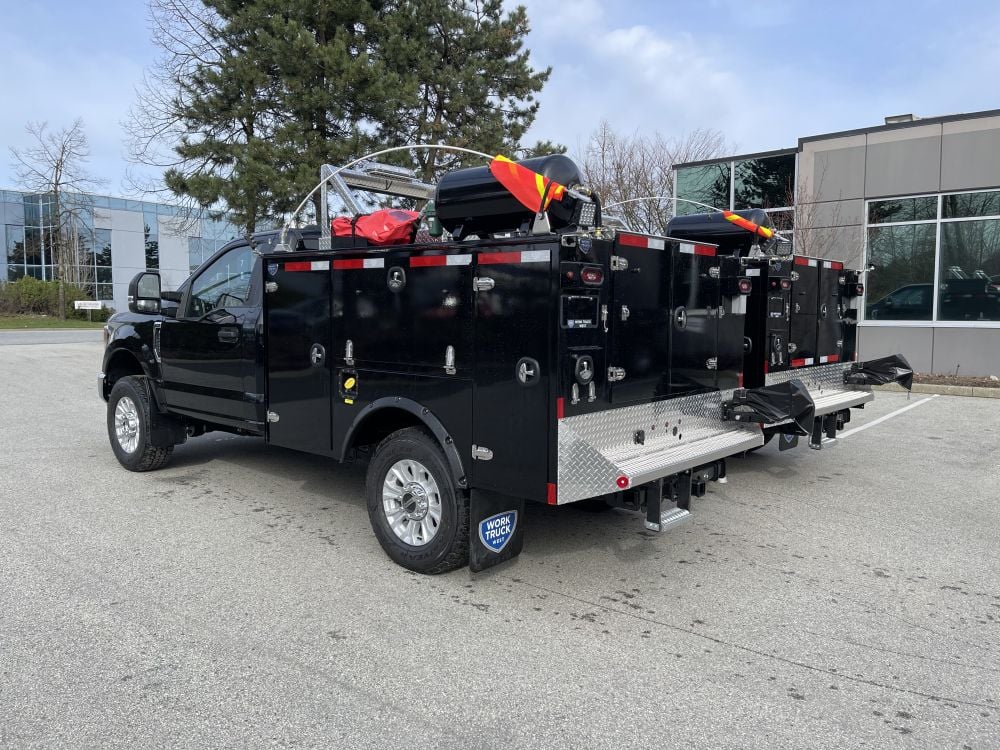

VMAC UNDERHOOD 70 Air Compressor

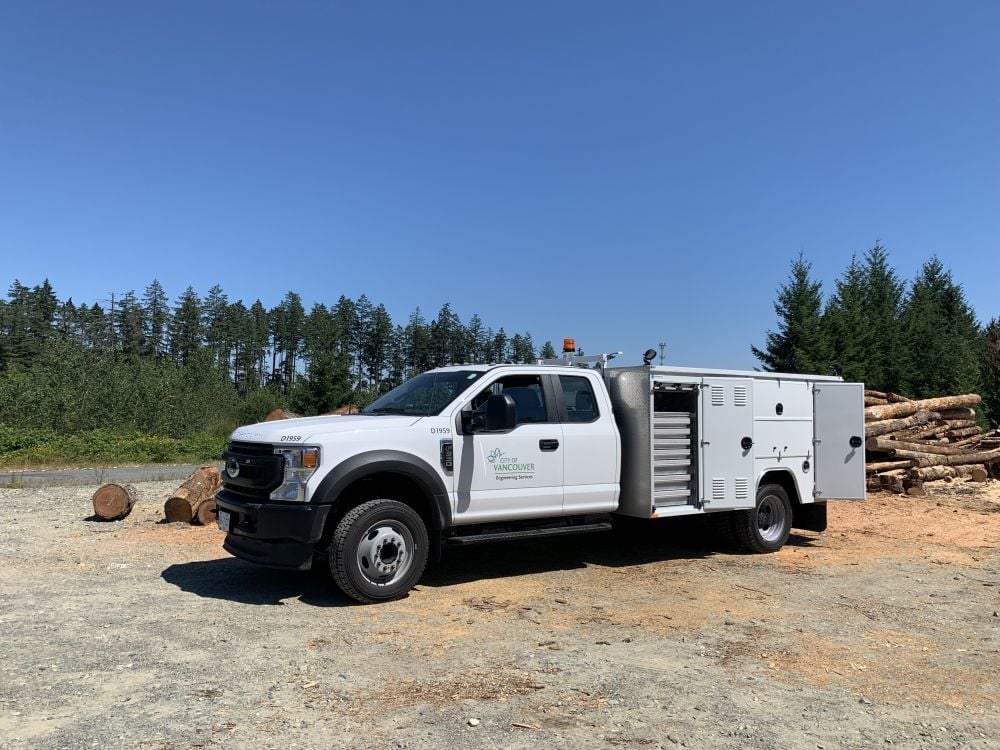

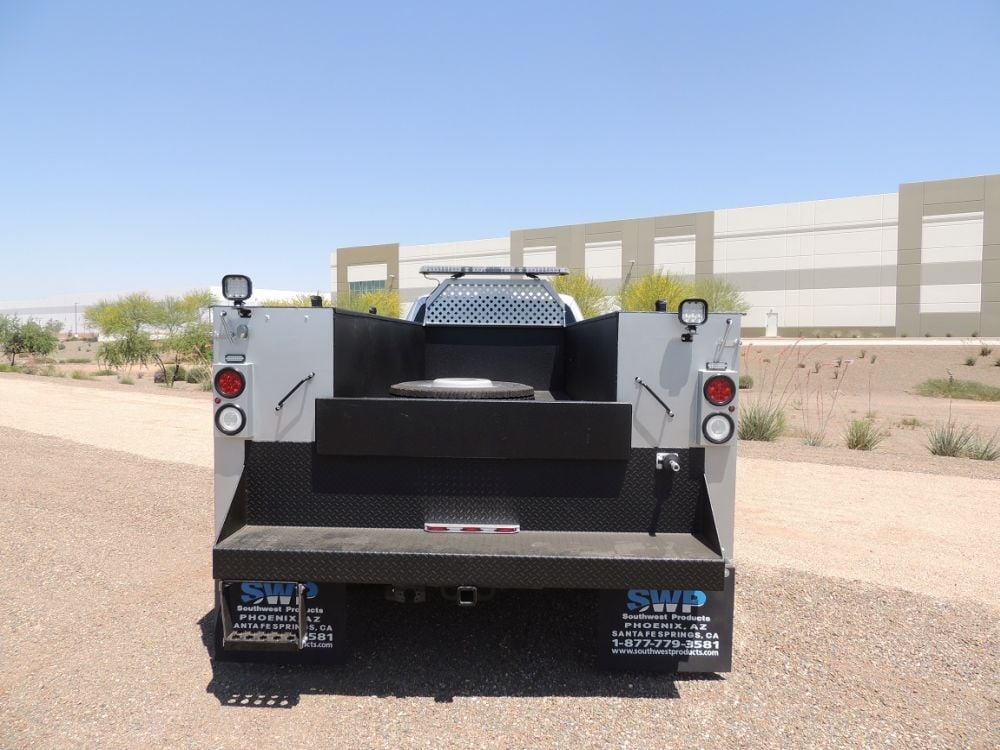

The UNDERHOOD ® 70 air compressor system is the best choice for fleet managers and owners with space and weight concerns on their service trucks. The powerful rotary screw air compressor is ideal for operating small to medium sized air tools with high air demand.
Mounting kits available for: Ford F-250 to F-600 Power Stroke Diesel Ford F-250 to F-600 Gas RAM 2500 to 5500 Cummins Turbo Diesel RAM 2500 to 5500 HEMI Gas GMC/Chevrolet 2500HD to 3500HD Gas GMC/Chevrolet 2500HD to 3500HD Duramax Diesel GMC/Chevrolet C4500 to C6500 Duramax Diesel International CV 515 Duramax Diesel. Some applications are limited to specific series or models; VSI confirms fit against VMAC's application list.
| Air Compressor Output | Up to 70 CFM* @ 100 psi (175 psi max) |
|---|---|

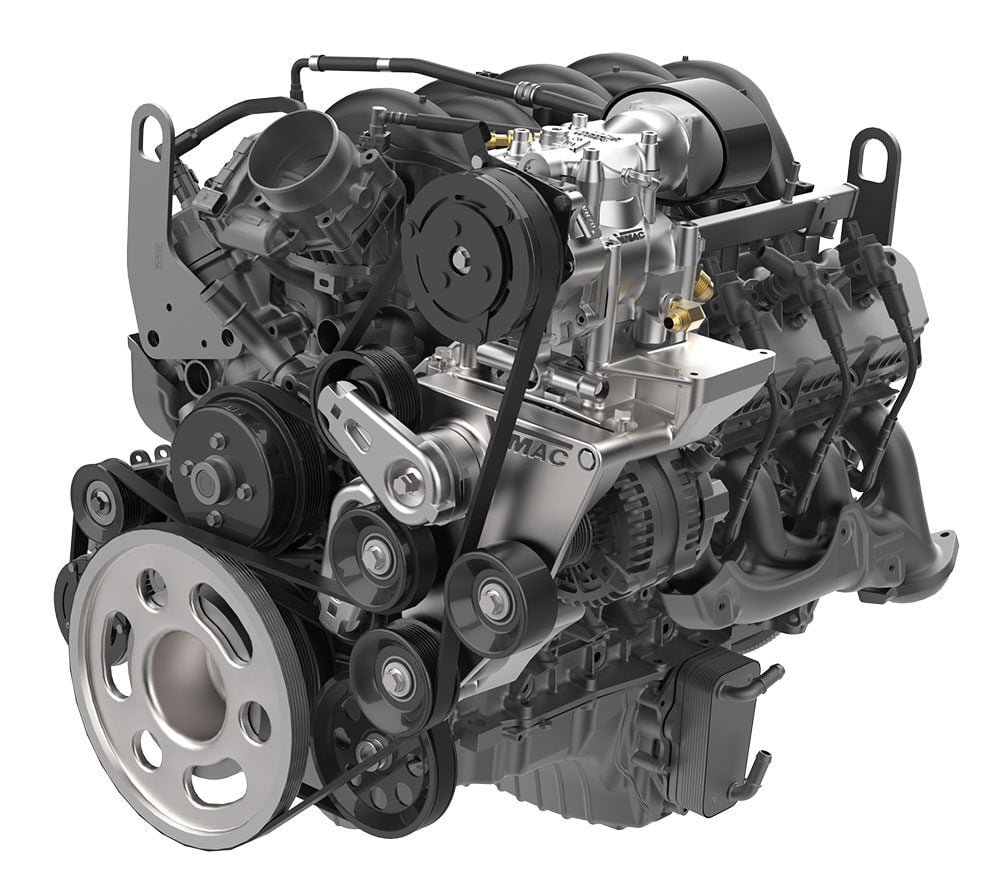

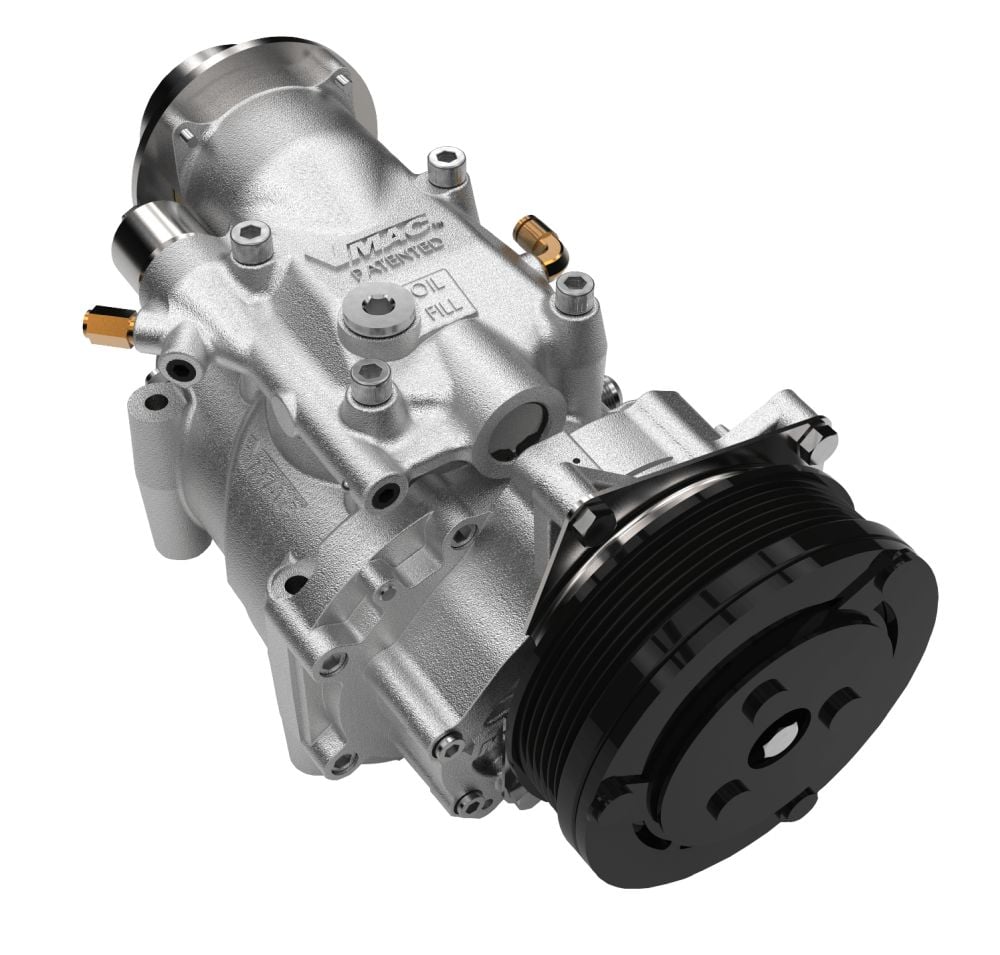

| Air Compressor Type | Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw |
| Total System Weight (wet) | Approximately 150 lb (68 kg) |
| Control Box | LCD display; Service notifications; Displays error messages and stores error codes; System temperature |
| Throttle Control | Variable speed; digital throttle control connects to OBD2 CAN bus connector; adjusts truck engine speed automatically to match air demand |
| Safety System | Electro-magnetic clutch; Compressor over-temp sensor; Automatic rapid blow-down valve on tank; 200 psi pressure relief valve; Truck drive disable circuit on throttle control; Truck park brake safety shut-off switch on control box |
| Warranty | Two years on all major components; VMAC air-ends are covered by VMAC’s Lifetime Warranty (Limited); for details, visit www.vmacair.com/warranty |
Specifications from VMAC. VSI installs and services VMAC air systems; fit and options are confirmed on your quote.
