Stellar™ Hydraulic Air Compressors

Onboard hydraulic air for service trucks — single-stage piston, two-stage, and rotary. Feature the 40P for most mechanic packages.

Request quote (303) 287-5732

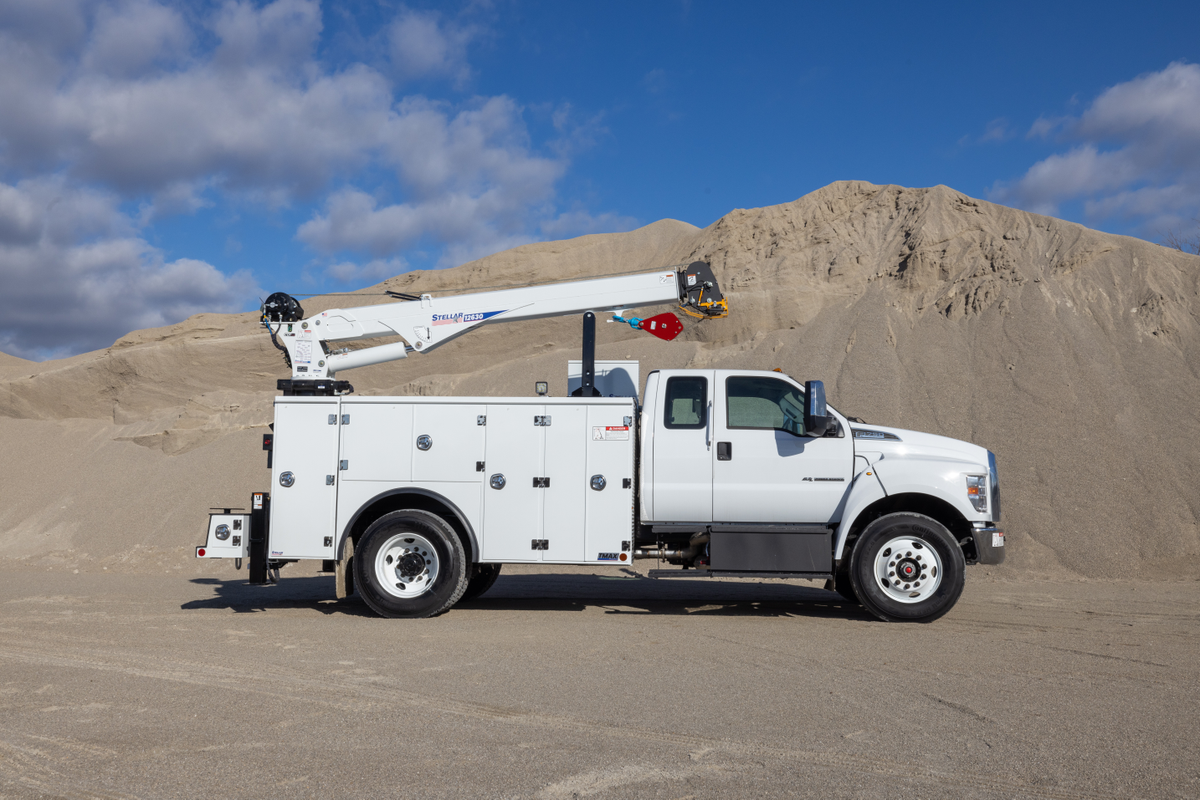

Stellar 40P hydraulic air compressor on TMAX 2

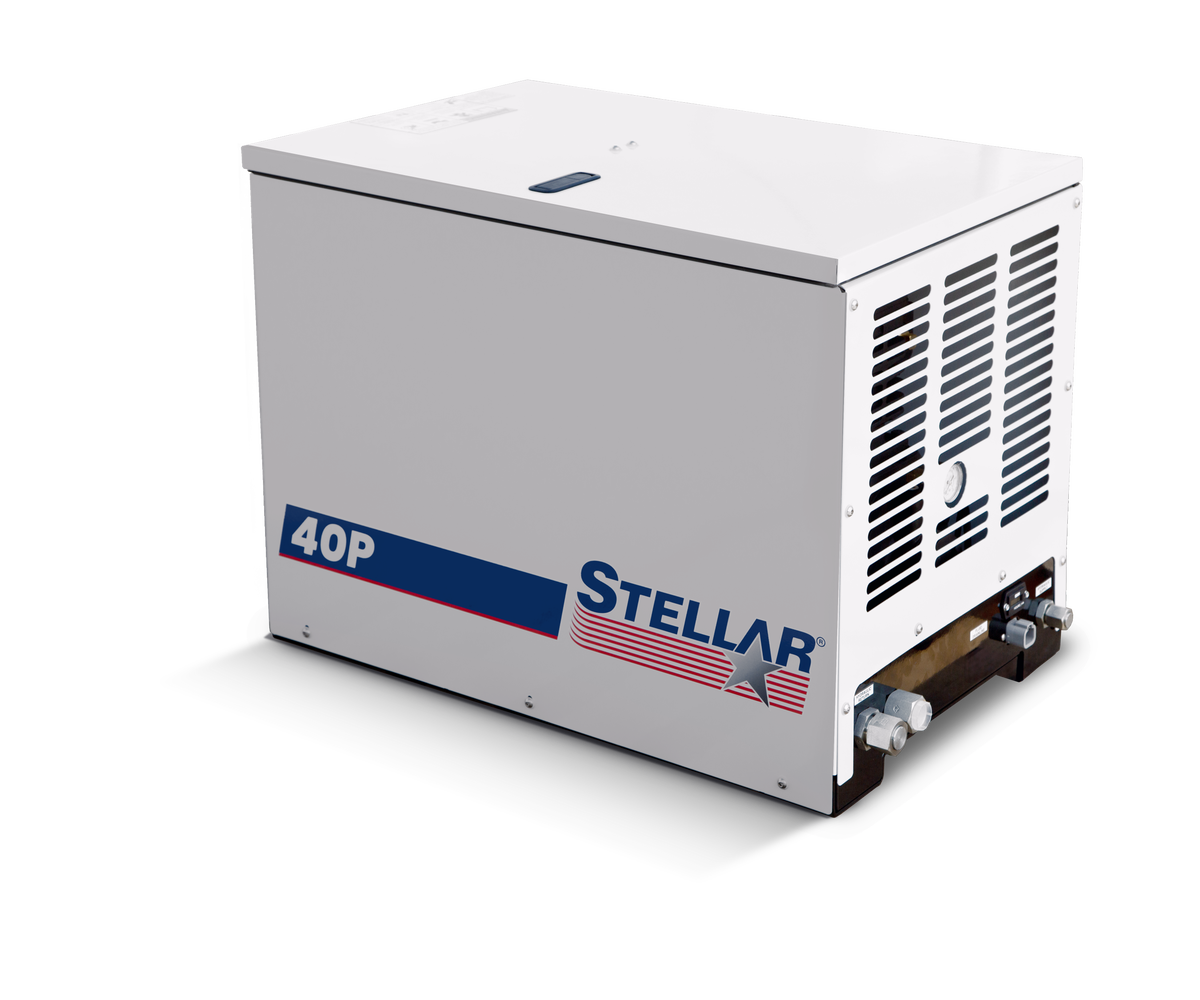

Stellar 40P single-stage compressor

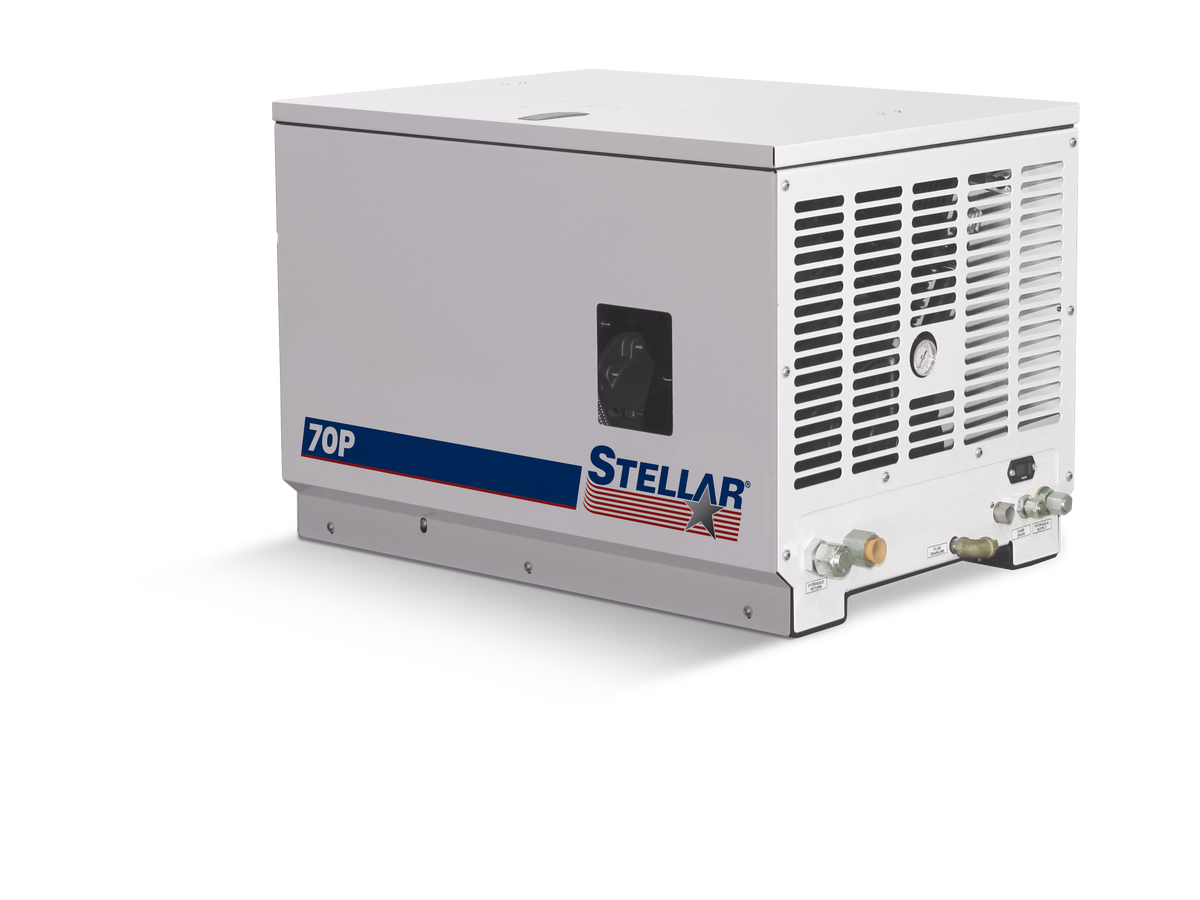

Stellar 70P single-stage compressor

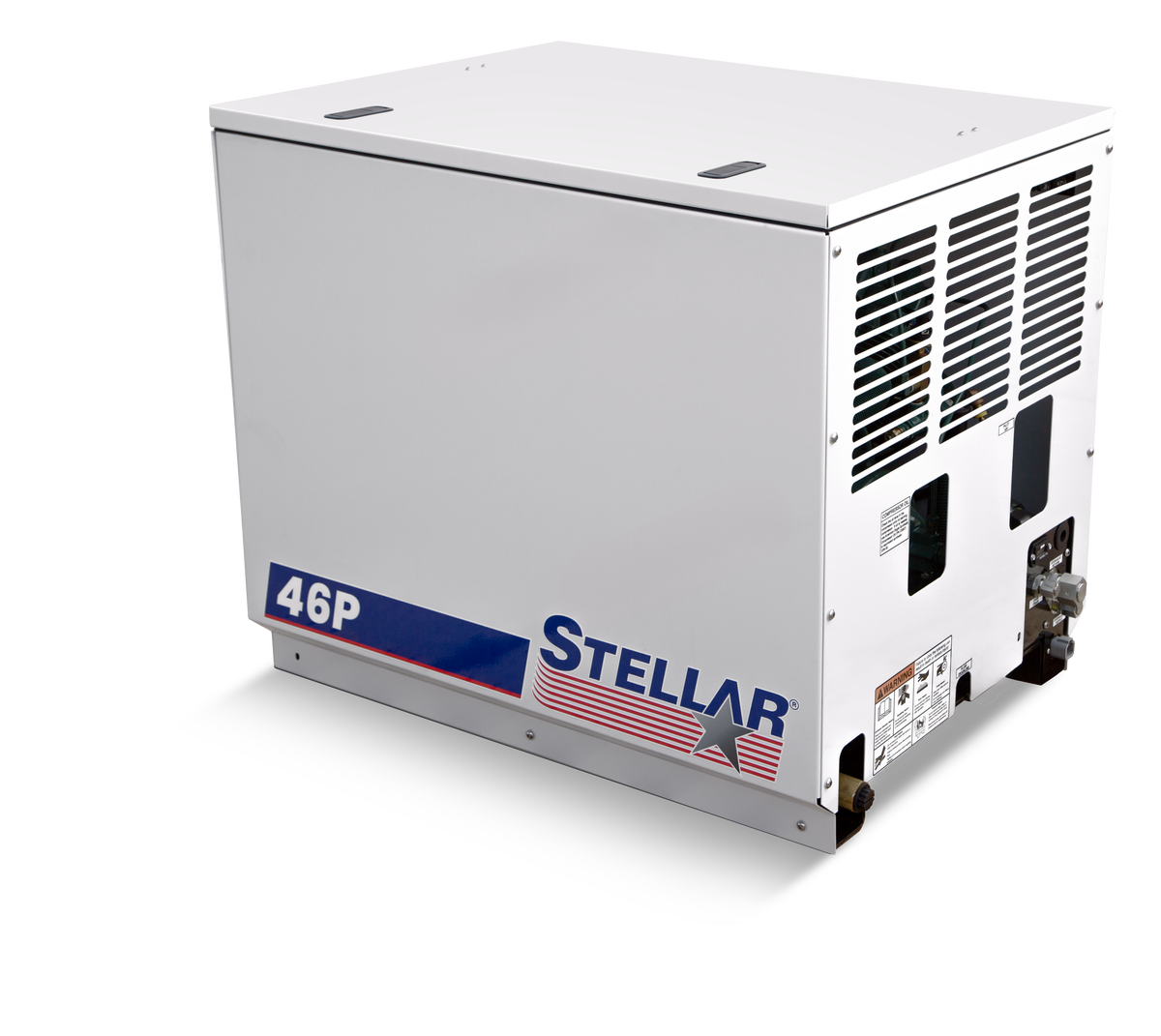

Stellar 46P two-stage compressor

Why this series

  • Single-stage piston ladder includes 30P / 40P / 70P
  • 40P: 40 CFM @ 100 PSI; max 150 PSI; hyd ~12–12.5 gpm
  • Rotary screw (e.g. 45R) for more continuous duty
  • Two-stage options (46P/110P) when higher PSI is required

Models

40P — product photo

40P

  • Type Single-stage
  • CFM 40 @ 100
  • Max PSI 150
Product
30P — product photo

30P

  • Type Single-stage
  • CFM 30 @ 100
  • Max PSI 150
Product

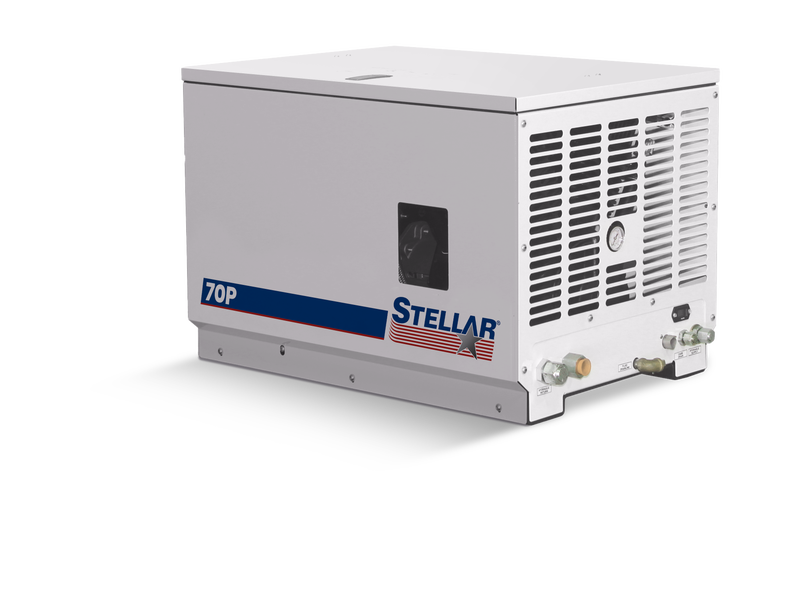

70P — product photo

70P

  • Type Single-stage
  • CFM 70 @ 100
  • Max PSI 150
Product
45R — product photo

45R

  • Type Rotary screw
  • CFM ~45 class
Product

Start with 40P for most mechanic packages. Step to 70P or rotary when CFM/duty demands more. Confirm hyd flow after crane share. Portal note: crane-only upfitter-switch kits are not for hydraulic compressor installs.

Often quoted with

Quote hyd flow/pressure budget, enclosure, mount location, install path. · OEM lit: Single-stage hub (OEM)

Request a quote

Wholesale pricing via VSI. Share chassis year/make/model, CA/CT, GVWR, qty, and install path (shipout / factory / dealer). Call (303) 287-5732.
