Stellar™ Heavy-Duty Hydraulic Cranes

Full hydraulic telescopic cranes for daily mechanic duty — feature the 8630; capacity ladder through 14530.

Request quote (303) 287-5732

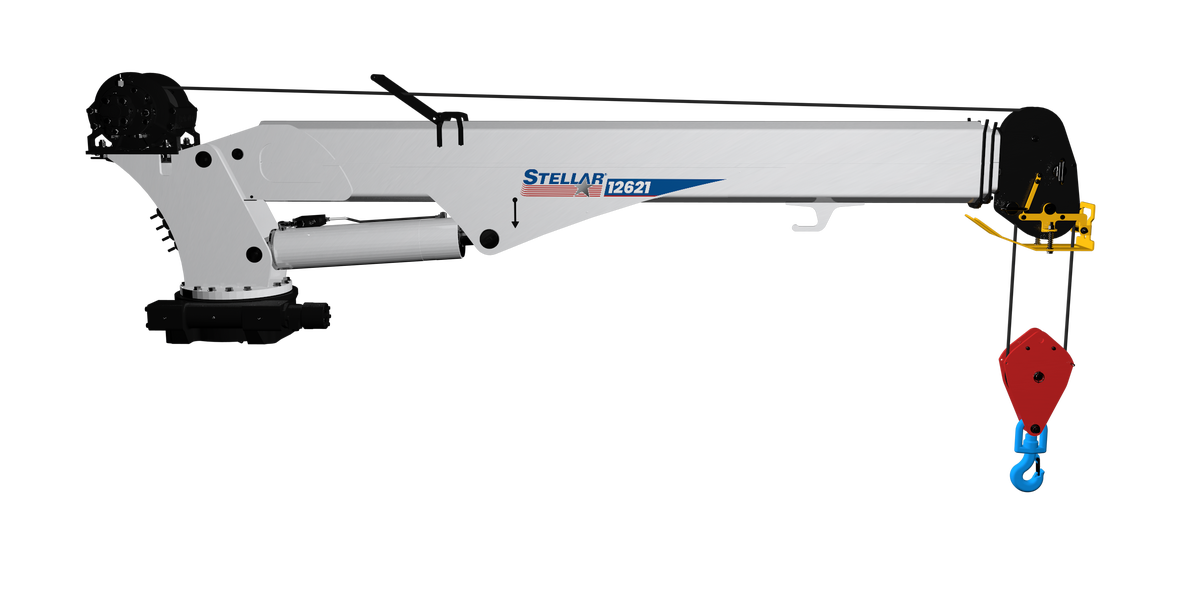

Stellar 12621 hydraulic steel crane

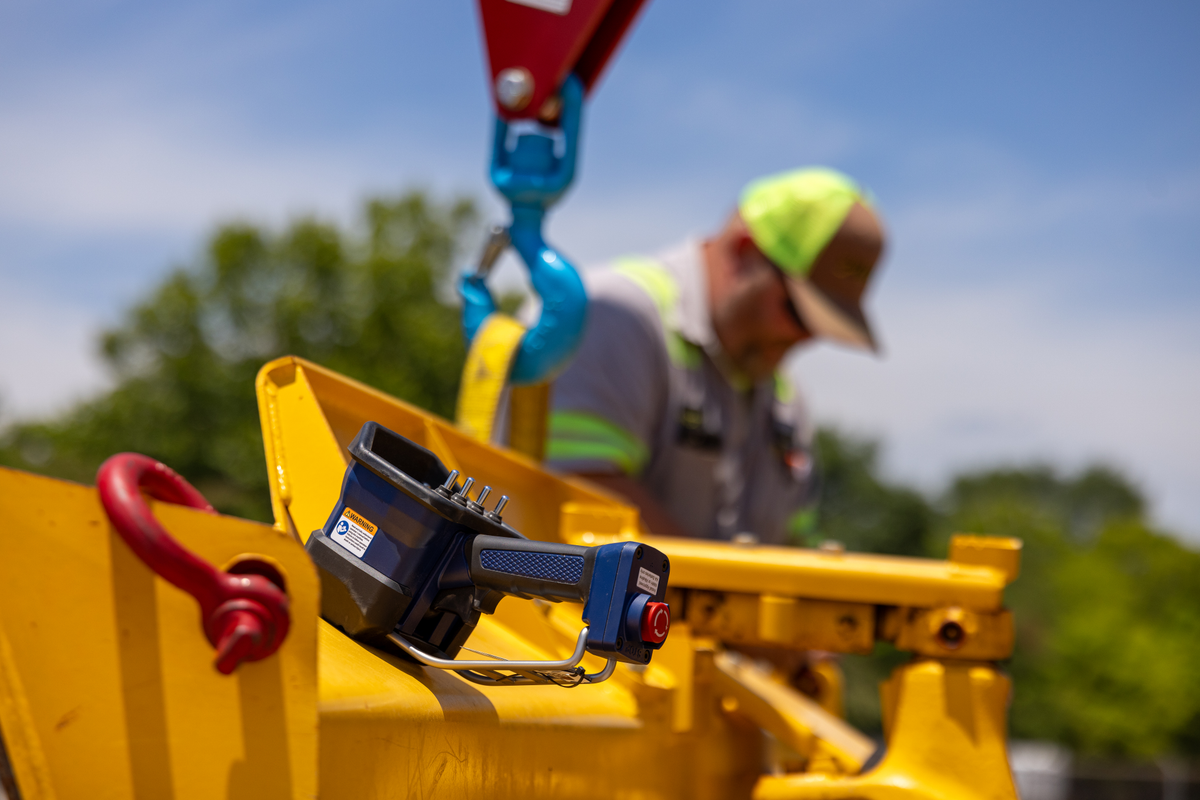

TMAX 2 with 10630 heavy-duty crane
TMAX 2 12630 crane package

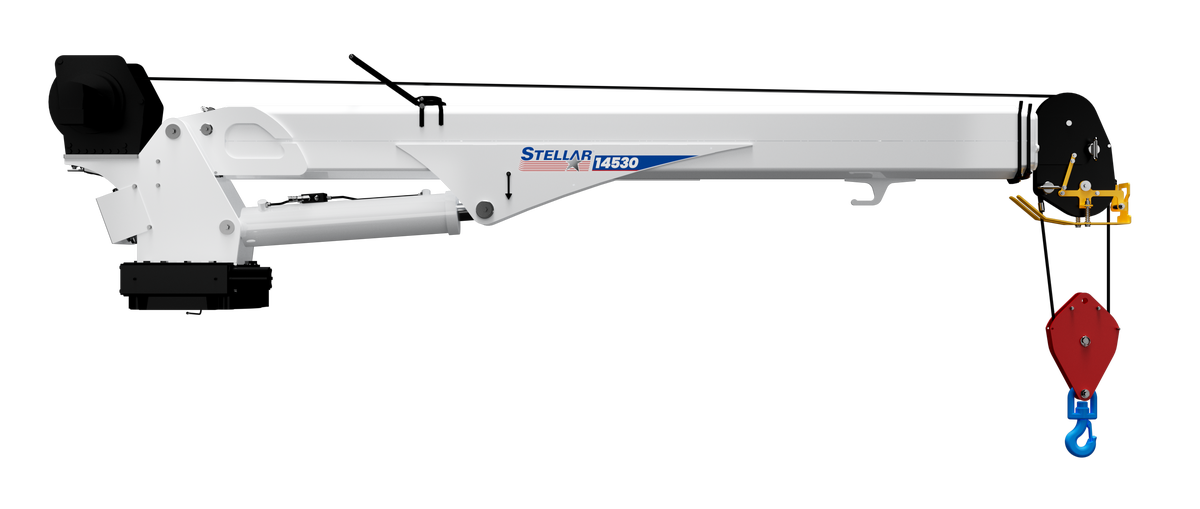

Stellar 14530-class hydraulic crane

Why this series

  • Full hydraulic extension
  • Elevation typically -10° to +80°; ~400° power rotation
  • Planetary winch; octagonal boom on many families
  • CDTpro with Range Finder / Boost on current redesigns
  • ANSI B30.5 / OSHA 1910.180 framing

Models

7630 — diagram

7630

  • Rating ~44,840 ft-lb
  • Capacity 7,500 lb
  • Reach ~30'
Product
8630 — diagram

8630

  • Rating ~53,100 ft-lb
  • Capacity 8,600 lb
  • Reach ~30'
Product
10630 — diagram

10630

  • Rating ~70,800 ft-lb
  • Capacity 10,000 lb
  • Reach ~30'
Product
12630 — diagram

12630

  • Rating ~77,800 ft-lb
  • Capacity 12,000 lb
  • Reach ~30'
Product
14530 — diagram

14530

  • Rating ~92,000 ft-lb boost
  • Capacity 14,000 lb
  • Reach ~29'11"
Product
Quick compare table
Model Rating (boost notes) Max capacity Horiz. reach PDP
7630 ~44,840 ft-lb 7,500 lb ~30' Product
8630 ~53,100 ft-lb 8,600 lb ~30' Product
10630 ~70,800 ft-lb 10,000 lb ~30' Product
12630 ~77,800 ft-lb 12,000 lb ~30' Product
14530 ~92,000 ft-lb boost 14,000 lb ~29'11" Product

21' variants (7621/8621/10621/12621) available on quote.

Feature 8630 for mid-heavy daily duty. Step to 12630 for TMAX 2/LCF max class; 14530 for TMAX 3.

Often quoted with

Quote PTO/pump, stabilizers, remote, matched body, and install path. · OEM lit: Hydraulic cranes hub (OEM)

Request a quote

Wholesale pricing via VSI. Share chassis year/make/model, CA/CT, GVWR, qty, and install path (shipout / factory / dealer). Call (303) 287-5732.
