Stellar™ TMAX 1 Mechanic Bodies
Wholesale TMAX 1 service bodies for OEM dealers and lessors — aluminum and steel, crane-ready, quoted with matched Stellar cranes and air.
Why this series
- Torq-Isolator torsion box / isolated crane compartment
- Aluminum and steel body options; double-panel doors
- Stainless billet hinges & compression latches
- 22" compartment depth; body width ~94"; floor width ~50"
- Polyurethane enamel / undercoat
Models
Quick compare table
| Model | Body length | Typical CA | GVWR band | Net wt (approx.) | PDP |
|---|---|---|---|---|---|

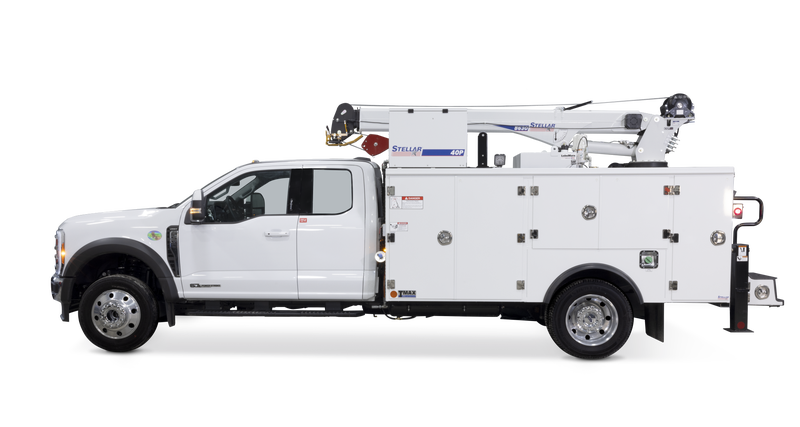

| TMAX1-9 Alum | ~109" (9') | ~60" | 16–22.9k | ~2,718–2,728 lb | Product |

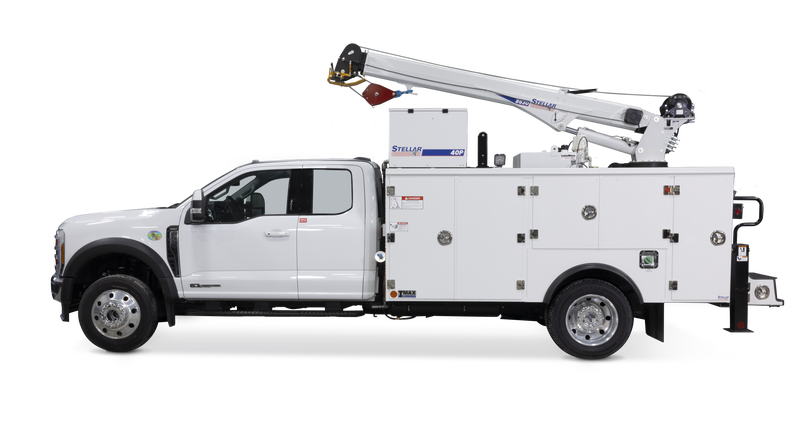

| TMAX1-11 Alum | ~133" (11') | ~84" | 16–22.9k | ~2,851–3,146 lb | Product |

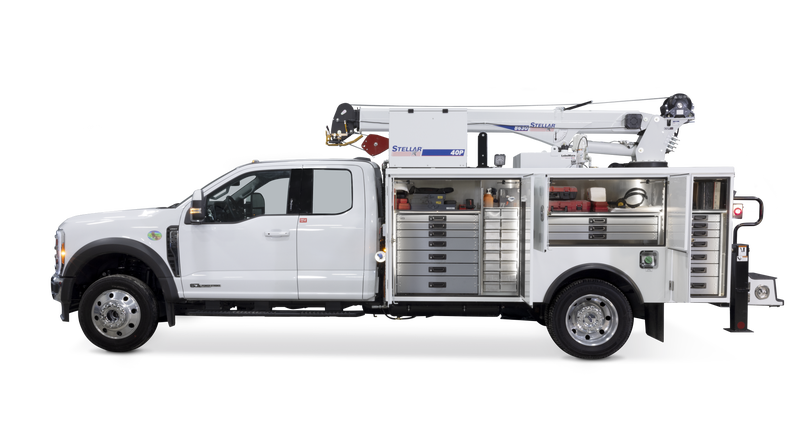

| TMAX1-13 Alum | ~157" (13') | ~108" | 22–22.9k | ~3,330 lb | Product |

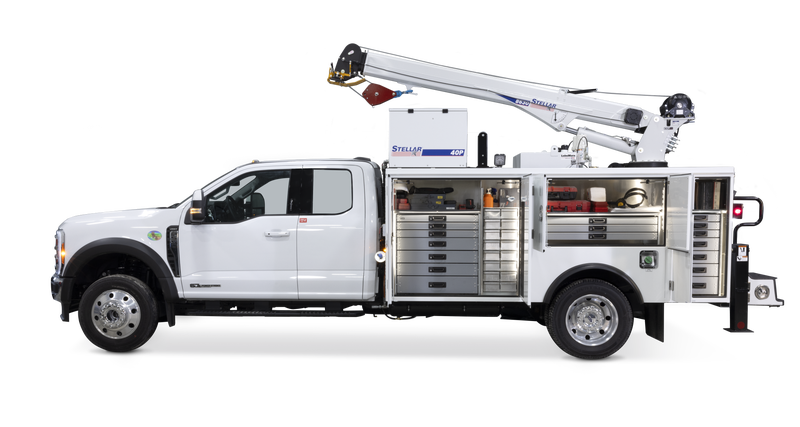

| TMAX1-11 Steel | ~133" (11') | ~84" | 16–22.9k | ~3,604–4,076 lb | Product |
Compatible crane class: light → mid (3315–6521; some 76xx; EC no-PTO).
Choose 1-9 for compact CA; 1-11 as the volume quote; 1-13 when storage and CA allow. Spec Al vs Steel to duty and weight targets.
Often quoted with
Quote chassis year/make/model, CA, GVWR, tire size class, material (Al/Steel), crane model, air, and install path. · OEM lit: TMAX 1 (OEM)
Request a quote
Wholesale pricing via VSI. Share chassis year/make/model, CA/CT, GVWR, qty, and install path (shipout / factory / dealer). Call (303) 287-5732.
Browse mechanic bodies collection.
