Stellar · VSI Upfitters

Stellar™ Light-Duty Electric-Hydraulic Cranes

3315–6521 class telescopic cranes for intermittent / light mechanic duty — EH or hydraulic power options.

Request quote (303) 287-5732

Stellar 5521 electric-hydraulic light-duty crane

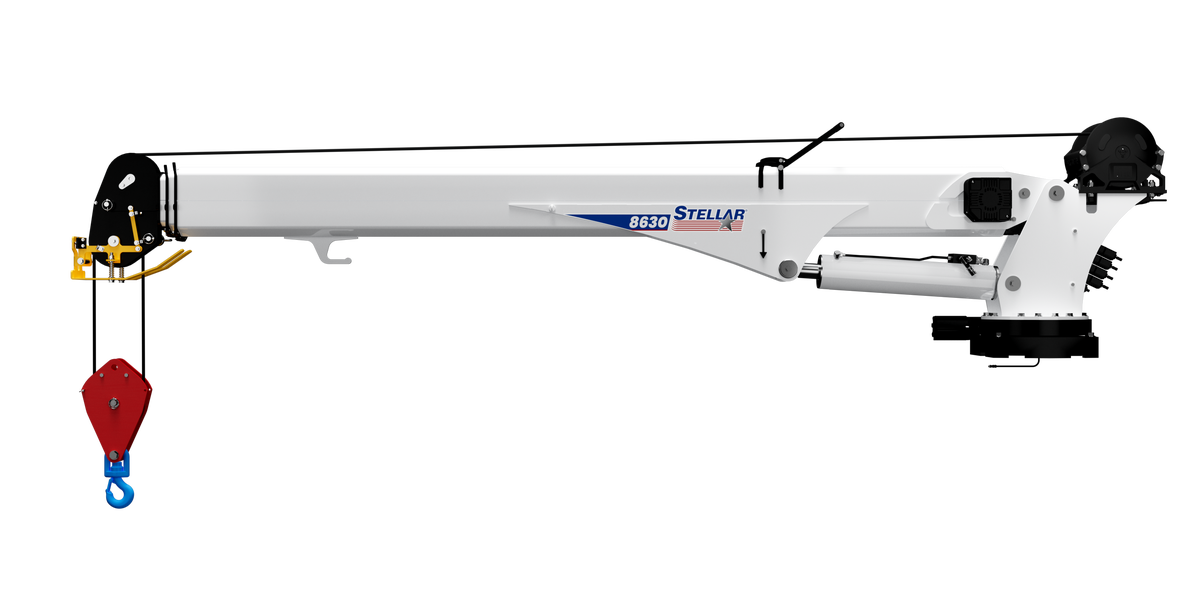

Stellar 8630 hydraulic crane
Light-duty crane on TMAX 1 package

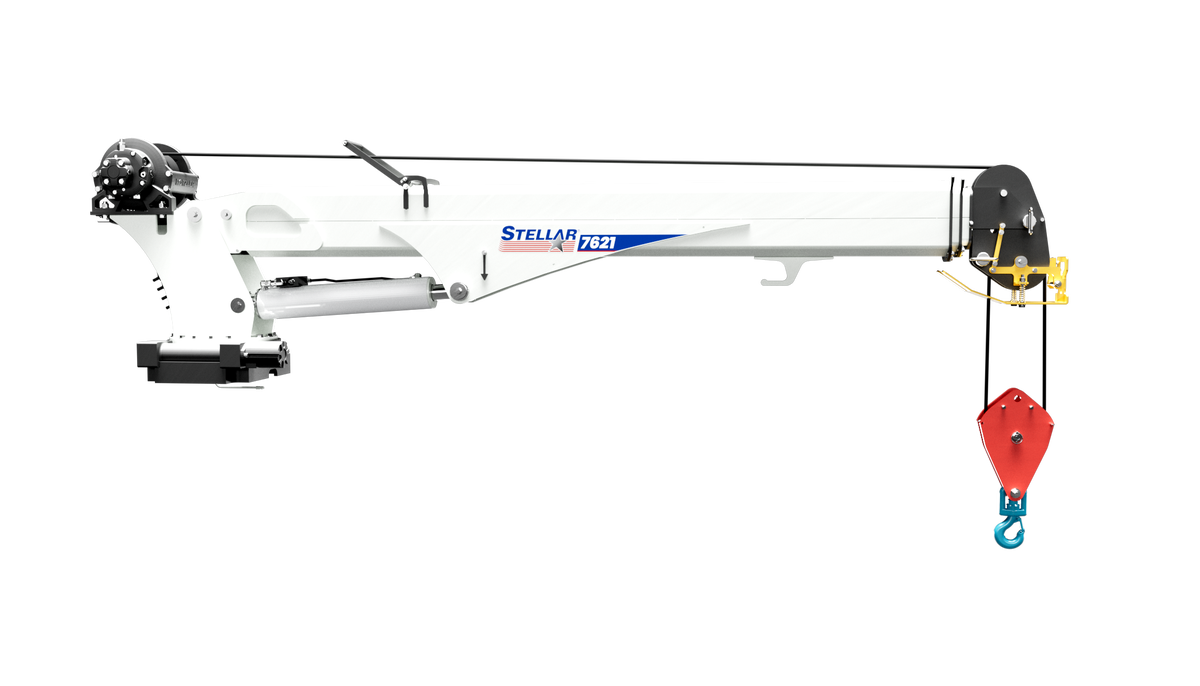

Stellar 7621 hydraulic steel crane

Why this series

  • Boom elevation typically -10° to +80°
  • Planetary winch; counterbalance valves
  • ANSI B30.5 / OSHA 1910.180 framing
  • CDT or On/Off control options on quote

Models

3315 — diagram

3315

  • Capacity 3,200 lb
  • Reach 15'
  • Rating ~11,500 ft-lb
Product
4421 — diagram

4421

  • Capacity 4,000 lb
  • Reach 21'
  • Rating ~16,000 ft-lb
Product
5521 — diagram

5521

  • Capacity 5,000 lb
  • Reach 21'
  • Rating boost ~29,500 ft-lb
Product
6521 — diagram

6521

  • Capacity 6,000 lb
  • Reach 21'
  • Rating boost ~35,000 ft-lb
Product

Choose EH/light telescopic for intermittent use. Move to heavy hydraulic (76xx–14530) for daily high-cycle mechanic work. Consider EC when no PTO is preferred.

Often quoted with

Quote min chassis GVWR, power option (12V EH vs PTO hyd), remote type, and matched body. · OEM lit: EH cranes hub (OEM)

Request a quote

Wholesale pricing via VSI. Share chassis year/make/model, CA/CT, GVWR, qty, and install path (shipout / factory / dealer). Call (303) 287-5732.

Request quote (303) 287-5732
