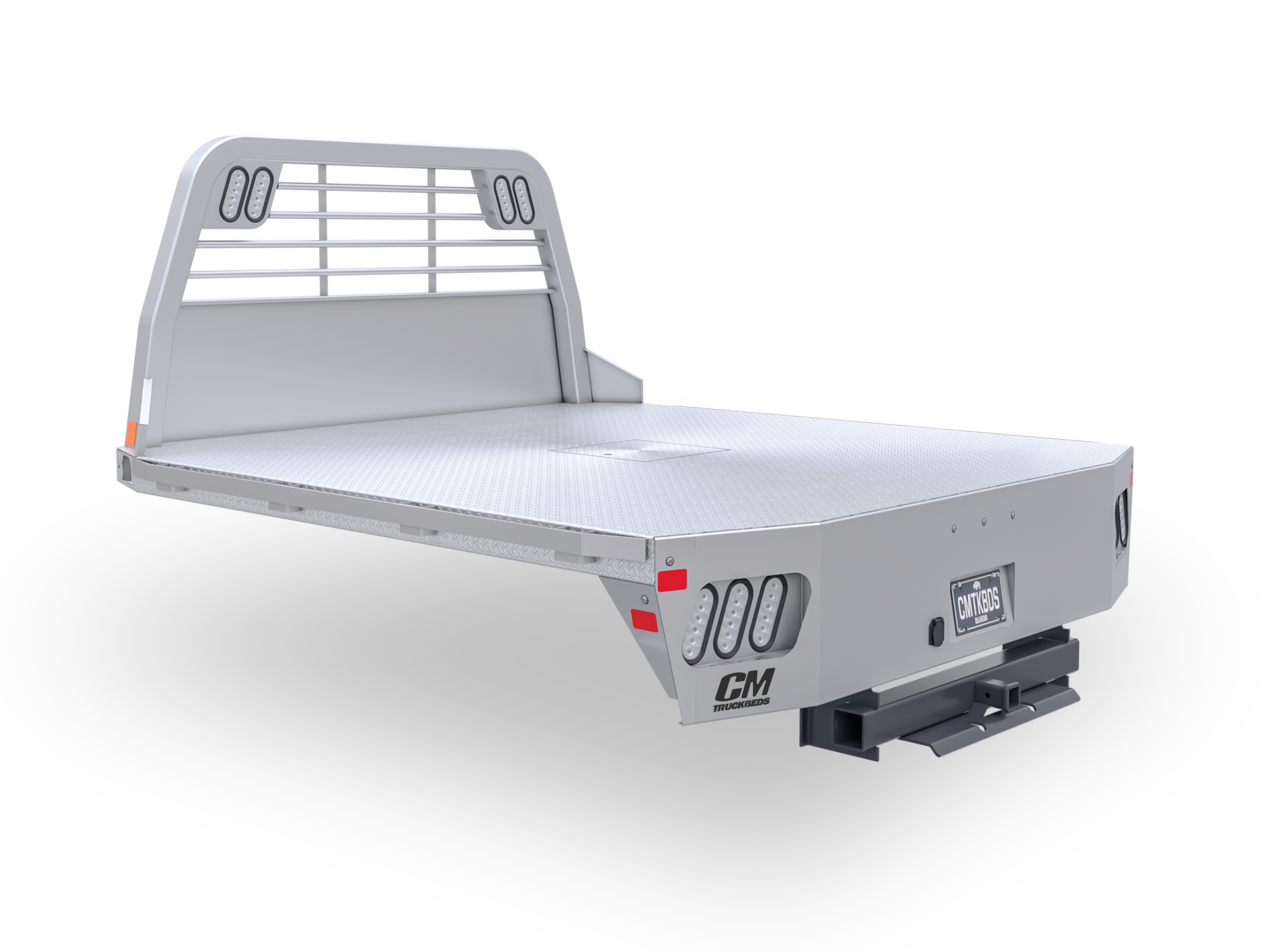

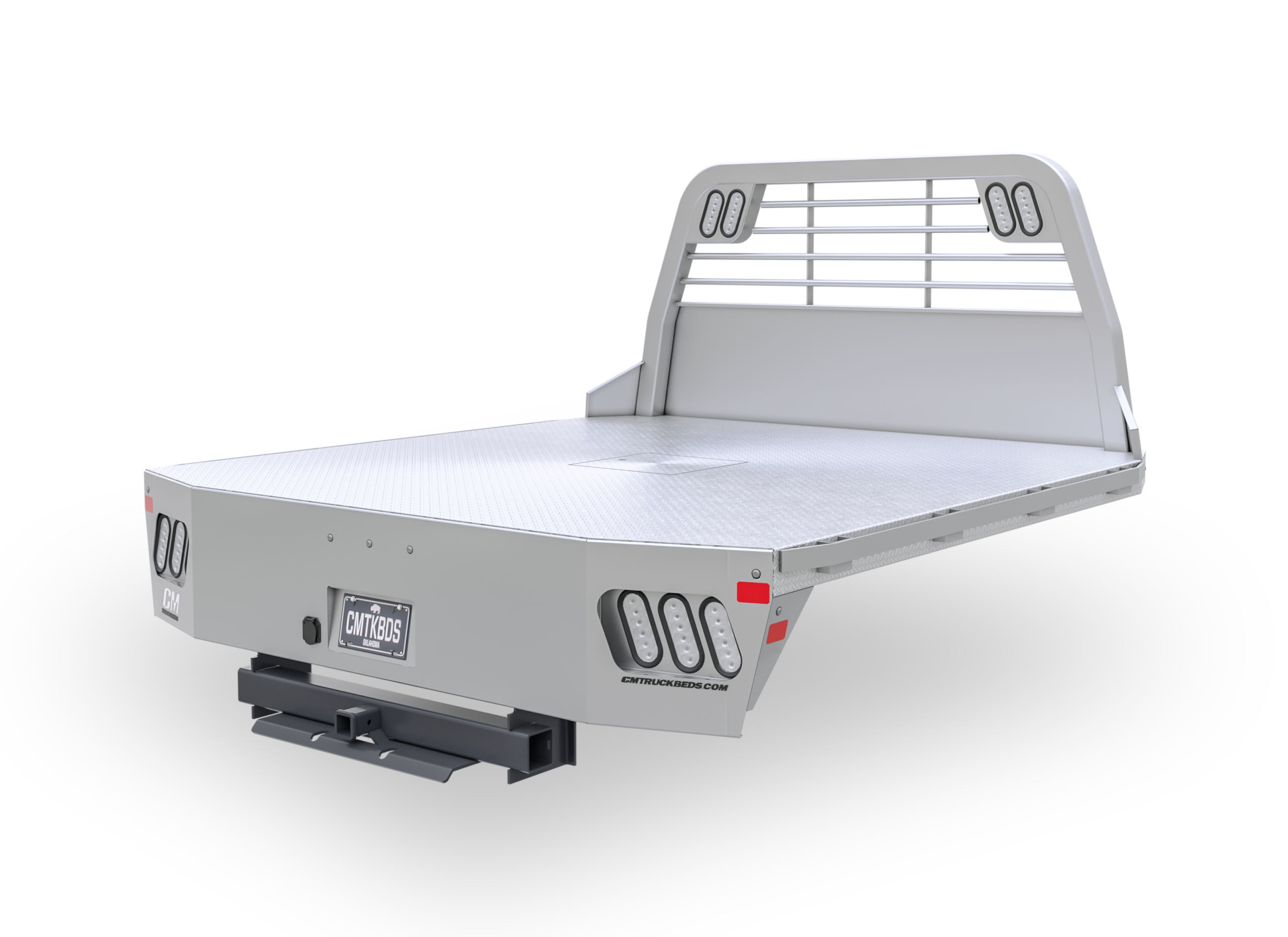

AL RD
Tough enough to haul the big loads, the popular RD models are expertly designed, professional-grade workhorses that are sized to fit almost any unit.
| LENGTHS | 84", 8'6", 9'4", 11'4" |
|---|---|
| HEADACHE RACK | Aluminum Tube |
| DECK | Extruded Aluminum Floor |
| FRAME RAILS | 4" Structural Channel Steel |
| CROSSMEMBERS | 3” Aluminum Extruded Channel |
| REAR SKIRT | Solid One Piece with Tapered Corners |
| GN HITCH | 30K B&W Hitch with Welded Ball |
| BP HITCH | 24K lb. B&W Hitch with 2 ½” Receiver Tube |
| SIDE RAILS | 3/8” x 2” Aluminum Extrusion w/Aluminum Stake Pockets |
| FUEL FILL | Angled (Cast Aluminum) |
| 12V TRAILER PLUG | 12V Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Clear LED Oval |
| LIGHT BOX (REAR SKIRT) | Aluminum |
| MARKER LIGHTING | Bullet DOT Approved LED |
| TOOLBOX | Optional Underbody |
