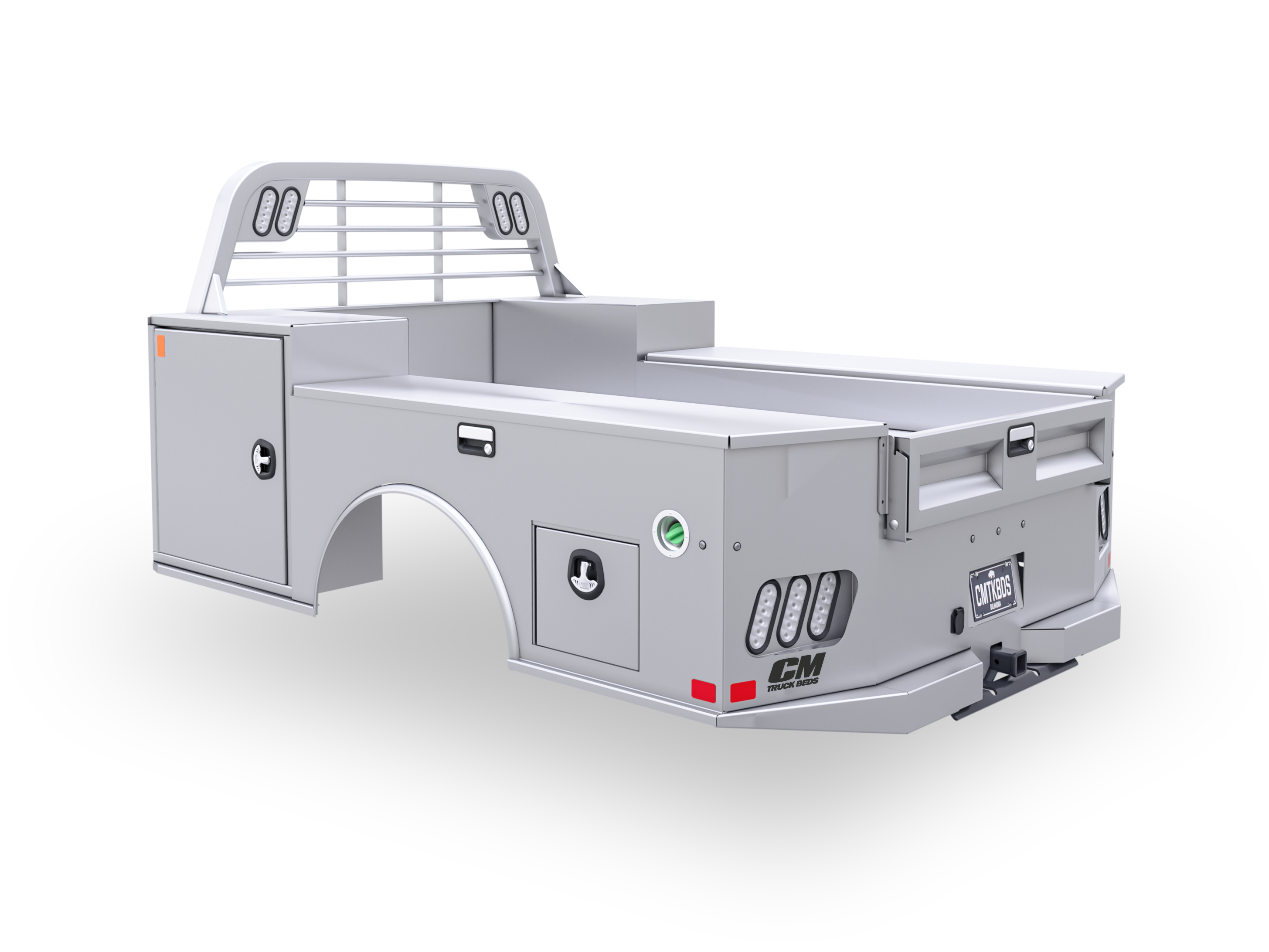

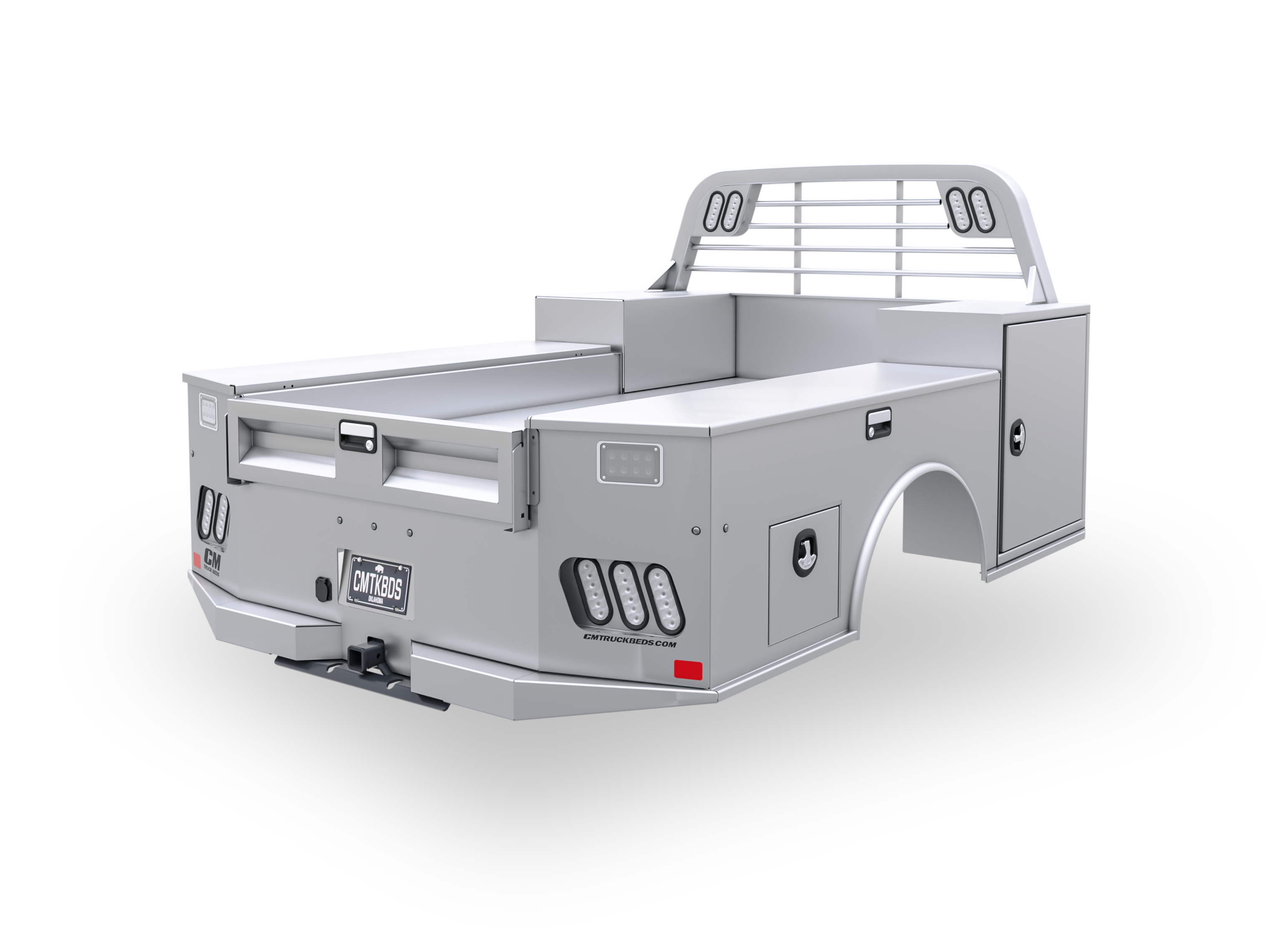

AL TM
Maximized storage and payload capacity are two of the many reasons that you will want to try our aluminum tradesman body. When you realize our storage and towing ratings, you will quickly see why the ALTM is the premiere choice of hard work.
| LENGTHS | 8’6”, 9'4", 11'4" |
|---|---|
| HEADACHE RACK | Aluminum Tube |
| DECK | Extruded Aluminum |
| FRAME RAILS | 4" Structural Channel Steel |
| CROSSMEMBERS | 3"x3" 3/16" Square Tube Crossmembers |
| REAR SKIRT | Solid One Piece with Rear Step |
| GN HITCH | 30K lb. B&W Hitch with Welded Ball in Recessed Box |
| BP HITCH | 24K lb. 2 1/2" B&W with Receiver Tube |
| SIDE RAILS | N/A |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | Clear LED Oval |
| LIGHT BOX (REAR SKIRT) | Aluminum |
| MARKER LIGHTING | Bullet DOT Approved LED |
| TOOLBOX | Utility Box in Front, Top-Open 3/4 Length Shovel Box; Low-Profile Chain Box in Rear |
| TOOLBOX HANDLE | Chrome T Handle Compression |
| FENDERS | Aluminum |
| SIDESTEPS | In front of and behind fender |
| TIEDOWNS | (4) 18" Airline Track Tiedowns, (4) Attachment Rings |
