TM

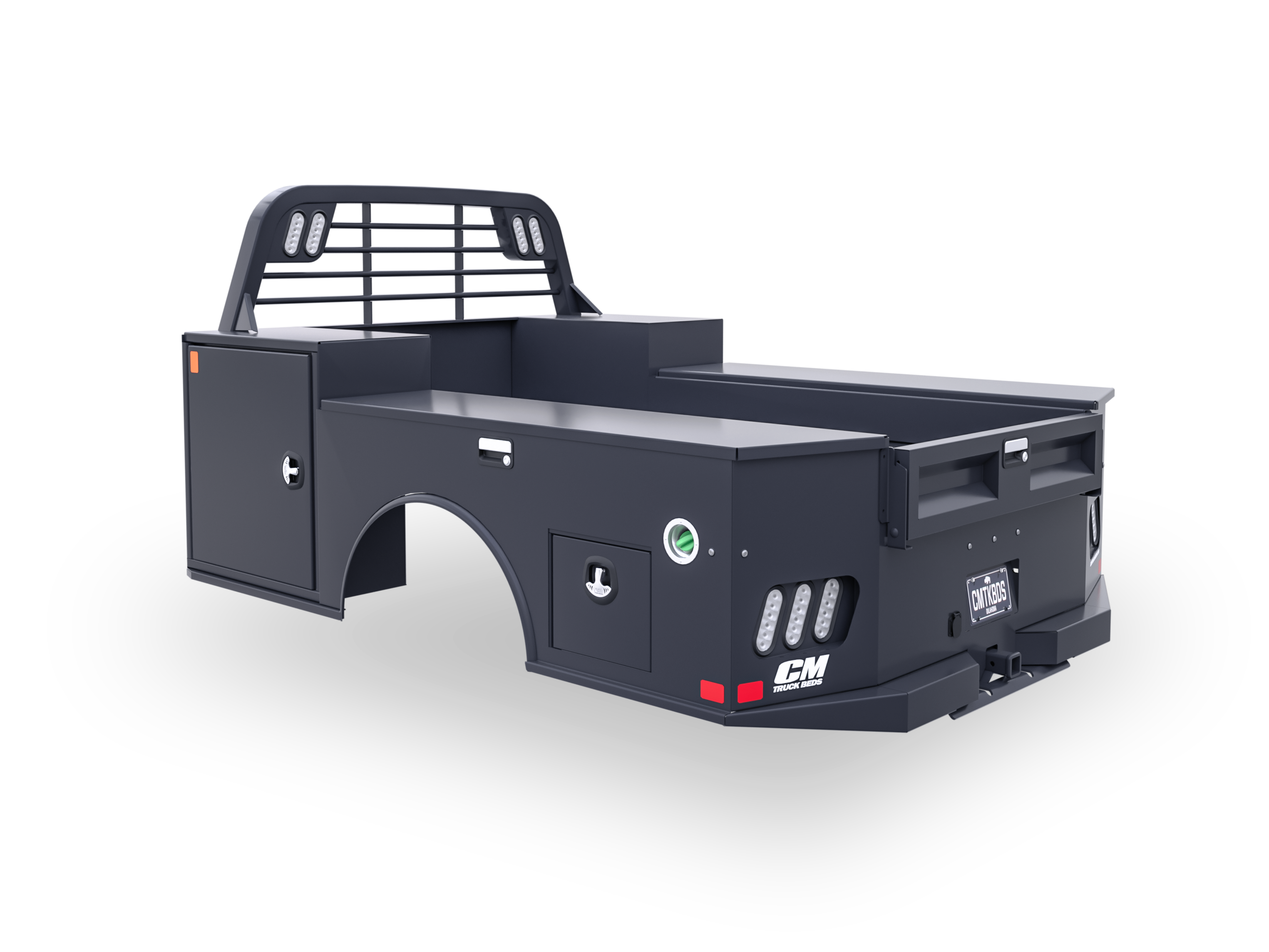

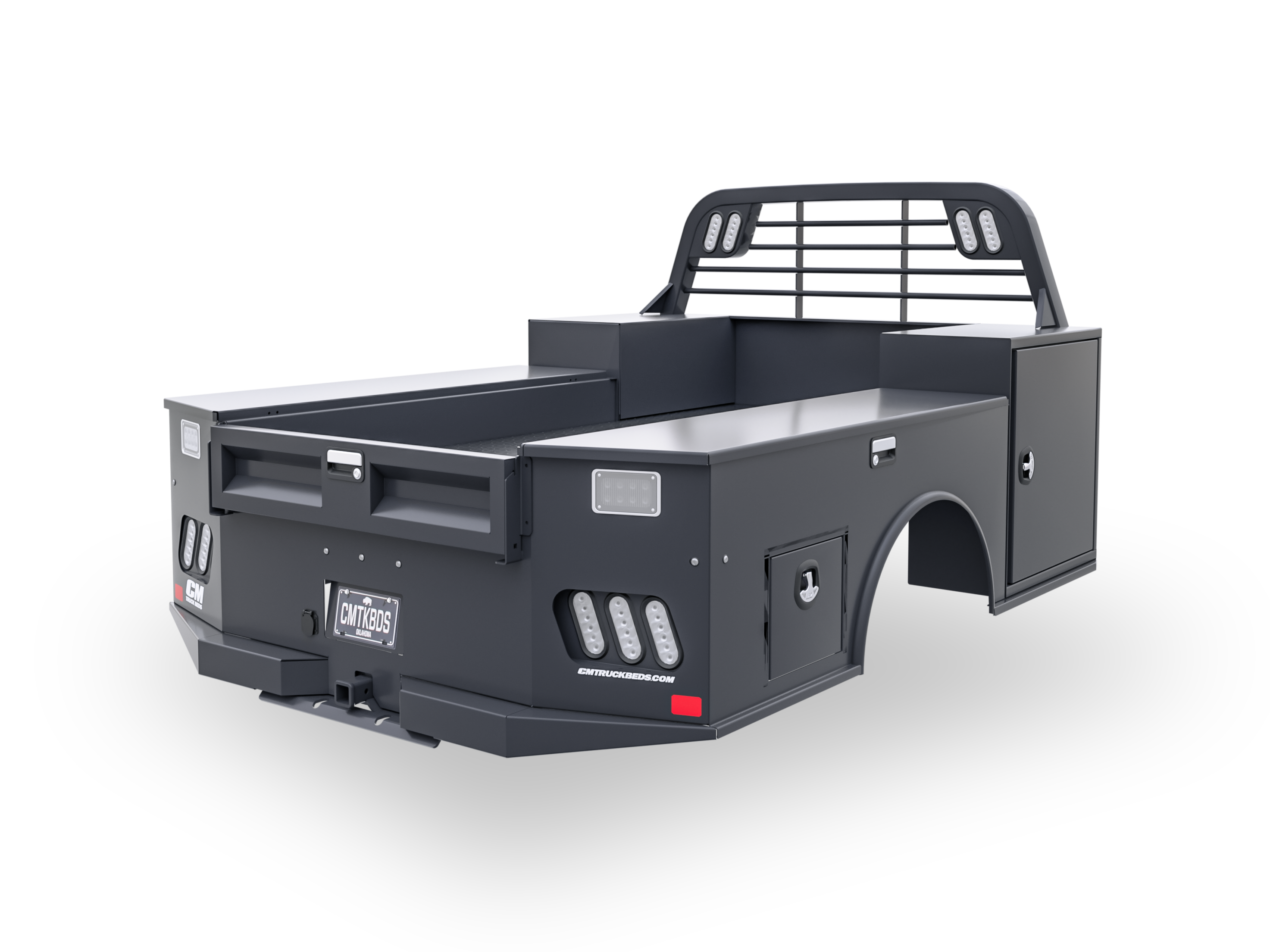

Designed to haul from bumper or gooseneck positions. Featuring an opossum belly, work light, a tall rear toolbox and a 48” wide deck, the TMX is great for single wheel chassis.
| LENGTHS | 84", 8'6", 9'4", 11'4" |
|---|---|
| HEADACHE RACK | Steel Tube |
| DECK | 1/8" Treadplate |
| FRAME RAILS | 4" Structural Channel Steel |
| CROSSMEMBERS | 3" x 3/16" Channel |
| REAR SKIRT | Solid One Piece with Rear Step |
| GN HITCH | 30K B&W Hitch with Welded Ball |
| BP HITCH | 24K B&W 2 ½” receiver hitch with receiver tube |
| SIDE RAILS | N/A |
| FUEL FILL | Angled |
| 12V TRAILER PLUG | 12V Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear |
| REAR LIGHTING | LED High Intensity |
| LIGHT BOX (REAR SKIRT) | Steel |
| MARKER LIGHTING | Bullet DOT Approved LED |
| TOOLBOX | Utility Box in Front, Top-Open 3/4 Length Shovel Box; Low-Profile Chain Box in rear |
| TOOLBOX HANDLE | Chrome T Handle Compression |
| TOOLBOXES (SPECIAL SIZES) | (11'4" Models Only) 54" Recessed Front Toolbox with Suicide Doors, No Chain Box |
| FENDERS | Steel Radius |
| SIDESTEPS | In front of and behind fender |
| TIEDOWNS | (4) 18" Airline Track Tiedowns, (4) Attachment Rings |
