Quoted & installed by VSI Upfitters
Mechanics bodies & cranes
Mechanic bodies and cranes, spec'd and installed together. A mechanic body adds the structure for a crane, air compressor and power to a service body. VSI is a Stellar dealer and installs Stellar TMAX mechanic bodies, sized by crane from the TMAX 16K to the TMAX 3. We match the body and crane to your chassis, GVWR and heaviest lift.
Lines we install

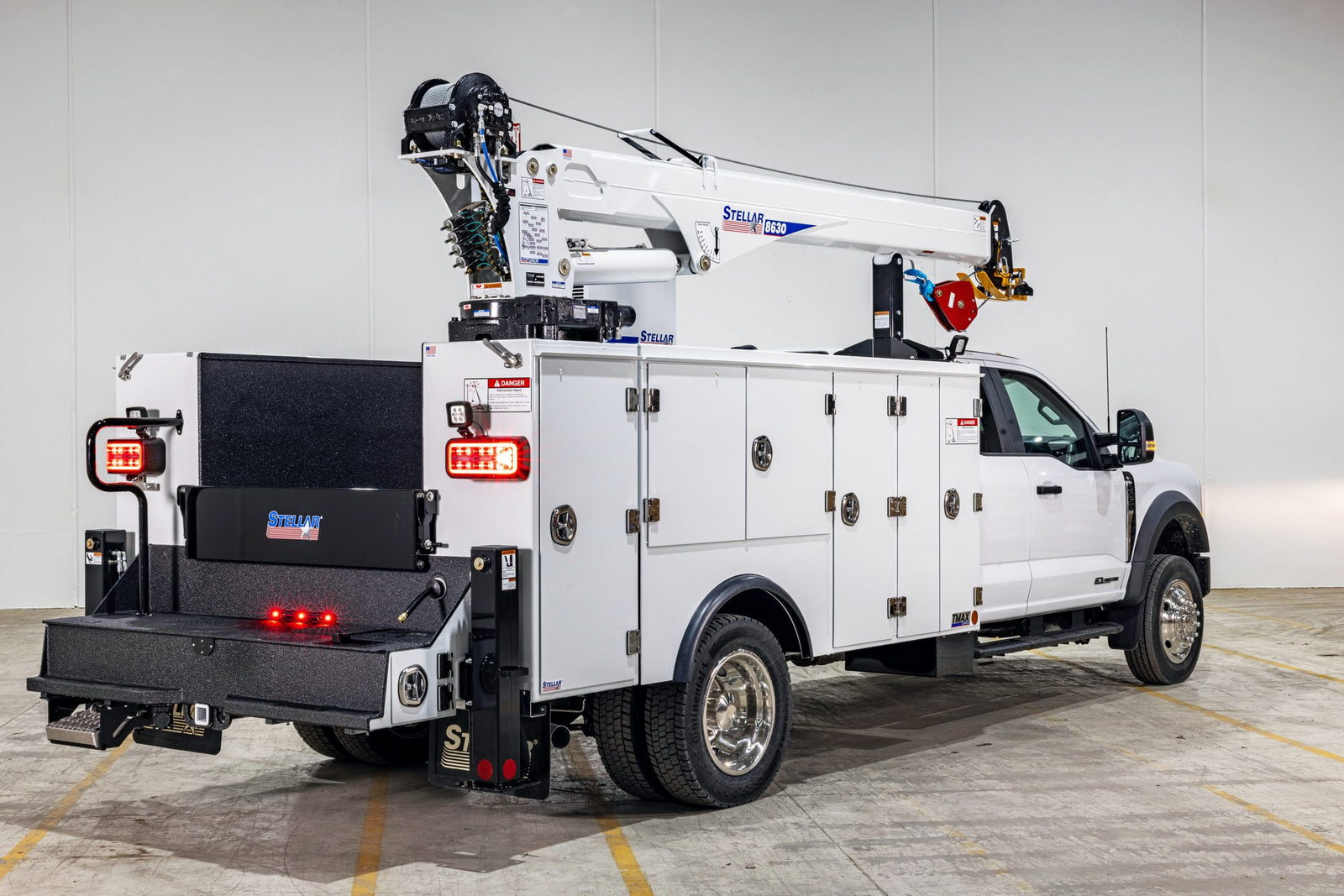

StellarStellar TMAX mechanic bodies (TMAX 1, 2, 3 and LCF)
Mechanic bodies built around the crane, with the compressor, power and storage installed together. VSI is a Stellar dealer.
StellarStellar electric-hydraulic cranes (3315, 4421, 5521, 6521)
Service cranes for pickups and service bodies, 11,500 to 35,000 ft-lb.
StellarStellar hydraulic telescopic cranes
Larger cranes for TMAX mechanic bodies.
StellarStellar EC electric cranes
Compact electric cranes for lighter lifts.
We build these to your truck. Everything in this category is quoted and installed to order — tell us your truck or van and the job and we’ll confirm fitment and price.
Get a quoteCOMING SOON!
Which one fits
1. Lift at reach
A crane's capacity drops as the boom extends. Size it for your heaviest lift at the distance you'll actually reach. A Stellar 3315 lifts 3,200 lb at 3'7" but 765 lb at 15'.
2. Electric or hydraulic
Electric-hydraulic cranes run off the truck battery and suit lighter, occasional lifts. Hydraulic cranes need a PTO and pump but lift more, more often.
3. Body and chassis
The body must be built for the crane, with reinforcement and outriggers. Stellar TMAX mechanic bodies are sized to their cranes. TMAX bodies need the right CA and GVWR for the crane; send the chassis and we'll confirm.
Specs
Stellar electric-hydraulic cranes
| Model | Crane rating | Max lift (at radius) | Lift at max reach | Max reach | Weight (electric) |
|---|---|---|---|---|---|
| 3315 | 11,500 ft-lb | 3,200 lb @ 3'7" | 765 lb @ 15' | 15' | 940 lb |
| 4421 | 16,000 ft-lb | 4,000 lb @ 4' | 760 lb @ 21' | 21' | 1,090 lb |
| 5521 | 25,000 ft-lb (29,500 boost) | 5,000 lb @ 5'10" (boost) | 1,400 lb @ 21' | 21' | 1,390 lb |
| 6521 | 30,000 ft-lb (35,000 boost) | 6,000 lb @ 5'10" (boost) | 1,680 lb @ 21' | 21' | 1,390 lb |
Specs and weights are supplied by the manufacturer and may vary. Confirm details with VSI before ordering.
Sources: Stellar Technical Specification Guides (3315, 4421, 5521, 6521). We confirm fitment and weights on every quote.
Questions
Can I put a crane on my existing service body?
Only if the body is built or reinforced for it. Send the body make and model. Often a crane body or a TMAX is the right answer.
Do you build the whole mechanics truck?
Yes. We spec the chassis, Stellar TMAX body, crane, compressor and power together and install the package at our Commerce City shop.
Will a crane push my truck over the CDL line?
It can. A Class B CDL applies at 26,001 lb GVWR and up. We spec the chassis, body and crane together.
Guides & resources
Tell us the heaviest lift and the chassis.
We'll match the TMAX body, crane and air and install them together.
