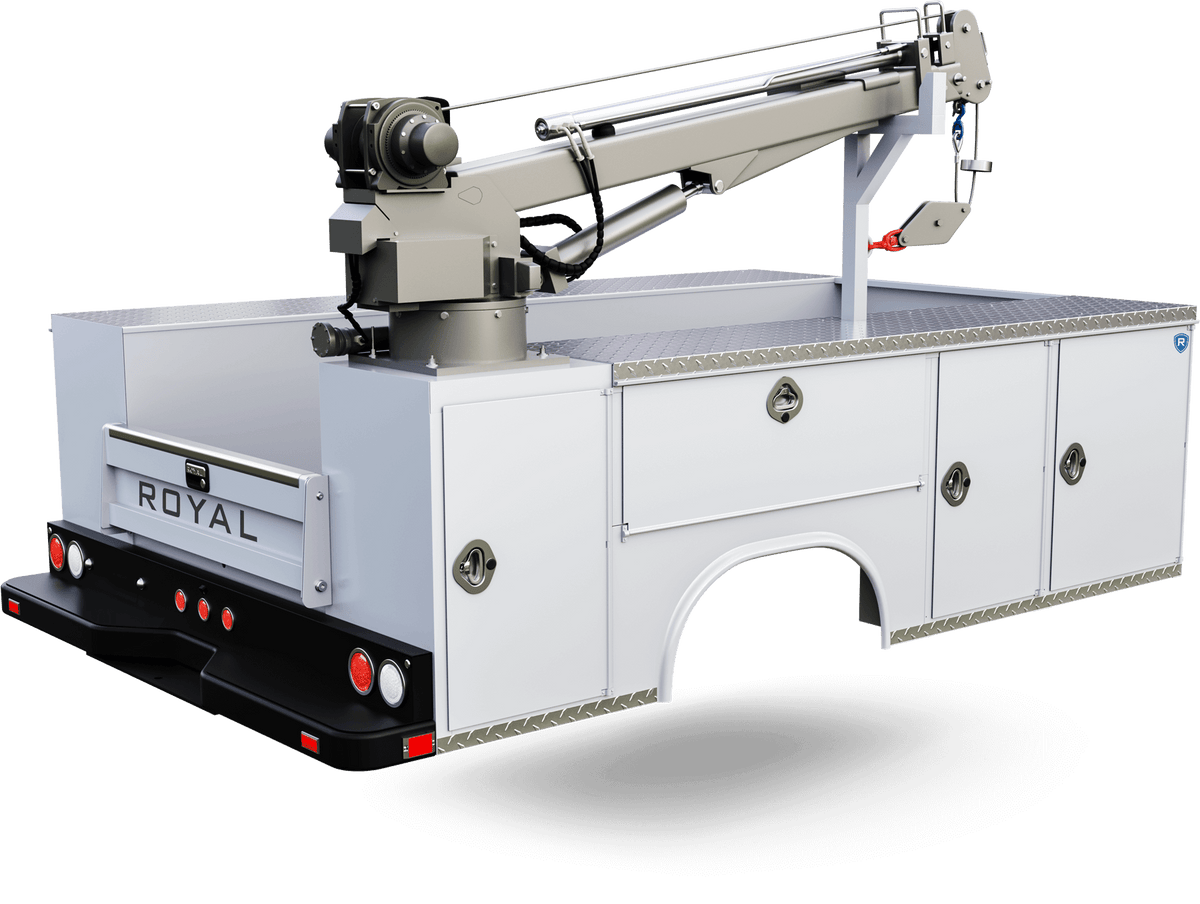

Royal 11' Crane Body Standard DRW
The Royal 11′ Crane Body Standard DRW (CR5-40-VD-132) is a crane / mechanic body from Royal Truck Body, 132" long x 40" high. Designed for a dual rear wheel truck with an 84″ cab-to-axle.
| Model code | CR5-40-VD-132 |
|---|---|
| Length | 132" |
| Height | 40" |
| Body Width | 93" |
| Compartment Depth | 22" |
| Floor Width | 49" |
| Storage Capacity | 106 |
| Cargo Area (sq. ft) | 44.9 |
Standard features
- 12 GA diamond plate steel floor on 10 GA. Cross members
- Polished aluminum diamond plate gravel & splash guards
- Polished aluminum diamond plate overlay on top lids
- Hot rolled steel crane compartment wrap & 1″ thick top plate
- Double paneled, self-supporting, self-leveling tail gate w/ locking paddle handle utilizing the one-key solution
- Integrated fender flares
- Double paneled compartment doors
- Split double doors on front and over wheel compartments
- Rain gutters above all doors
- Weather stripping on all compartment interiors
- Fortress 5-point security hardware utilizing the one-key solution automotive lock package
- Trademarked rivet free stainless steel door pockets with internal fasteners
- Zinc-plated door lock rods
- Gas shocks on all vertical doors
- Chain stops on horizontal doors
- 8″ recessed royal bumper
- Legal led light package recessed in bumper kick plate
- Lock in place, adjustable shelves in compartments on 2″ centers
- 4 tie downs in bed area
- Axalta brand imron elite automotive grade paint
- 1900 emulsion undercoating
Specifications from Royal Truck Body. Options, chassis fit and lead time are confirmed on your quote.
