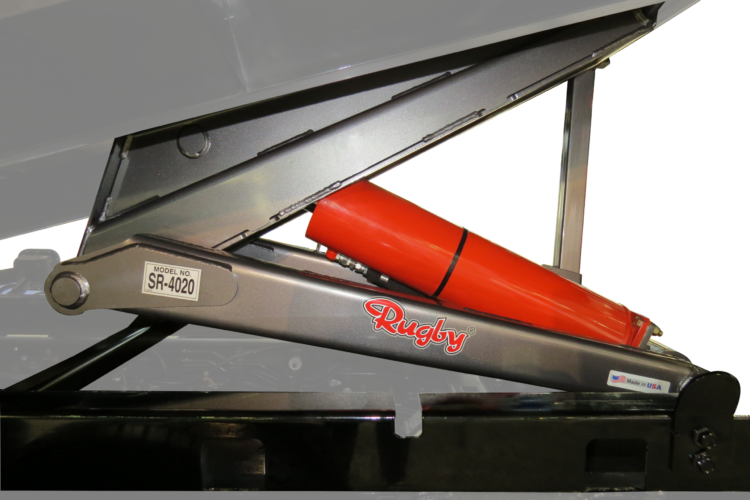

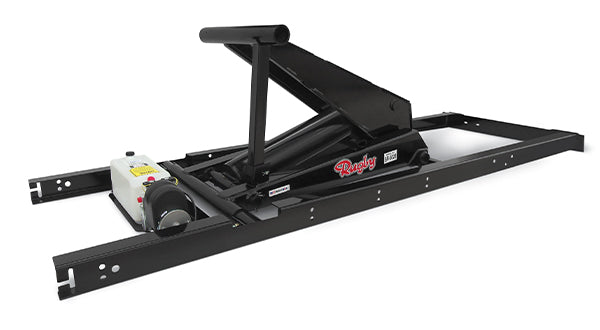

Rugby SR-4020 Subframe Scissor Hoist
The Rugby SR-4020 is an SR Series subframe scissor hoist. SR hoists include a built-in body prop and table-top rear hinge and are designed to cut installation time by an estimated 10-15%; subframes are available for 60" CA and 84" CA chassis. Black powder coated, with Rugby's 3-year warranty.
| Model | SR-4020 |
|---|---|
| Series | SR Series subframe scissor hoist |
| Body lengths | 9' - 14' |
| NTEA class | D / 40 |
| Cylinders | 1 |
| Bore | 5.5" |
| Stroke | 20" |
| Rod diameter | 2.25" |
| Mounting height | 10.5" |
| Recommended CA/CT | 60 - 108" CA |
| Capacity range | 9.6 - 13.3 T |
| Approx. weight | 650 lbs |
| Available hydraulics | SA, DA, DM |
Capacity range includes both payload and body weight, based on 3,200 PSI with a water-level load; see Rugby's capacity reference charts for your body length. Hydraulics: SA = single acting, DA = double acting, DM = direct mount.
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
