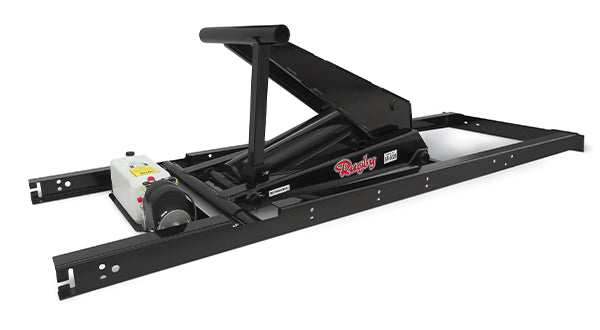

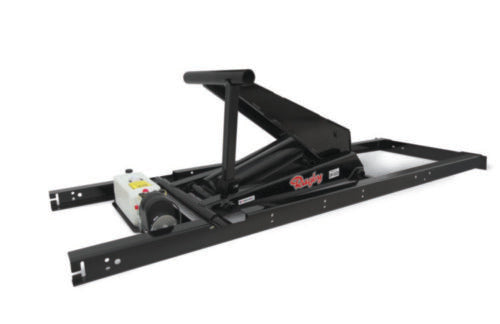

Rugby SR-5020 Subframe Scissor Hoist
The Rugby SR-5020 is an SR Series subframe scissor hoist. SR hoists include a built-in body prop and table-top rear hinge and are designed to cut installation time by an estimated 10-15%; subframes are available for 60" CA and 84" CA chassis. Black powder coated, with Rugby's 3-year warranty.
| Model | SR-5020 |
|---|---|
| Series | SR Series subframe scissor hoist |
| Body lengths | 10' - 14' |
| NTEA class | E / 50 |
| Cylinders | 1 |
| Bore | 6" |
| Stroke | 20" |
| Rod diameter | 2.5" |
| Mounting height | 11.3" |
| Recommended CA/CT | 84 - 120" CA |
| Capacity range | 10.8 - 17 T |
| Approx. weight | 710 lbs |
| Available hydraulics | DA, DM |
Capacity range includes both payload and body weight, based on 3,200 PSI with a water-level load; see Rugby's capacity reference charts for your body length. Hydraulics: SA = single acting, DA = double acting, DM = direct mount.
Specifications from Rugby Manufacturing. Model selection, hydraulics and chassis fit are confirmed on your quote.
