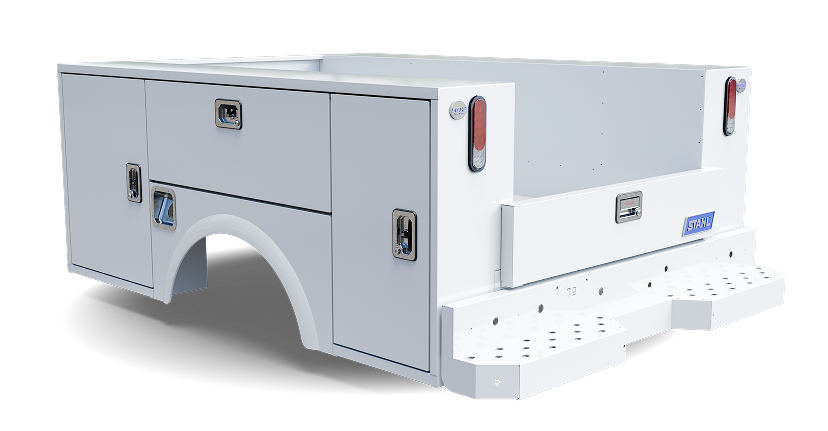

STAHL Challenger Pro 134" Open Service Body
By Stahl
The STAHL Challenger Pro is an open service truck body built from heavy-gauge, zinc-coated galvanneal steel and powder coated for durability. Standardized compartment layouts with adjustable trays and dividers, keyed-alike locks, hidden hinges and weather-tight seals keep tools organized and protected.
| Model | PRO134VVD |
|---|---|
| Body length (less bumper) | 134" |
| Loadspace floor width | 48.5" / 52.5" |
| Overall body width | 92" / 96" |
| Cab-to-axle requirement | 84" |
| Second vertical compartment | Yes (front, second and rear verticals each side) |
| Bulkhead | 14 ga. galvanneal steel |
| Front / rear crossmembers | 7 ga. hot-rolled formed channels |
| Intermediate crossmembers | SRW 12 ga.; DRW 10 ga. galvanneal |
| Compartment tops | 14 ga. galvanneal (one-piece with loadspace centers) |
| Compartment bottoms | 16 ga. galvanneal |
| Doors | 18 ga. galvanneal, double panel |
| Floor | 12 ga. embossed galvanneal treadplate |
| Shelving | 16 ga. galvanized, 250 lb static load each |
| Tailgate | 16 ga. galvanneal, double panel |
Standard dimensions
| Front vertical width / clear door | 33.44" / 27.50" |
|---|
Standard features
- Two-sided zinc-coated galvanneal steel construction
- Gloss white TGIC polyester powder coat (exterior, compartments and cargo area)
- Concealed bolt-on compartment door hinges
- Stainless steel T-handle compression latches, keyed alike
- Automotive-style door seal and gas shock door holders
- Fully recessed floor tie-down rings
- Plug-and-play LED rear lighting with harness
- Undercoated floor and wheel wells
Specifications from STAHL literature. Final layout, options and chassis fit are confirmed on your quote.
