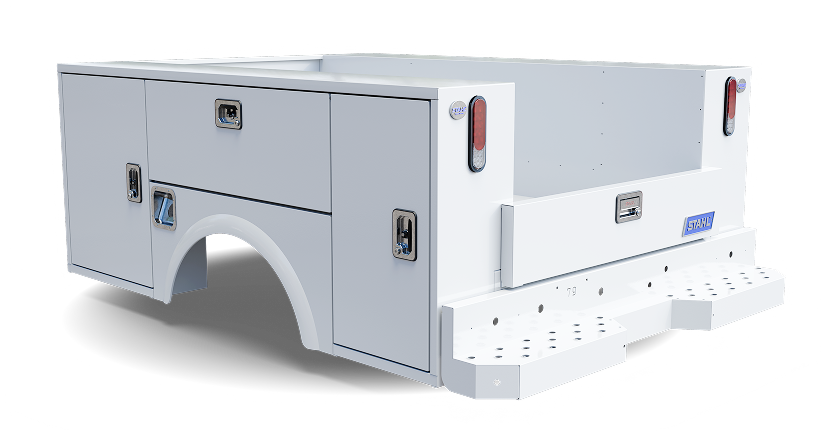

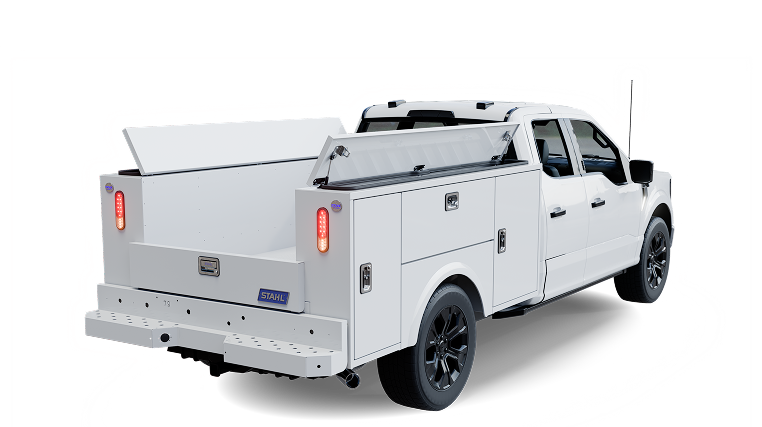

STAHL Challenger Pro 98" Open Service Body
By Stahl
The STAHL Challenger Pro is an open service truck body built from heavy-gauge, zinc-coated galvanneal steel and powder coated for durability. Standardized compartment layouts with adjustable trays and dividers, keyed-alike locks, hidden hinges and weather-tight seals keep tools organized and protected.
| Models | PRO98VVS (single rear wheel) / PRO98VVD (dual rear wheel) |
|---|---|
| Body length (less bumper) | 98" |
| Loadspace floor width | 48.5" (VVS) / 52.5" (VVD) |
| Overall body width | 79.98" (VVS) / 96" (VVD) |
| Cab-to-axle requirement | 56" |
| Side compartment depth | 13.84" (VVS) / 19.84" (VVD) |
| Floor to compartment top | 25.5" |
| Integrated Top Pak bin | 92" L x 10" W x 3" D (SRW); 92" L x 16" W x 3" D (DRW) |
| Bulkhead | 14 ga. galvanneal steel |
| Front / rear crossmembers | 7 ga. hot-rolled formed channels |
| Intermediate crossmembers | SRW 12 ga.; DRW 10 ga. galvanneal |
| Compartment tops | 14 ga. galvanneal (one-piece with loadspace centers) |
| Compartment bottoms | 16 ga. galvanneal |
| Doors | 18 ga. galvanneal, double panel |
| Floor | 12 ga. embossed galvanneal treadplate |
| Shelving | 16 ga. galvanized, 250 lb static load each |
| Tailgate | 16 ga. galvanneal, double panel |
Standard dimensions
| Front vertical width / clear door | 29.81" / 23.88" |
|---|---|
| Horizontal width / clear door | 47.19" / 45.31" |
| Rear vertical width / clear door | 21" / 15.25" |
| Vertical comp. height / clear door | 39.5" / 33.13" |
| Horizontal comp. height / clear door | 18.07" / 13.19" |
| Tailgate height above floor / overall | 9.10" / 11.22" |
Standard features
- Two-sided zinc-coated galvanneal steel construction
- Gloss white TGIC polyester powder coat (exterior, compartments and cargo area)
- Concealed bolt-on compartment door hinges
- Stainless steel T-handle compression latches, keyed alike
- Automotive-style door seal and gas shock door holders
- Fully recessed floor tie-down rings
- Plug-and-play LED rear lighting with harness
- Undercoated floor and wheel wells
Specifications from STAHL literature. Final layout, options and chassis fit are confirmed on your quote.
